DORMER A100N76 Jobber Drills

Product Code: A100N76

$13.49$12.26 Ex. GST

Product Code: A100N76 SKU A100N76 Categories , ,

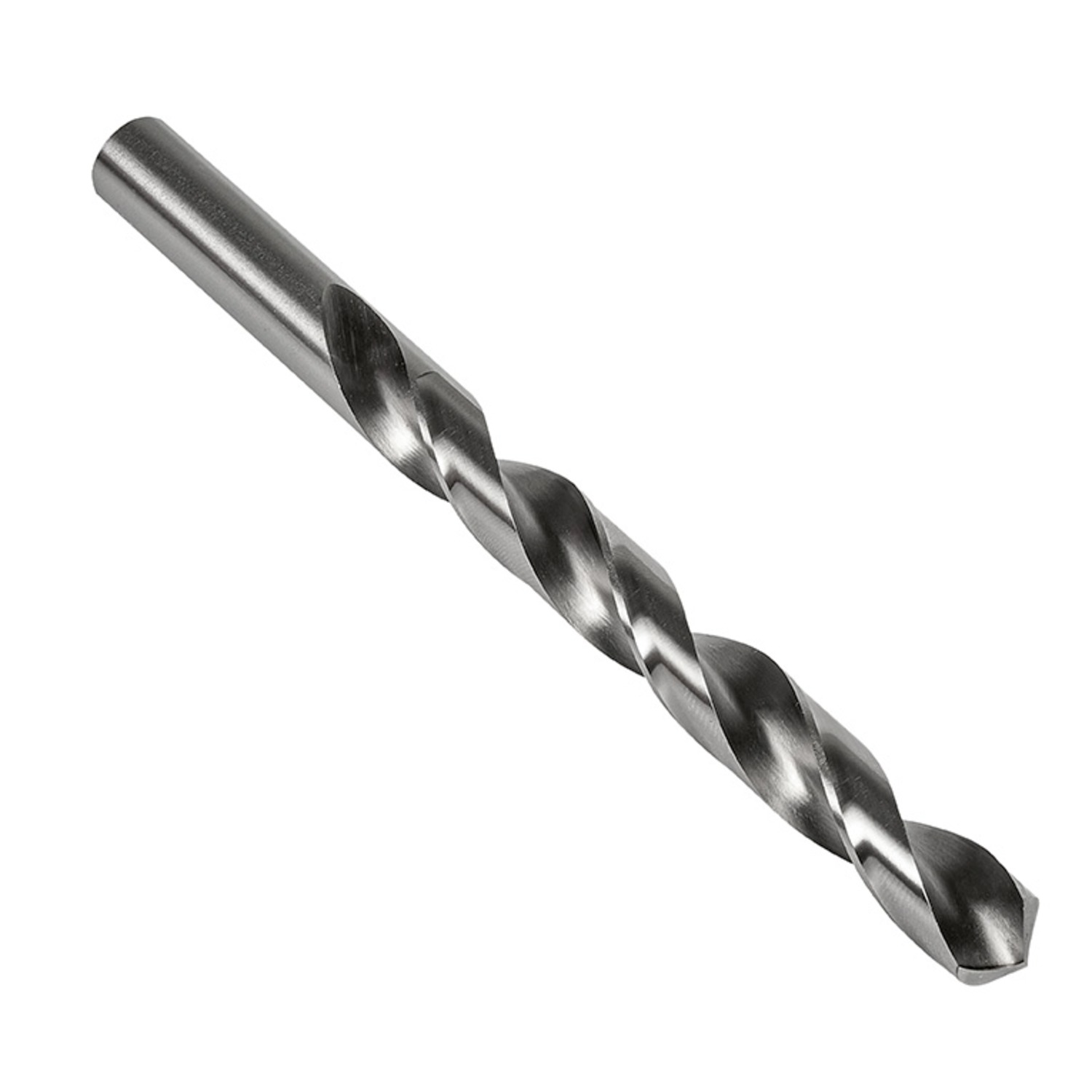

DORMER A100N76 Jobber Drills

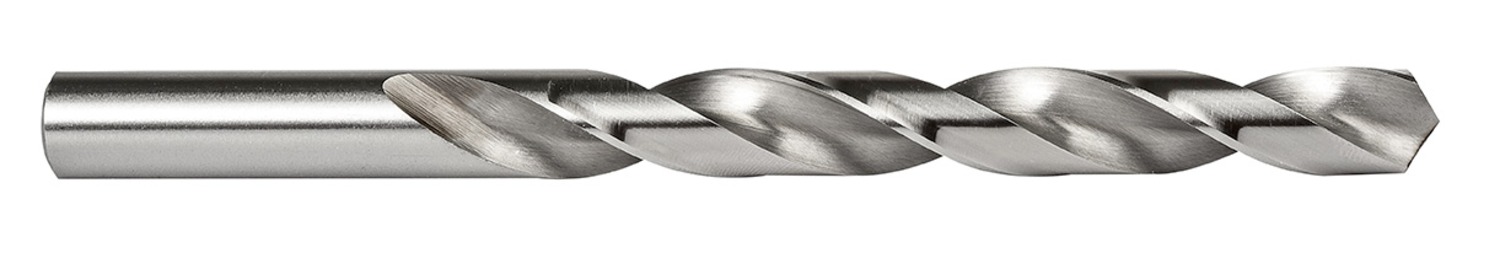

DORMER A100N76 Jobber Drills - Image 2

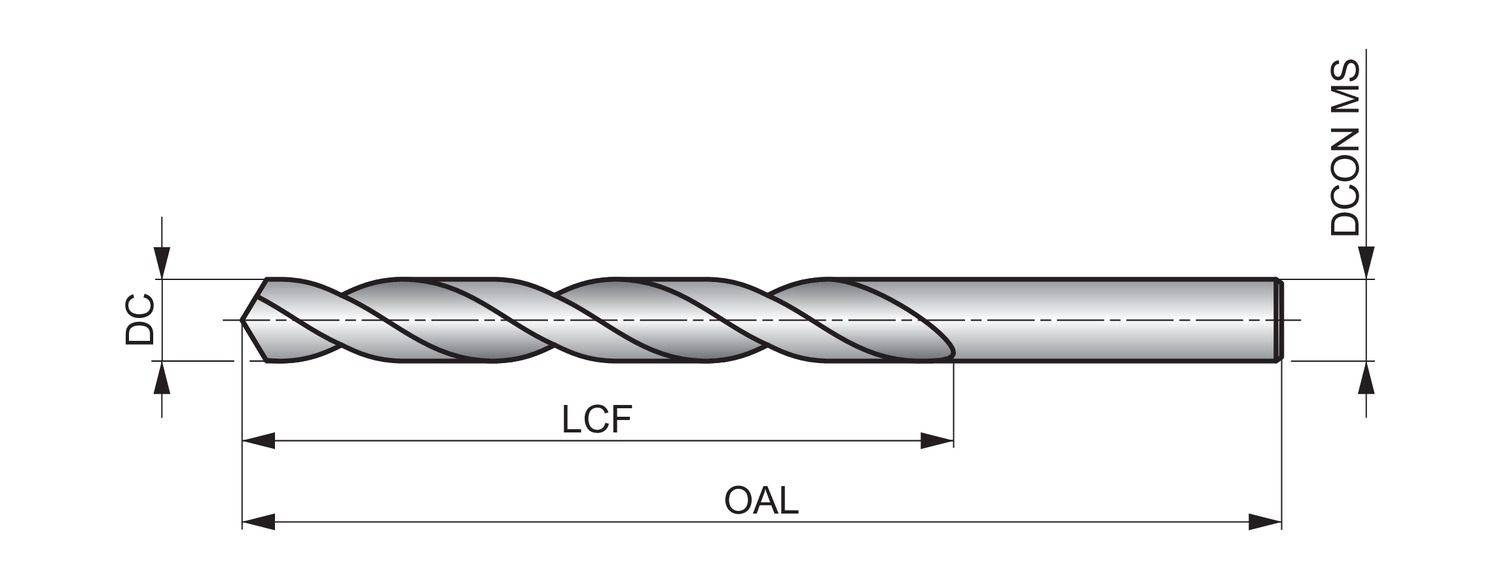

DORMER A100N76 Jobber Drills - Image 3

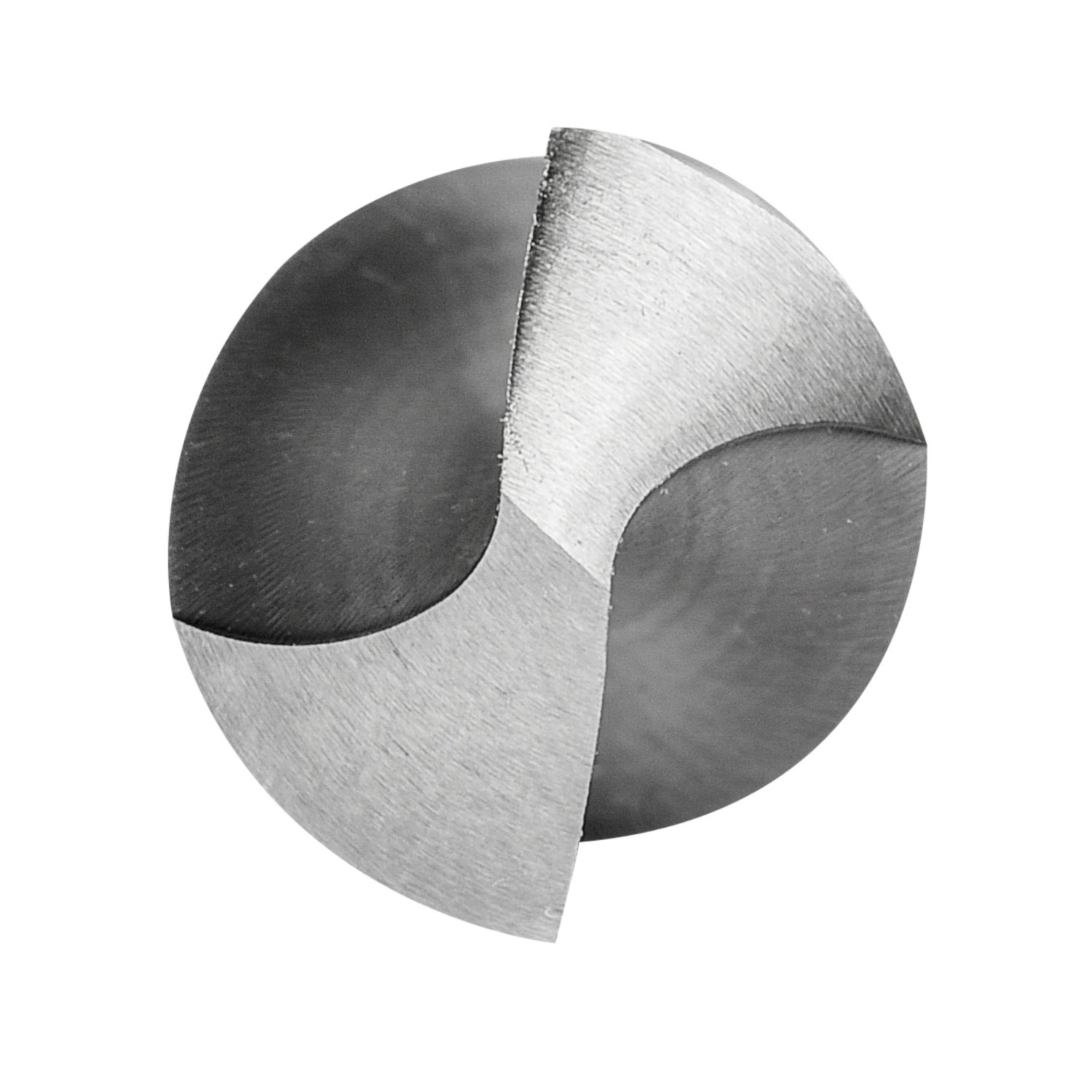

DORMER A100N76 Jobber Drills - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Jobber length drill with straight shank, diameter 0.0200″ (N76) with an overall length of 22mm and flute length of 6mm according to DIN 338 standard with 118° point angle, HSS with bright finish for 4xD drilling without pecking in steel

Additional information

Weight 0.0131 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760029435
Product number (SAP): 86008675
Ordering code ANSI: A100N76
Gross weight – grams: 0.2
Cutting diameter (wire gauge size) (DC): N76
Cutting diameter – millimeter (DC): 0.51 mm
Cutting diameter – inch (DC): 0.02 inch
Length chip flute – millimeter (LCF): 6 mm
Overall length – millimeter (OAL): 22 mm
Connection diameter – millimeter (DCON MS): 0.51 mm
Length chip flute – inch (LCF): 0.2362 inch
ISO: A100N76

Brand

DORMER
