DORMER A100N80 Jobber Drills

Product Code: A100N80

$16.09$14.63 Ex. GST

Product Code: A100N80 SKU A100N80 Categories , ,

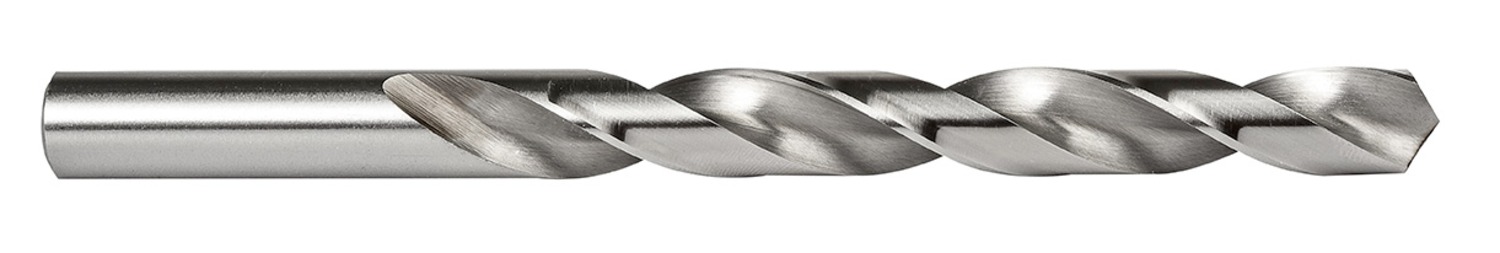

DORMER A100N80 Jobber Drills

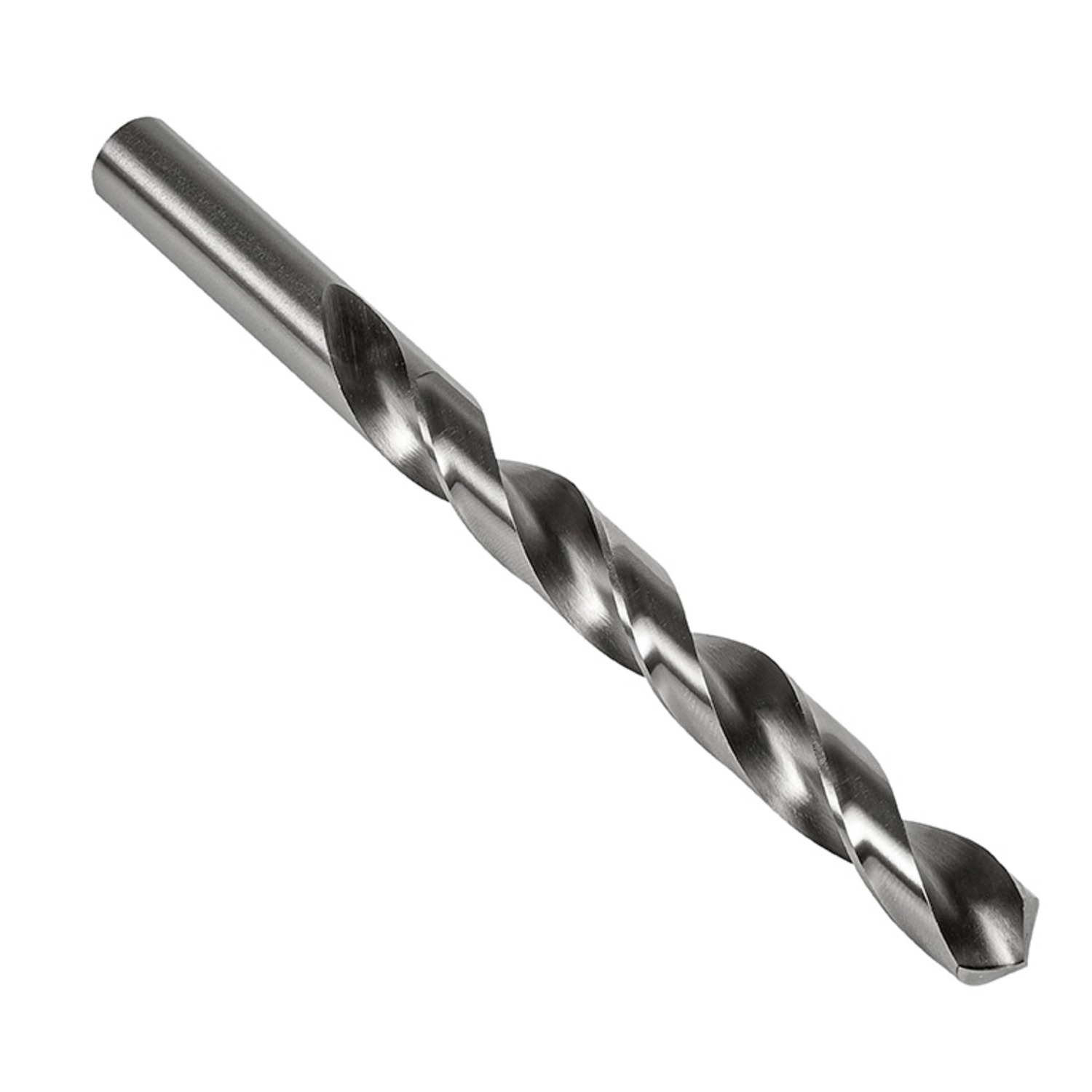

DORMER A100N80 Jobber Drills - Image 2

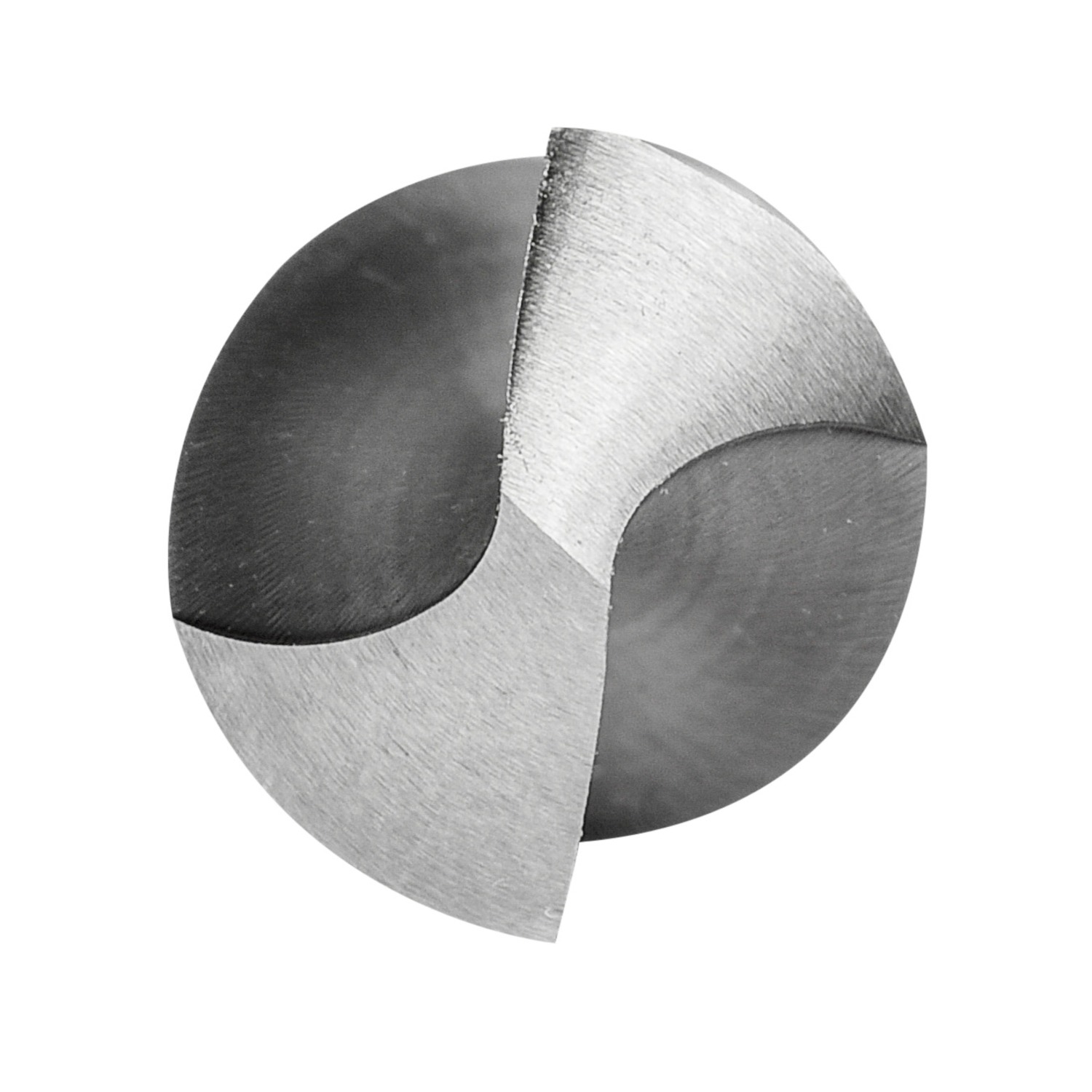

DORMER A100N80 Jobber Drills - Image 3
DORMER A100N80 Jobber Drills - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Jobber length drill with straight shank, diameter 0.0135″ (N80) with an overall length of 19mm and flute length of 4mm according to DIN 338 standard with 118° point angle, HSS with bright finish for 4xD drilling without pecking in steel

Additional information

Weight 0.0156 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760029480
Product number (SAP): 86008680
Ordering code ANSI: A100N80
Gross weight – grams: 0.16
Cutting diameter (wire gauge size) (DC): N80
Cutting diameter – millimeter (DC): 0.34 mm
Cutting diameter – inch (DC): 0.0135 inch
Length chip flute – millimeter (LCF): 4 mm
Overall length – millimeter (OAL): 19 mm
Connection diameter – millimeter (DCON MS): 0.34 mm
Length chip flute – inch (LCF): 0.1575 inch
ISO: A100N80

Brand

DORMER
