DORMER A1013.0 Jobber Drills

Product Code: A1013.0

$10.03$9.12 Ex. GST

Product Code: A1013.0 SKU A1013.0 Categories , ,

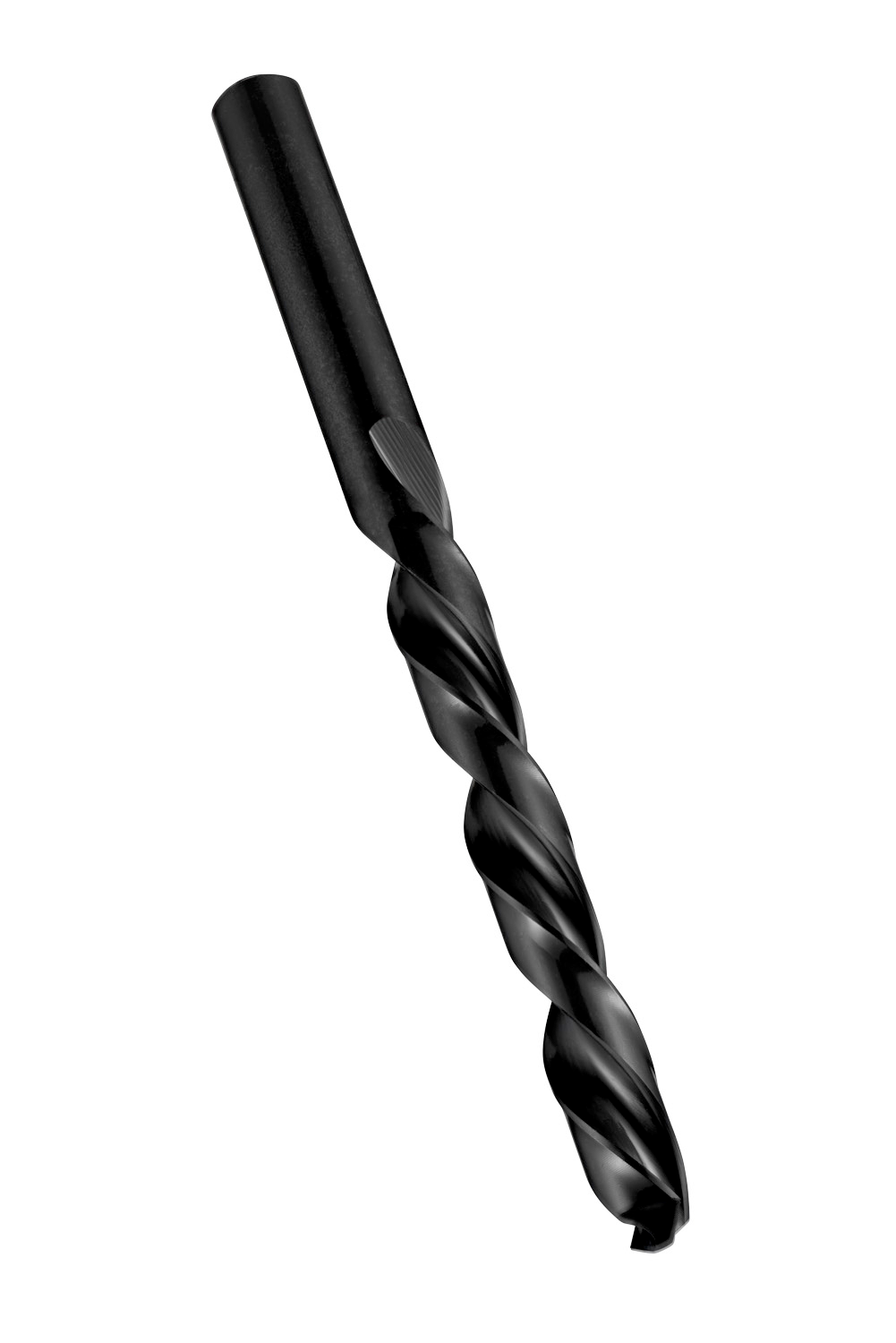

DORMER A1013.0 Jobber Drills
DORMER A1013.0 Jobber Drills - Image 2
DORMER A1013.0 Jobber Drills - Image 3
DORMER A1013.0 Jobber Drills - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

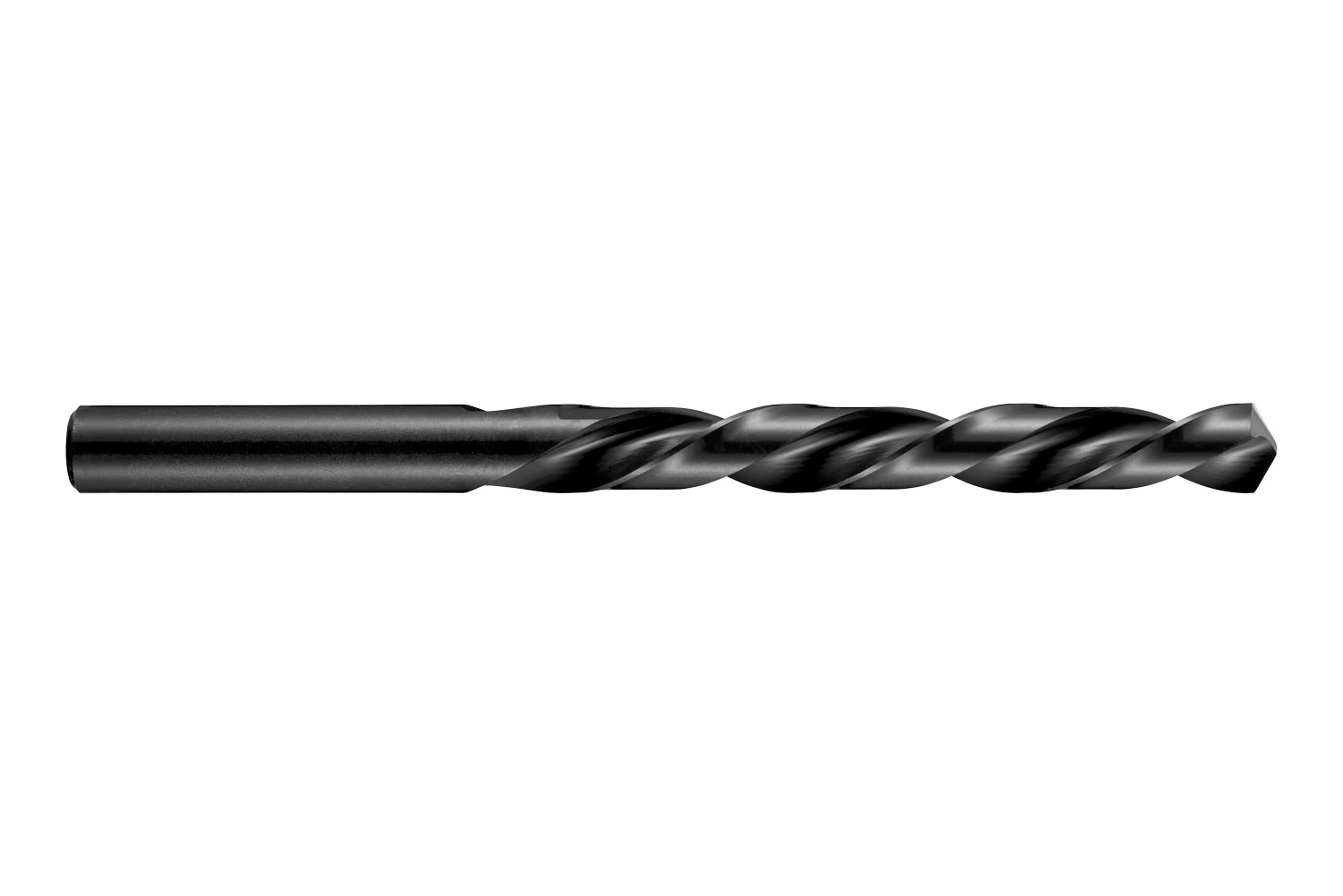

Jobber length left hand drill with straight shank, diameter 3mm with an overall length of 61mm and flute length of 33mm according to DIN 338 standard with 118° point angle, HSS with steam tempered finish for 4xD drilling without pecking in steel

Additional information

Weight 0.0097 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760002902
Product number (SAP): 86008719
Ordering code ANSI: A1013.0
Gross weight – grams: 2.97
Cutting diameter – millimeter (DC): 3 mm
Cutting diameter – inch (DC): 0.1181 inch
Length chip flute – millimeter (LCF): 33 mm
Overall length – millimeter (OAL): 61 mm
Connection diameter – millimeter (DCON MS): 3 mm
Length chip flute – inch (LCF): 1.2992 inch
ISO: A1013.0

Brand

DORMER
