DORMER A1013.5 Jobber Drills

Product Code: A1013.5

$12.23$11.12 Ex. GST

Product Code: A1013.5 SKU A1013.5 Categories , ,

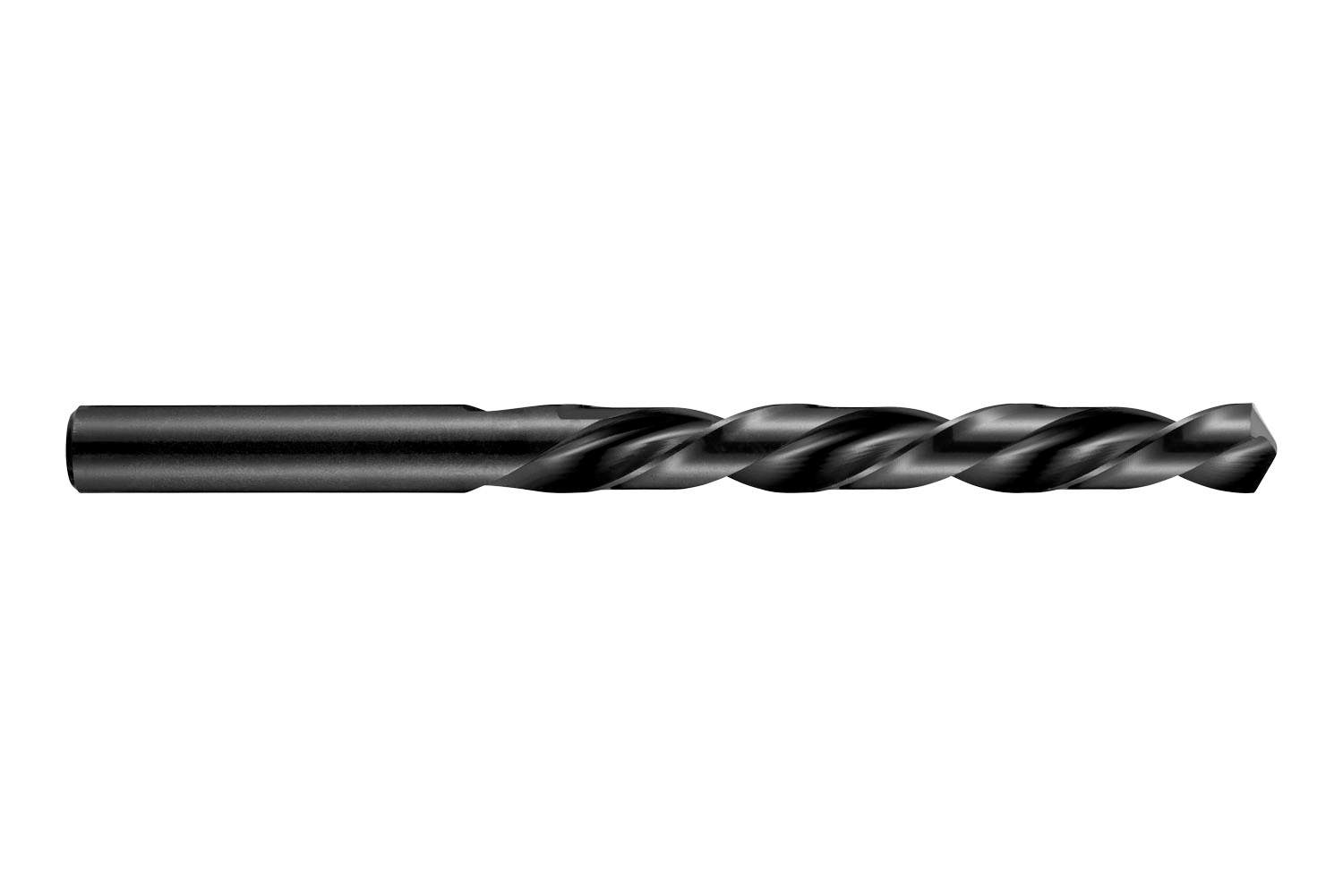

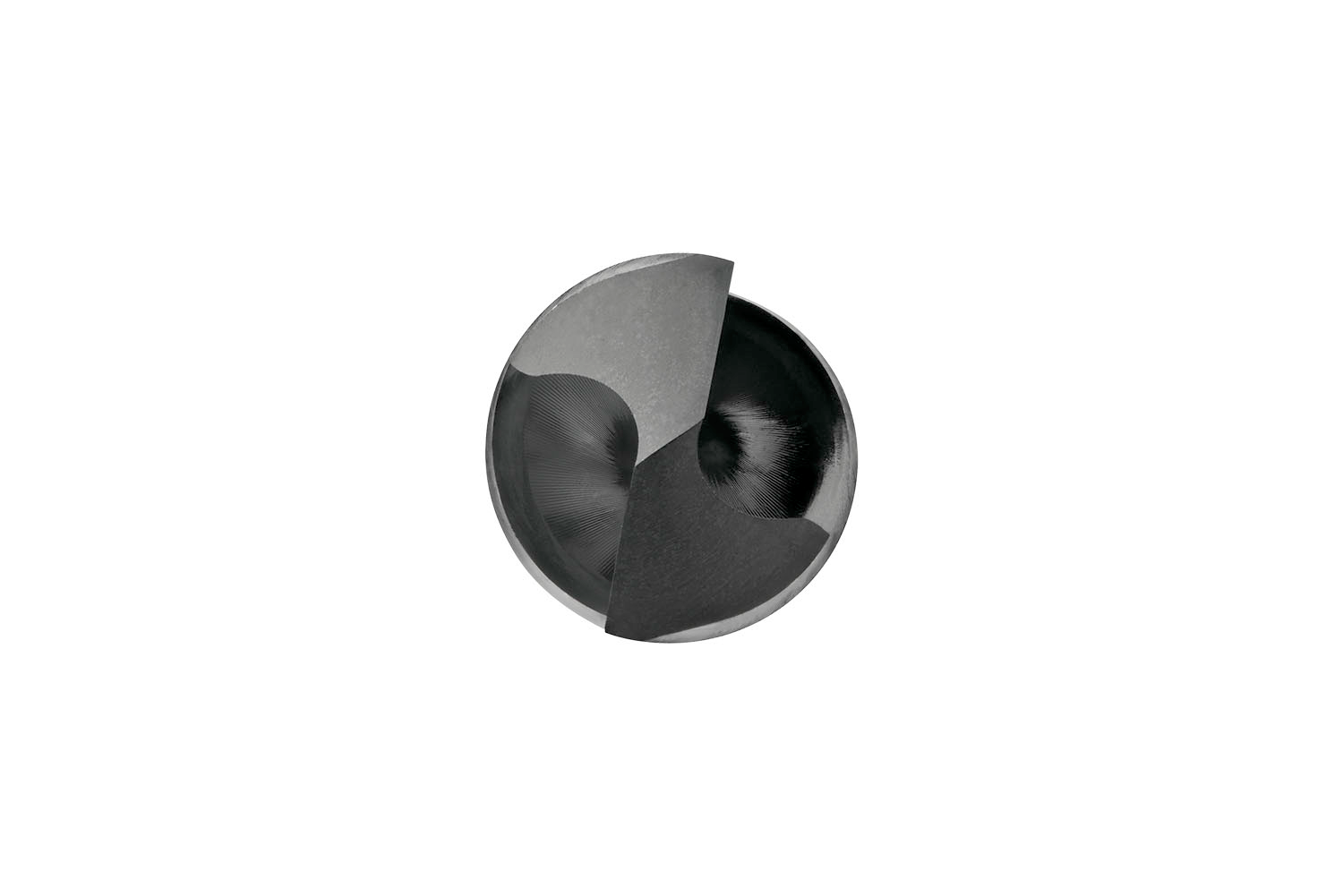

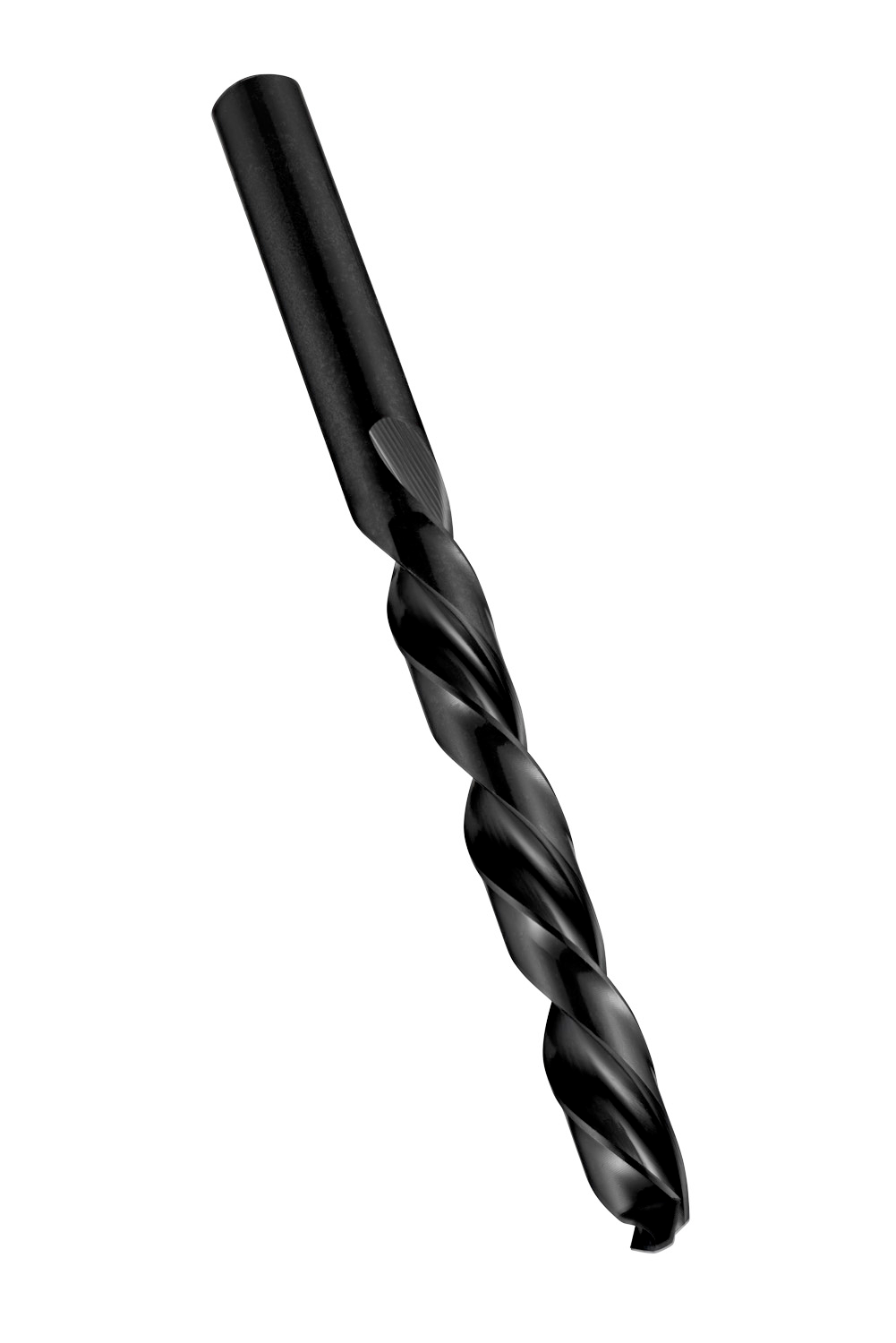

DORMER A1013.5 Jobber Drills
DORMER A1013.5 Jobber Drills - Image 2
DORMER A1013.5 Jobber Drills - Image 3
DORMER A1013.5 Jobber Drills - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Jobber length left hand drill with straight shank, diameter 3.5mm with an overall length of 70mm and flute length of 39mm according to DIN 338 standard with 118° point angle, HSS with steam tempered finish for 4xD drilling without pecking in steel

Additional information

Weight 0.0119 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760002933
Product number (SAP): 86008722
Ordering code ANSI: A1013.5
Gross weight – grams: 4.22
Cutting diameter – millimeter (DC): 3.5 mm
Cutting diameter – inch (DC): 0.1378 inch
Length chip flute – millimeter (LCF): 39 mm
Overall length – millimeter (OAL): 70 mm
Connection diameter – millimeter (DCON MS): 3.5 mm
Length chip flute – inch (LCF): 1.5354 inch
ISO: A1013.5
