DORMER A1014.2 Jobber Drills

Product Code: A1014.2

$13.71$12.46 Ex. GST

Product Code: A1014.2 SKU A1014.2 Categories , ,

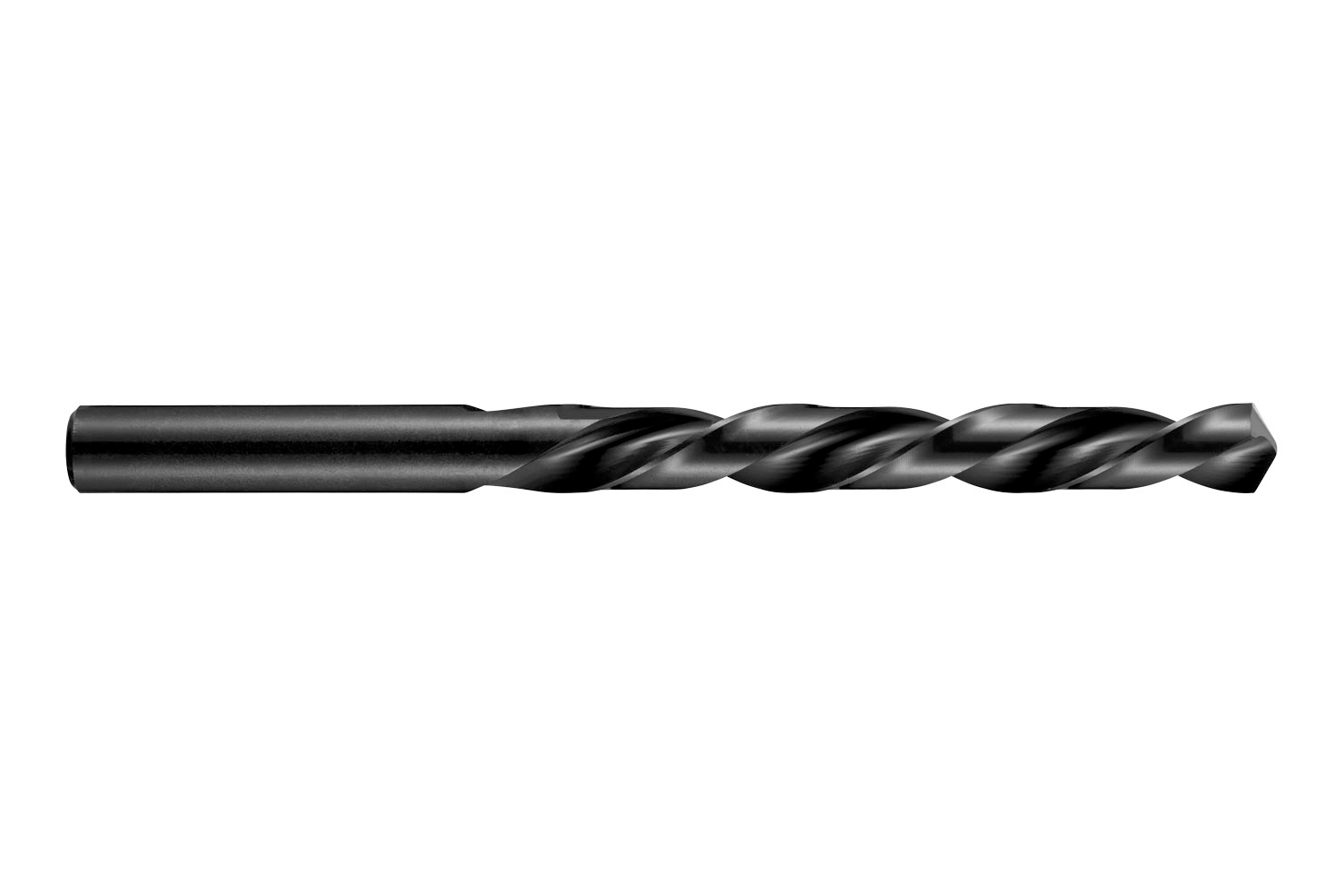

DORMER A1014.2 Jobber Drills

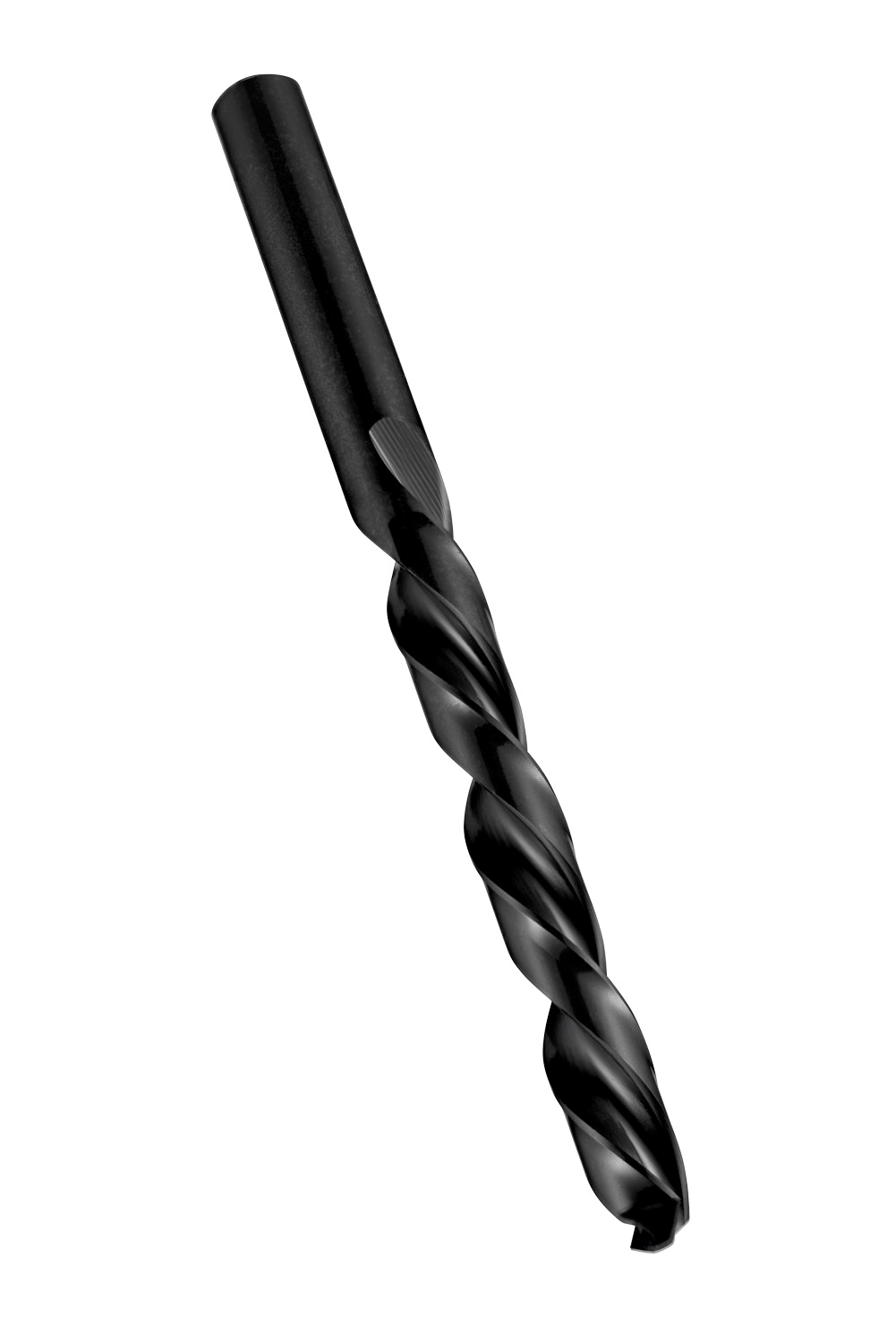

DORMER A1014.2 Jobber Drills - Image 2

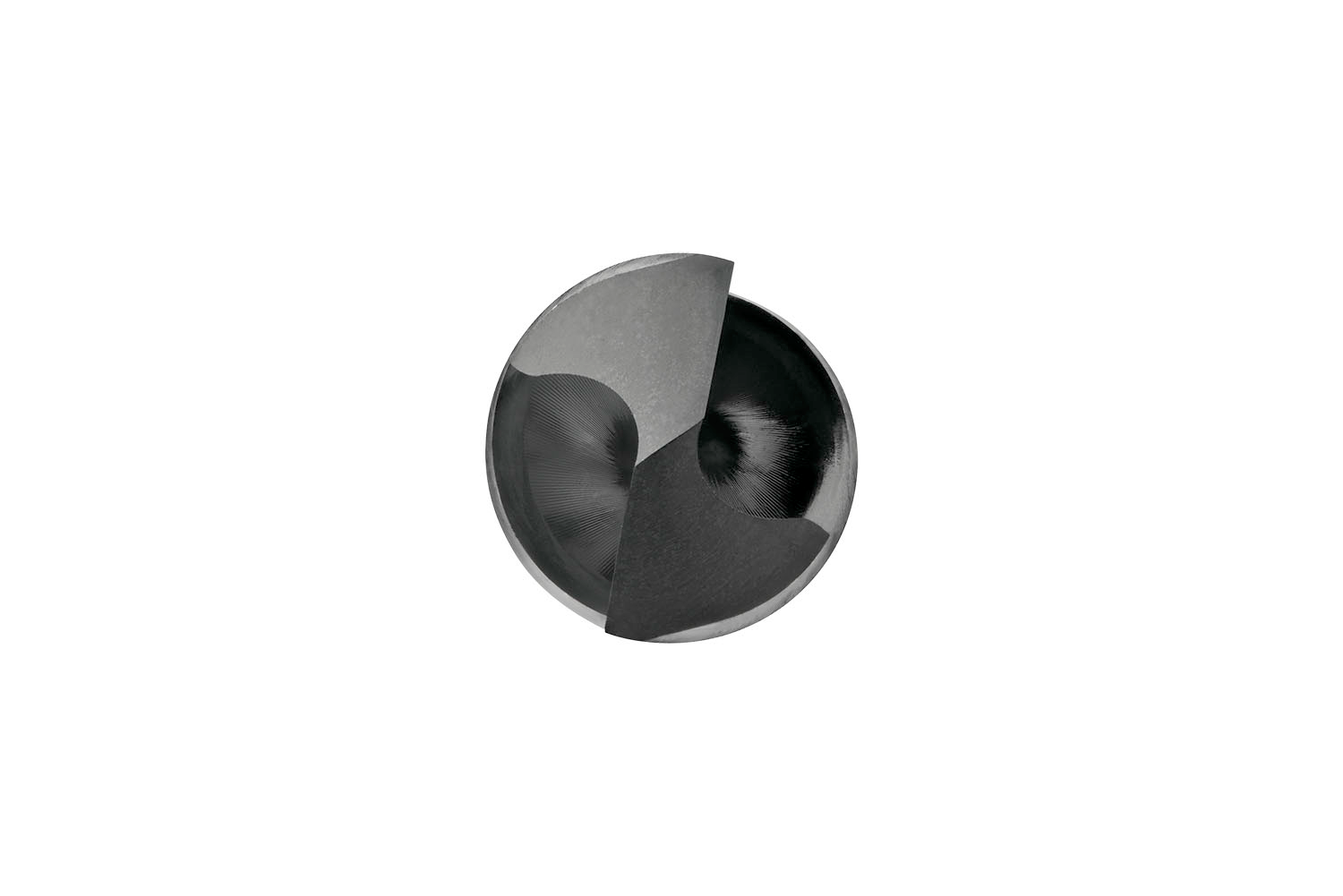

DORMER A1014.2 Jobber Drills - Image 3
DORMER A1014.2 Jobber Drills - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Jobber length left hand drill with straight shank, diameter 4.2mm with an overall length of 75mm and flute length of 43mm according to DIN 338 standard with 118° point angle, HSS with steam tempered finish for 4xD drilling without pecking in steel

Additional information

Weight 0.0133 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760002964
Product number (SAP): 86008725
Ordering code ANSI: A1014.2
Gross weight – grams: 7
Cutting diameter – millimeter (DC): 4.2 mm
Cutting diameter – inch (DC): 0.1654 inch
Length chip flute – millimeter (LCF): 43 mm
Overall length – millimeter (OAL): 75 mm
Connection diameter – millimeter (DCON MS): 4.2 mm
Length chip flute – inch (LCF): 1.6929 inch
ISO: A1014.2

Brand

DORMER
