DORMER A1014.5 Jobber Drills

Product Code: A1014.5

$15.63$14.21 Ex. GST

Product Code: A1014.5 SKU A1014.5 Categories , ,

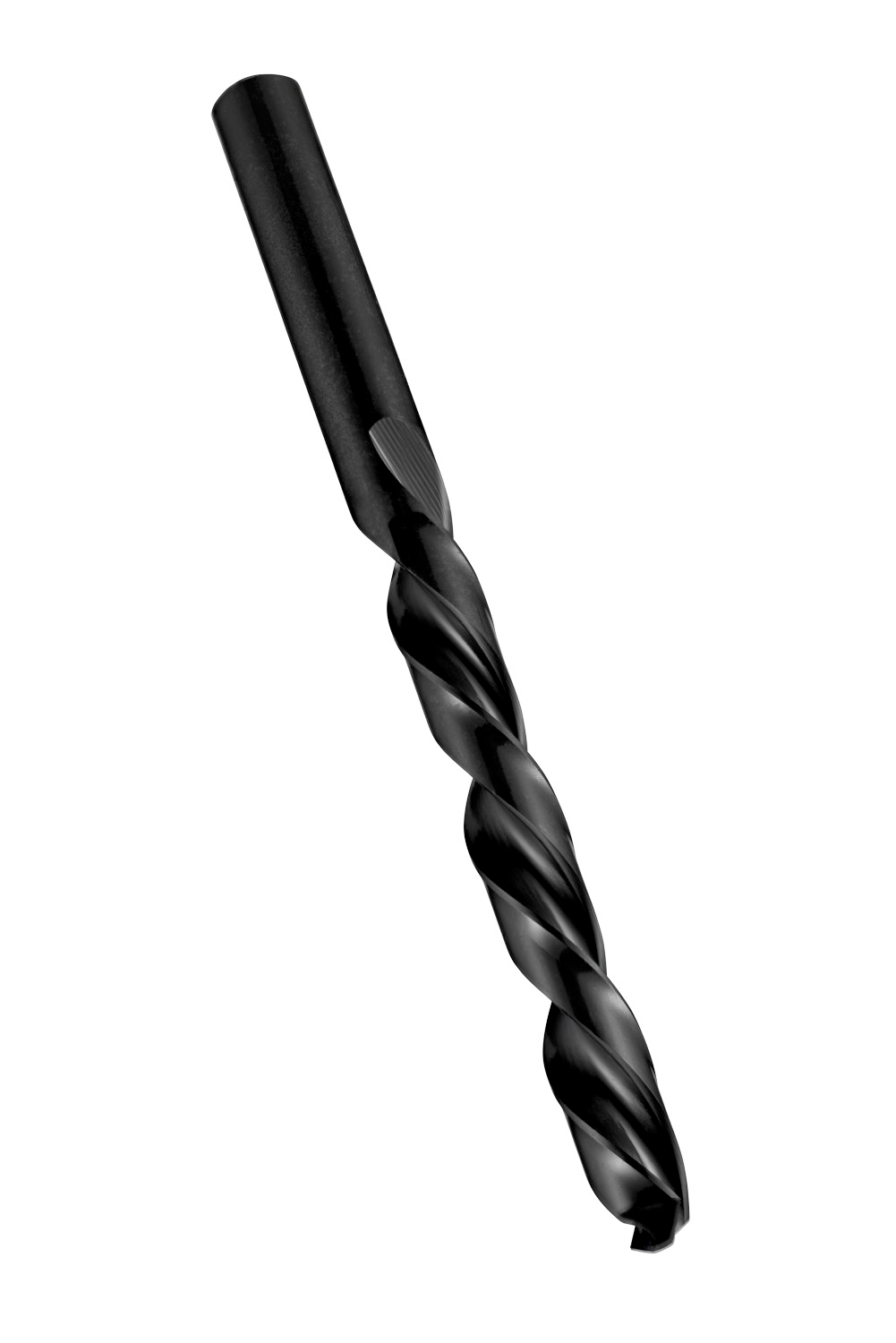

DORMER A1014.5 Jobber Drills
DORMER A1014.5 Jobber Drills - Image 2

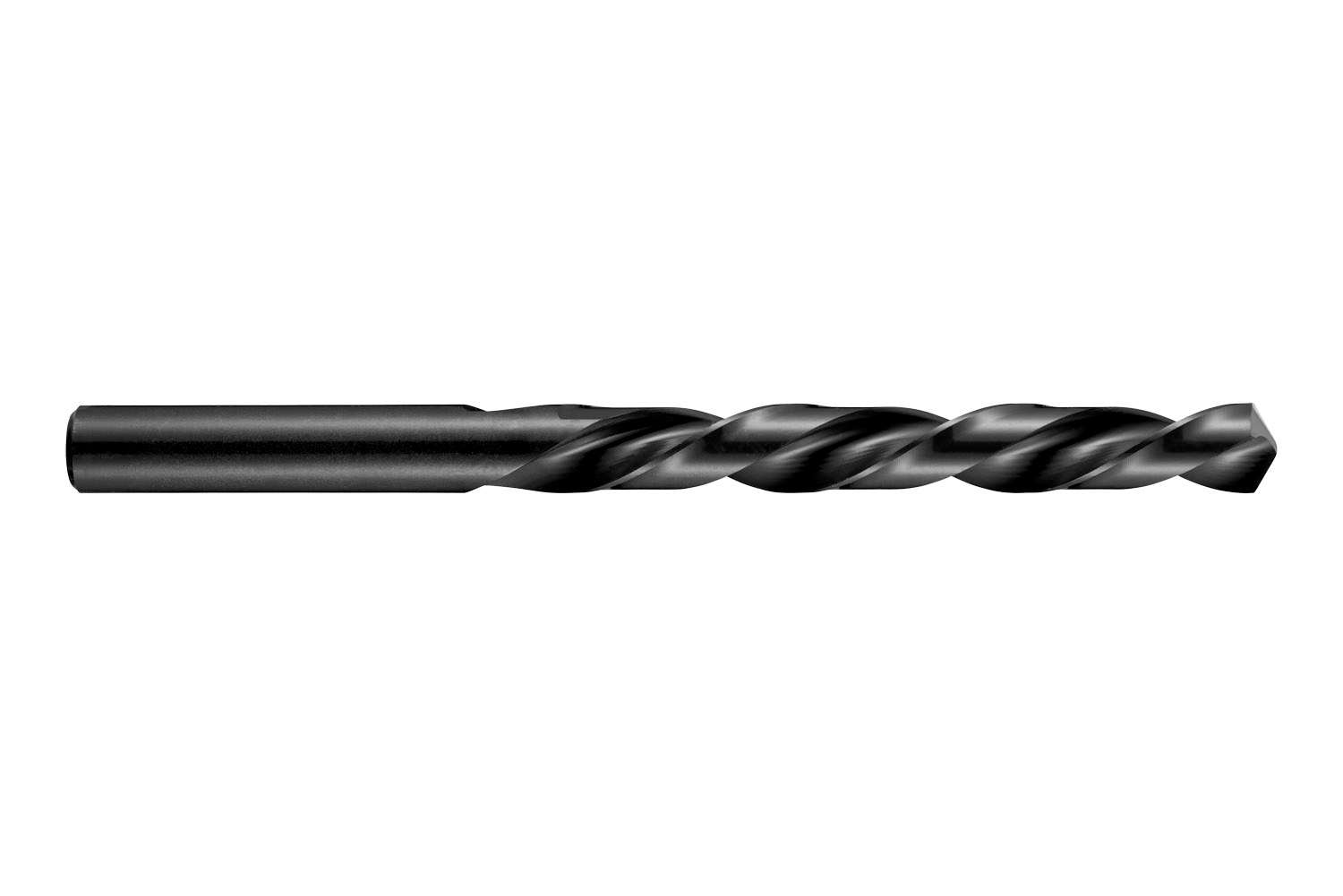

DORMER A1014.5 Jobber Drills - Image 3

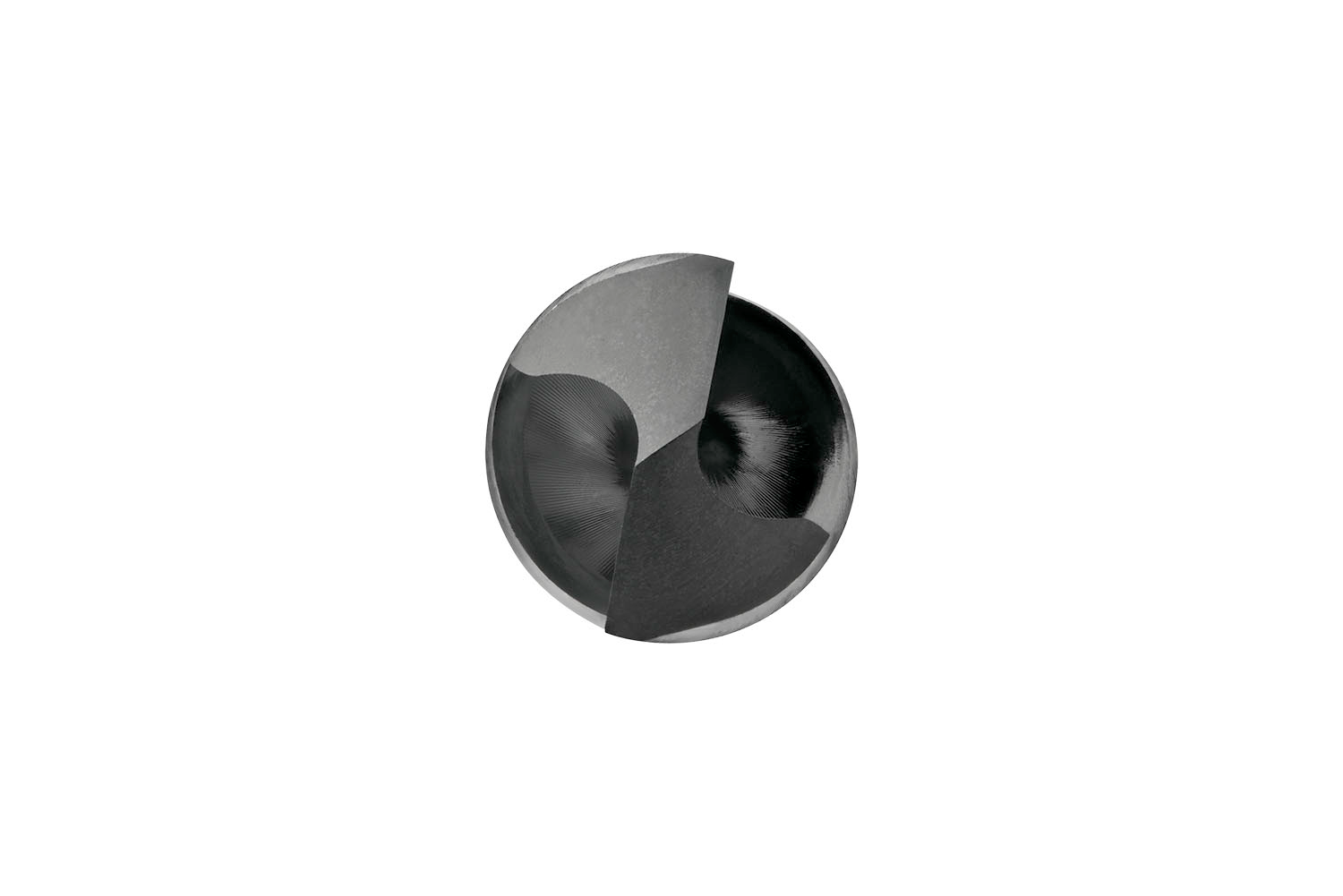

DORMER A1014.5 Jobber Drills - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Jobber length left hand drill with straight shank, diameter 4.5mm with an overall length of 80mm and flute length of 47mm according to DIN 338 standard with 118° point angle, HSS with steam tempered finish for 4xD drilling without pecking in steel

Additional information

Weight 0.0152 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760002971
Product number (SAP): 86008726
Ordering code ANSI: A1014.5
Gross weight – grams: 8.39
Cutting diameter – millimeter (DC): 4.5 mm
Cutting diameter – inch (DC): 0.1772 inch
Length chip flute – millimeter (LCF): 47 mm
Overall length – millimeter (OAL): 80 mm
Connection diameter – millimeter (DCON MS): 4.5 mm
Length chip flute – inch (LCF): 1.8504 inch
ISO: A1014.5

Brand

DORMER
