DORMER A1015.0 Jobber Drills

Product Code: A1015.0

$16.20$14.73 Ex. GST

Product Code: A1015.0 SKU A1015.0 Categories , ,

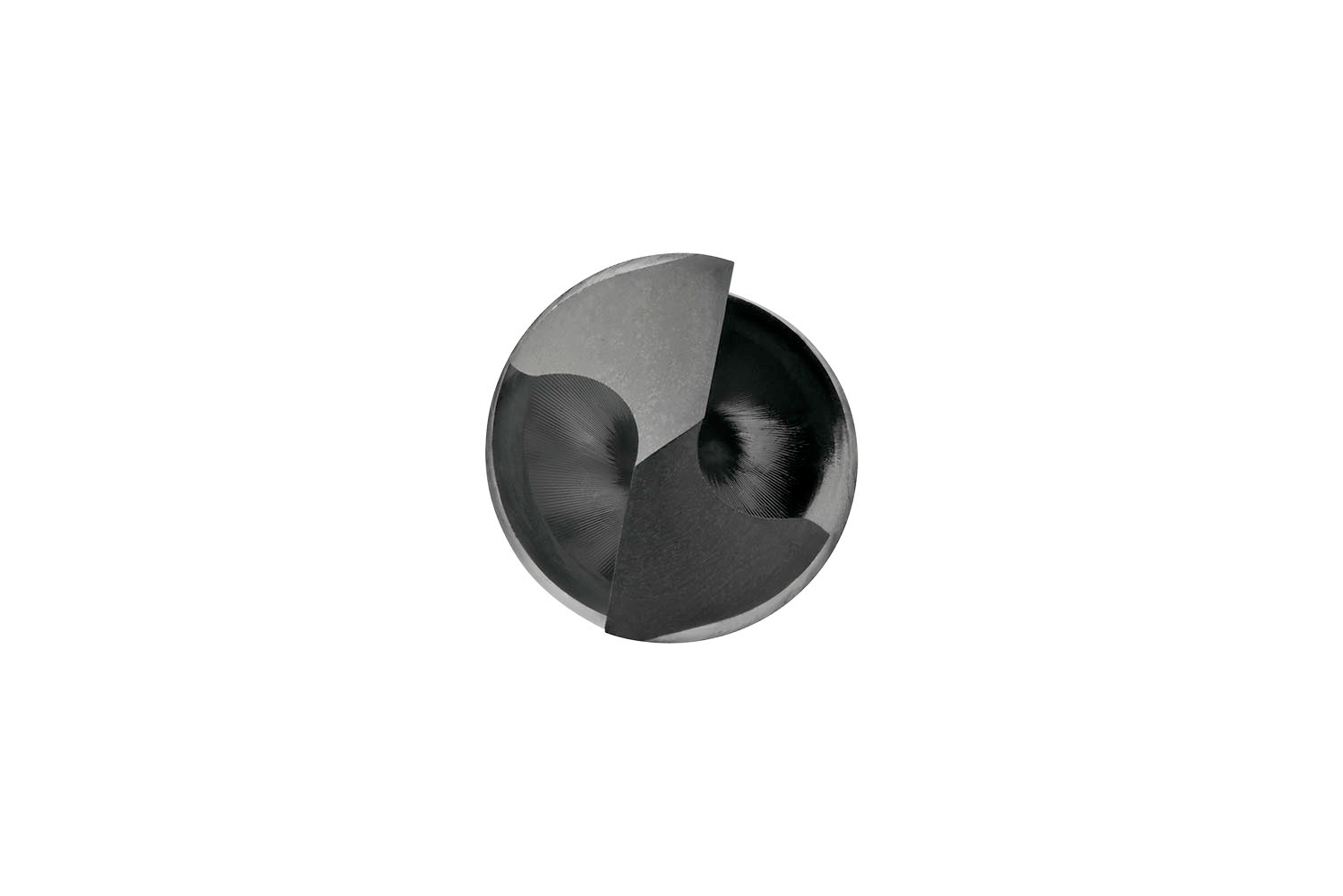

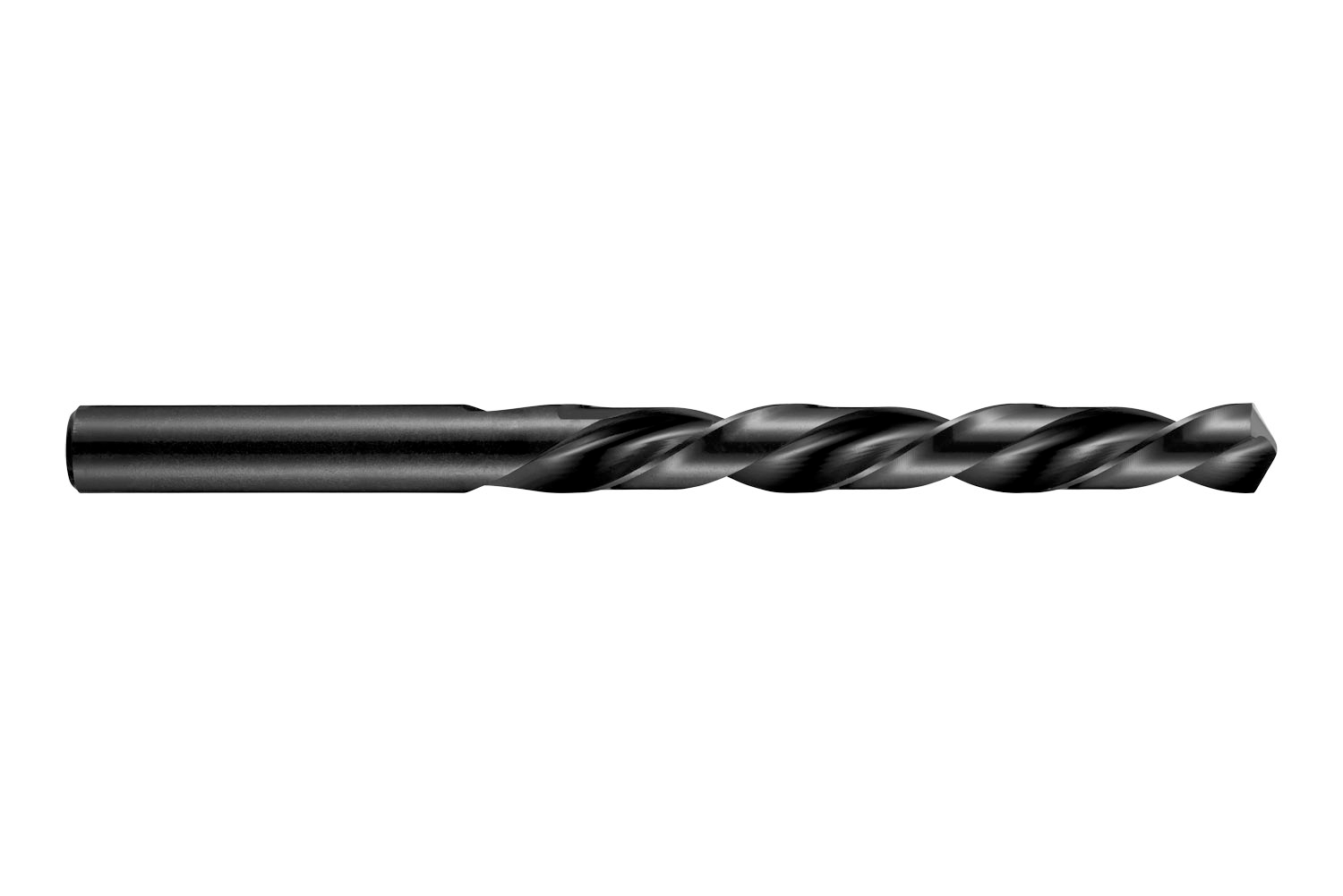

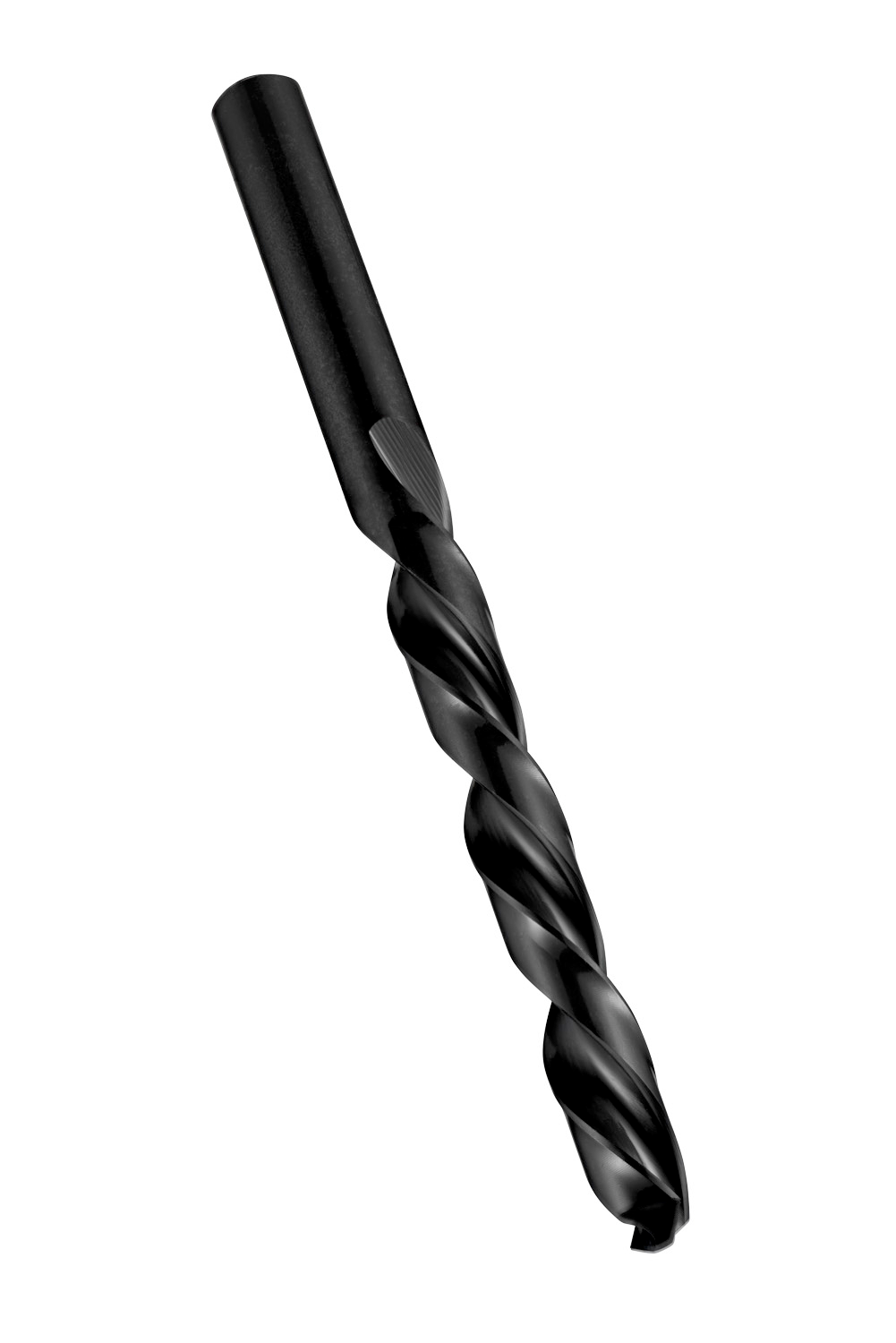

DORMER A1015.0 Jobber Drills
DORMER A1015.0 Jobber Drills - Image 2
DORMER A1015.0 Jobber Drills - Image 3
DORMER A1015.0 Jobber Drills - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Jobber length left hand drill with straight shank, diameter 5mm with an overall length of 86mm and flute length of 52mm according to DIN 338 standard with 118° point angle, HSS with steam tempered finish for 4xD drilling without pecking in steel

Additional information

Weight 0.0157 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760002995
Product number (SAP): 86008728
Ordering code ANSI: A1015.0
Gross weight – grams: 10.5
Cutting diameter – millimeter (DC): 5 mm
Cutting diameter – inch (DC): 0.1969 inch
Length chip flute – millimeter (LCF): 52 mm
Overall length – millimeter (OAL): 86 mm
Connection diameter – millimeter (DCON MS): 5 mm
Length chip flute – inch (LCF): 2.0472 inch
ISO: A1015.0

Brand

DORMER
