DORMER A1015.5 Jobber Drills

Product Code: A1015.5

$21.98$19.98 Ex. GST

Product Code: A1015.5 SKU A1015.5 Categories , ,

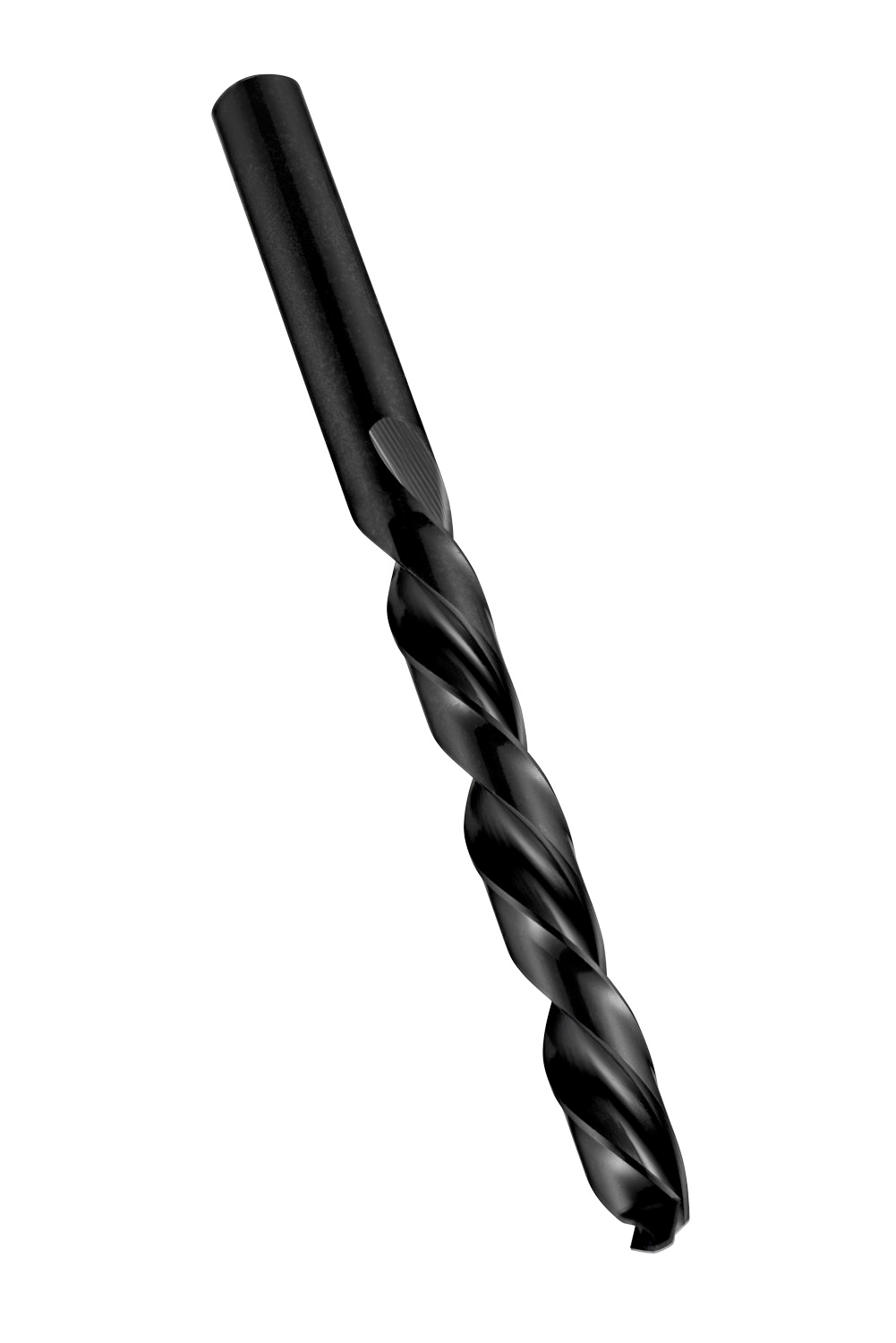

DORMER A1015.5 Jobber Drills
DORMER A1015.5 Jobber Drills - Image 2

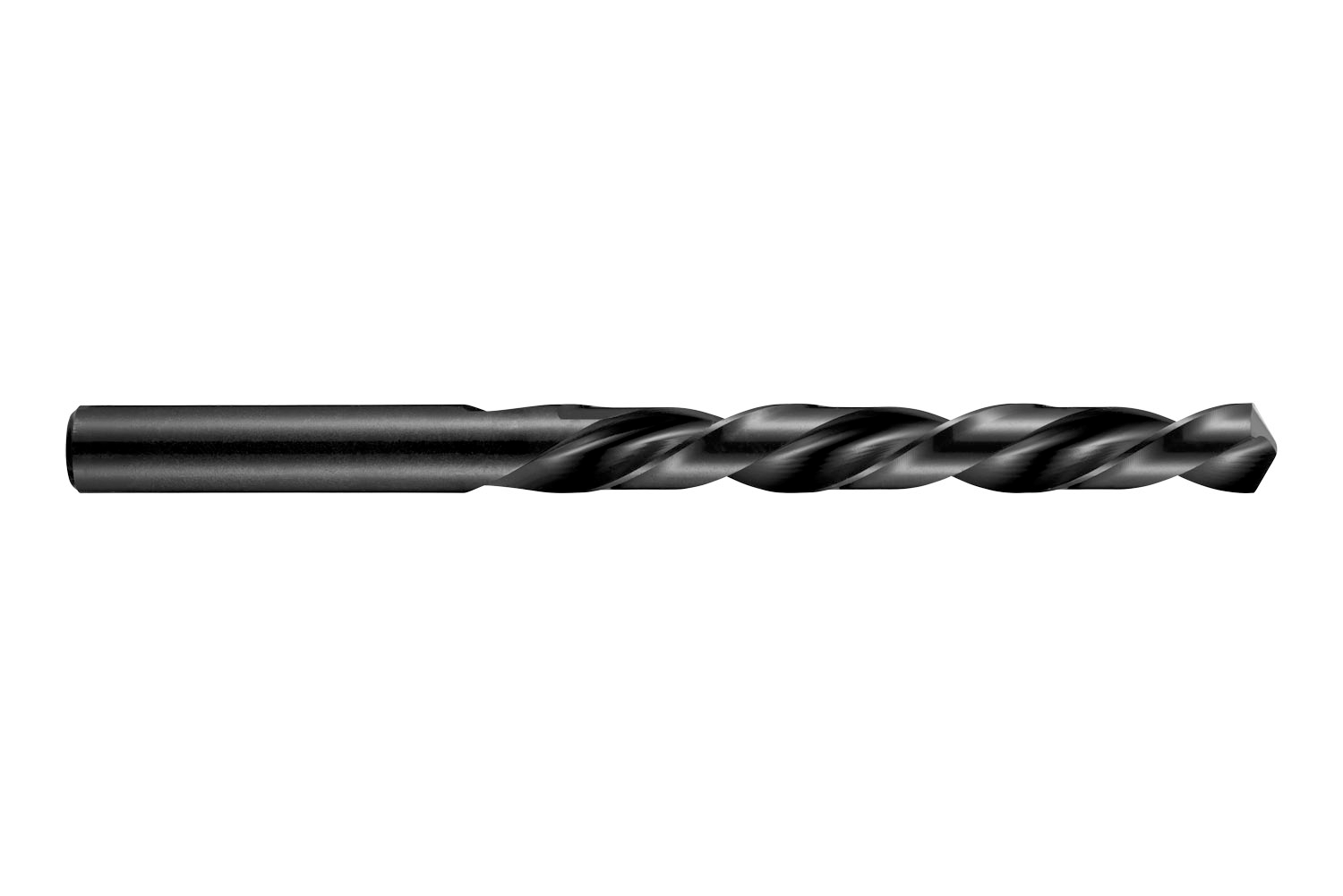

DORMER A1015.5 Jobber Drills - Image 3
DORMER A1015.5 Jobber Drills - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Jobber length left hand drill with straight shank, diameter 5.5mm with an overall length of 93mm and flute length of 57mm according to DIN 338 standard with 118° point angle, HSS with steam tempered finish for 4xD drilling without pecking in steel

Additional information

Weight 0.0213 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760003022
Product number (SAP): 86008731
Ordering code ANSI: A1015.5
Gross weight – grams: 13.29
Cutting diameter – millimeter (DC): 5.5 mm
Cutting diameter – inch (DC): 0.2165 inch
Length chip flute – millimeter (LCF): 57 mm
Overall length – millimeter (OAL): 93 mm
Connection diameter – millimeter (DCON MS): 5.5 mm
Length chip flute – inch (LCF): 2.2441 inch
ISO: A1015.5

Brand

DORMER
