DORMER A1017.0 Jobber Drills

Product Code: A1017.0

$30.36$27.60 Ex. GST

Product Code: A1017.0 SKU A1017.0 Categories , ,

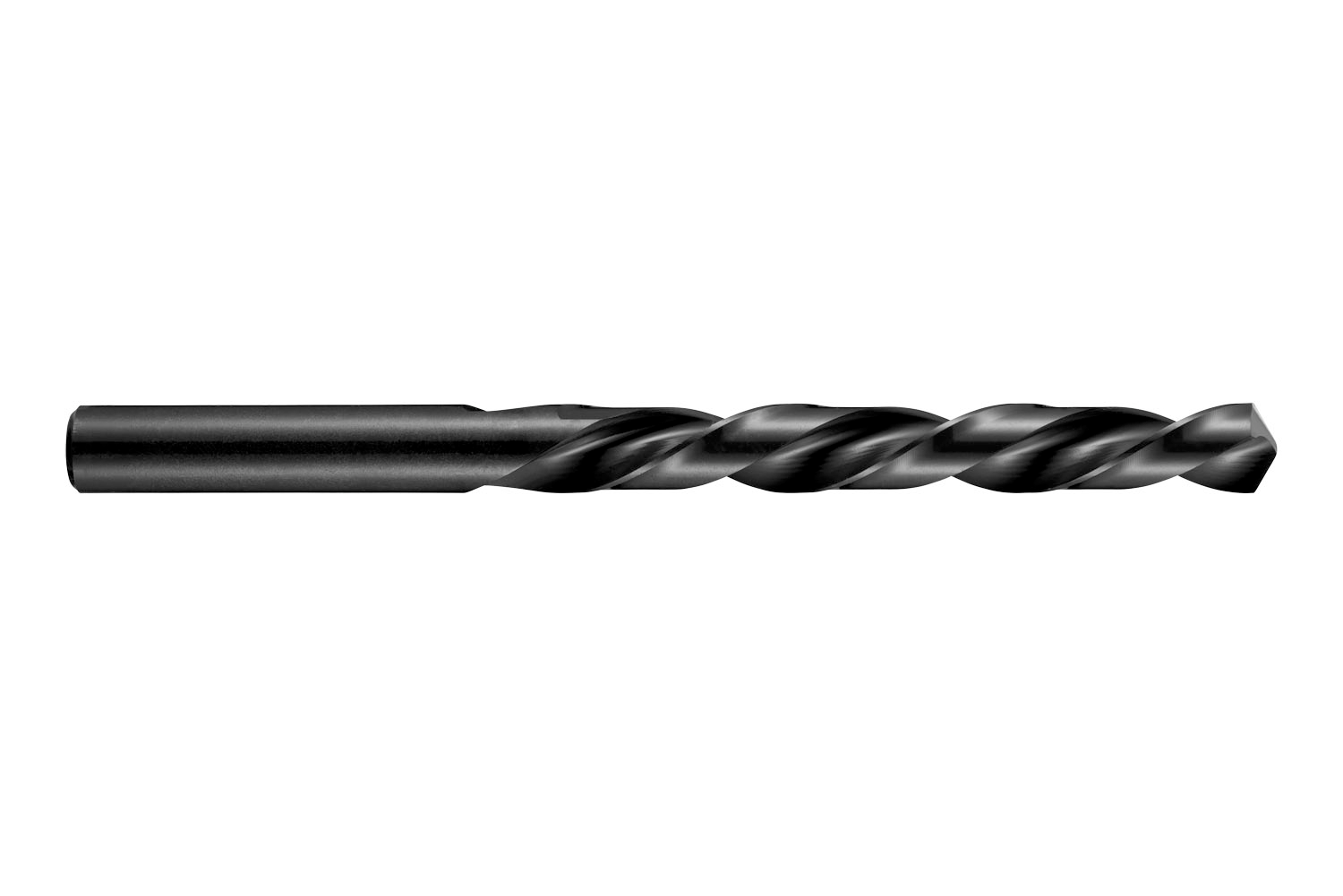

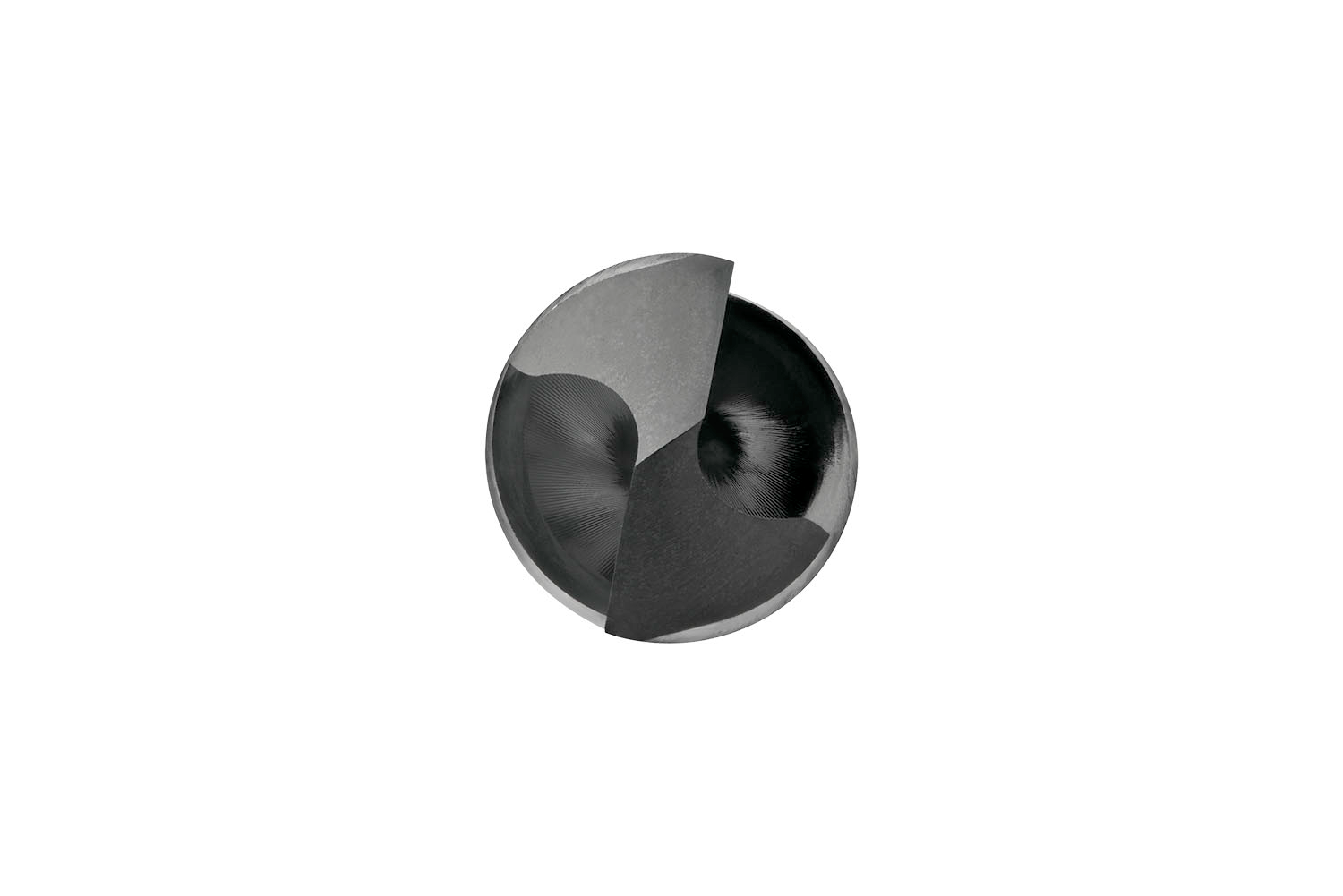

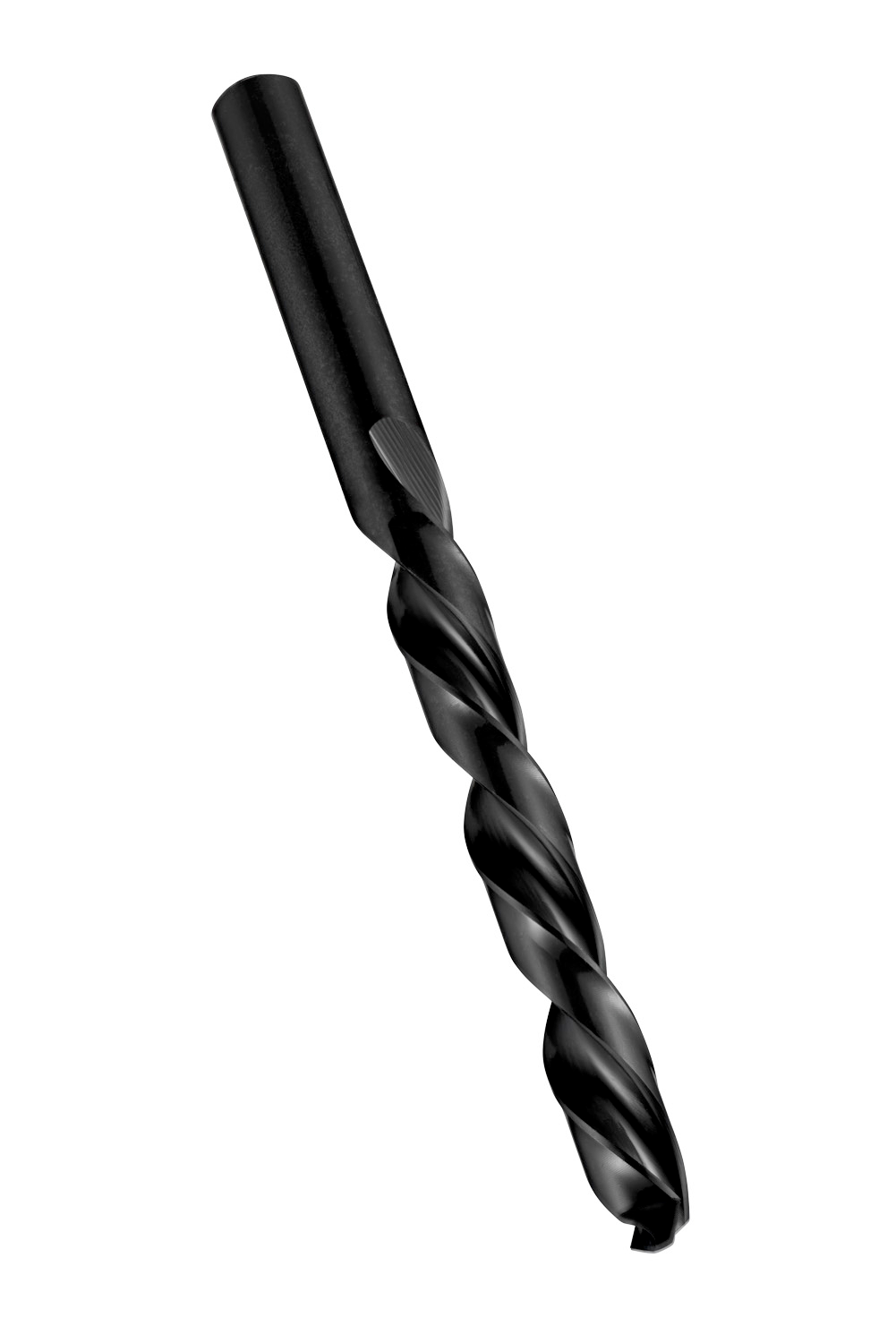

DORMER A1017.0 Jobber Drills
DORMER A1017.0 Jobber Drills - Image 2
DORMER A1017.0 Jobber Drills - Image 3
DORMER A1017.0 Jobber Drills - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Jobber length left hand drill with straight shank, diameter 7mm with an overall length of 109mm and flute length of 69mm according to DIN 338 standard with 118° point angle, HSS with steam tempered finish for 4xD drilling without pecking in steel

Additional information

Weight 0.0295 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760003053
Product number (SAP): 86008734
Ordering code ANSI: A1017.0
Gross weight – grams: 24.52
Cutting diameter – millimeter (DC): 7 mm
Cutting diameter – inch (DC): 0.2756 inch
Length chip flute – millimeter (LCF): 69 mm
Overall length – millimeter (OAL): 109 mm
Connection diameter – millimeter (DCON MS): 7 mm
Length chip flute – inch (LCF): 2.7165 inch
ISO: A1017.0

Brand

DORMER
