DORMER A1083.5 Dormer A108 Series HSS Twist Drill Bit for Stainless Steel

Product Code: A1083.5

$11.33$10.30 Ex. GST

Product Code: A1083.5 SKU A1083.5 Categories , ,
DORMER A1083.5 Dormer A108 Series HSS Twist Drill Bit for Stainless Steel

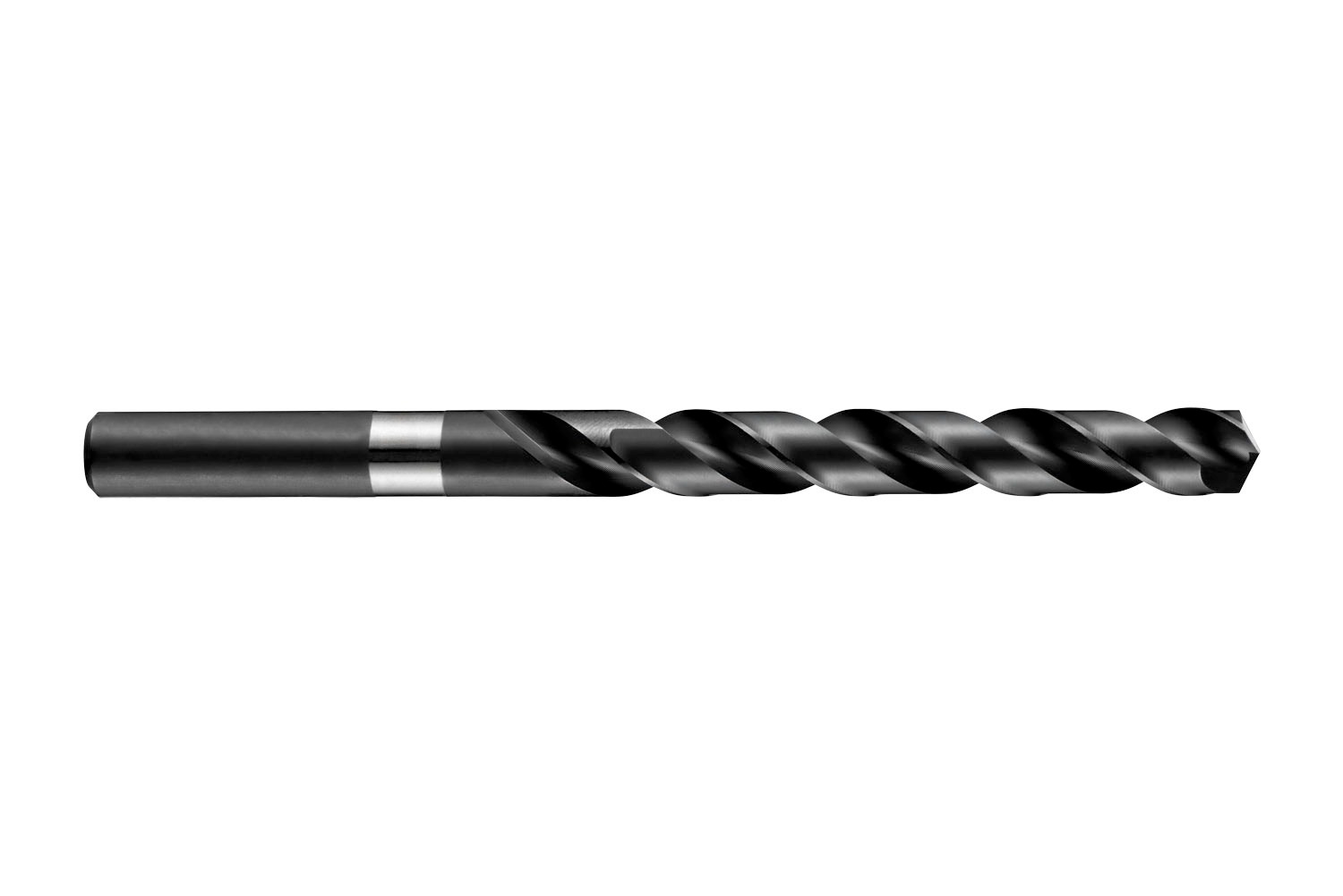

DORMER A1083.5 Dormer A108 Series HSS Twist Drill Bit for Stainless Steel - Image 2

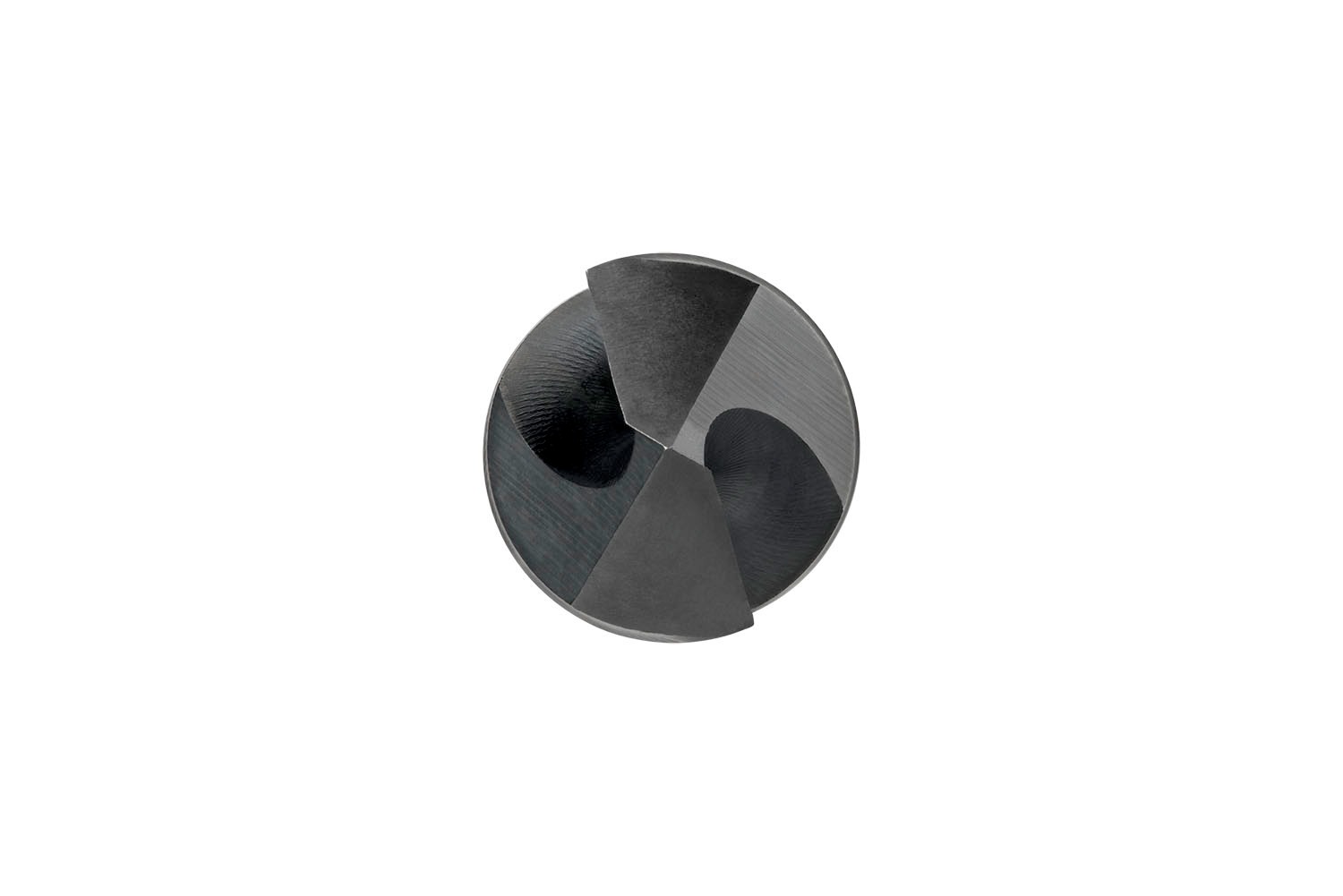

DORMER A1083.5 Dormer A108 Series HSS Twist Drill Bit for Stainless Steel - Image 3

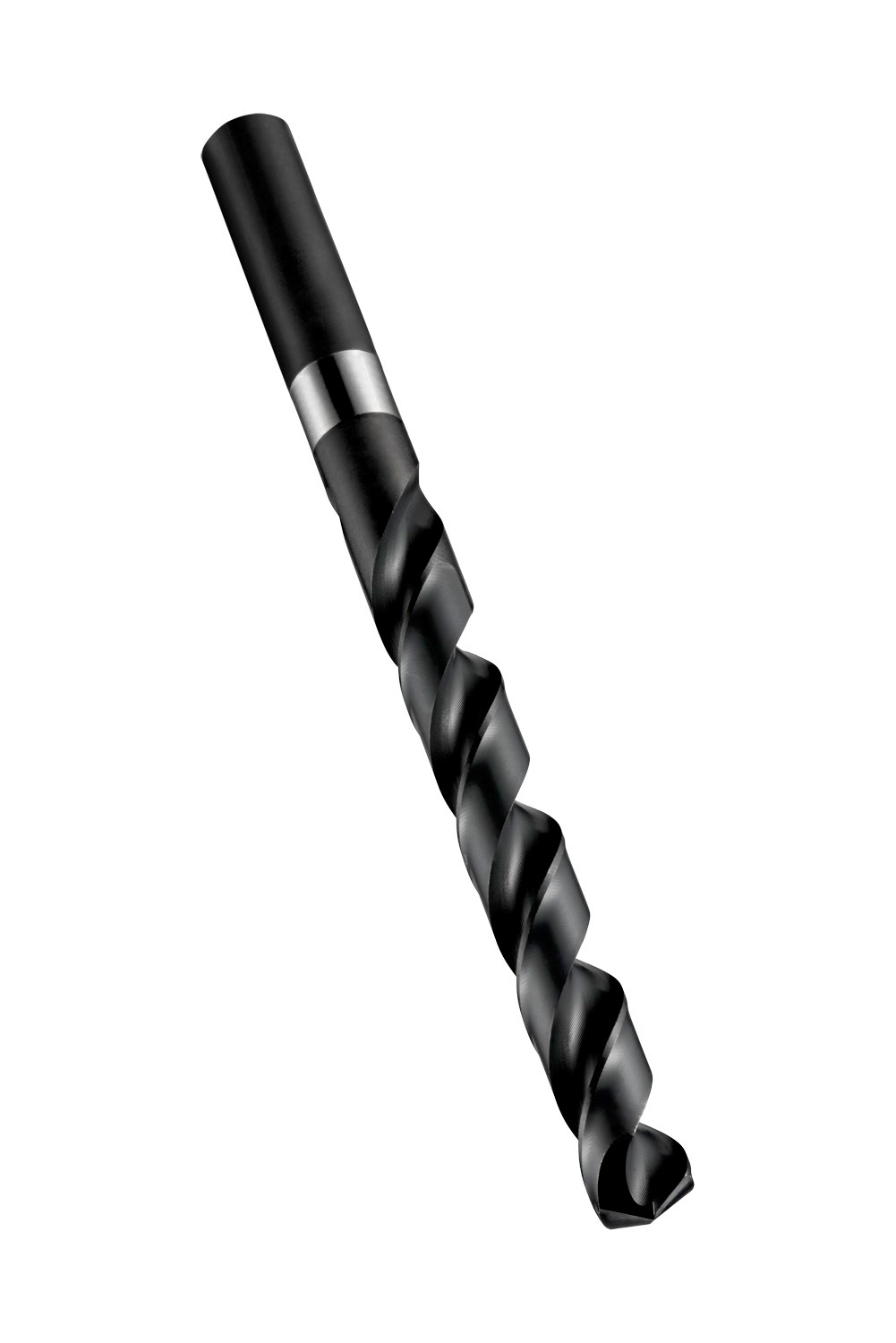

DORMER A1083.5 Dormer A108 Series HSS Twist Drill Bit for Stainless Steel - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Jobber length drill with straight shank, diameter 3.5mm with an overall length of 70mm and flute length of 39mm according to DIN 338 standard with 135° split point, HSS with steam tempered finish and quick spiral for 4xD drilling without pecking in stainless steel

Additional information

Weight 0.0110 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760008164
Product number (SAP): 86008804
Ordering code ANSI: A1083.5
Gross weight – grams: 4.46

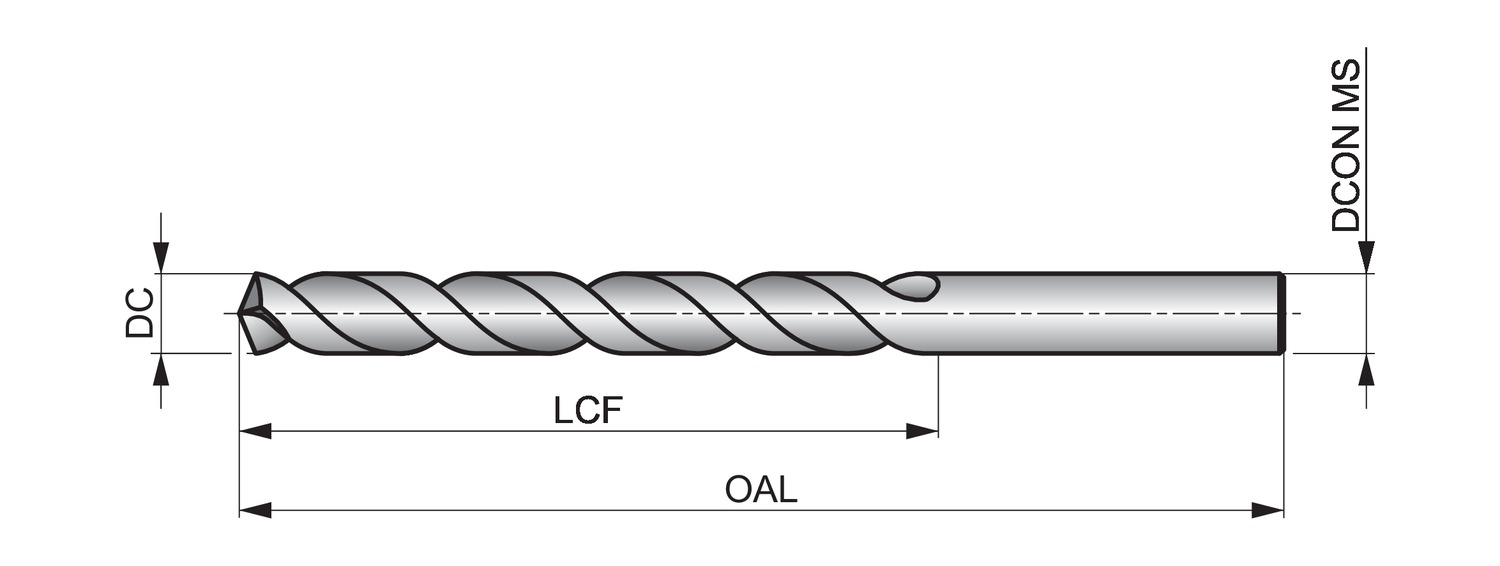

Cutting diameter – millimeter (DC): 3.5 mm
Cutting diameter – inch (DC): 0.1378 inch
Length chip flute – millimeter (LCF): 39 mm
Overall length – millimeter (OAL): 70 mm
Connection diameter – millimeter (DCON MS): 3.5 mm
Length chip flute – inch (LCF): 1.5354 inch
ISO: A1083.5

Brand

DORMER
