DORMER A1083/8 Dormer A108 Series HSS Twist Drill Bit for Stainless Steel

Description

Jobber length drill with straight shank, diameter 0.3750″ (3/8) with an overall length of 133mm and flute length of 87mm according to DIN 338 standard with 135° split point, HSS with steam tempered finish and quick spiral for 4xD drilling without pecking in stainless steel

Additional information

Weight	0.0451 kg
Dimensions
barcode

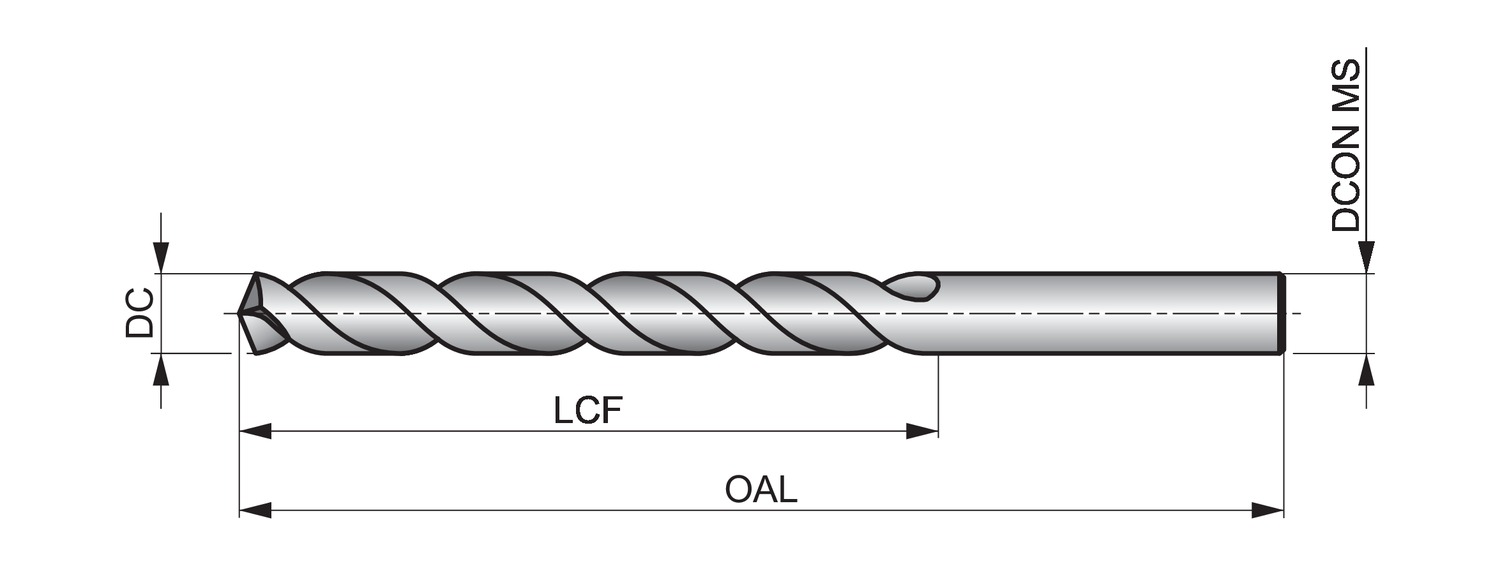

Additional Information	Description: Value EAN number: 7320760008249 Product number (SAP): 86008811 Ordering code ANSI: A1083/8 Gross weight – grams: 55.66 Cutting diameter – fractional inch (DC): 3/8 Cutting diameter – millimeter (DC): 9.52 mm Cutting diameter – inch (DC): 0.375 inch Length chip flute – millimeter (LCF): 87 mm Overall length – millimeter (OAL): 133 mm Connection diameter – millimeter (DCON MS): 9.52 mm Length chip flute – inch (LCF): 3.4252 inch ISO: A1083/8
