DORMER A1083.9 Dormer A108 Series HSS Twist Drill Bit for Stainless Steel

Product Code: A1083.9

$13.26$12.05 Ex. GST

Product Code: A1083.9 SKU A1083.9 Categories , ,

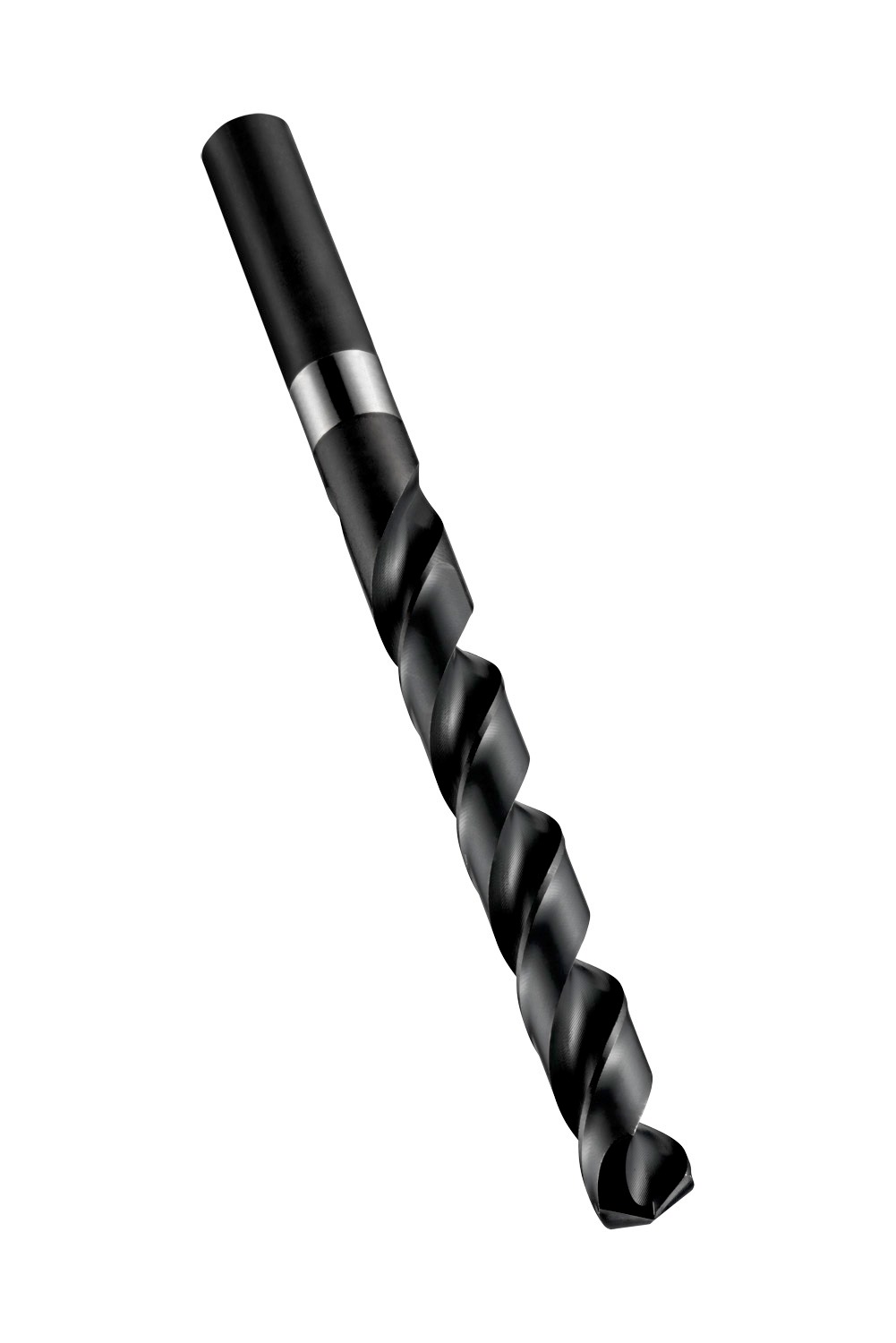

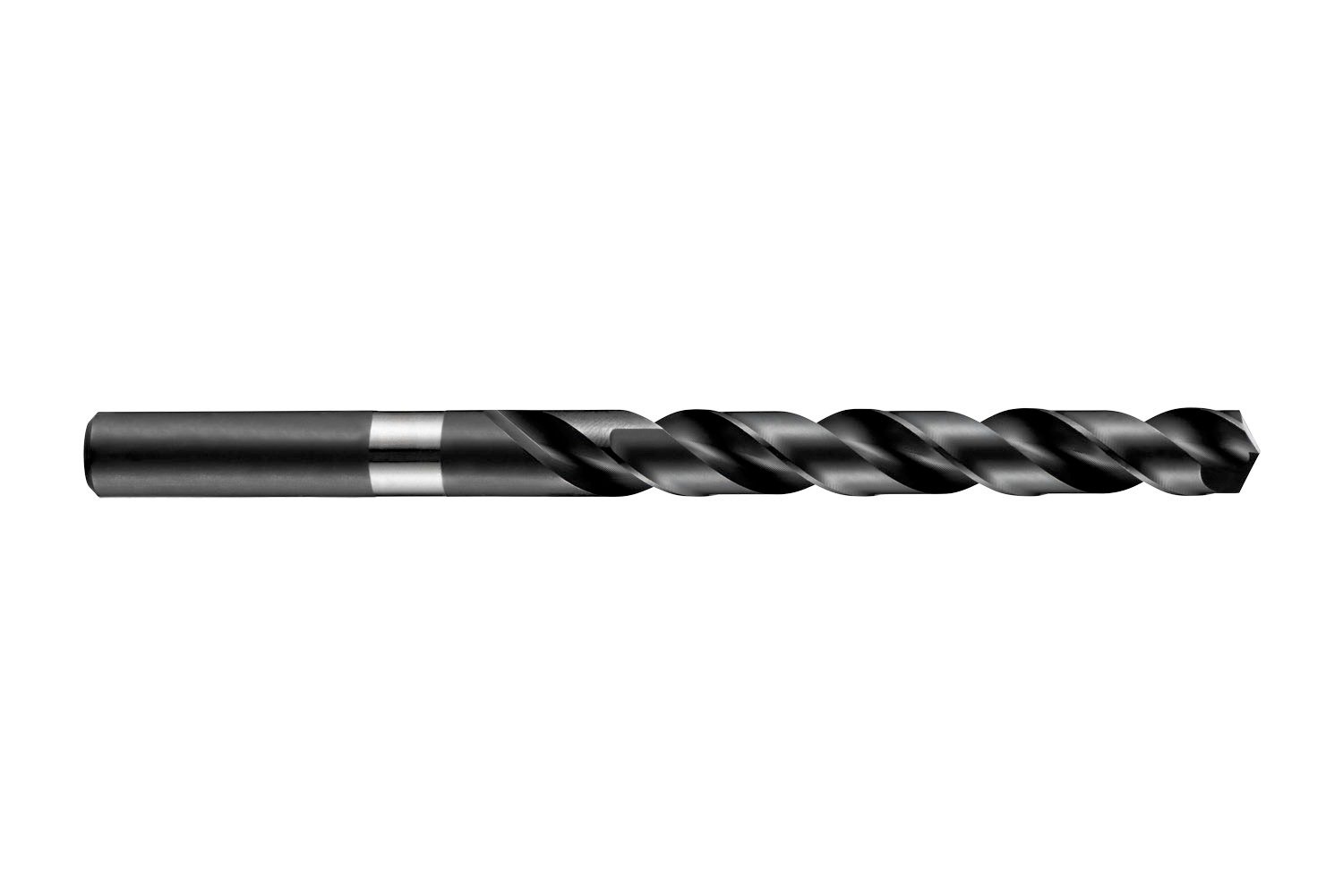

DORMER A1083.9 Dormer A108 Series HSS Twist Drill Bit for Stainless Steel
DORMER A1083.9 Dormer A108 Series HSS Twist Drill Bit for Stainless Steel - Image 2
DORMER A1083.9 Dormer A108 Series HSS Twist Drill Bit for Stainless Steel - Image 3
DORMER A1083.9 Dormer A108 Series HSS Twist Drill Bit for Stainless Steel - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

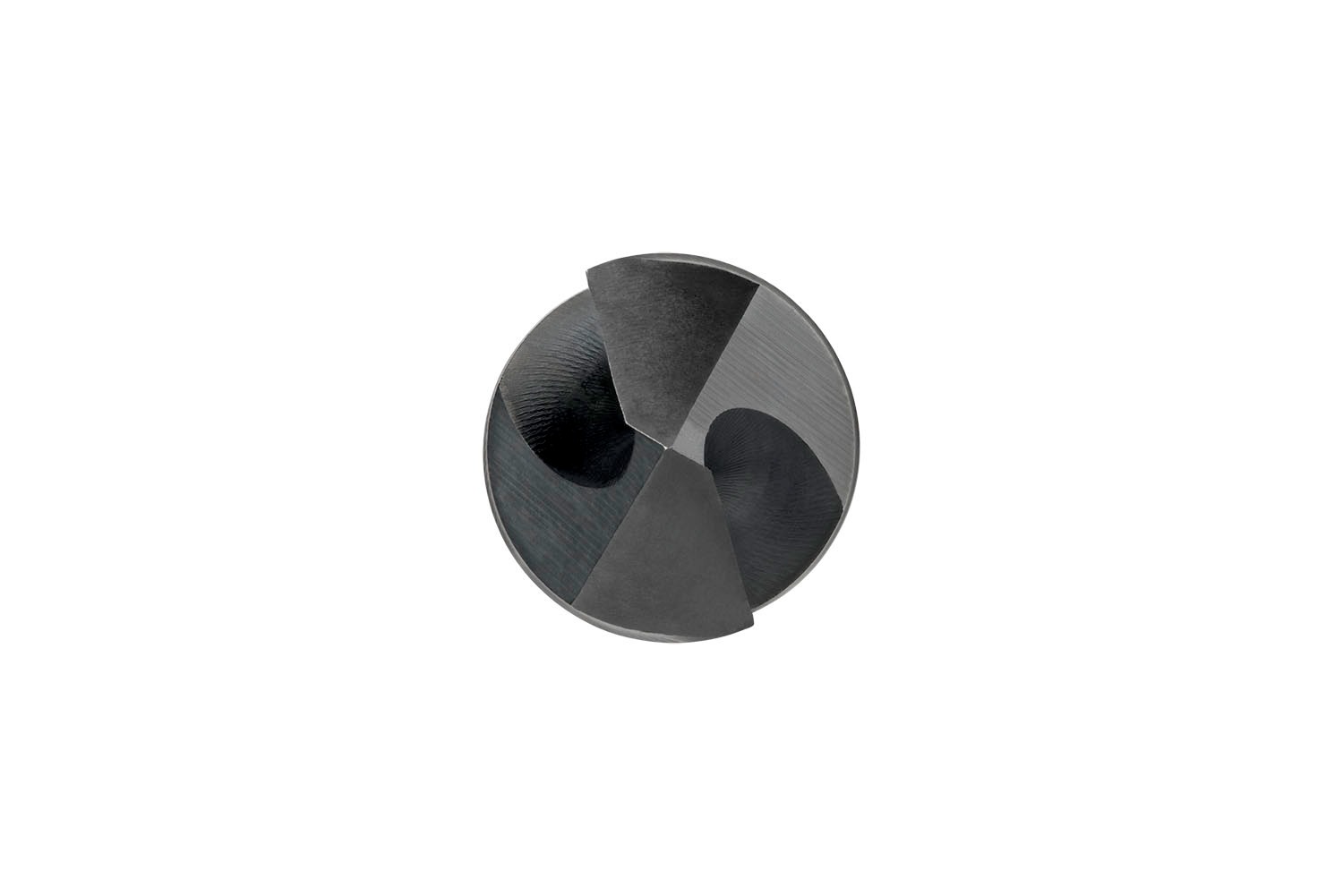

Jobber length drill with straight shank, diameter 3.9mm with an overall length of 75mm and flute length of 43mm according to DIN 338 standard with 135° split point, HSS with steam tempered finish and quick spiral for 4xD drilling without pecking in stainless steel

Additional information

Weight 0.0129 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760008201
Product number (SAP): 86008808
Ordering code ANSI: A1083.9
Gross weight – grams: 5.7

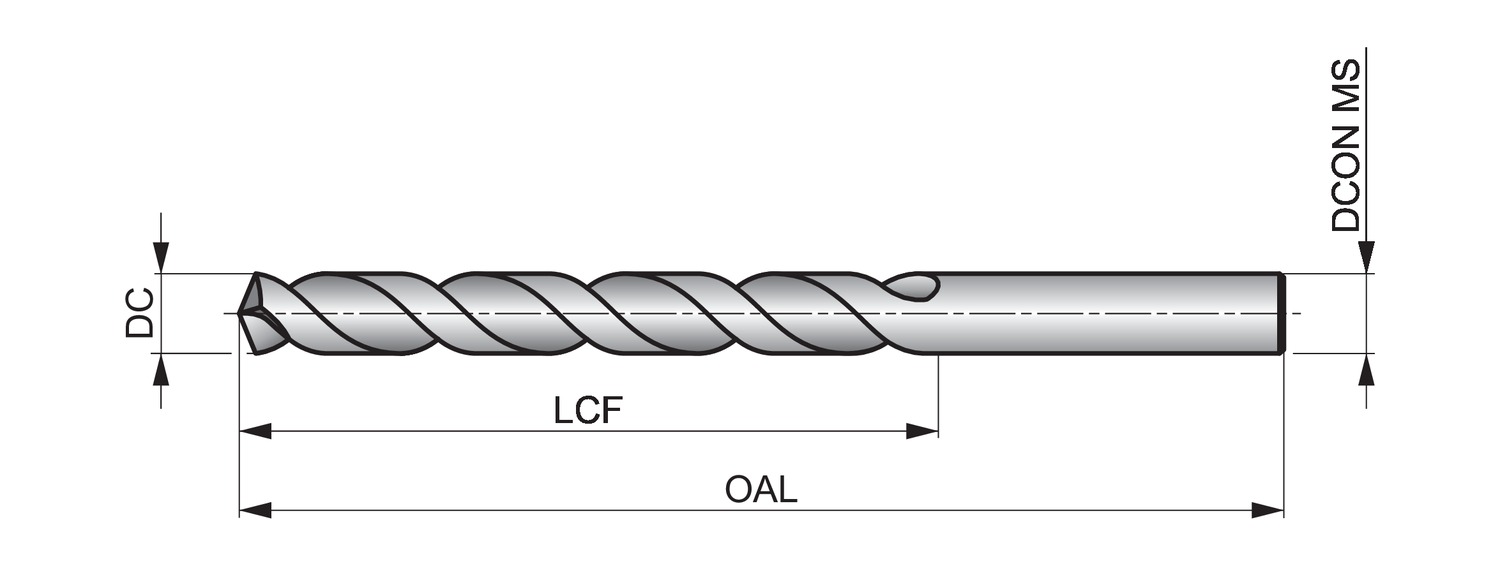

Cutting diameter – millimeter (DC): 3.9 mm
Cutting diameter – inch (DC): 0.1535 inch
Length chip flute – millimeter (LCF): 43 mm
Overall length – millimeter (OAL): 75 mm
Connection diameter – millimeter (DCON MS): 3.9 mm
Length chip flute – inch (LCF): 1.6929 inch
ISO: A1083.9

Brand

DORMER
