DORMER A1084.3 Dormer A108 Series HSS Twist Drill Bit for Stainless Steel

Product Code: A1084.3

$14.96$13.60 Ex. GST

Product Code: A1084.3 SKU A1084.3 Categories , ,
DORMER A1084.3 Dormer A108 Series HSS Twist Drill Bit for Stainless Steel
DORMER A1084.3 Dormer A108 Series HSS Twist Drill Bit for Stainless Steel - Image 2
DORMER A1084.3 Dormer A108 Series HSS Twist Drill Bit for Stainless Steel - Image 3
DORMER A1084.3 Dormer A108 Series HSS Twist Drill Bit for Stainless Steel - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Jobber length drill with straight shank, diameter 4.3mm with an overall length of 80mm and flute length of 47mm according to DIN 338 standard with 135° split point, HSS with steam tempered finish and quick spiral for 4xD drilling without pecking in stainless steel

Additional information

Weight 0.0145 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760008287
Product number (SAP): 86008816
Ordering code ANSI: A1084.3
Gross weight – grams: 7.9

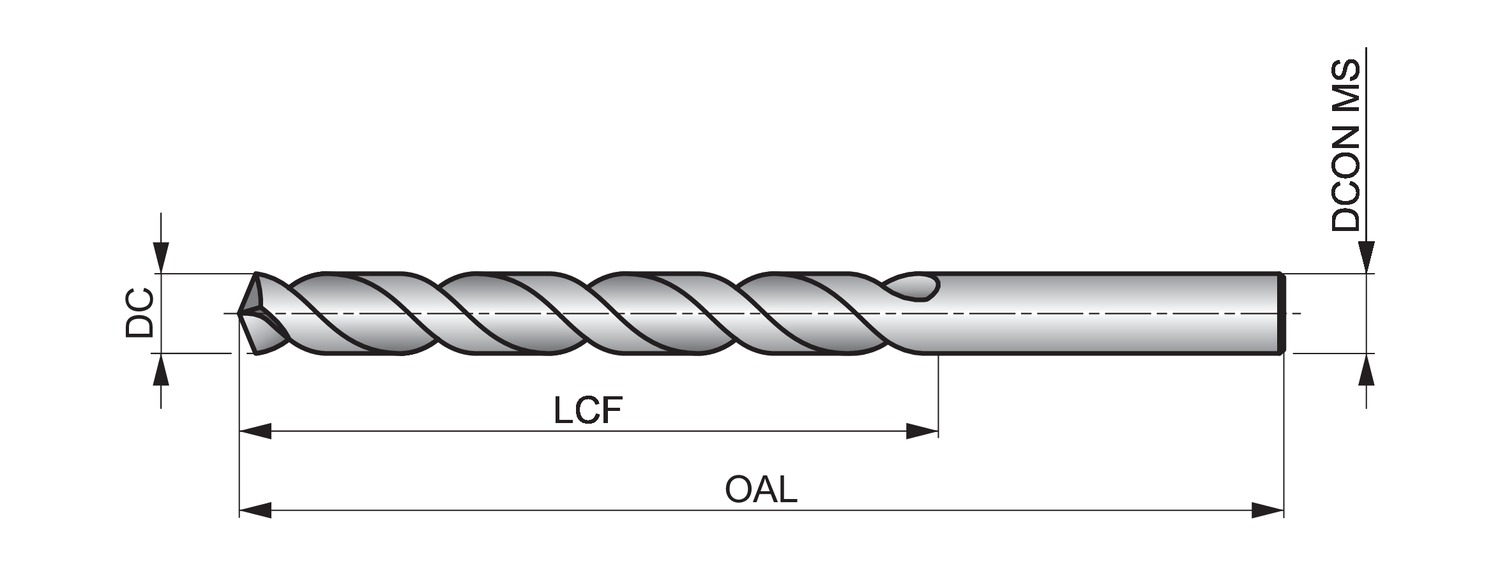

Cutting diameter – millimeter (DC): 4.3 mm
Cutting diameter – inch (DC): 0.1693 inch
Length chip flute – millimeter (LCF): 47 mm
Overall length – millimeter (OAL): 80 mm
Connection diameter – millimeter (DCON MS): 4.3 mm
Length chip flute – inch (LCF): 1.8504 inch
ISO: A1084.3

Brand

DORMER
