DORMER A1086.2 Dormer A108 Series HSS Twist Drill Bit for Stainless Steel

Description

Jobber length drill with straight shank, diameter 6.2mm with an overall length of 101mm and flute length of 63mm according to DIN 338 standard with 135° split point, HSS with steam tempered finish and quick spiral for 4xD drilling without pecking in stainless steel

Additional information

Weight	0.0219 kg
Dimensions
barcode

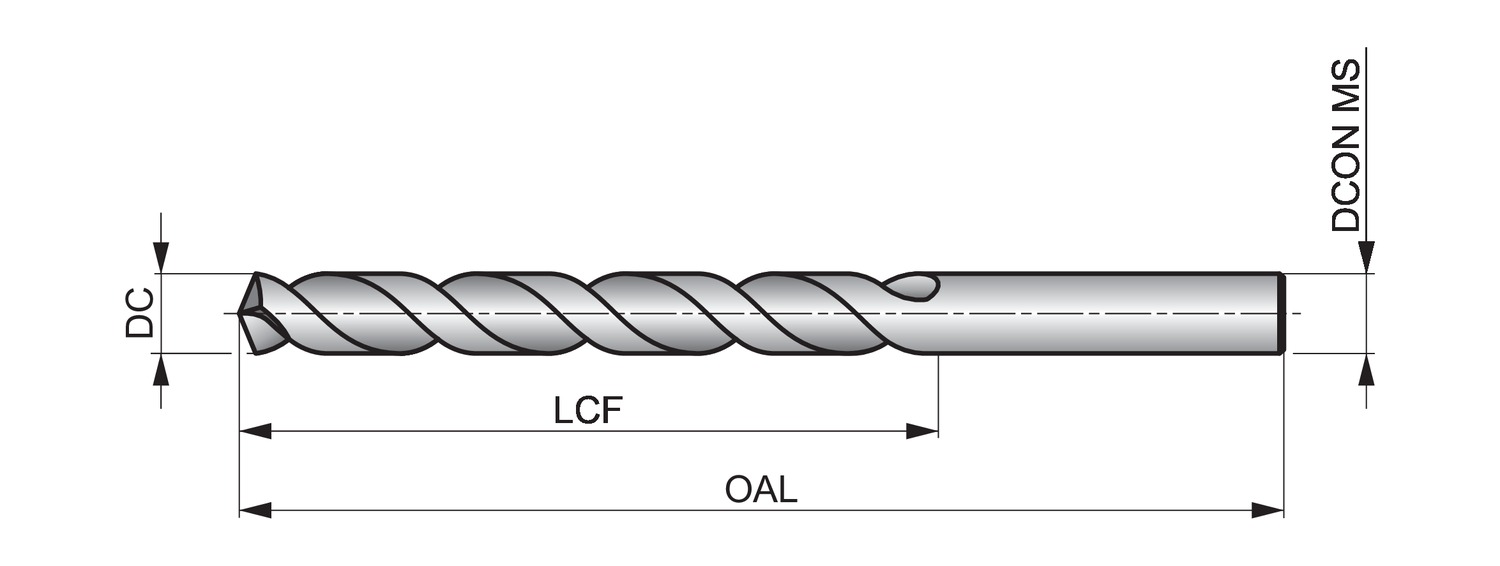

Additional Information	Description: Value EAN number: 7320760008508 Product number (SAP): 86008838 Ordering code ANSI: A1086.2 Gross weight – grams: 19.31 Cutting diameter – millimeter (DC): 6.2 mm Cutting diameter – inch (DC): 0.2441 inch Length chip flute – millimeter (LCF): 63 mm Overall length – millimeter (OAL): 101 mm Connection diameter – millimeter (DCON MS): 6.2 mm Length chip flute – inch (LCF): 2.4803 inch ISO: A1086.2
