DORMER A1086.3 Dormer A108 Series HSS Twist Drill Bit for Stainless Steel

Product Code: A1086.3

$22.77$20.70 Ex. GST

Product Code: A1086.3 SKU A1086.3 Categories , ,

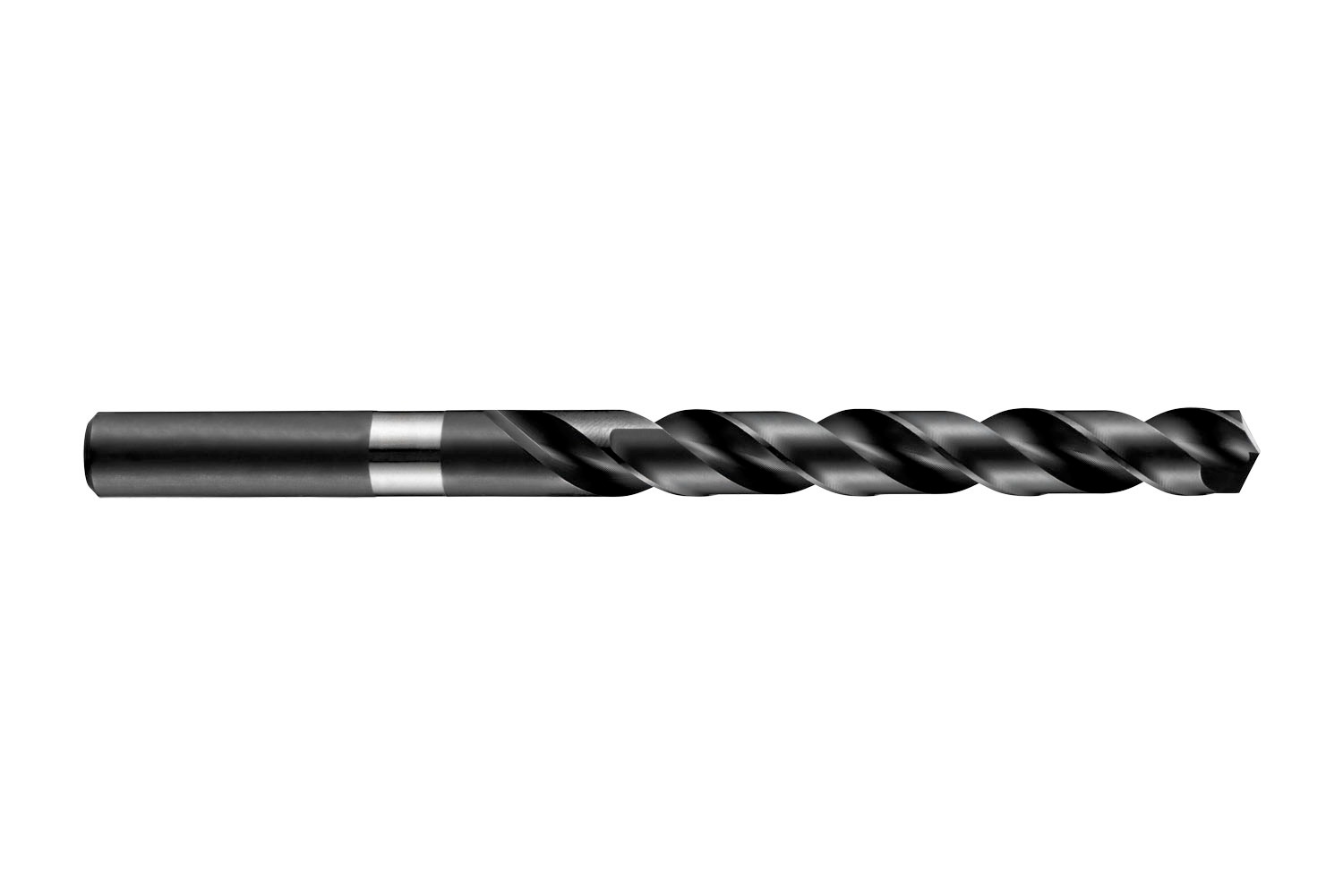

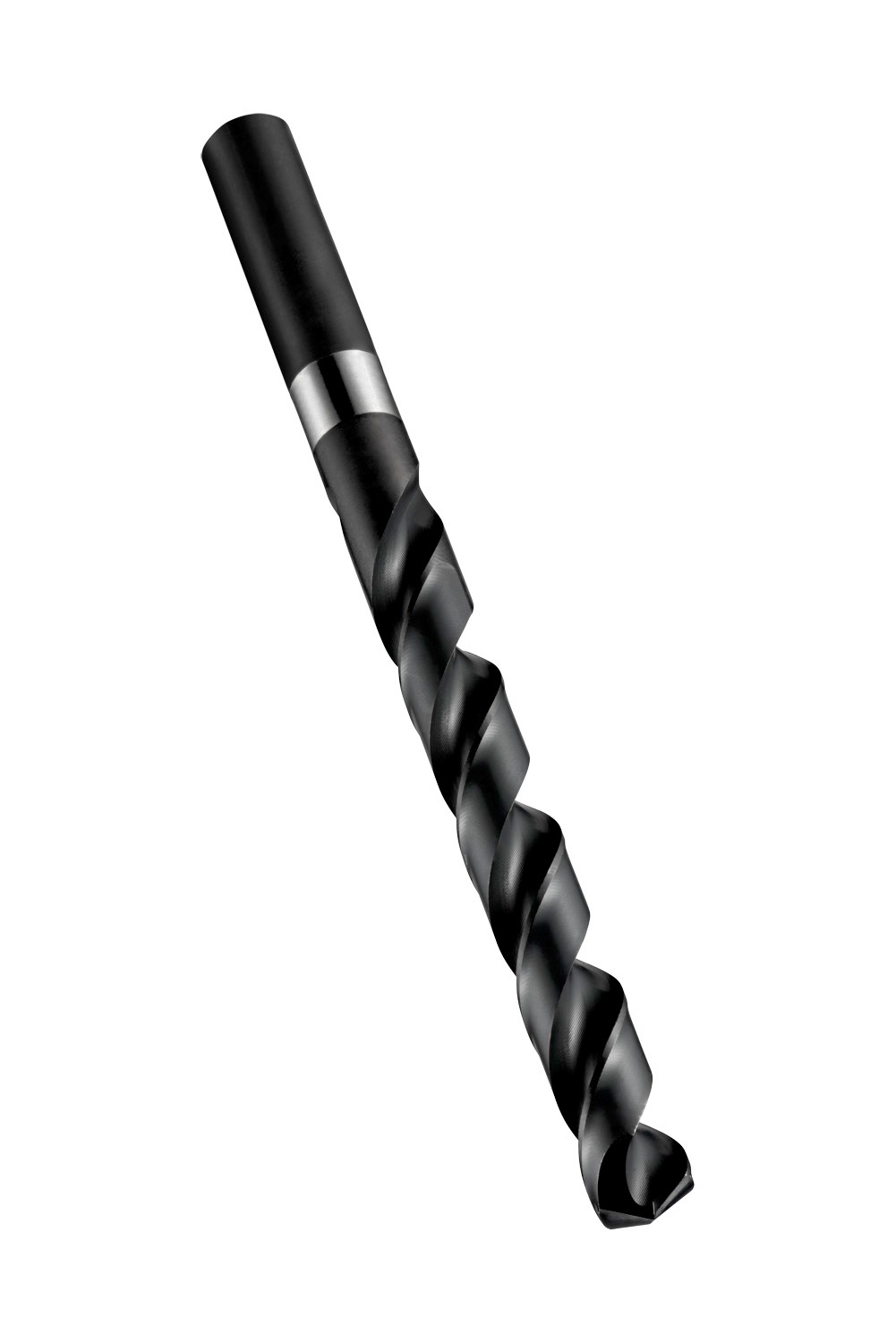

DORMER A1086.3 Dormer A108 Series HSS Twist Drill Bit for Stainless Steel
DORMER A1086.3 Dormer A108 Series HSS Twist Drill Bit for Stainless Steel - Image 2
DORMER A1086.3 Dormer A108 Series HSS Twist Drill Bit for Stainless Steel - Image 3
DORMER A1086.3 Dormer A108 Series HSS Twist Drill Bit for Stainless Steel - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

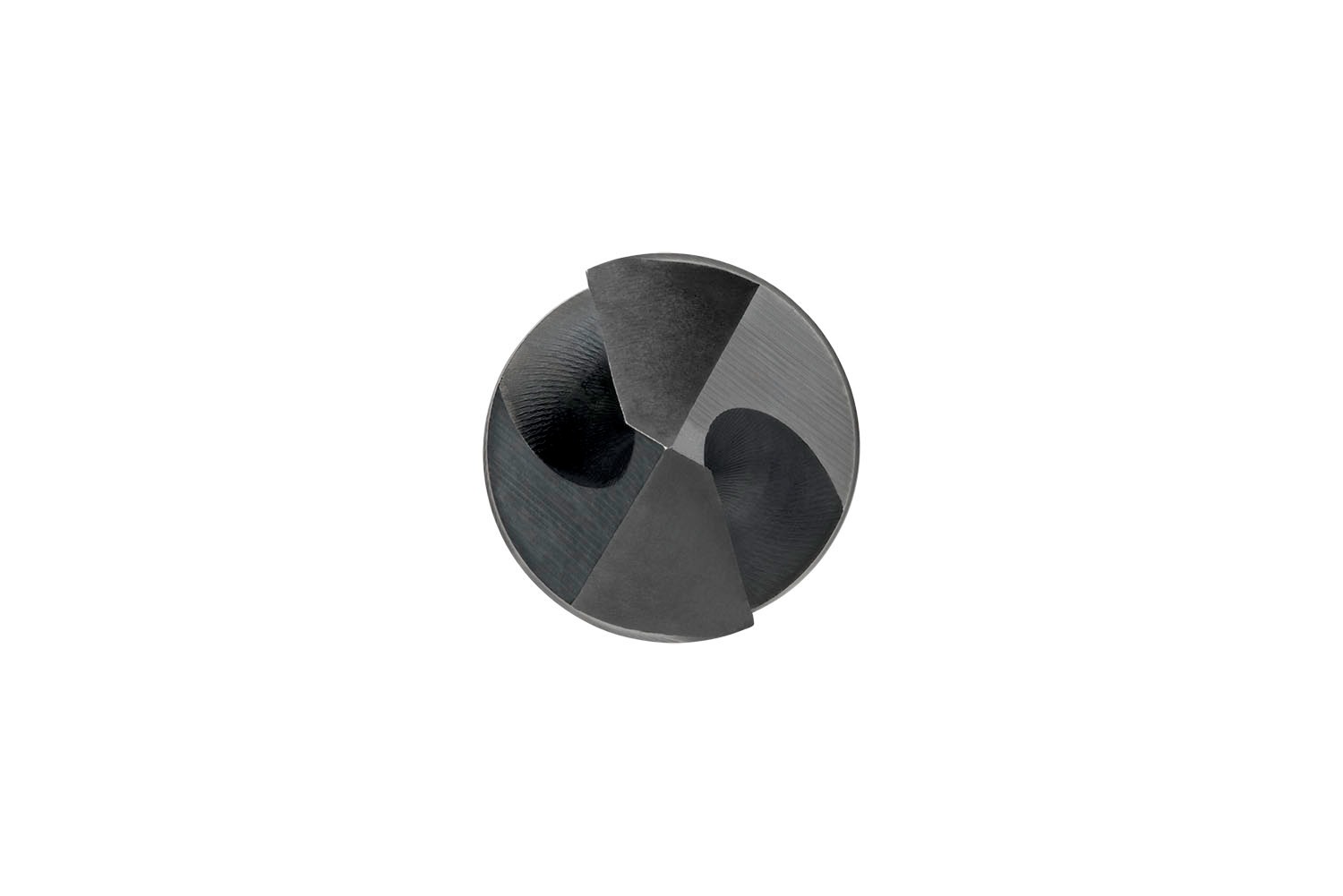

Jobber length drill with straight shank, diameter 6.3mm with an overall length of 101mm and flute length of 63mm according to DIN 338 standard with 135° split point, HSS with steam tempered finish and quick spiral for 4xD drilling without pecking in stainless steel

Additional information

Weight 0.0221 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760008515
Product number (SAP): 86008839
Ordering code ANSI: A1086.3
Gross weight – grams: 19.33

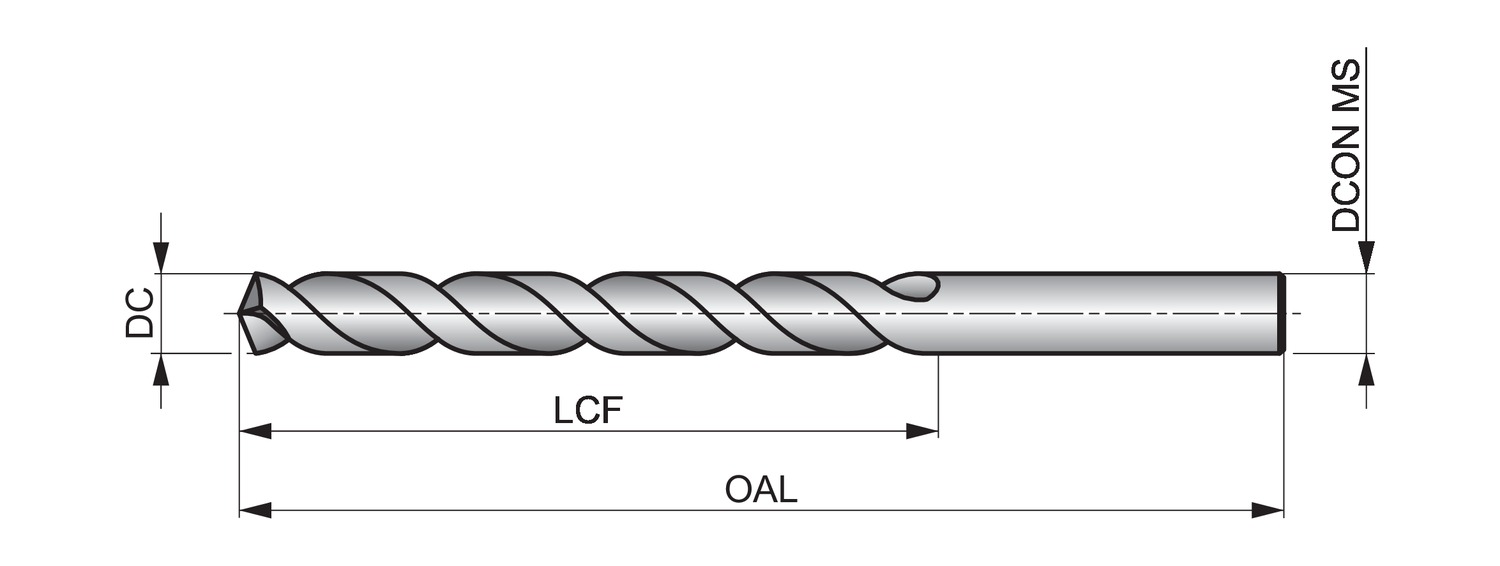

Cutting diameter – millimeter (DC): 6.3 mm
Cutting diameter – inch (DC): 0.248 inch
Length chip flute – millimeter (LCF): 63 mm
Overall length – millimeter (OAL): 101 mm
Connection diameter – millimeter (DCON MS): 6.3 mm
Length chip flute – inch (LCF): 2.4803 inch
ISO: A1086.3

Brand

DORMER
