DORMER A1087.0 Dormer A108 Series HSS Twist Drill Bit for Stainless Steel

Description

Jobber length drill with straight shank, diameter 7mm with an overall length of 109mm and flute length of 69mm according to DIN 338 standard with 135° split point, HSS with steam tempered finish and quick spiral for 4xD drilling without pecking in stainless steel

Additional information

Weight	0.0268 kg
Dimensions
barcode

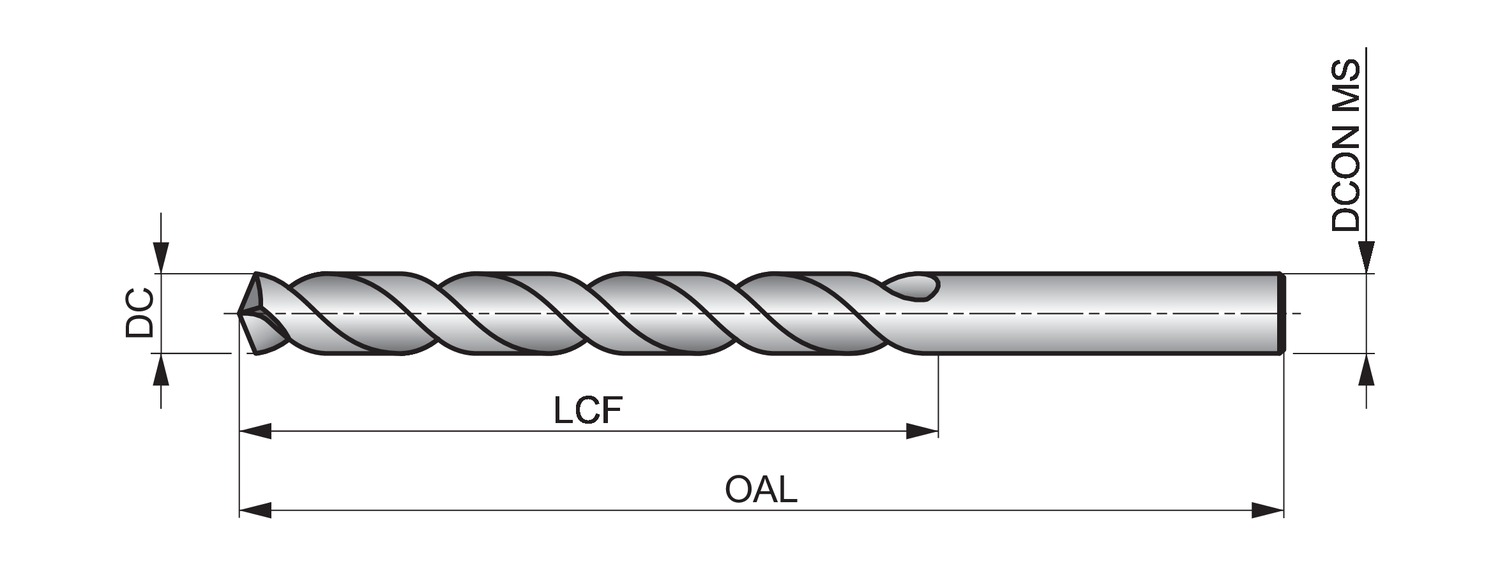

Additional Information	Description: Value EAN number: 7320760008584 Product number (SAP): 86008846 Ordering code ANSI: A1087.0 Gross weight – grams: 25.19 Cutting diameter – millimeter (DC): 7 mm Cutting diameter – inch (DC): 0.2756 inch Length chip flute – millimeter (LCF): 69 mm Overall length – millimeter (OAL): 109 mm Connection diameter – millimeter (DCON MS): 7 mm Length chip flute – inch (LCF): 2.7165 inch ISO: A1087.0

DORMER A1087.0 Dormer A108 Series HSS Twist Drill Bit for Stainless Steel
