DORMER A1087.2 Dormer A108 Series HSS Twist Drill Bit for Stainless Steel

Product Code: A1087.2

$28.67$26.06 Ex. GST

Product Code: A1087.2 SKU A1087.2 Categories , ,
DORMER A1087.2 Dormer A108 Series HSS Twist Drill Bit for Stainless Steel

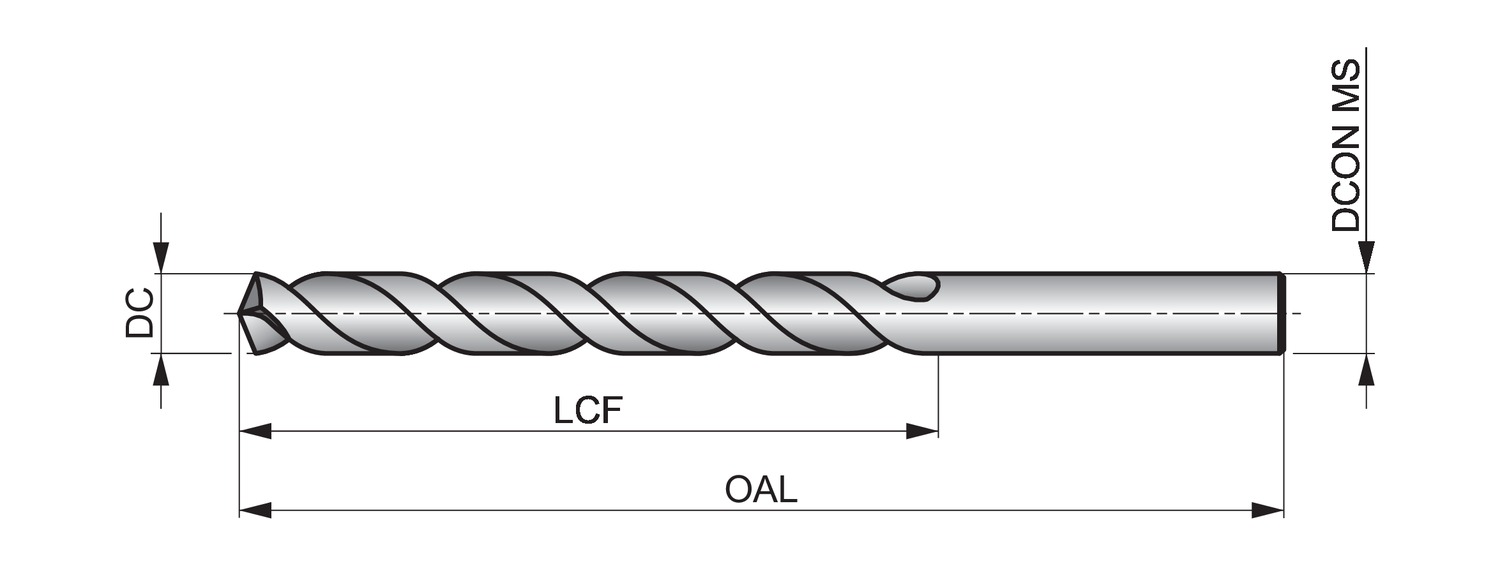

DORMER A1087.2 Dormer A108 Series HSS Twist Drill Bit for Stainless Steel - Image 2
DORMER A1087.2 Dormer A108 Series HSS Twist Drill Bit for Stainless Steel - Image 3
DORMER A1087.2 Dormer A108 Series HSS Twist Drill Bit for Stainless Steel - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Jobber length drill with straight shank, diameter 7.2mm with an overall length of 109mm and flute length of 69mm according to DIN 338 standard with 135° split point, HSS with steam tempered finish and quick spiral for 4xD drilling without pecking in stainless steel

Additional information

Weight 0.0278 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760008607
Product number (SAP): 86008848
Ordering code ANSI: A1087.2
Gross weight – grams: 27.76
Cutting diameter – millimeter (DC): 7.2 mm
Cutting diameter – inch (DC): 0.2835 inch
Length chip flute – millimeter (LCF): 69 mm
Overall length – millimeter (OAL): 109 mm
Connection diameter – millimeter (DCON MS): 7.2 mm
Length chip flute – inch (LCF): 2.7165 inch
ISO: A1087.2

Brand

DORMER
