DORMER A1087.6 Dormer A108 Series HSS Twist Drill Bit for Stainless Steel

Product Code: A1087.6

$33.31$30.28 Ex. GST

Product Code: A1087.6 SKU A1087.6 Categories , ,
DORMER A1087.6 Dormer A108 Series HSS Twist Drill Bit for Stainless Steel
DORMER A1087.6 Dormer A108 Series HSS Twist Drill Bit for Stainless Steel - Image 2
DORMER A1087.6 Dormer A108 Series HSS Twist Drill Bit for Stainless Steel - Image 3
DORMER A1087.6 Dormer A108 Series HSS Twist Drill Bit for Stainless Steel - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Jobber length drill with straight shank, diameter 7.6mm with an overall length of 117mm and flute length of 75mm according to DIN 338 standard with 135° split point, HSS with steam tempered finish and quick spiral for 4xD drilling without pecking in stainless steel

Additional information

Weight 0.0323 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760008645
Product number (SAP): 86008852
Ordering code ANSI: A1087.6
Gross weight – grams: 33.4

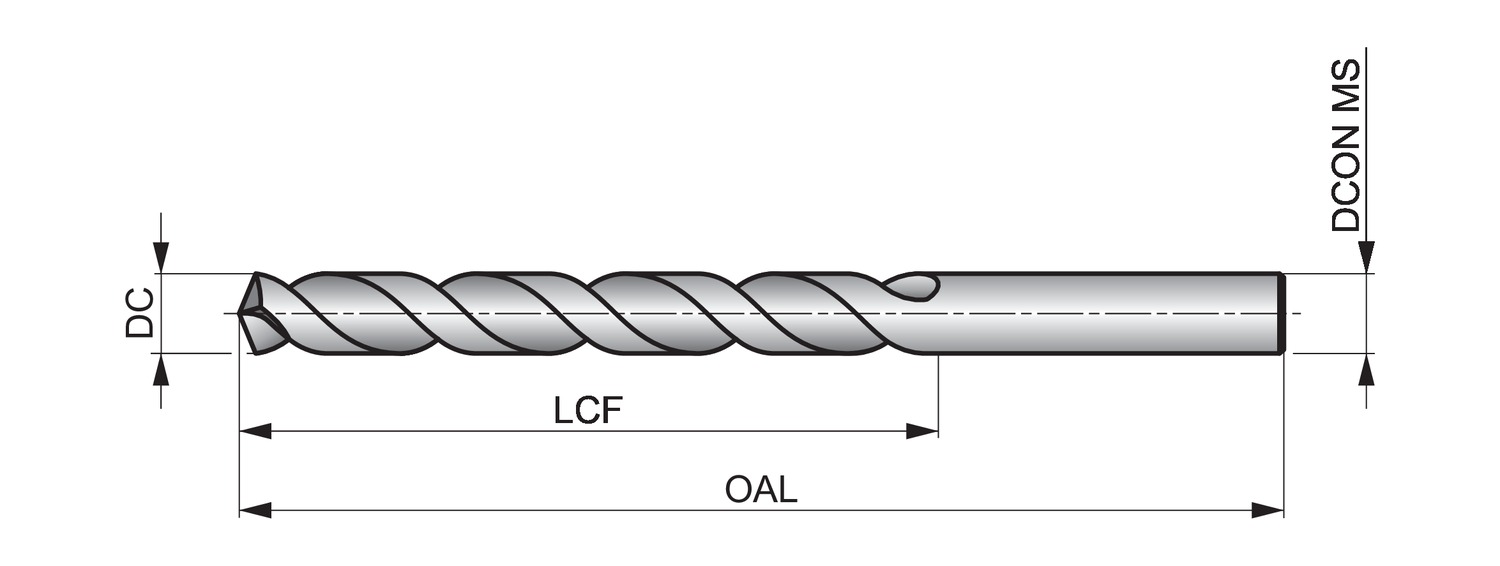

Cutting diameter – millimeter (DC): 7.6 mm
Cutting diameter – inch (DC): 0.2992 inch
Length chip flute – millimeter (LCF): 75 mm
Overall length – millimeter (OAL): 117 mm
Connection diameter – millimeter (DCON MS): 7.6 mm
Length chip flute – inch (LCF): 2.9528 inch
ISO: A1087.6

Brand

DORMER
