DORMER A1088.4 Dormer A108 Series HSS Twist Drill Bit for Stainless Steel

Product Code: A1088.4

$38.07$34.61 Ex. GST

Product Code: A1088.4 SKU A1088.4 Categories , ,

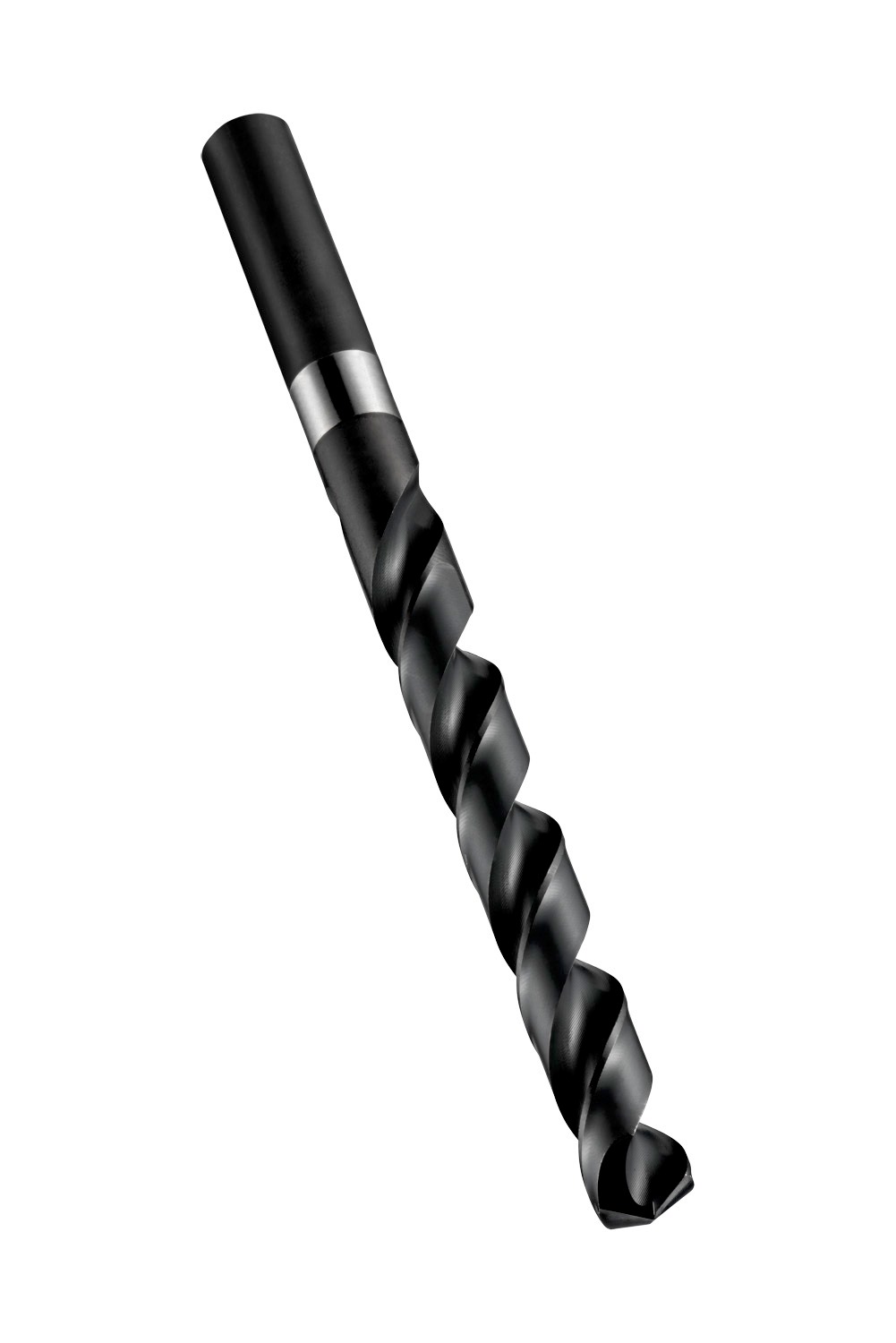

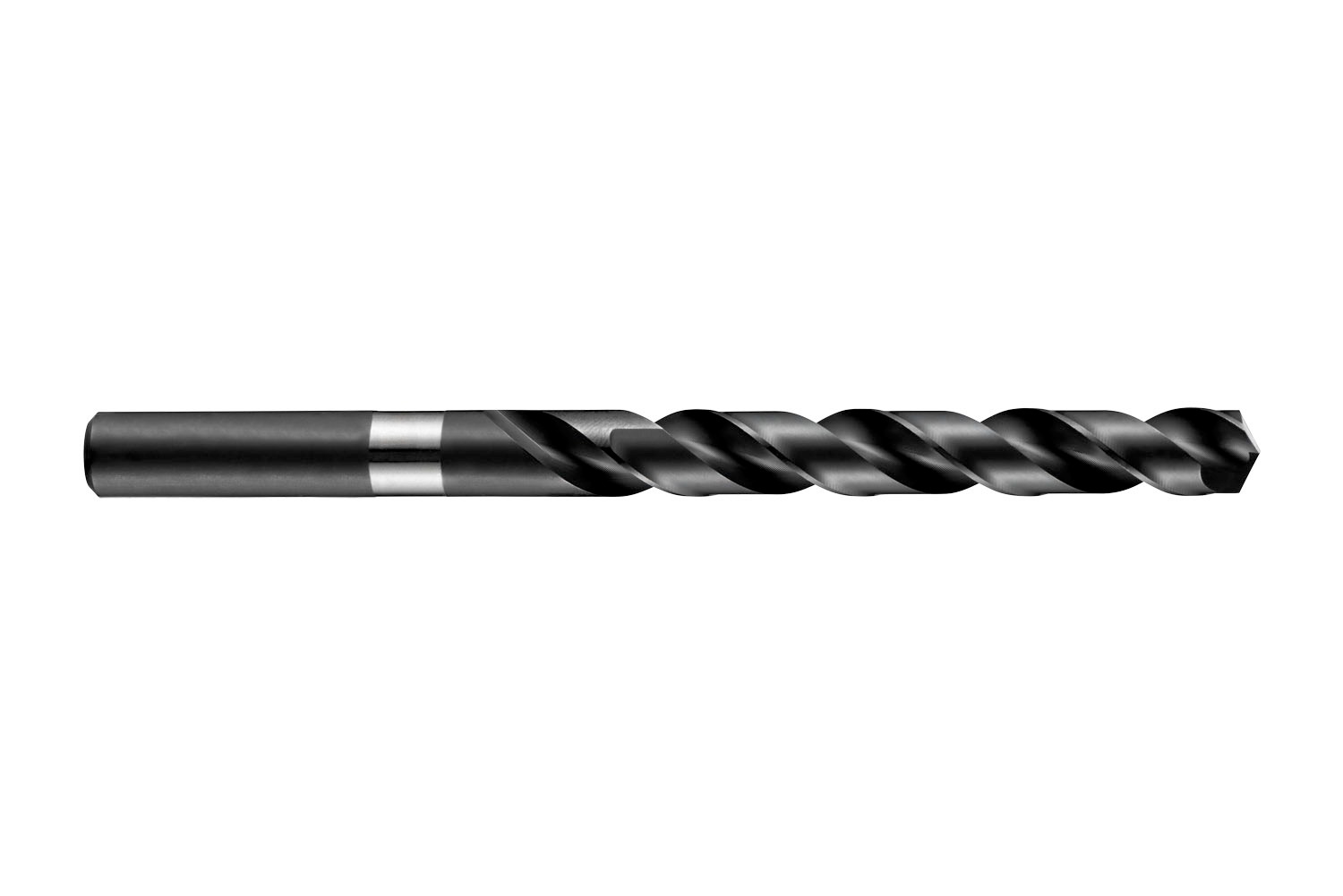

DORMER A1088.4 Dormer A108 Series HSS Twist Drill Bit for Stainless Steel
DORMER A1088.4 Dormer A108 Series HSS Twist Drill Bit for Stainless Steel - Image 2
DORMER A1088.4 Dormer A108 Series HSS Twist Drill Bit for Stainless Steel - Image 3
DORMER A1088.4 Dormer A108 Series HSS Twist Drill Bit for Stainless Steel - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Jobber length drill with straight shank, diameter 8.4mm with an overall length of 117mm and flute length of 75mm according to DIN 338 standard with 135° split point, HSS with steam tempered finish and quick spiral for 4xD drilling without pecking in stainless steel

Additional information

Weight 0.0370 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760008751
Product number (SAP): 86008863
Ordering code ANSI: A1088.4
Gross weight – grams: 38.58

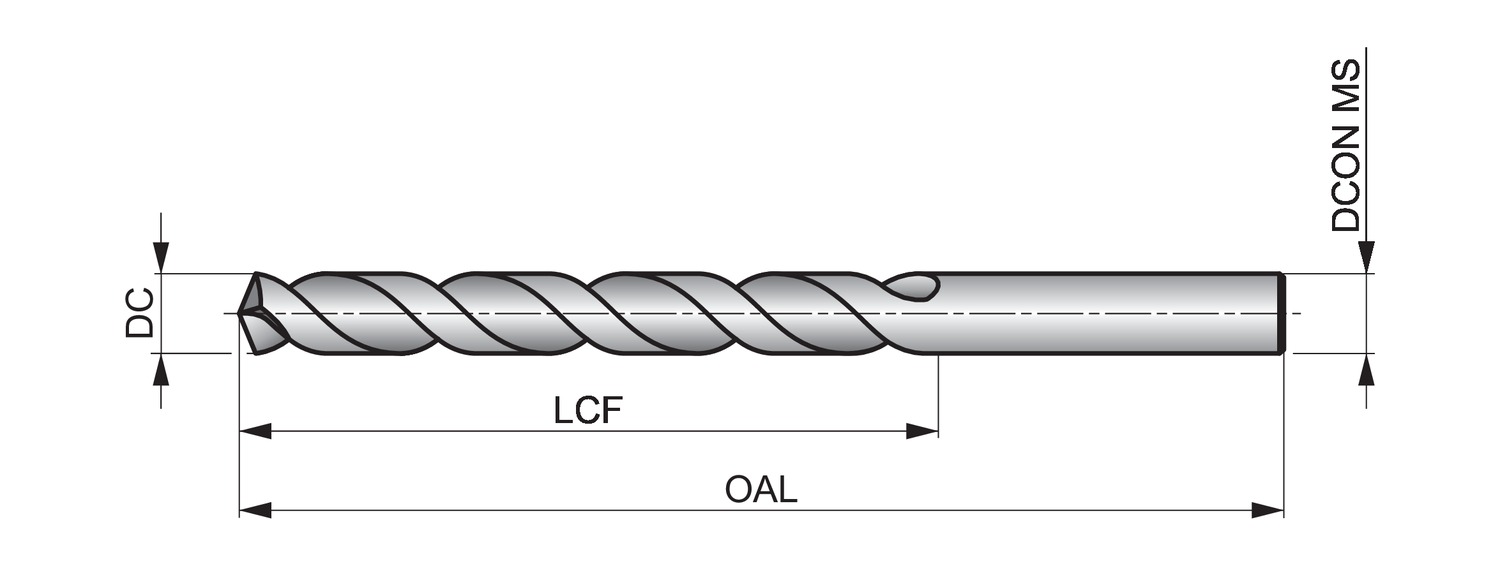

Cutting diameter – millimeter (DC): 8.4 mm
Cutting diameter – inch (DC): 0.3307 inch
Length chip flute – millimeter (LCF): 75 mm
Overall length – millimeter (OAL): 117 mm
Connection diameter – millimeter (DCON MS): 8.4 mm
Length chip flute – inch (LCF): 2.9528 inch
ISO: A1088.4

Brand

DORMER
