DORMER A1088.5 Dormer A108 Series HSS Twist Drill Bit for Stainless Steel

Description

Jobber length drill with straight shank, diameter 8.5mm with an overall length of 117mm and flute length of 75mm according to DIN 338 standard with 135° split point, HSS with steam tempered finish and quick spiral for 4xD drilling without pecking in stainless steel

Additional information

Weight	0.0358 kg
Dimensions
barcode

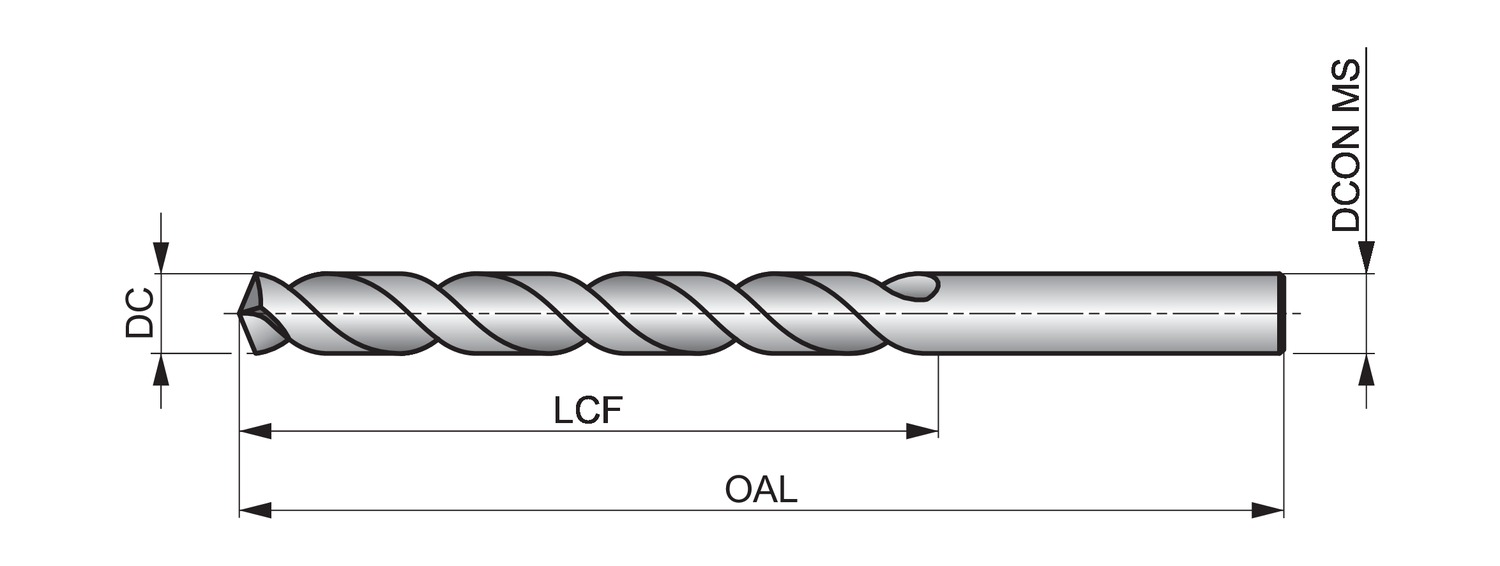

Additional Information	Description: Value EAN number: 7320760008768 Product number (SAP): 86008864 Ordering code ANSI: A1088.5 Gross weight – grams: 39.53 Cutting diameter – millimeter (DC): 8.5 mm Cutting diameter – inch (DC): 0.3346 inch Length chip flute – millimeter (LCF): 75 mm Overall length – millimeter (OAL): 117 mm Connection diameter – millimeter (DCON MS): 8.5 mm Length chip flute – inch (LCF): 2.9528 inch ISO: A1088.5
