DORMER A1088.6 Dormer A108 Series HSS Twist Drill Bit for Stainless Steel

Description

Jobber length drill with straight shank, diameter 8.6mm with an overall length of 125mm and flute length of 81mm according to DIN 338 standard with 135° split point, HSS with steam tempered finish and quick spiral for 4xD drilling without pecking in stainless steel

Additional information

Weight	0.0425 kg
Dimensions
barcode

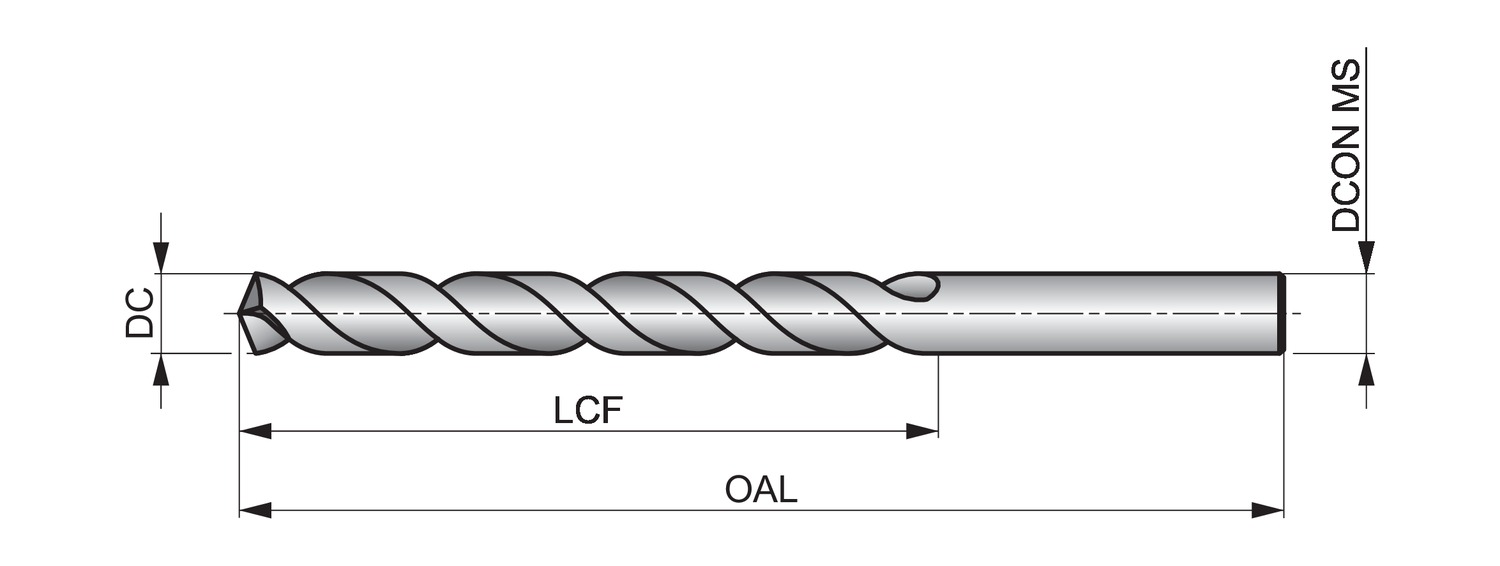

Additional Information	Description: Value EAN number: 7320760008775 Product number (SAP): 86008865 Ordering code ANSI: A1088.6 Gross weight – grams: 39 Cutting diameter – millimeter (DC): 8.6 mm Cutting diameter – inch (DC): 0.3386 inch Length chip flute – millimeter (LCF): 81 mm Overall length – millimeter (OAL): 125 mm Connection diameter – millimeter (DCON MS): 8.6 mm Length chip flute – inch (LCF): 3.189 inch ISO: A1088.6

DORMER A1088.6 Dormer A108 Series HSS Twist Drill Bit for Stainless Steel
