DORMER A1089.3 Dormer A108 Series HSS Twist Drill Bit for Stainless Steel

Product Code: A1089.3

$47.48$43.16 Ex. GST

Product Code: A1089.3 SKU A1089.3 Categories , ,

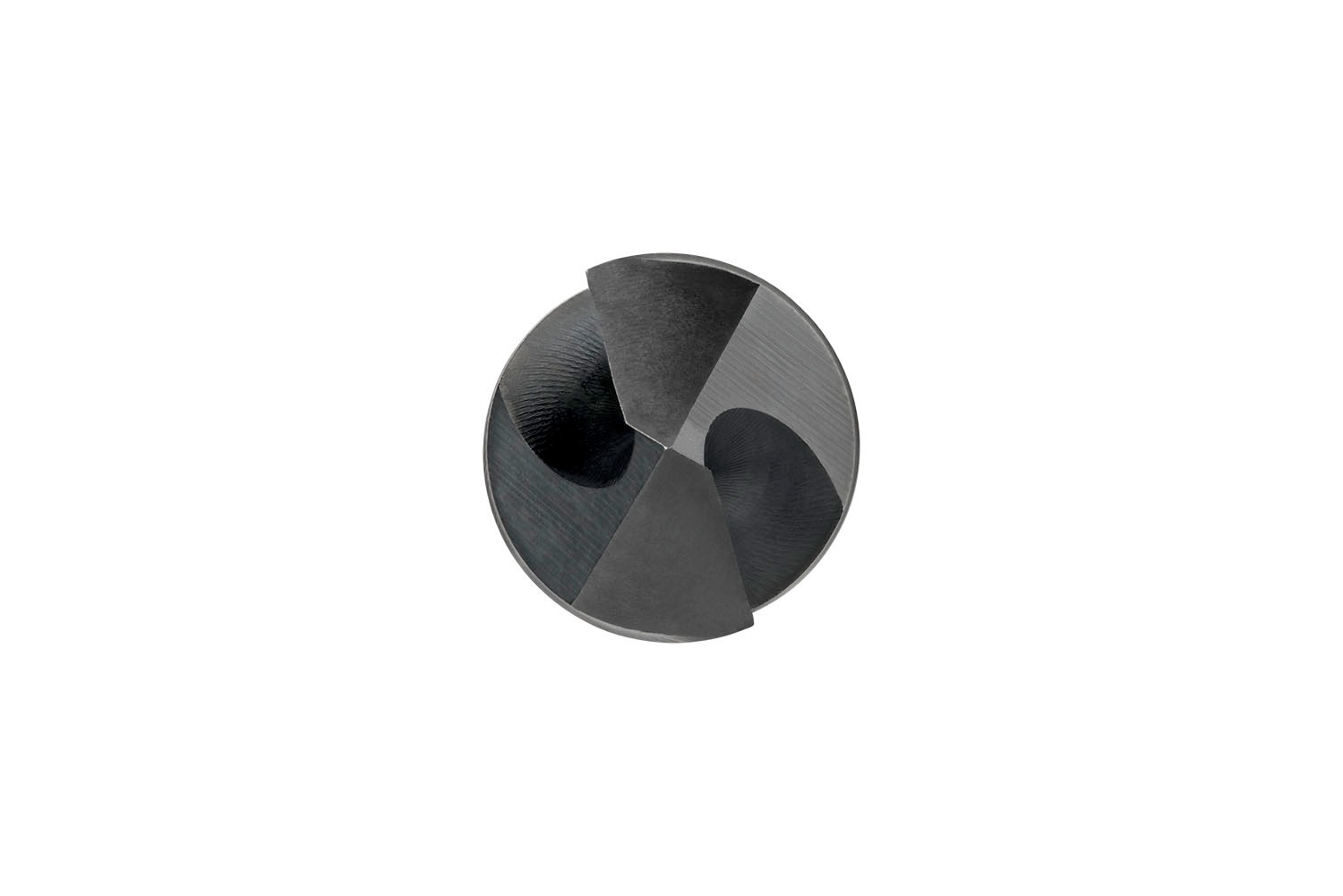

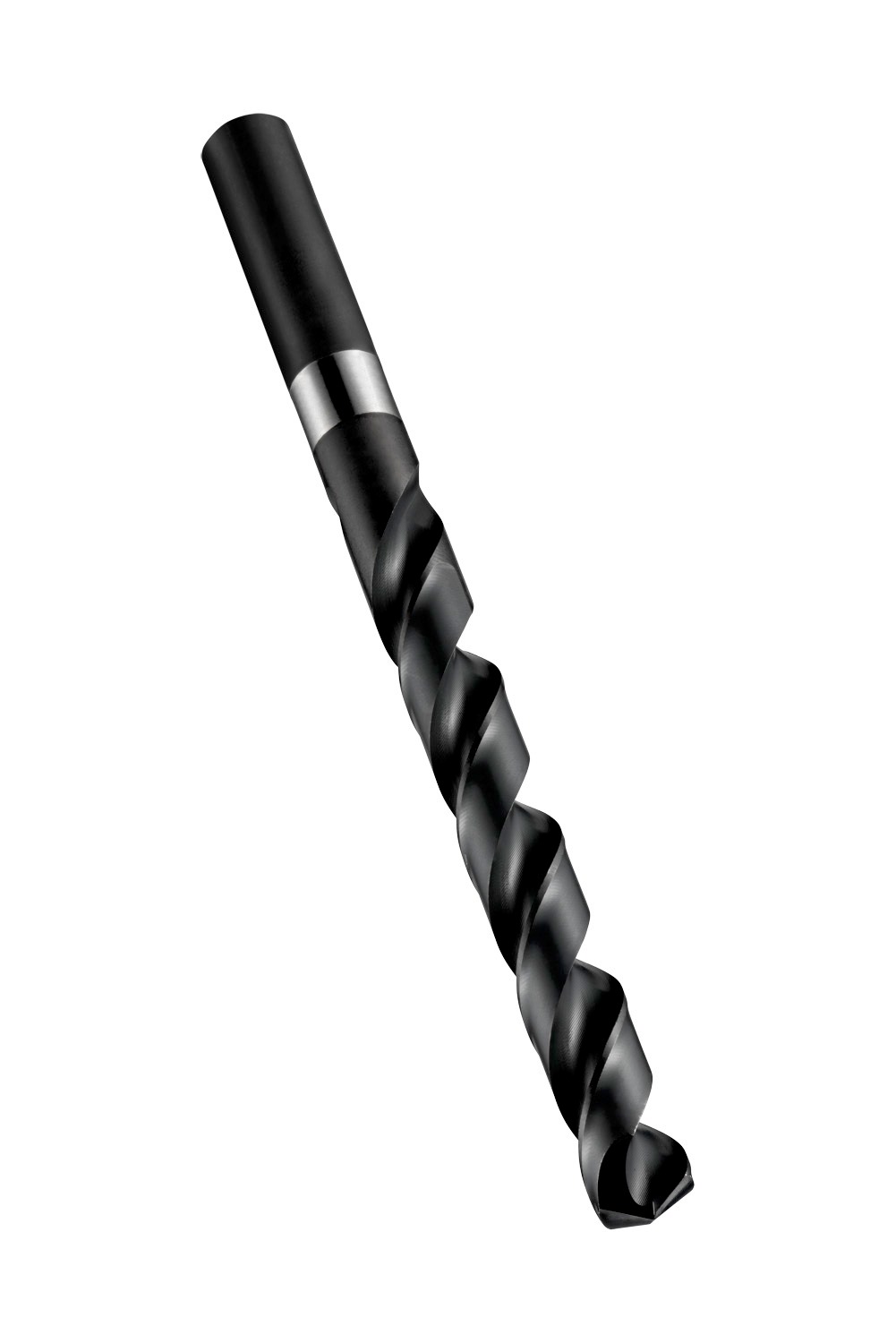

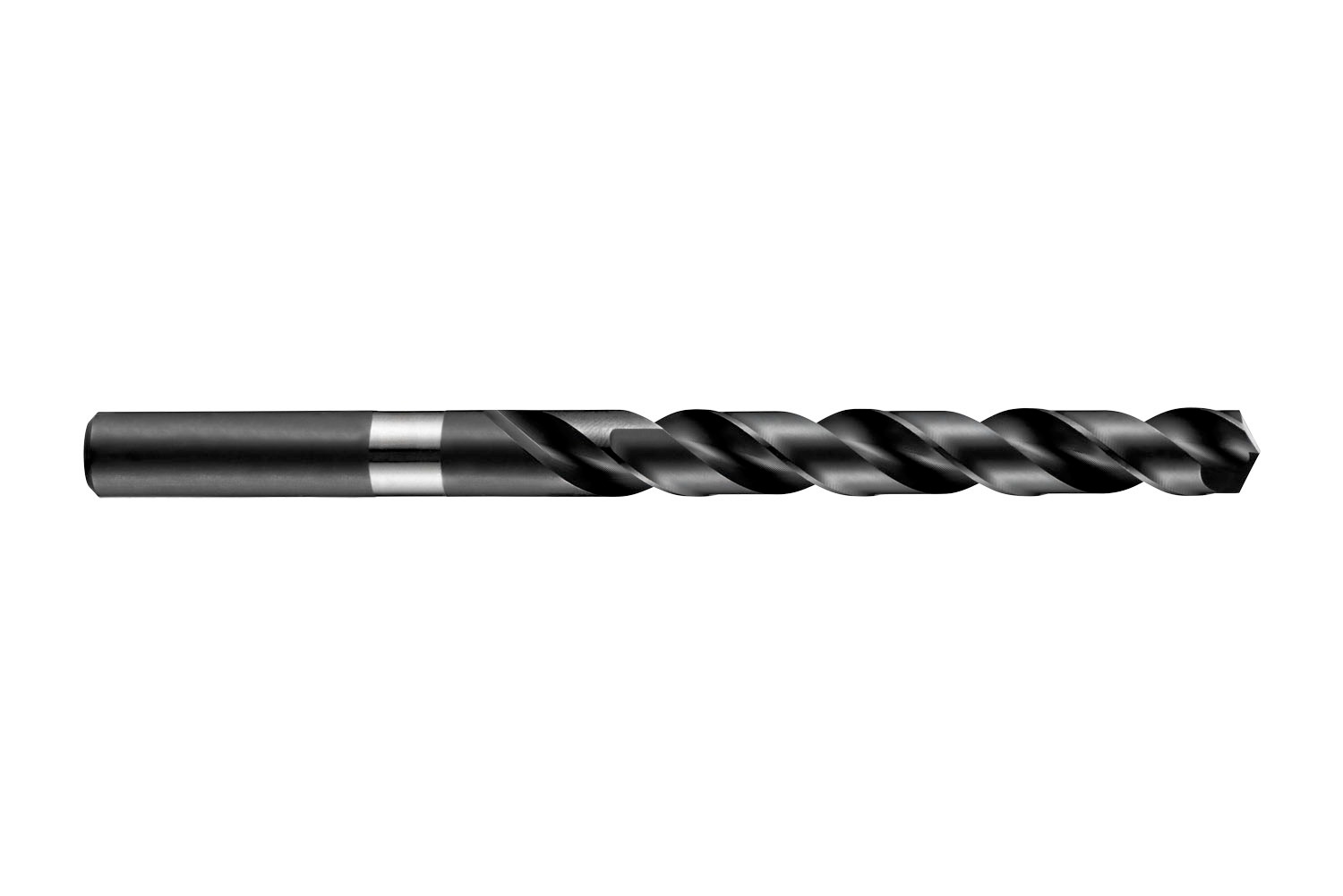

DORMER A1089.3 Dormer A108 Series HSS Twist Drill Bit for Stainless Steel
DORMER A1089.3 Dormer A108 Series HSS Twist Drill Bit for Stainless Steel - Image 2
DORMER A1089.3 Dormer A108 Series HSS Twist Drill Bit for Stainless Steel - Image 3
DORMER A1089.3 Dormer A108 Series HSS Twist Drill Bit for Stainless Steel - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Jobber length drill with straight shank, diameter 9.3mm with an overall length of 125mm and flute length of 81mm according to DIN 338 standard with 135° split point, HSS with steam tempered finish and quick spiral for 4xD drilling without pecking in stainless steel

Additional information

Weight 0.0461 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760008843
Product number (SAP): 86008872
Ordering code ANSI: A1089.3
Gross weight – grams: 46

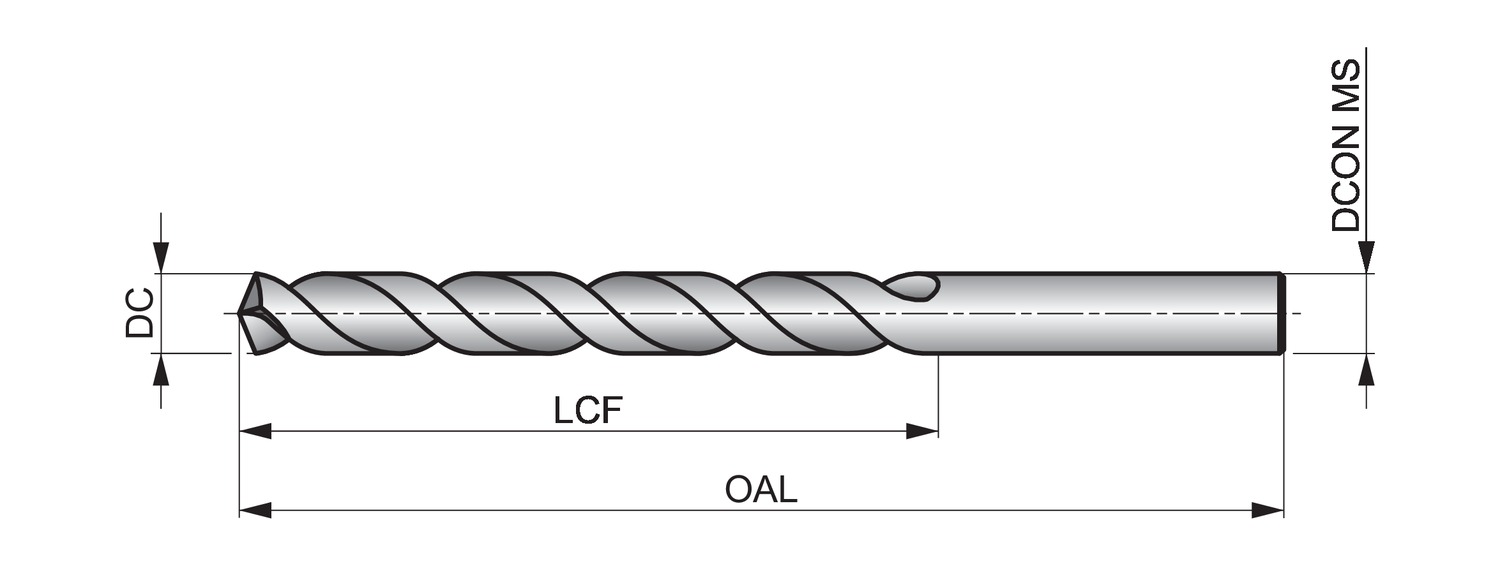

Cutting diameter – millimeter (DC): 9.3 mm
Cutting diameter – inch (DC): 0.3661 inch
Length chip flute – millimeter (LCF): 81 mm
Overall length – millimeter (OAL): 125 mm
Connection diameter – millimeter (DCON MS): 9.3 mm
Length chip flute – inch (LCF): 3.189 inch
ISO: A1089.3
