DORMER A110.9 Dormer A108 Series HSS Twist Drill Bit for Stainless Steel

Product Code: A110.9

$22.77$20.70 Ex. GST

Product Code: A110.9 SKU A110.9 Categories , ,

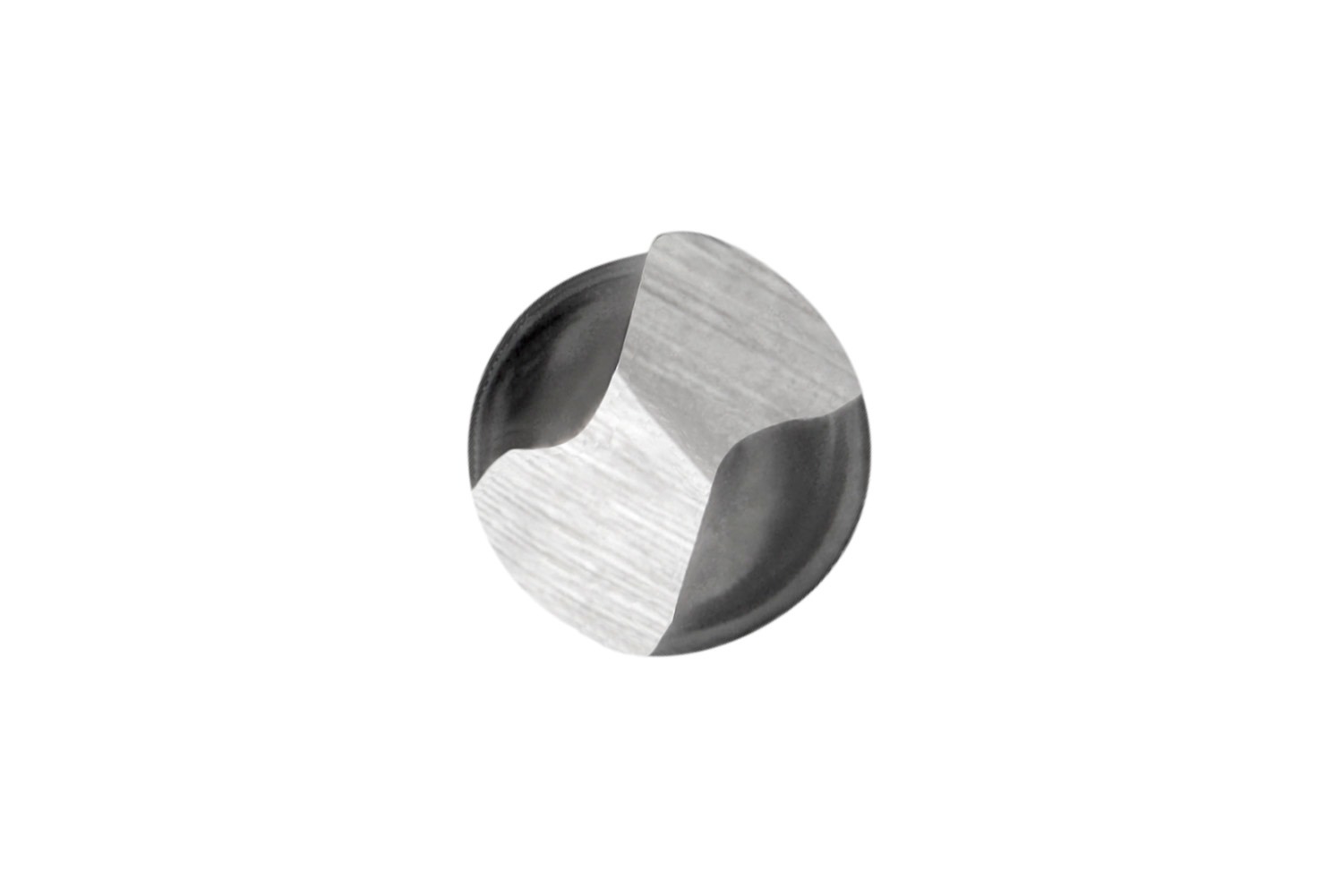

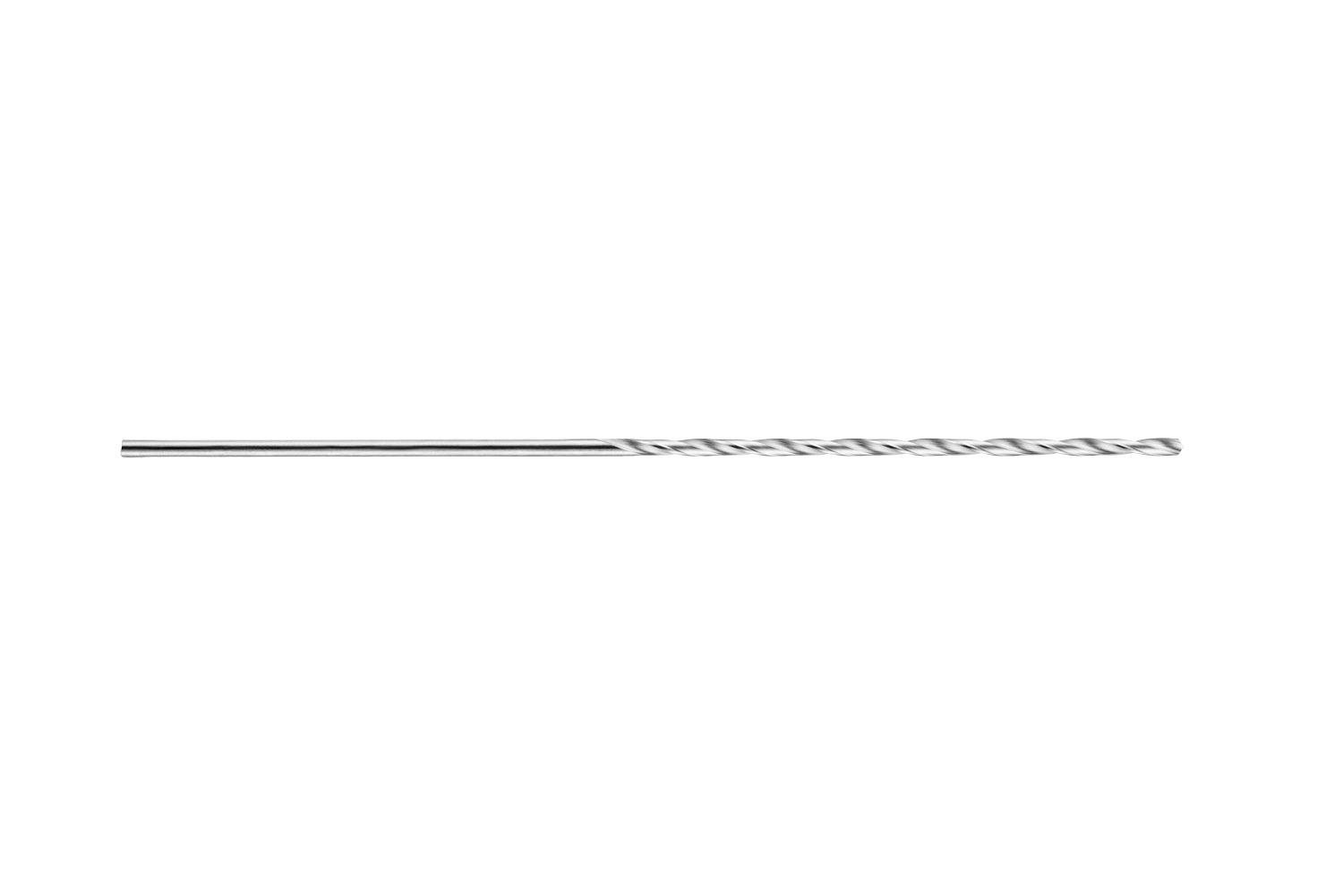

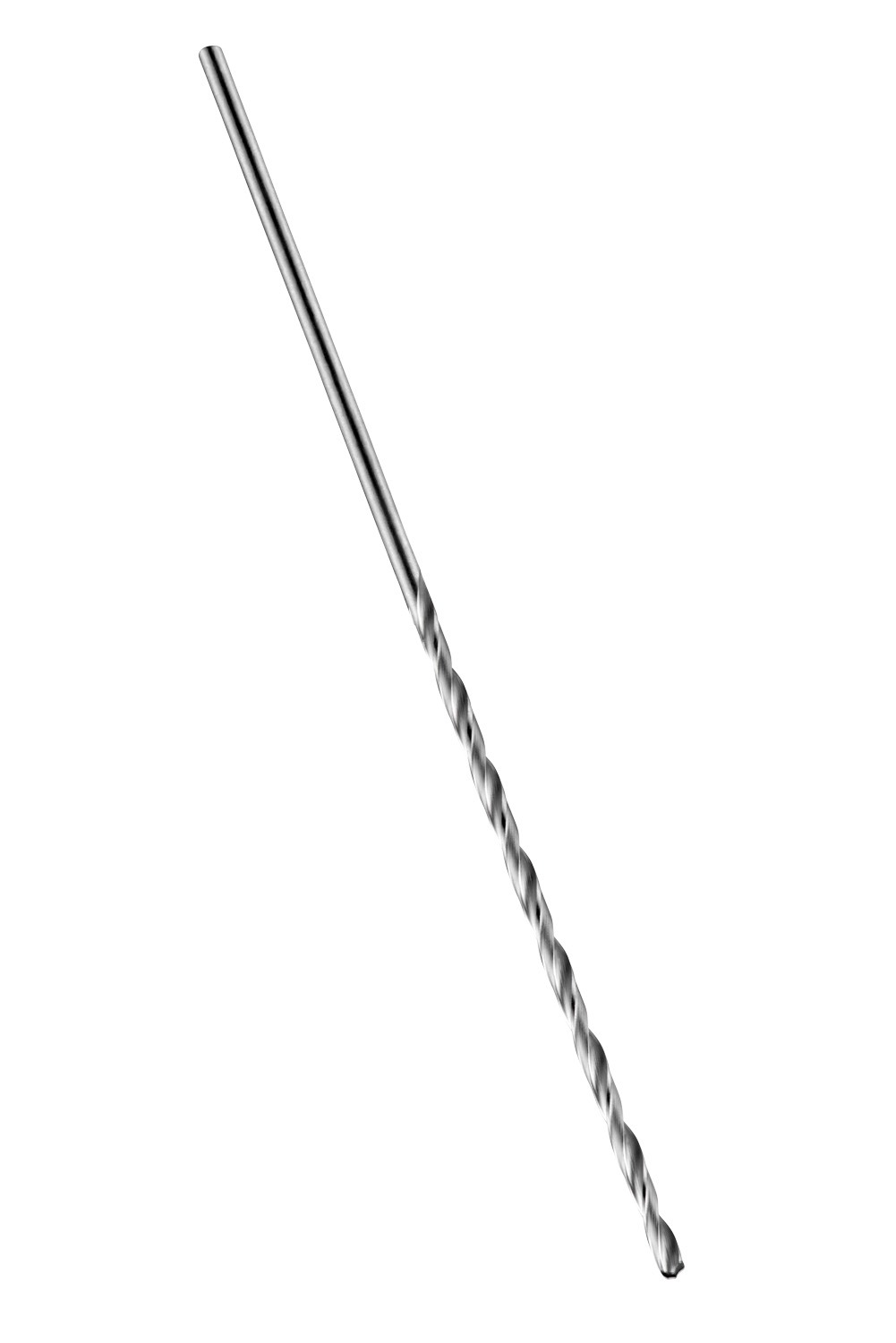

DORMER A110.9 Dormer A108 Series HSS Twist Drill Bit for Stainless Steel
DORMER A110.9 Dormer A108 Series HSS Twist Drill Bit for Stainless Steel - Image 2
DORMER A110.9 Dormer A108 Series HSS Twist Drill Bit for Stainless Steel - Image 3
DORMER A110.9 Dormer A108 Series HSS Twist Drill Bit for Stainless Steel - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Long series drill with straight shank, diameter 0.9mm with an overall length of 51mm and flute length of 29mm according to DIN 340 standard with 118° point angle, HSS with bright finish for 6xD drilling without pecking in steel

Additional information

Weight 0.0221 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760009925
Product number (SAP): 86008886
Ordering code ANSI: A110.9
Gross weight – grams: 0.35
Cutting diameter – millimeter (DC): 0.9 mm
Cutting diameter – inch (DC): 0.0354 inch
Length chip flute – millimeter (LCF): 29 mm
Overall length – millimeter (OAL): 51 mm
Connection diameter – millimeter (DCON MS): 0.9 mm
Length chip flute – inch (LCF): 1.1417 inch
ISO: A110.9
