DORMER A11710.0 Stub drill with straight shank-bronze finish for 2.5xD

Description

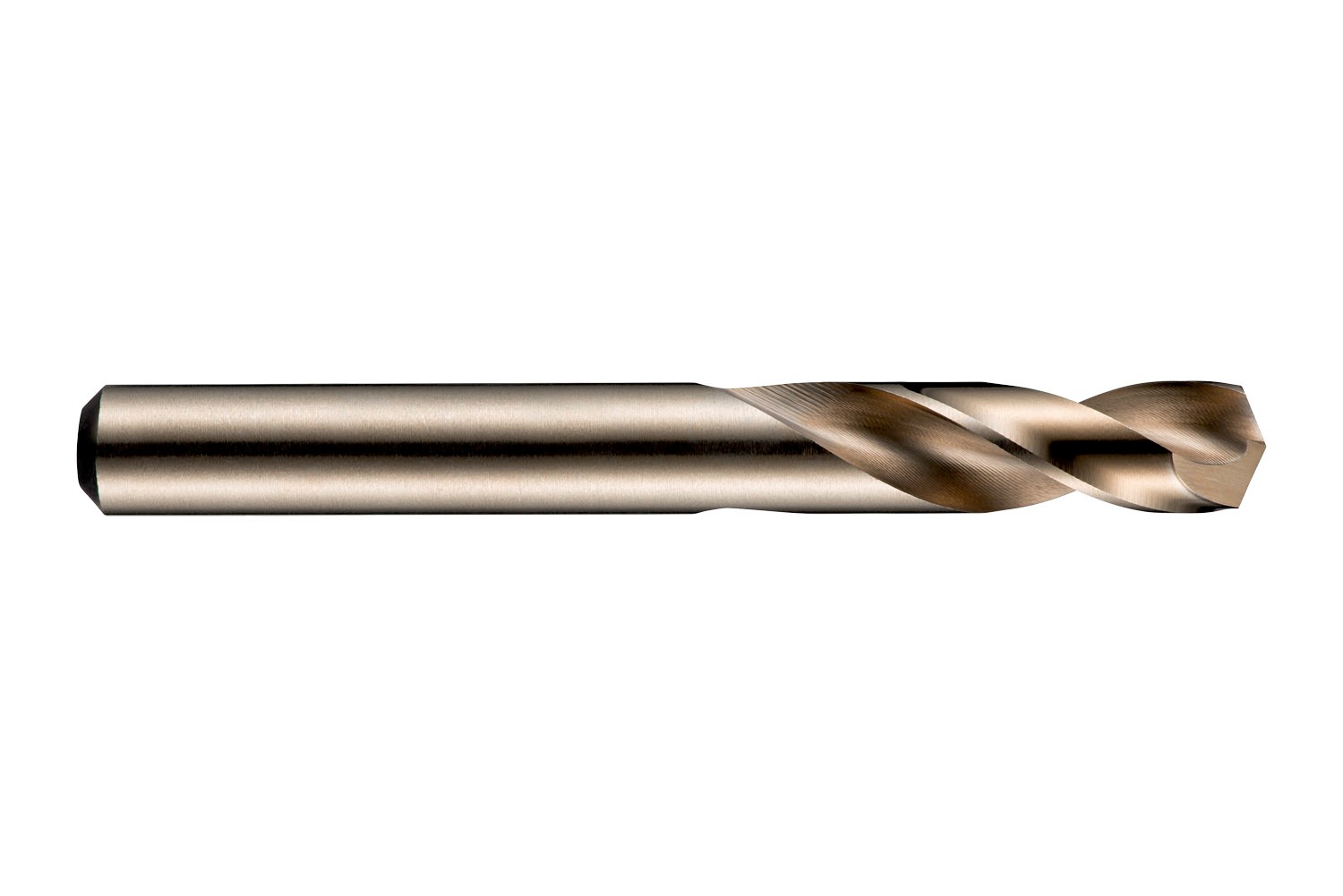

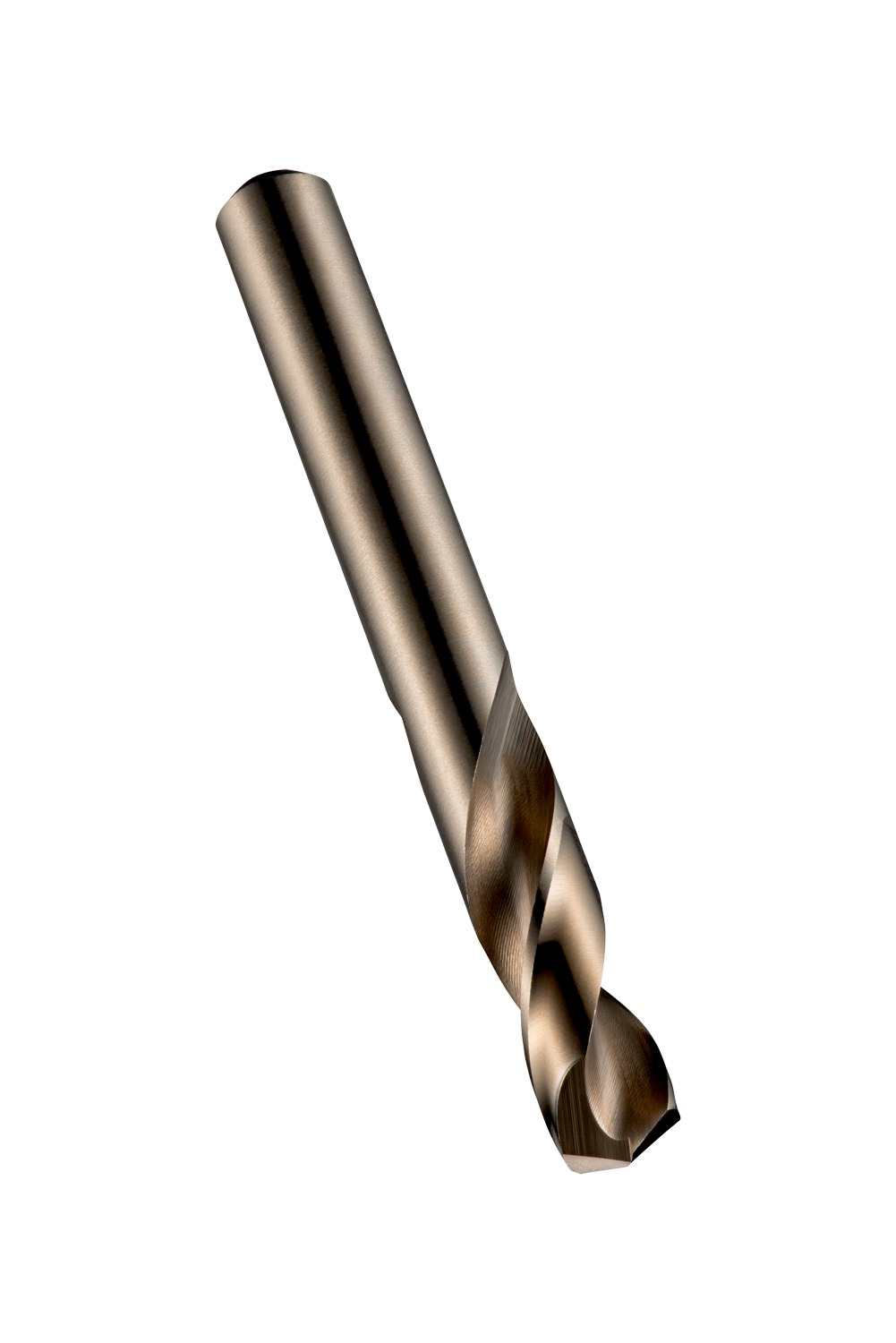

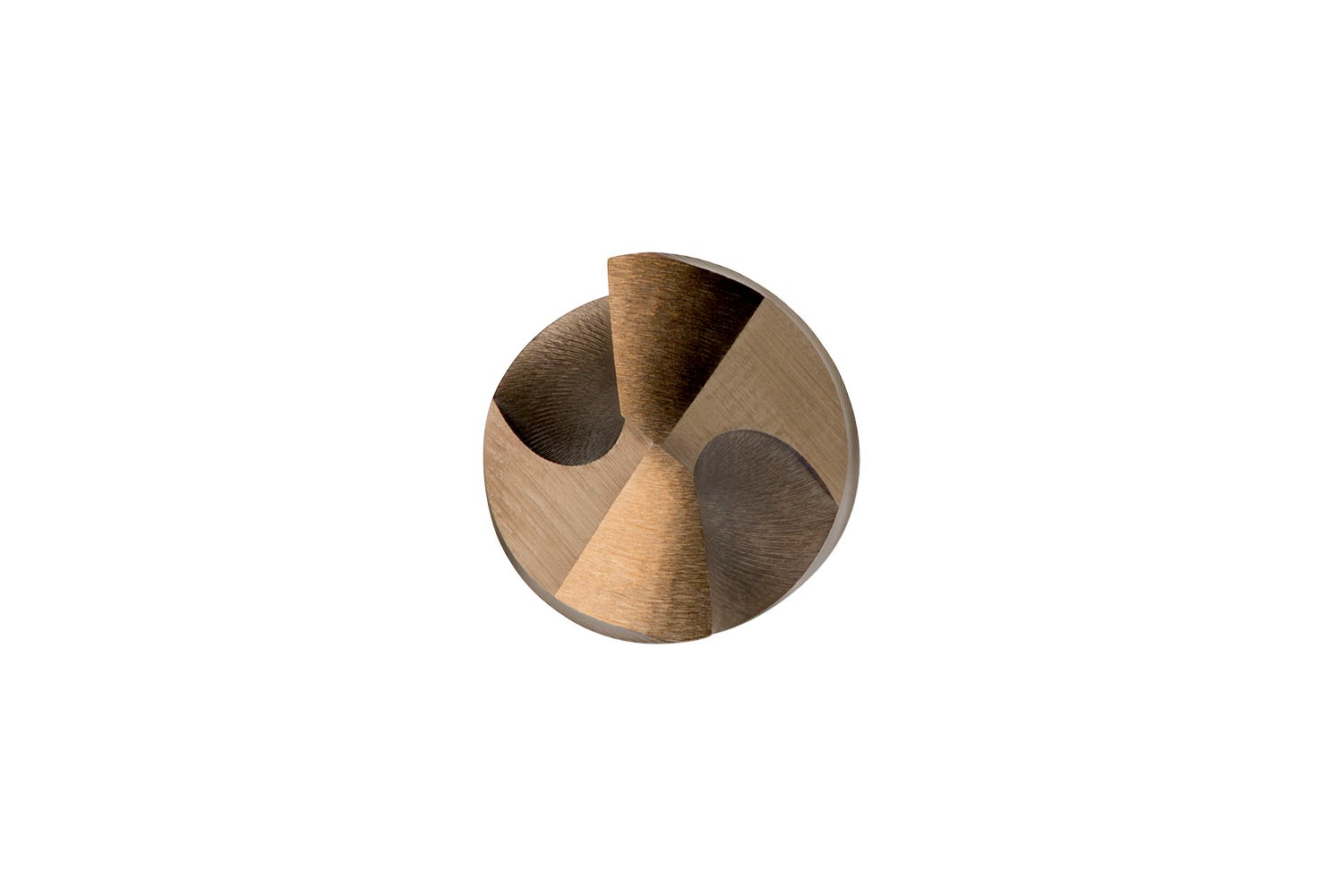

Stub length drill with straight shank, diameter 10mm with an overall length of 89mm and flute length of 43mm according to DIN 1897 standard with 135° split point, cobalt based HSS-E with bronze finish for 2.5xD drilling without pecking in stainless steel and super-alloy

Additional information

Weight	0.0520 kg
Dimensions
barcode
Additional Information	Description: Value EAN number: 7320760015155 Product number (SAP): 86009071 Ordering code ANSI: A11710.0 Gross weight – grams: 45.74 Cutting diameter – millimeter (DC): 10 mm Cutting diameter – inch (DC): 0.3937 inch Length chip flute – millimeter (LCF): 43 mm Overall length – millimeter (OAL): 89 mm Connection diameter – millimeter (DCON MS): 10 mm Length chip flute – inch (LCF): 1.6929 inch ISO: A11710.0

DORMER A11710.0 Stub drill with straight shank-bronze finish for 2.5xD
