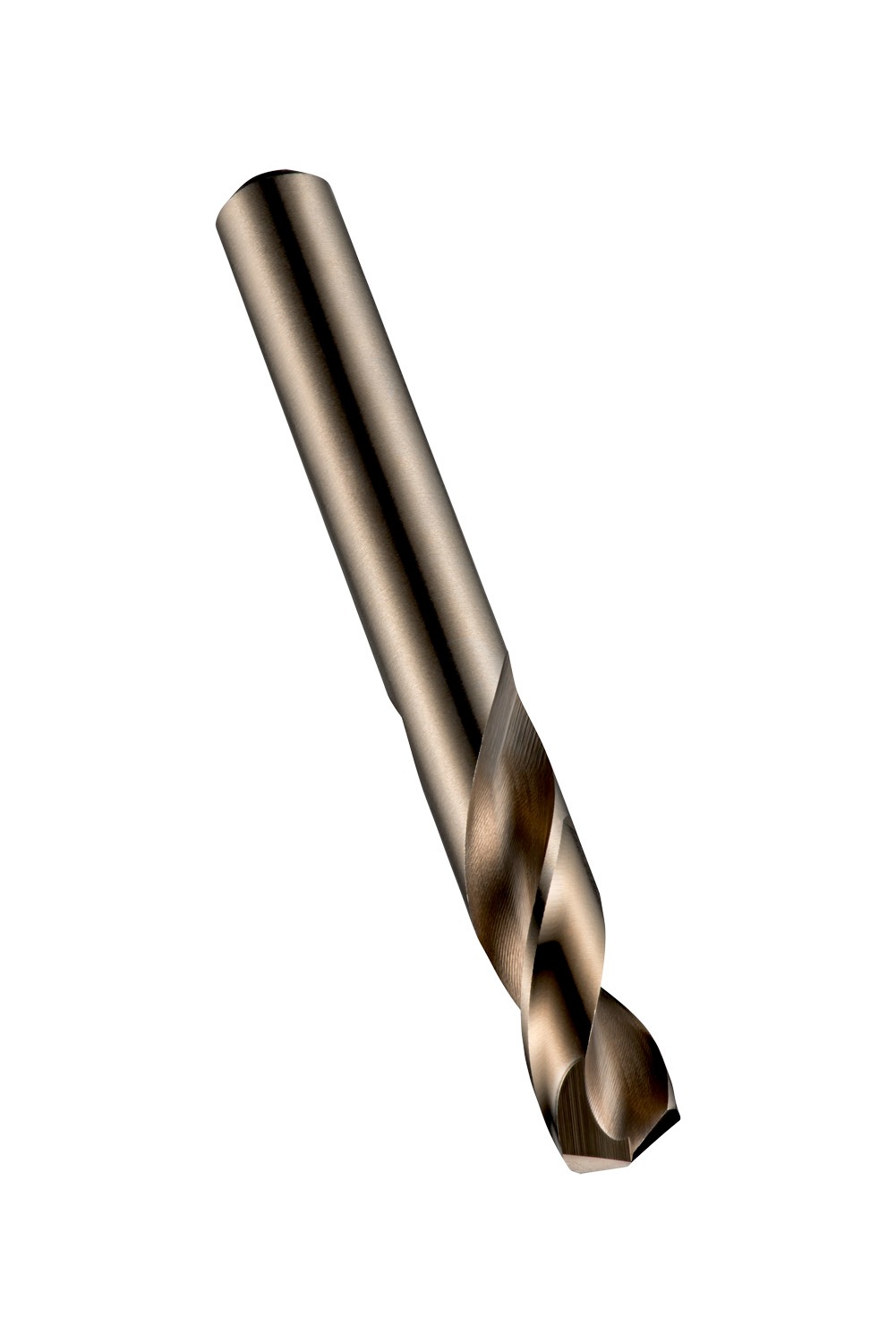

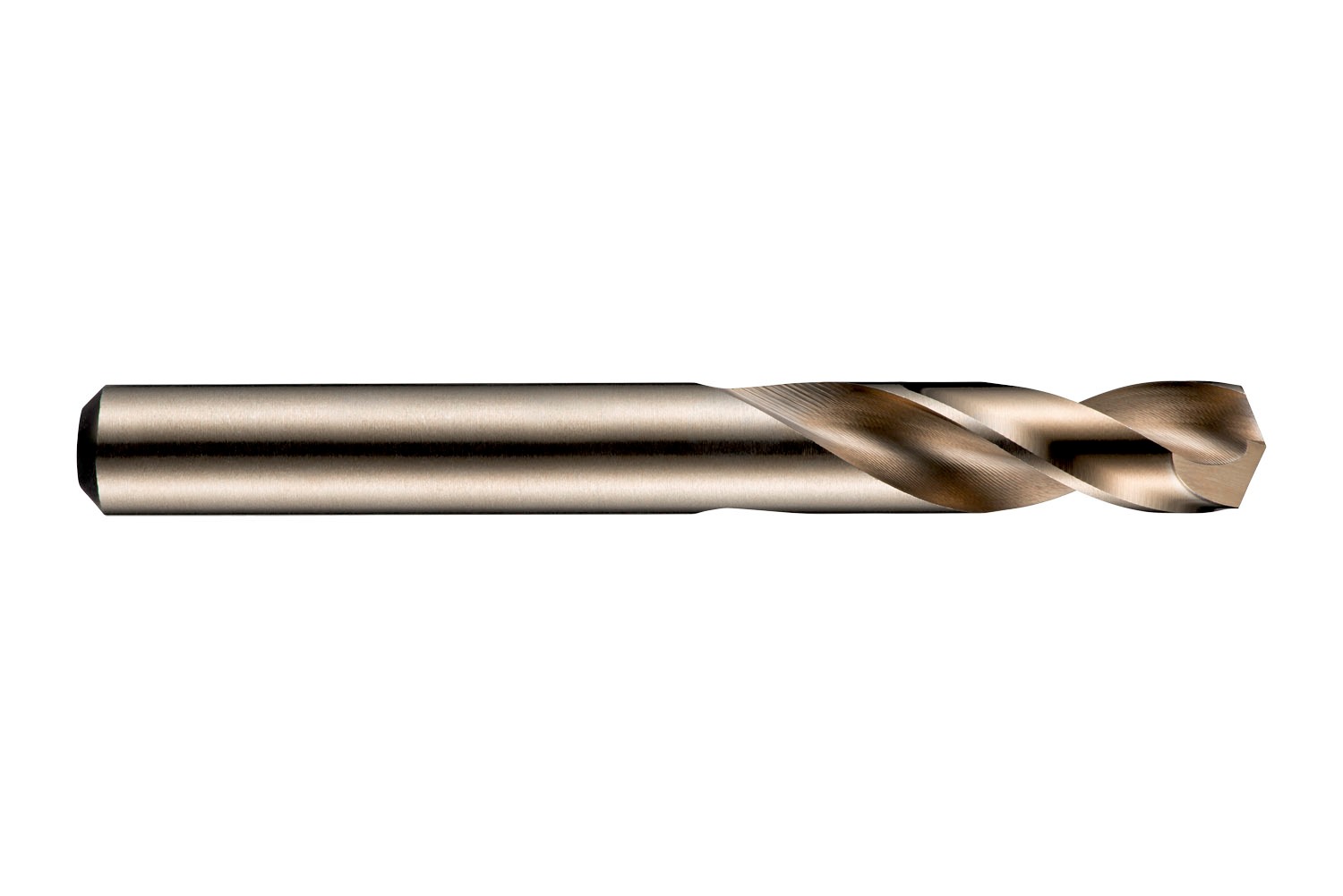

DORMER A11711.0 Stub drill with straight shank-bronze finish for 2.5xD

Description

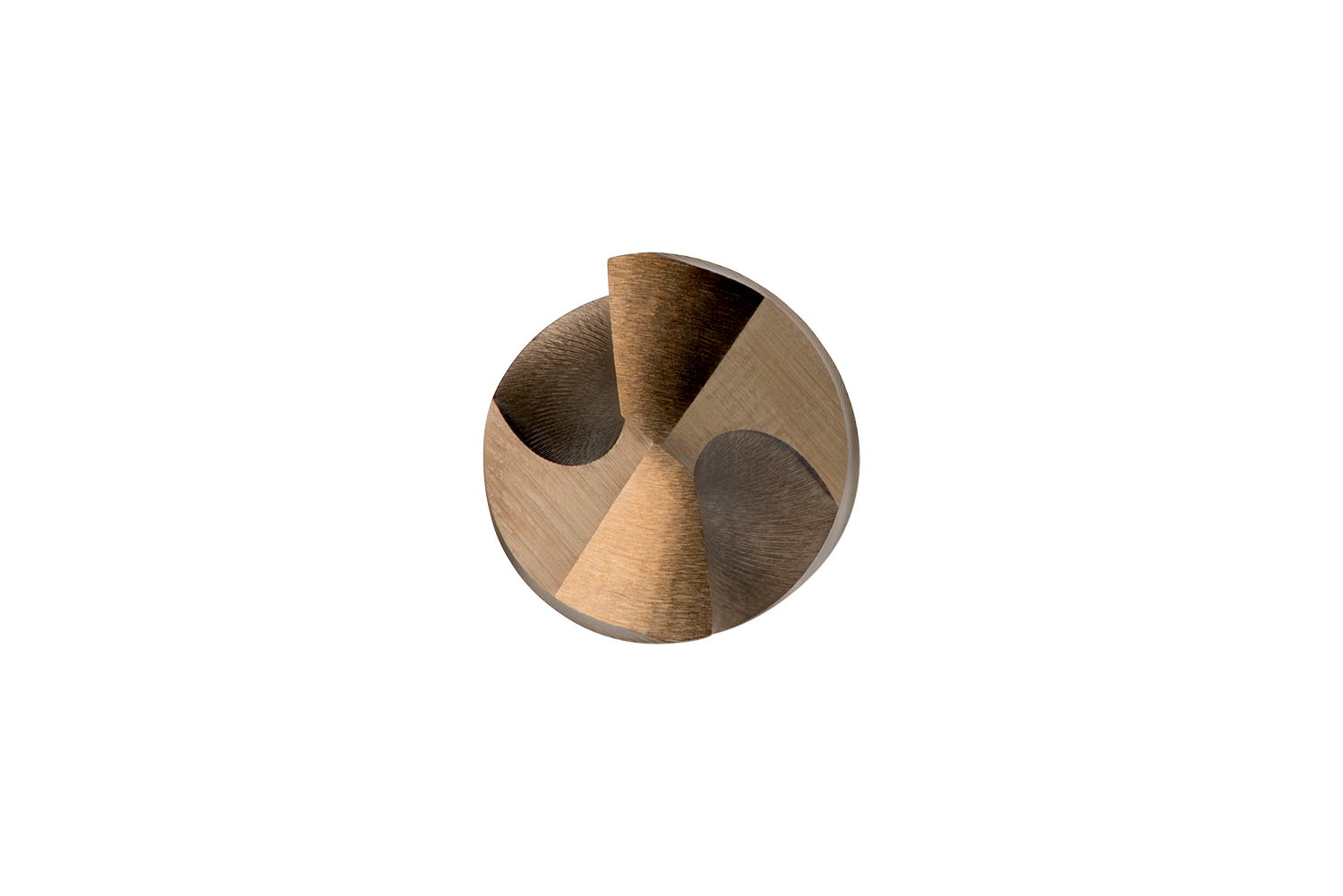

Stub length drill with straight shank, diameter 11mm with an overall length of 95mm and flute length of 47mm according to DIN 1897 standard with 135° split point, cobalt based HSS-E with bronze finish for 2.5xD drilling without pecking in stainless steel and super-alloy

Additional information

Weight	0.0759 kg
Dimensions
barcode

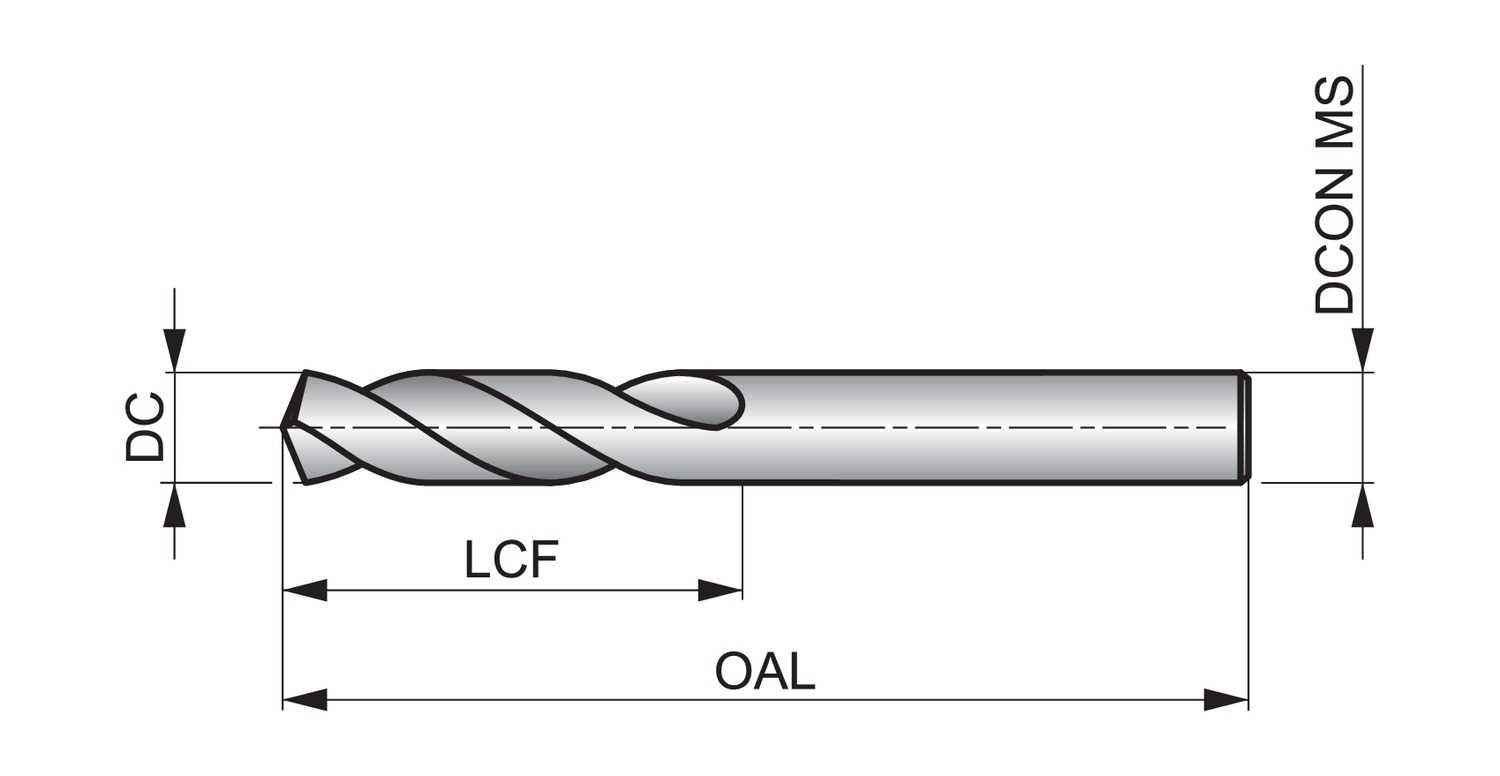

Additional Information	Description: Value EAN number: 7320760015186 Product number (SAP): 86009074 Ordering code ANSI: A11711.0 Gross weight – grams: 59.26 Cutting diameter – millimeter (DC): 11 mm Cutting diameter – inch (DC): 0.4331 inch Length chip flute – millimeter (LCF): 47 mm Overall length – millimeter (OAL): 95 mm Connection diameter – millimeter (DCON MS): 11 mm Length chip flute – inch (LCF): 1.8504 inch ISO: A11711.0
