DORMER A11712.0 Stub drill with straight shank-bronze finish for 2.5xD

Product Code: A11712.0

$91.77$83.43 Ex. GST

Product Code: A11712.0 SKU A11712.0 Categories , ,

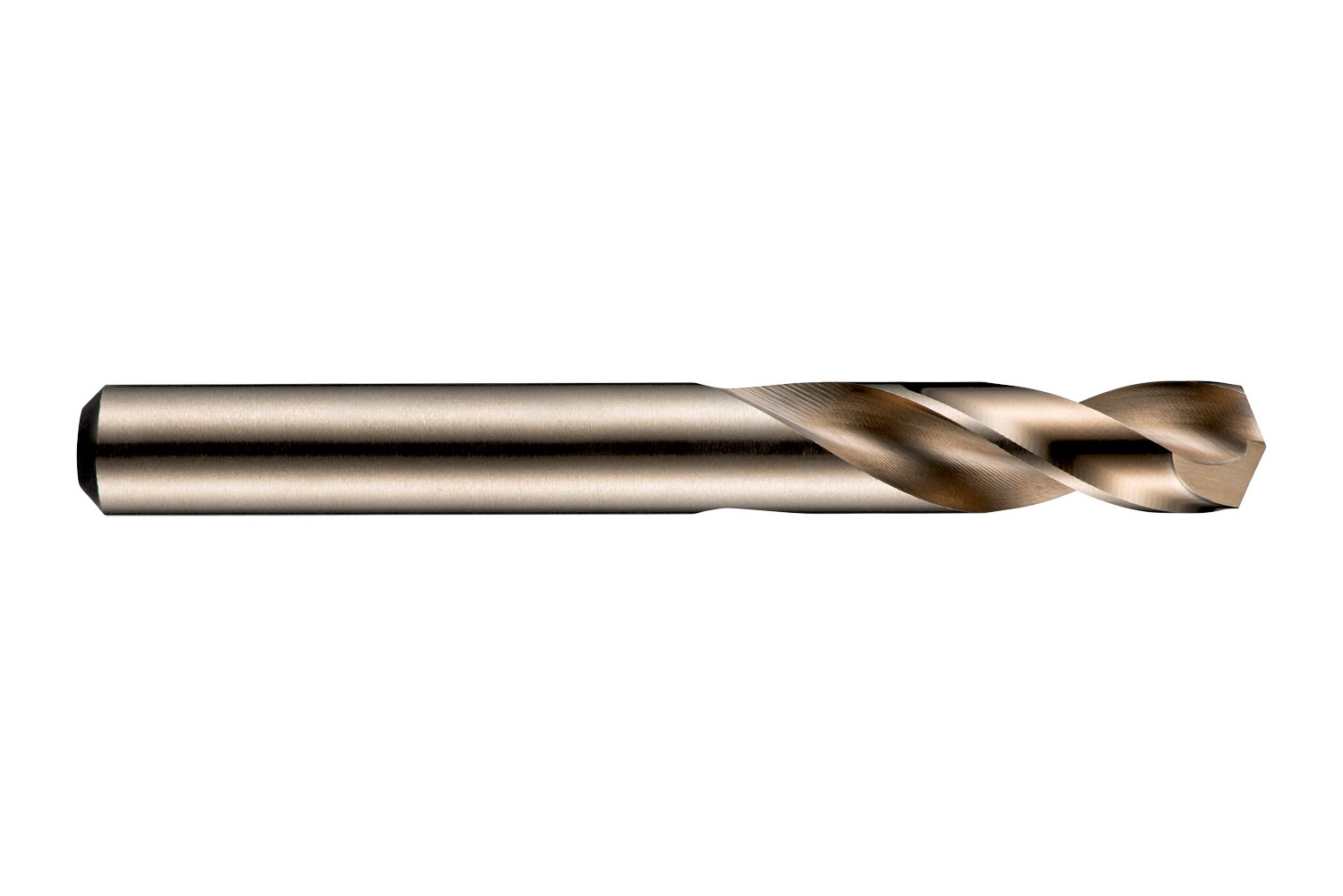

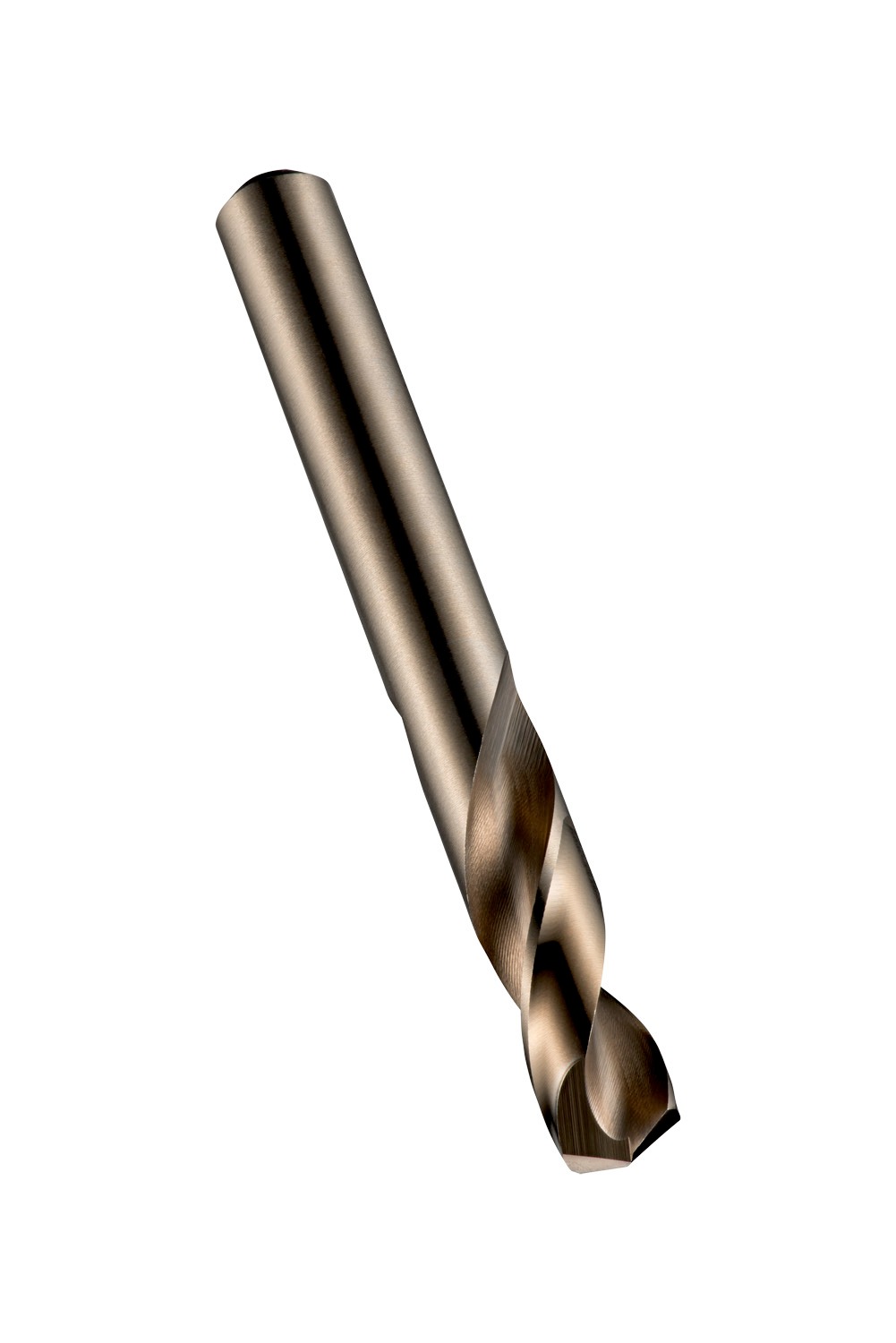

DORMER A11712.0 Stub drill with straight shank-bronze finish for 2.5xD
DORMER A11712.0 Stub drill with straight shank-bronze finish for 2.5xD - Image 2
DORMER A11712.0 Stub drill with straight shank-bronze finish for 2.5xD - Image 3
DORMER A11712.0 Stub drill with straight shank-bronze finish for 2.5xD - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

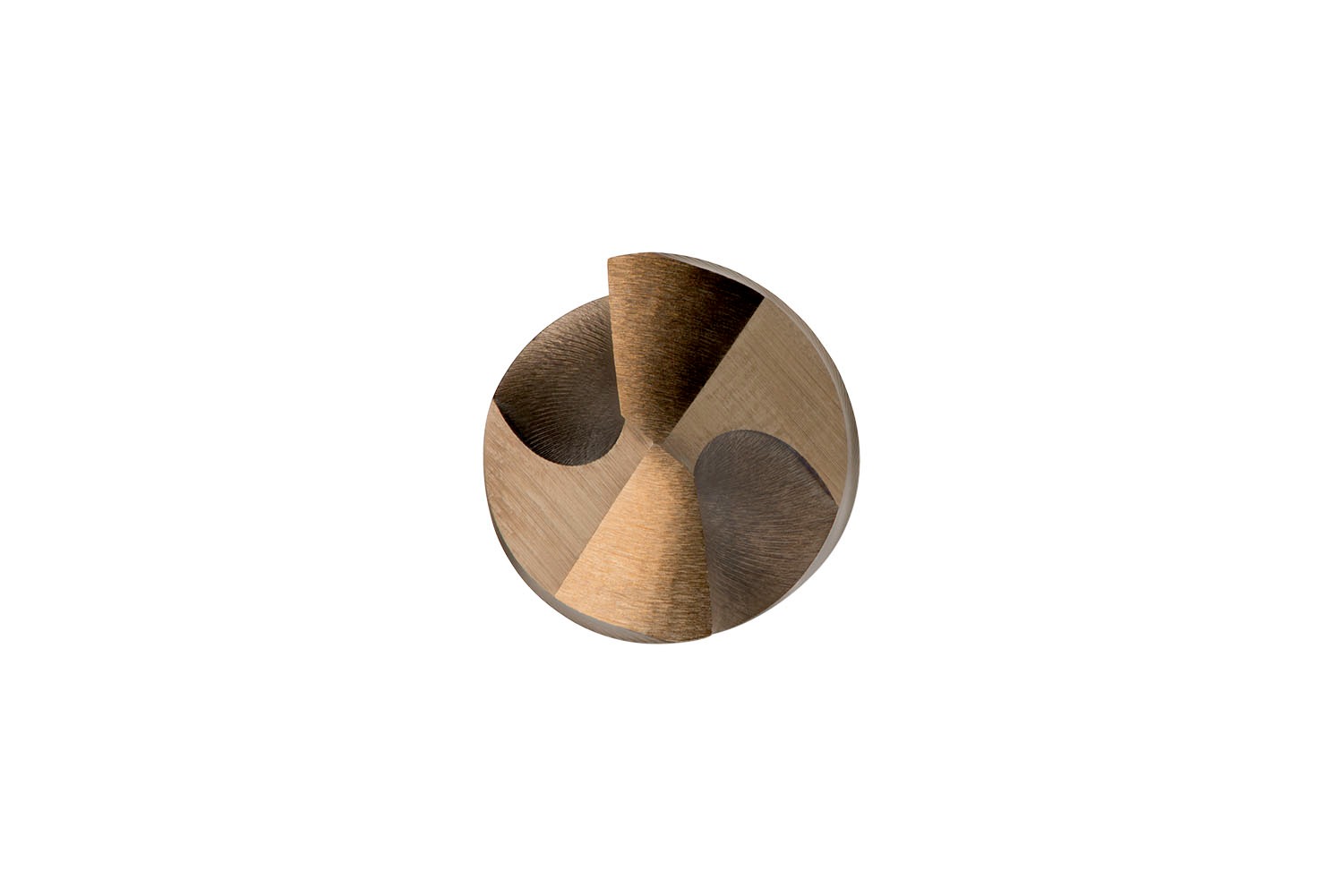

Stub length drill with straight shank, diameter 12mm with an overall length of 102mm and flute length of 51mm according to DIN 1897 standard with 135° split point, cobalt based HSS-E with bronze finish for 2.5xD drilling without pecking in stainless steel and super-alloy

Additional information

Weight 0.0891 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760015209
Product number (SAP): 86009076
Ordering code ANSI: A11712.0
Gross weight – grams: 74.1

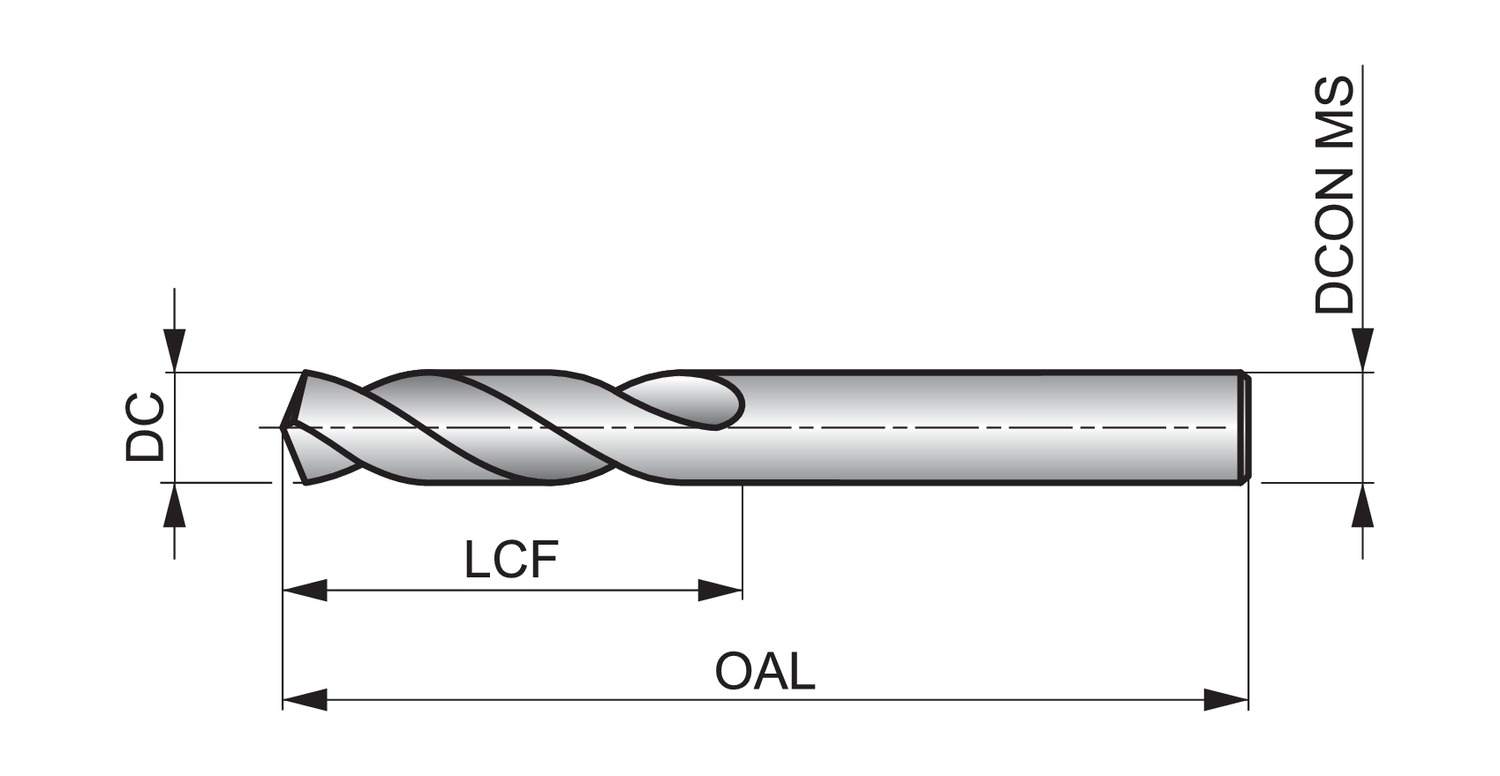

Cutting diameter – millimeter (DC): 12 mm
Cutting diameter – inch (DC): 0.4724 inch
Length chip flute – millimeter (LCF): 51 mm
Overall length – millimeter (OAL): 102 mm
Connection diameter – millimeter (DCON MS): 12 mm
Length chip flute – inch (LCF): 2.0079 inch
ISO: A11712.0

Brand

DORMER
