DORMER A1172.0 Stub drill with straight shank-bronze finish for 2.5xD

Product Code: A1172.0

$9.35$8.50 Ex. GST

Product Code: A1172.0 SKU A1172.0 Categories , ,

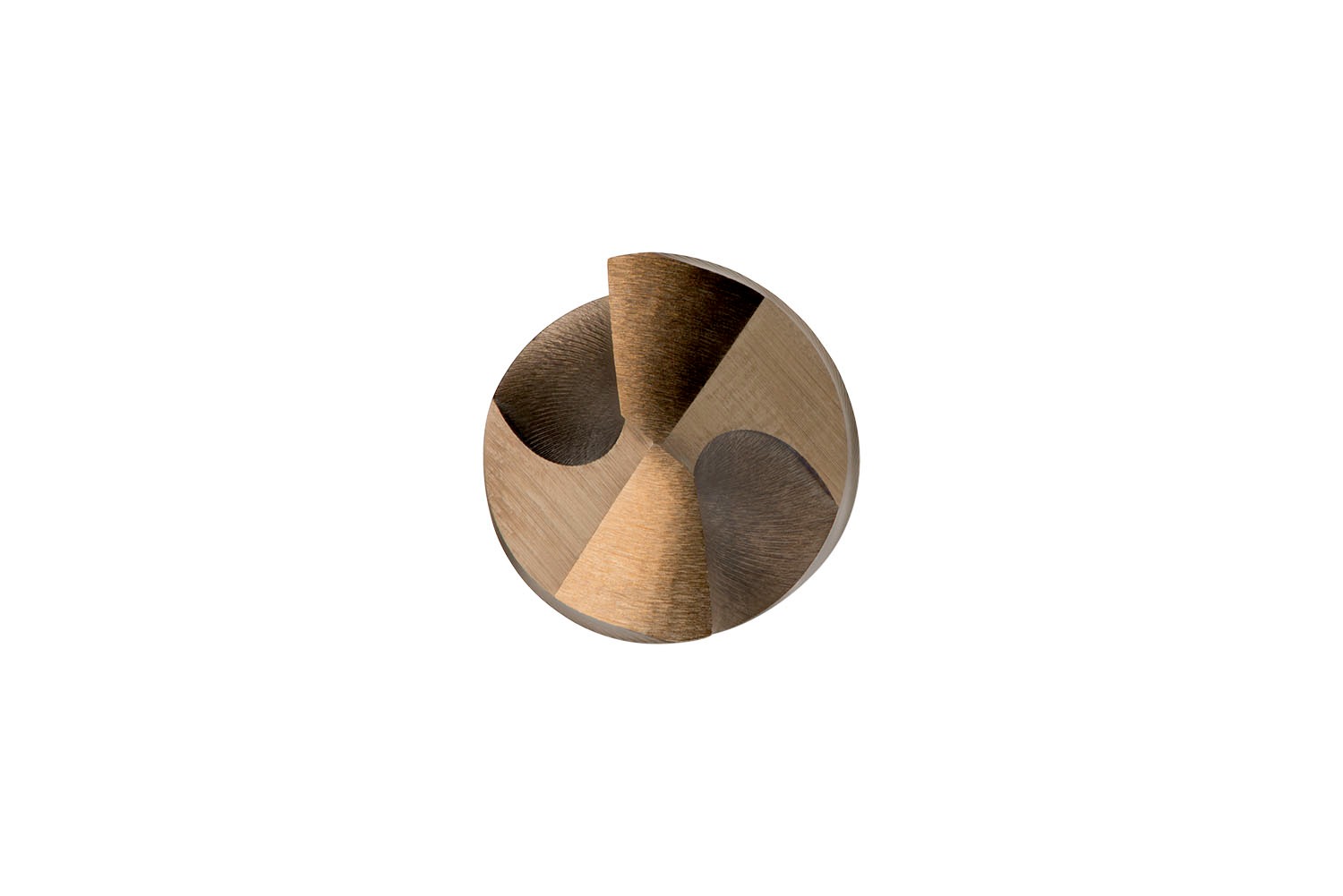

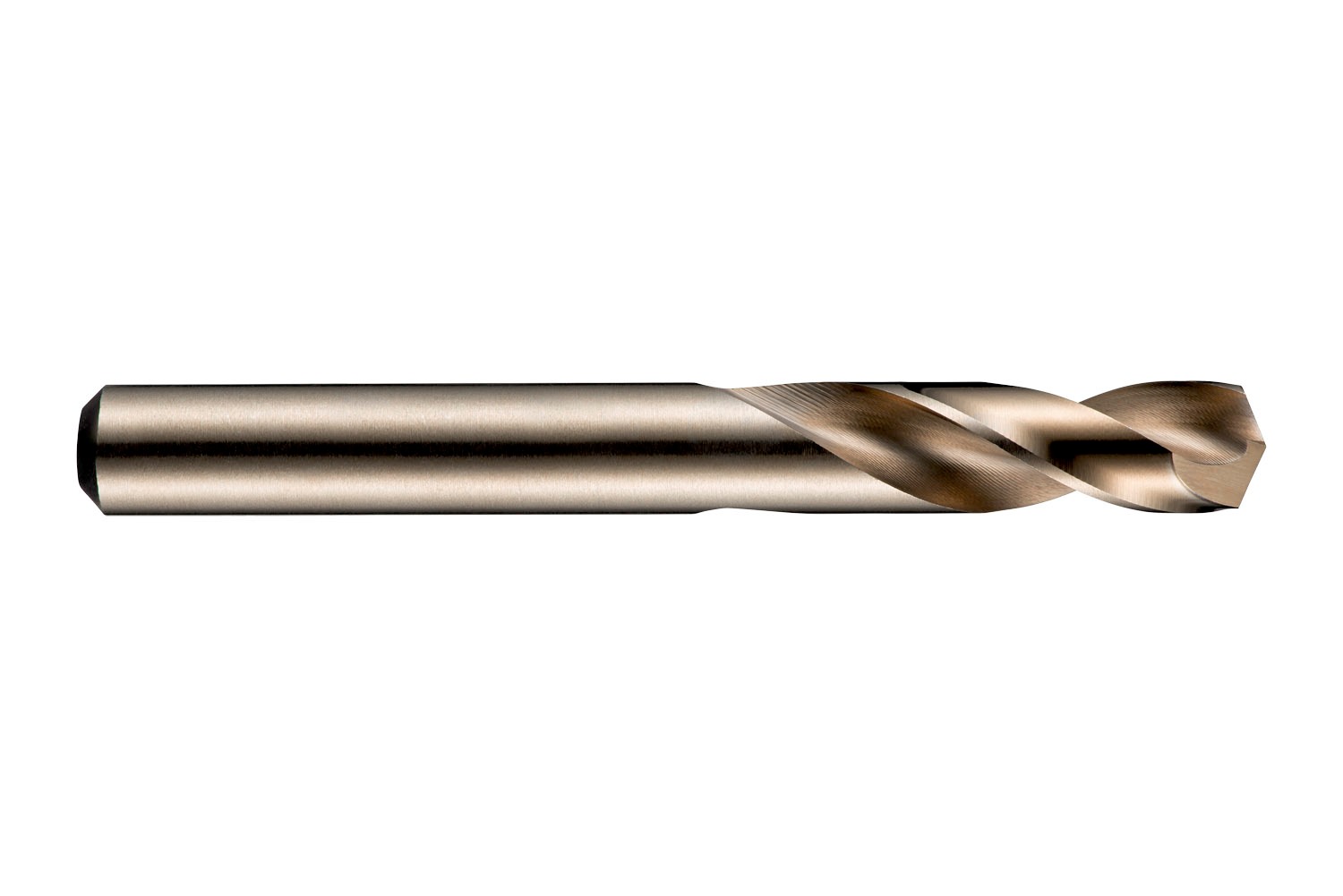

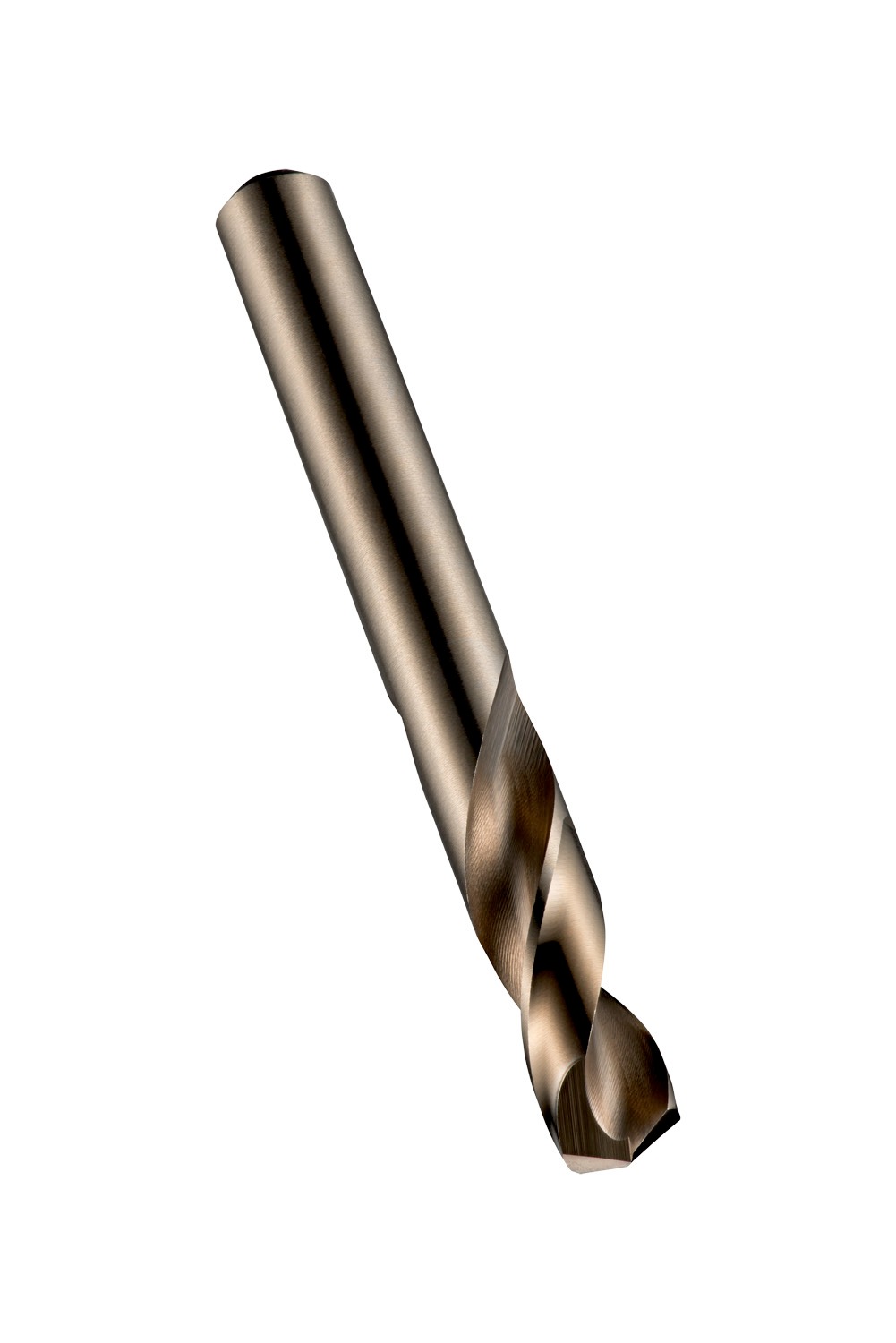

DORMER A1172.0 Stub drill with straight shank-bronze finish for 2.5xD
DORMER A1172.0 Stub drill with straight shank-bronze finish for 2.5xD - Image 2
DORMER A1172.0 Stub drill with straight shank-bronze finish for 2.5xD - Image 3
DORMER A1172.0 Stub drill with straight shank-bronze finish for 2.5xD - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Stub length drill with straight shank, diameter 2mm with an overall length of 38mm and flute length of 12mm according to DIN 1897 standard with 135° split point, cobalt based HSS-E with bronze finish for 2.5xD drilling without pecking in stainless steel and super-alloy

Additional information

Weight 0.0091 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760015223
Product number (SAP): 86009078
Ordering code ANSI: A1172.0
Gross weight – grams: 1.2
Cutting diameter – millimeter (DC): 2 mm
Cutting diameter – inch (DC): 0.0787 inch
Length chip flute – millimeter (LCF): 12 mm
Overall length – millimeter (OAL): 38 mm
Connection diameter – millimeter (DCON MS): 2 mm
Length chip flute – inch (LCF): 0.4724 inch
ISO: A1172.0

Brand

DORMER
