DORMER A1172.4 Stub drill with straight shank-bronze finish for 2.5xD

Product Code: A1172.4

$14.17$12.88 Ex. GST

Product Code: A1172.4 SKU A1172.4 Categories , ,

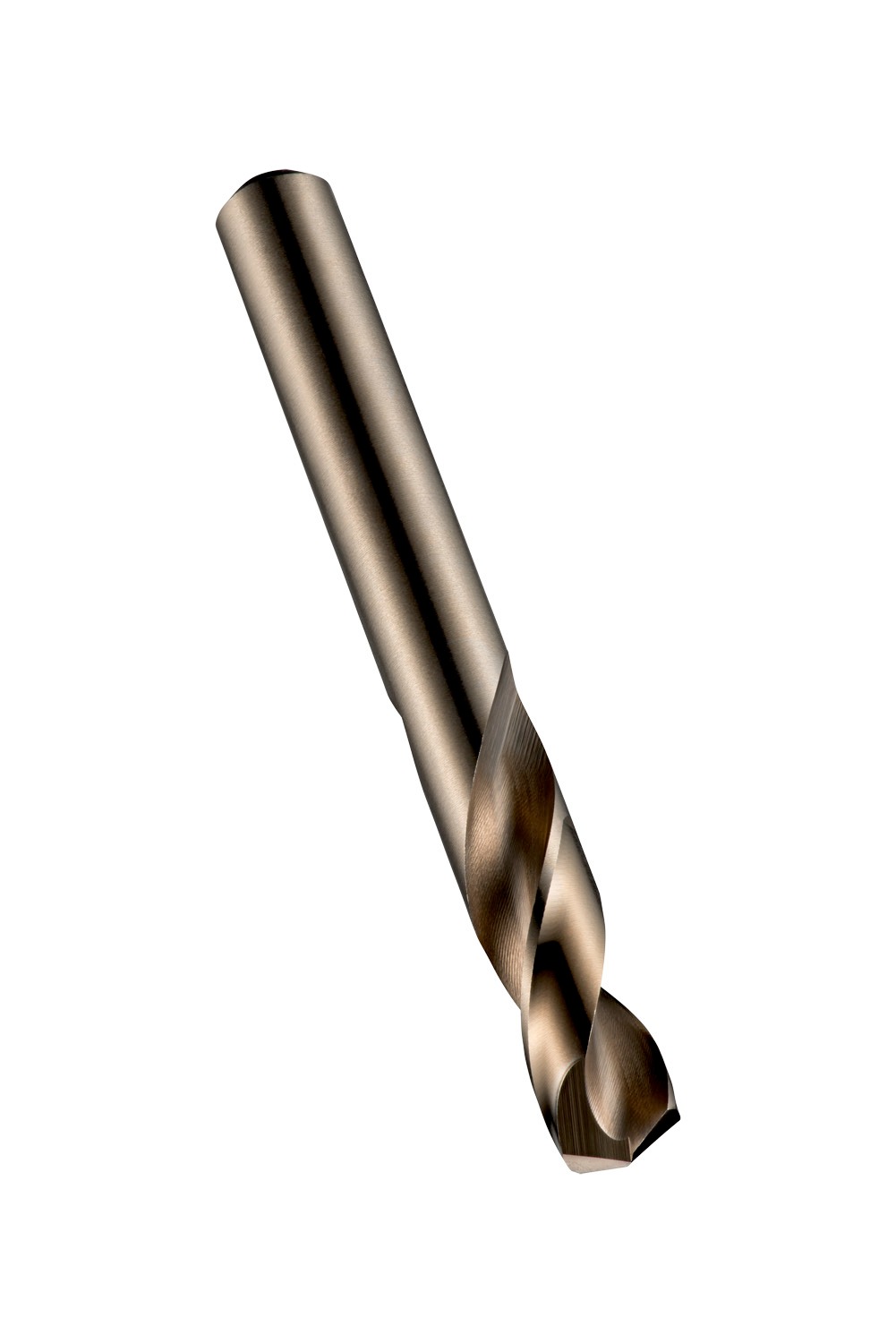

DORMER A1172.4 Stub drill with straight shank-bronze finish for 2.5xD
DORMER A1172.4 Stub drill with straight shank-bronze finish for 2.5xD - Image 2

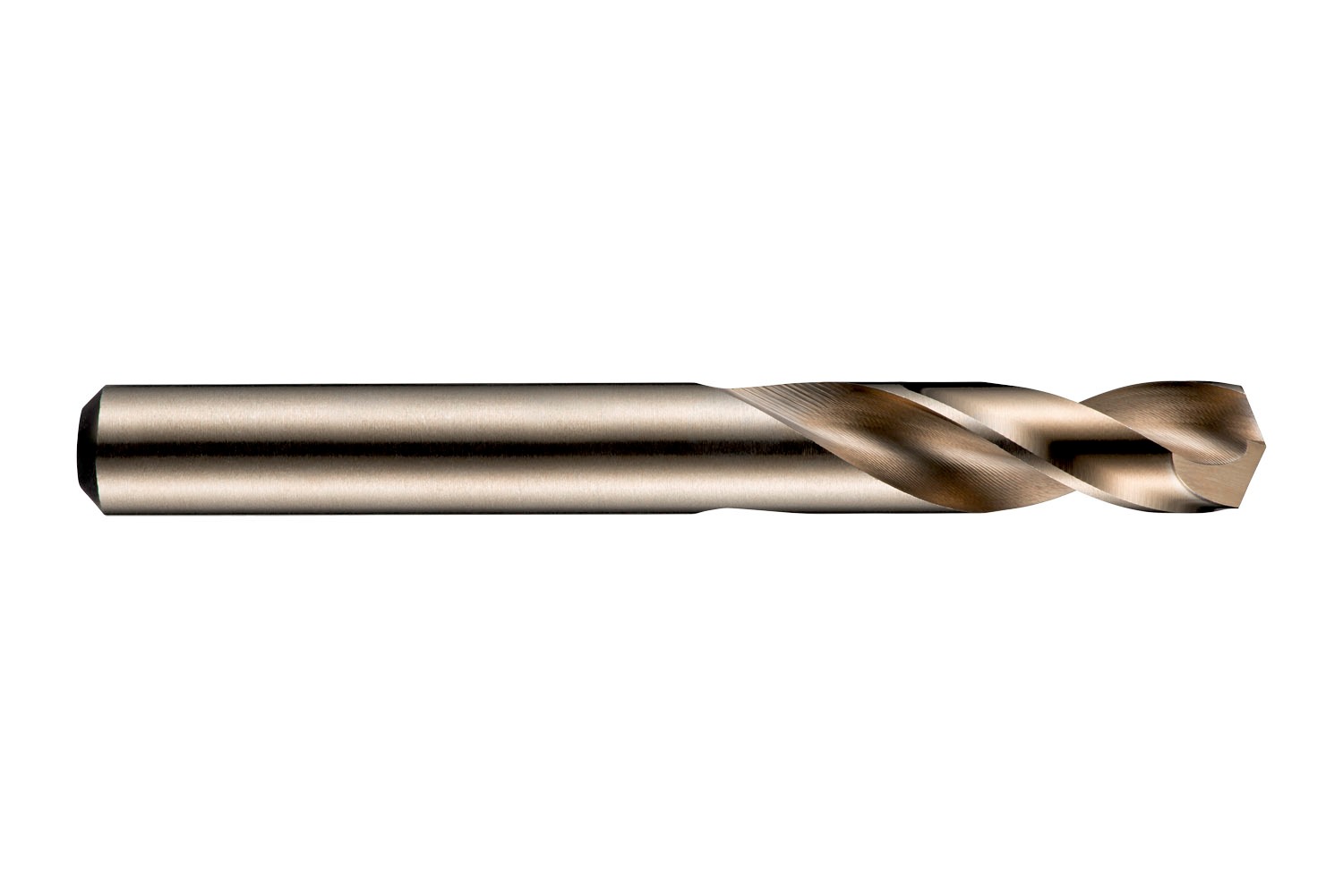

DORMER A1172.4 Stub drill with straight shank-bronze finish for 2.5xD - Image 3

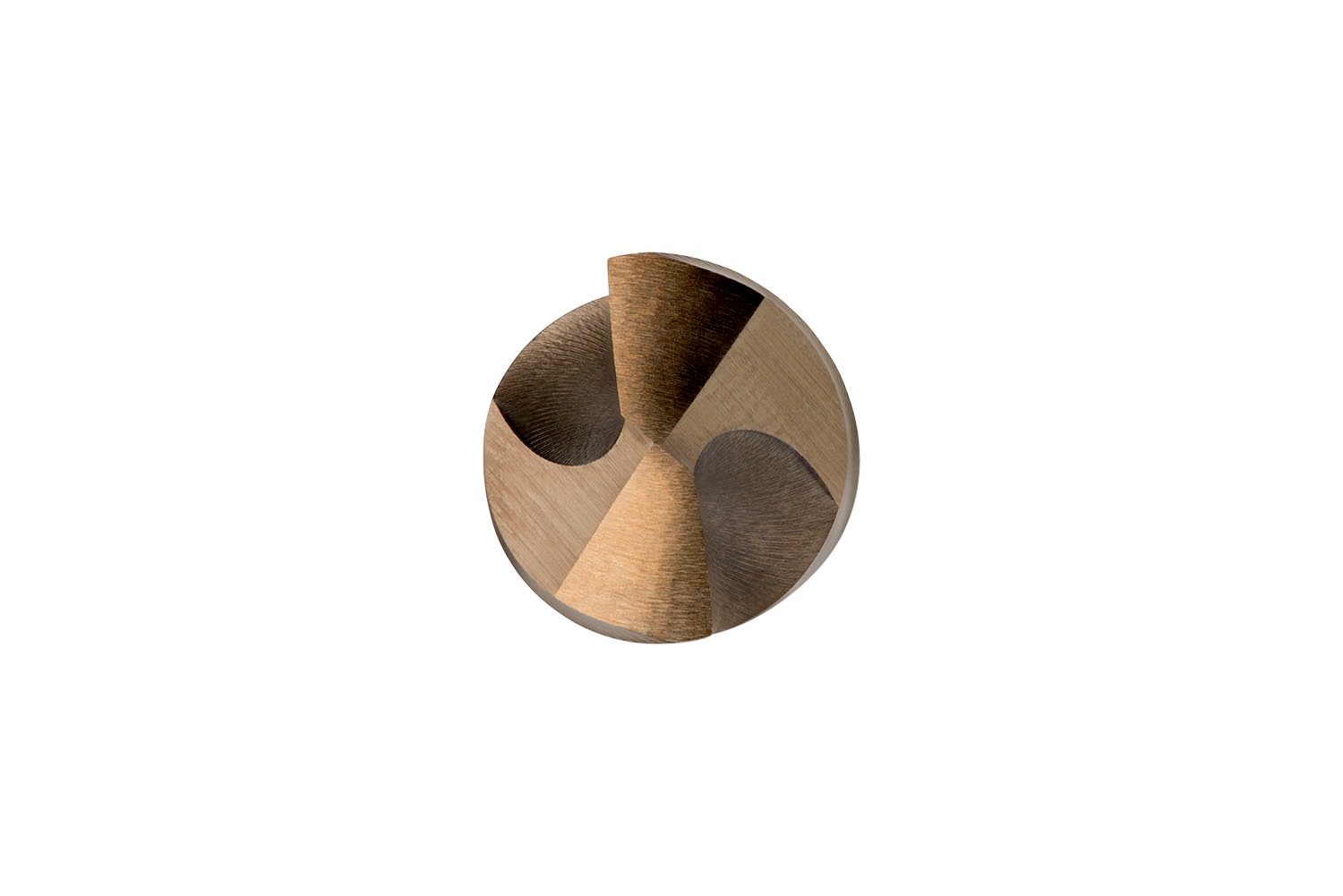

DORMER A1172.4 Stub drill with straight shank-bronze finish for 2.5xD - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Stub length drill with straight shank, diameter 2.4mm with an overall length of 43mm and flute length of 14mm according to DIN 1897 standard with 135° split point, cobalt based HSS-E with bronze finish for 2.5xD drilling without pecking in stainless steel and super-alloy

Additional information

Weight 0.0138 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760015261
Product number (SAP): 86009082
Ordering code ANSI: A1172.4
Gross weight – grams: 2
Cutting diameter – millimeter (DC): 2.4 mm
Cutting diameter – inch (DC): 0.0945 inch
Length chip flute – millimeter (LCF): 14 mm
Overall length – millimeter (OAL): 43 mm
Connection diameter – millimeter (DCON MS): 2.4 mm
Length chip flute – inch (LCF): 0.5512 inch
ISO: A1172.4

Brand

DORMER
