DORMER A1172.7 Stub drill with straight shank-bronze finish for 2.5xD

Product Code: A1172.7

$14.62$13.29 Ex. GST

Product Code: A1172.7 SKU A1172.7 Categories , ,

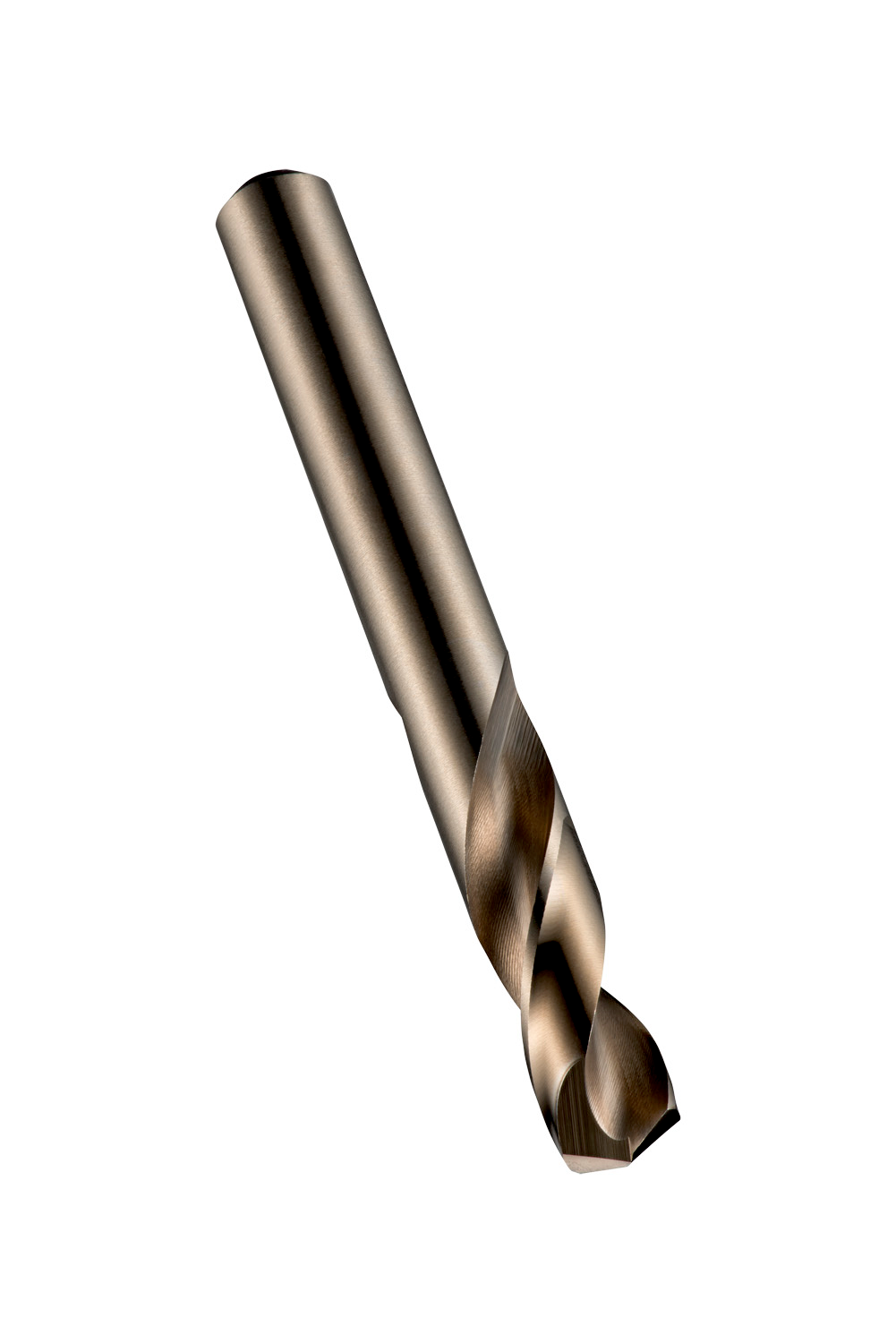

DORMER A1172.7 Stub drill with straight shank-bronze finish for 2.5xD
DORMER A1172.7 Stub drill with straight shank-bronze finish for 2.5xD - Image 2

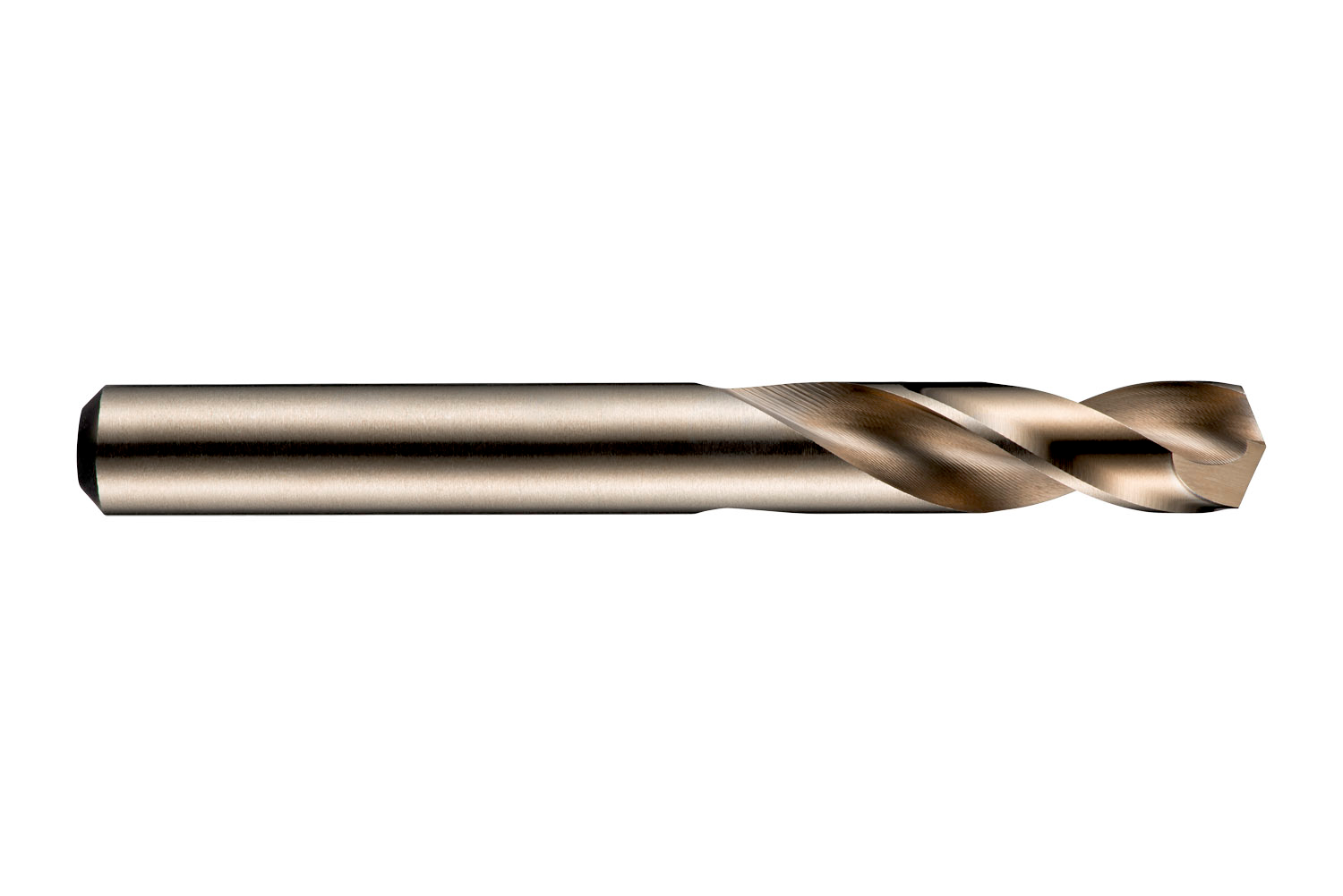

DORMER A1172.7 Stub drill with straight shank-bronze finish for 2.5xD - Image 3

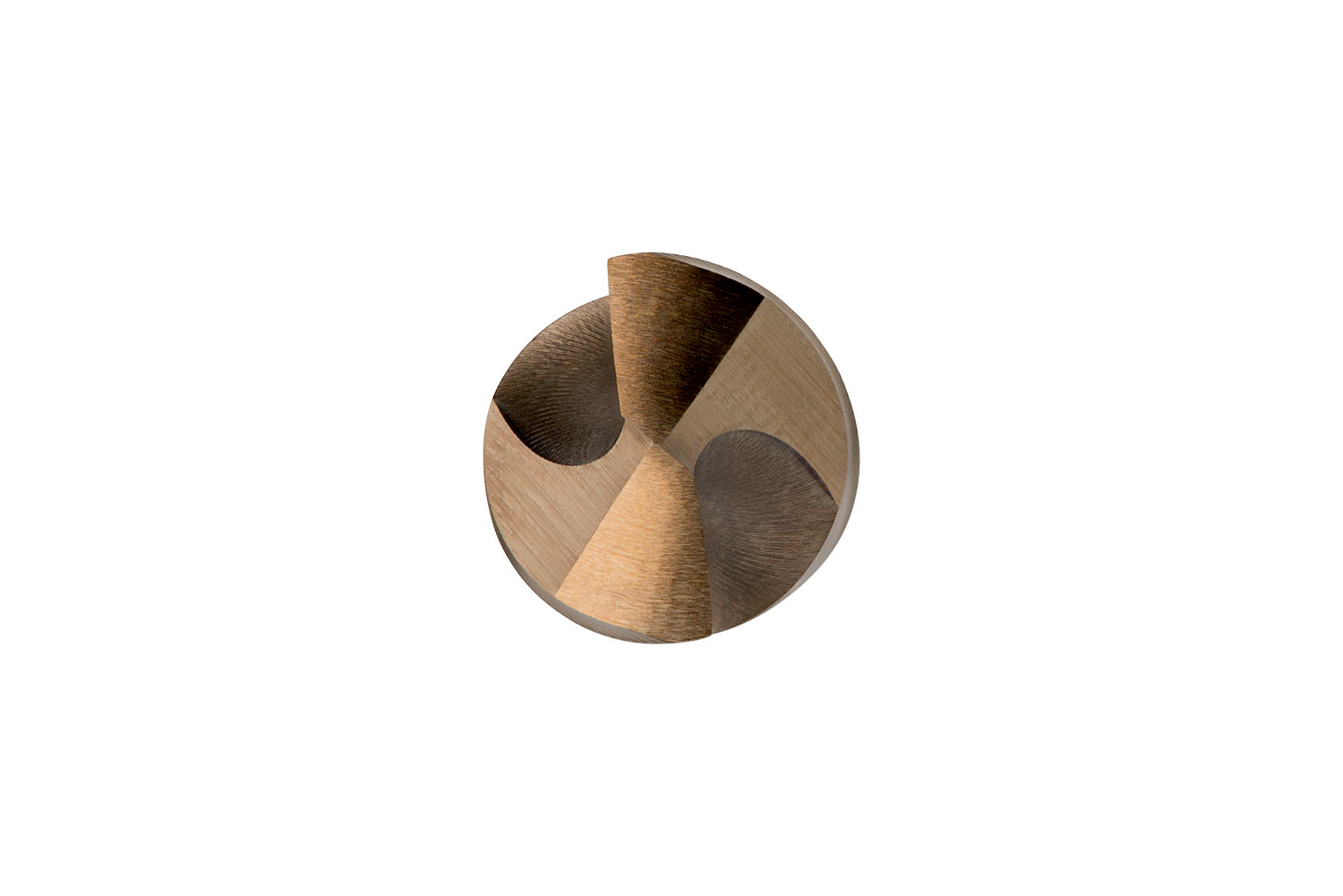

DORMER A1172.7 Stub drill with straight shank-bronze finish for 2.5xD - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Stub length drill with straight shank, diameter 2.7mm with an overall length of 46mm and flute length of 16mm according to DIN 1897 standard with 135° split point, cobalt based HSS-E with bronze finish for 2.5xD drilling without pecking in stainless steel and super-alloy

Additional information

Weight 0.0142 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760015292
Product number (SAP): 86009085
Ordering code ANSI: A1172.7
Gross weight – grams: 1.751
Cutting diameter – millimeter (DC): 2.7 mm
Cutting diameter – inch (DC): 0.1063 inch
Length chip flute – millimeter (LCF): 16 mm
Overall length – millimeter (OAL): 46 mm
Connection diameter – millimeter (DCON MS): 2.7 mm
Length chip flute – inch (LCF): 0.6299 inch
ISO: A1172.7

Brand

DORMER
