DORMER A1178.0 Stub drill with straight shank-bronze finish for 2.5xD

Product Code: A1178.0

$33.20$30.18 Ex. GST

Product Code: A1178.0 SKU A1178.0 Categories , ,

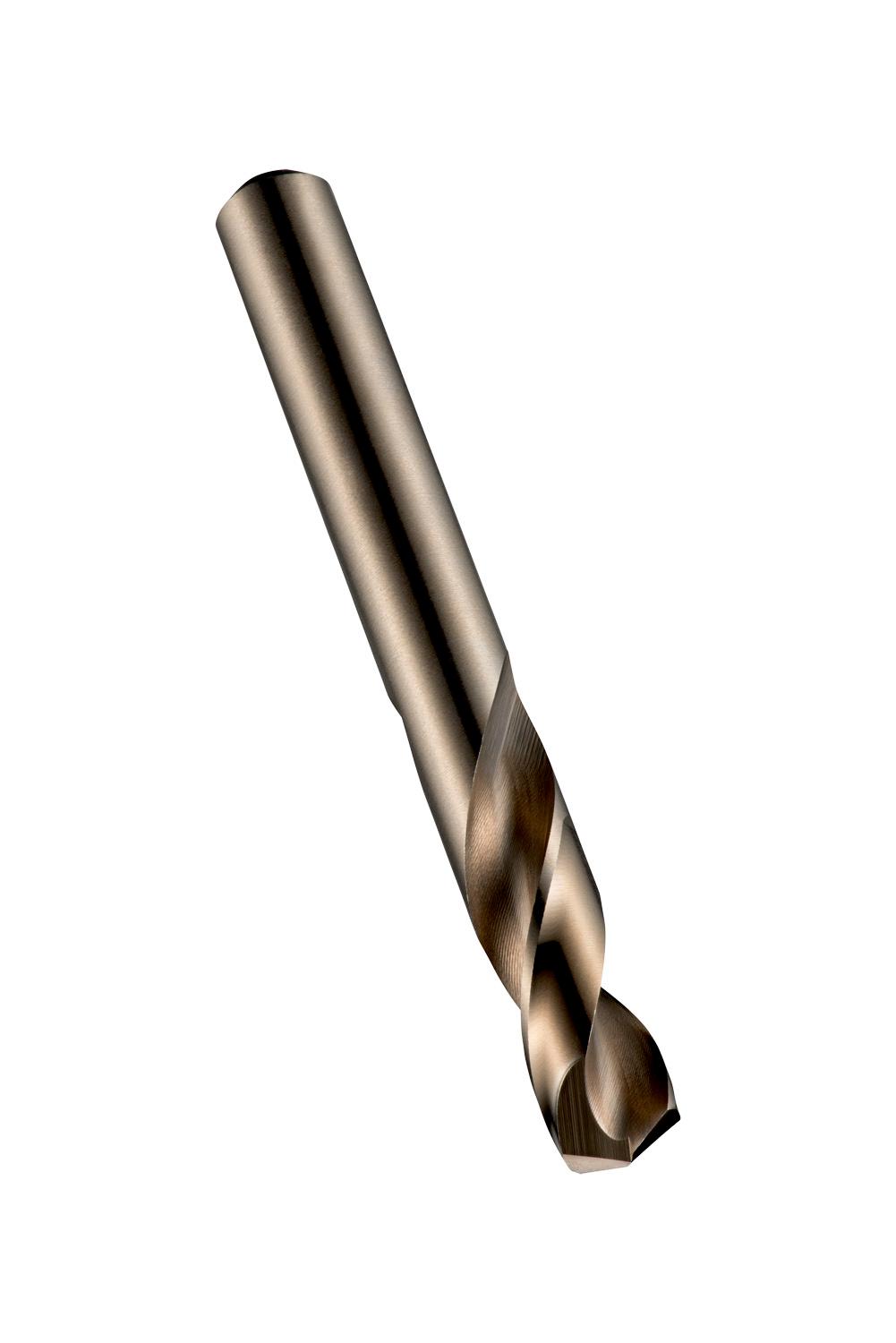

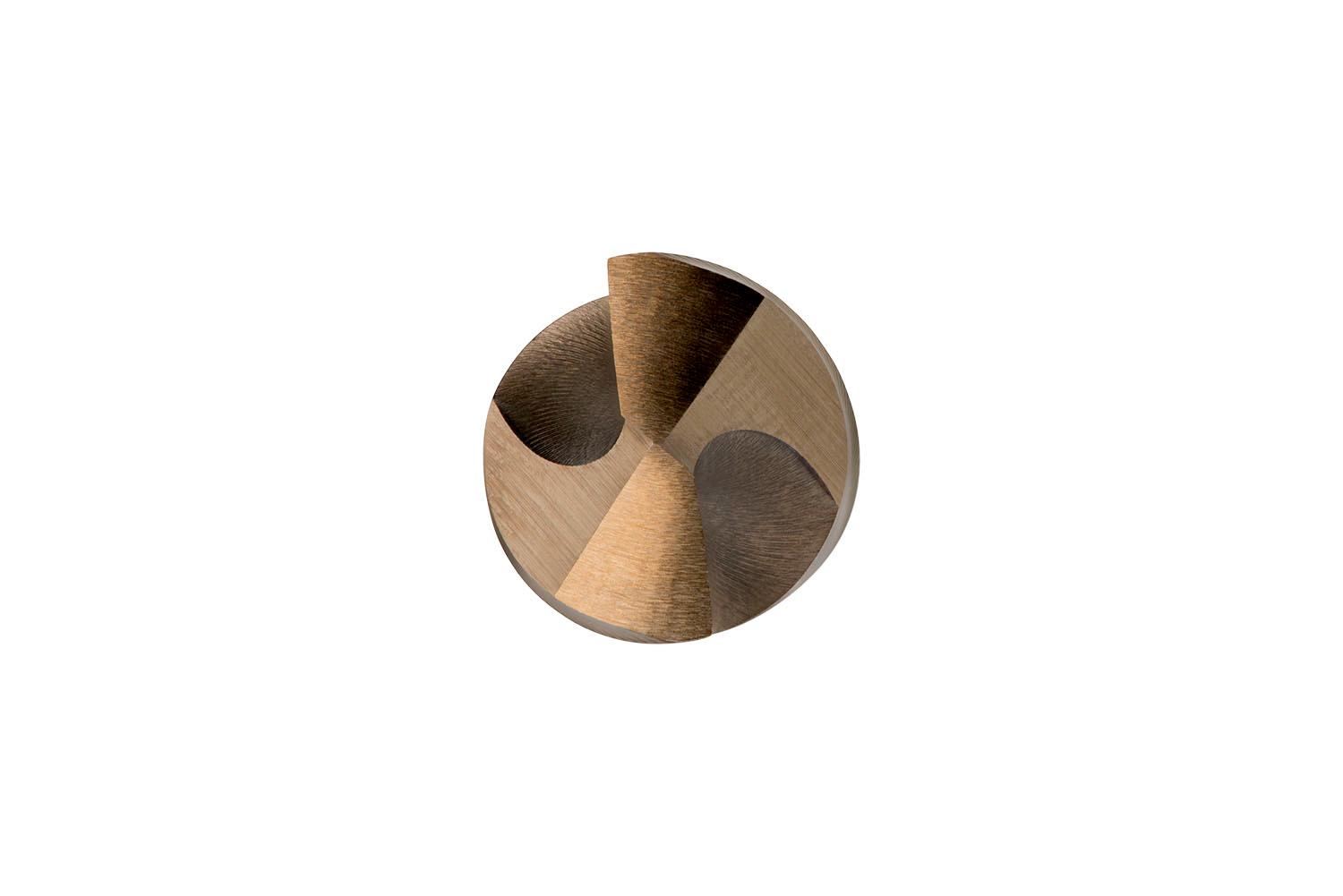

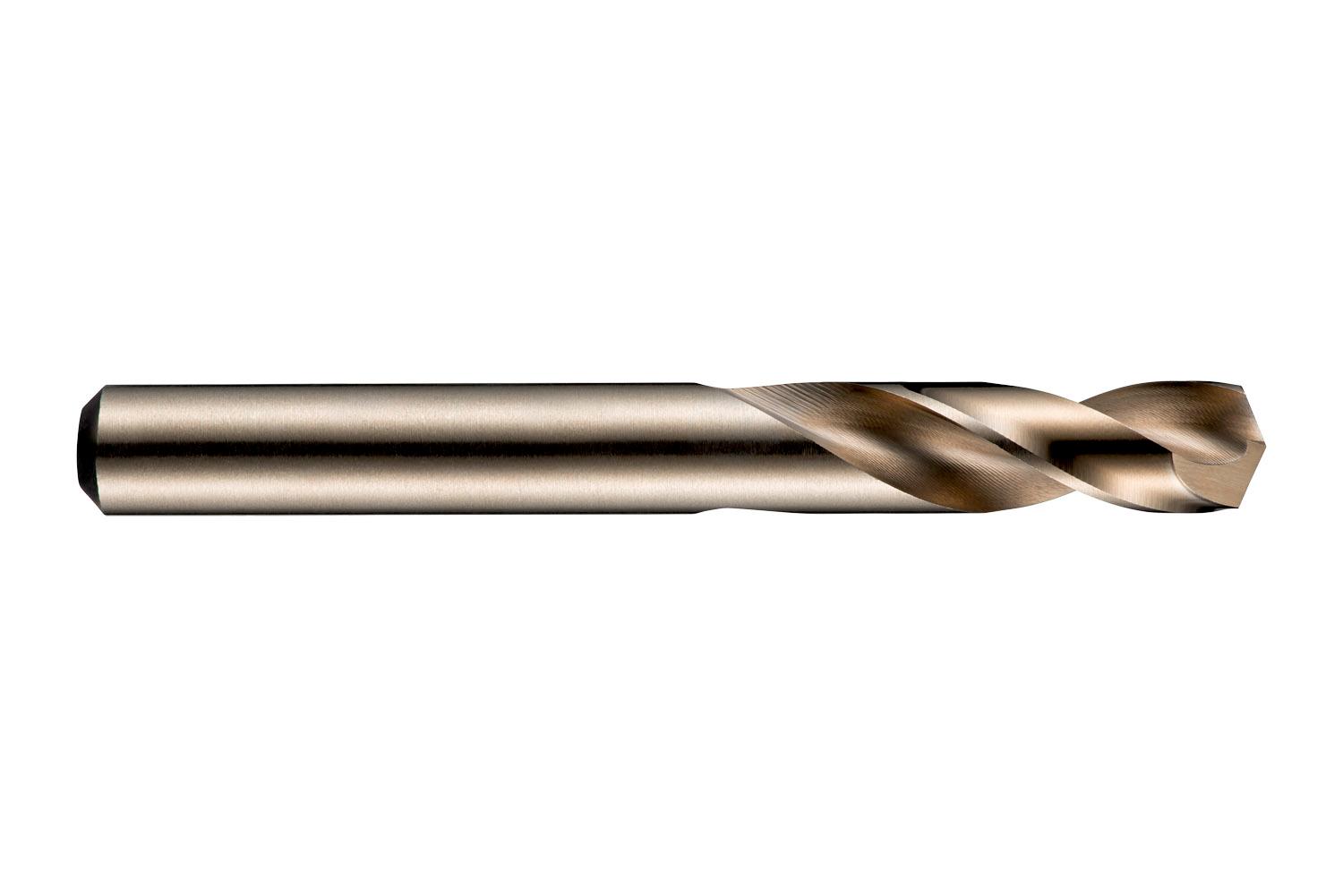

DORMER A1178.0 Stub drill with straight shank-bronze finish for 2.5xD
DORMER A1178.0 Stub drill with straight shank-bronze finish for 2.5xD - Image 2
DORMER A1178.0 Stub drill with straight shank-bronze finish for 2.5xD - Image 3
DORMER A1178.0 Stub drill with straight shank-bronze finish for 2.5xD - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Stub length drill with straight shank, diameter 8mm with an overall length of 79mm and flute length of 37mm according to DIN 1897 standard with 135° split point, cobalt based HSS-E with bronze finish for 2.5xD drilling without pecking in stainless steel and super-alloy

Additional information

Weight 0.0322 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760015827
Product number (SAP): 86009142
Ordering code ANSI: A1178.0
Gross weight – grams: 27.42
Cutting diameter – millimeter (DC): 8 mm
Cutting diameter – inch (DC): 0.315 inch
Length chip flute – millimeter (LCF): 37 mm
Overall length – millimeter (OAL): 79 mm
Connection diameter – millimeter (DCON MS): 8 mm
Length chip flute – inch (LCF): 1.4567 inch
ISO: A1178.0

Brand

DORMER
