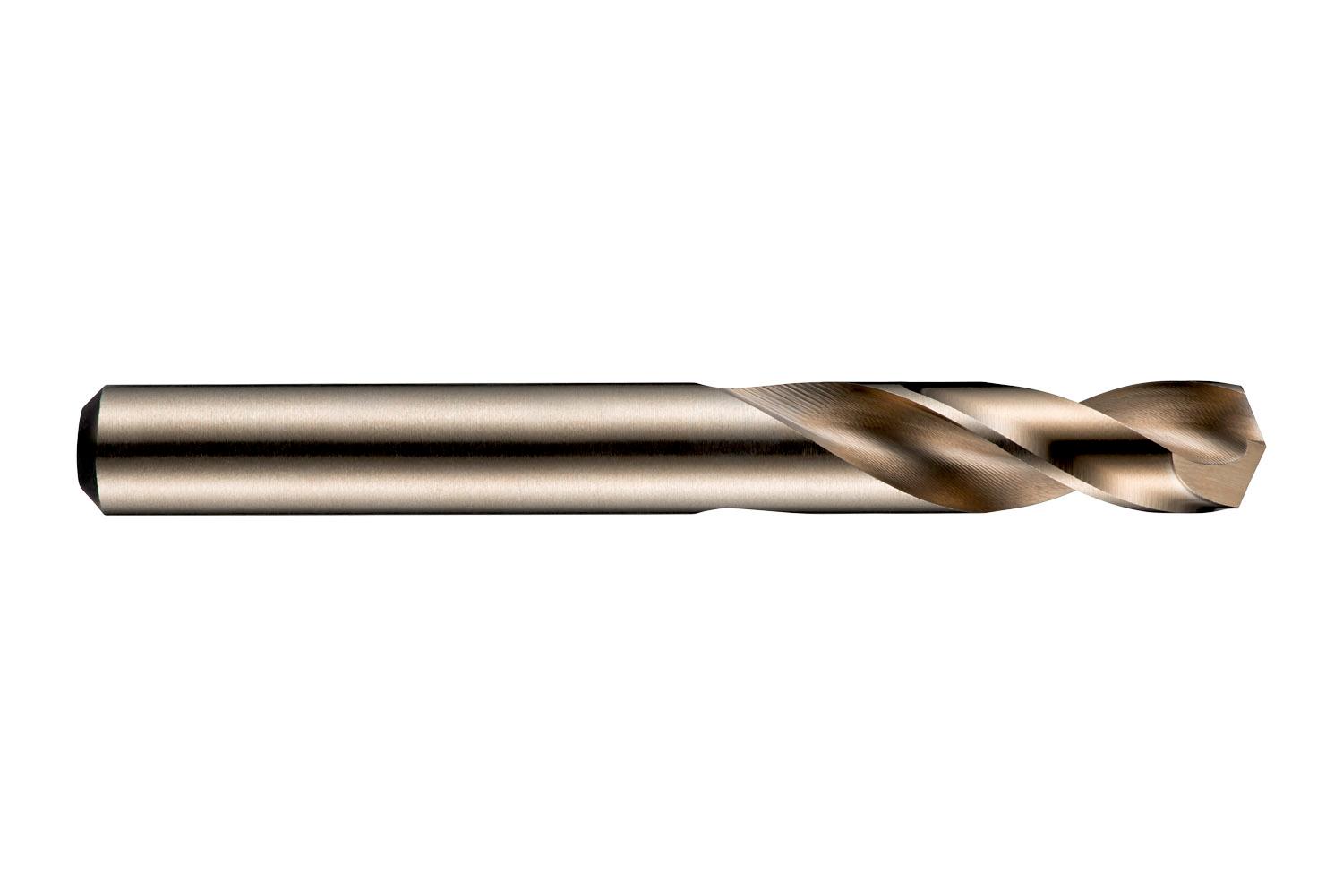

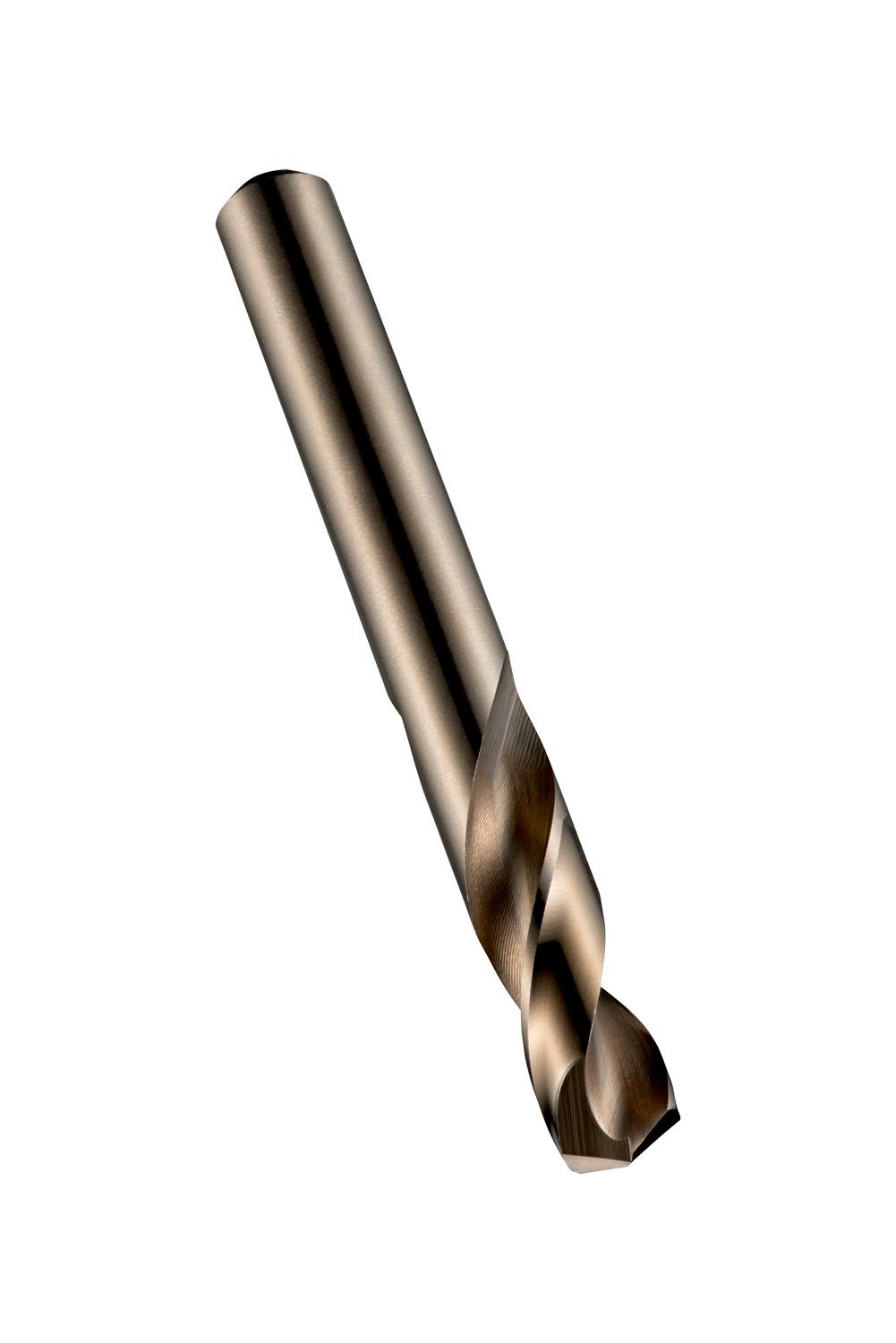

DORMER A1178.9 Stub drill with straight shank-bronze finish for 2.5xD

Description

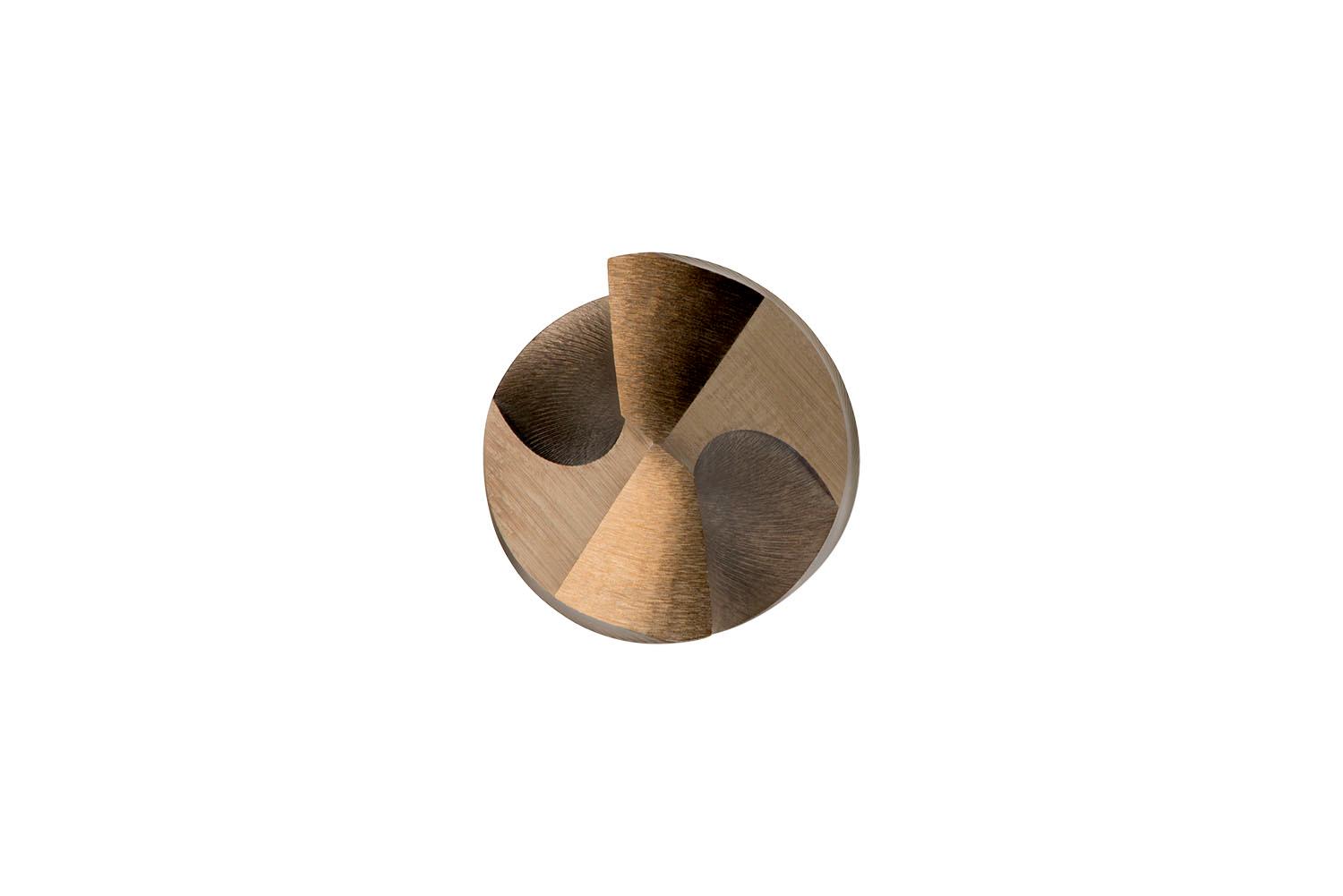

Stub length drill with straight shank, diameter 8.9mm with an overall length of 84mm and flute length of 40mm according to DIN 1897 standard with 135° split point, cobalt based HSS-E with bronze finish for 2.5xD drilling without pecking in stainless steel and super-alloy

Additional information

Weight	0.0633 kg
Dimensions
barcode
Additional Information	Description: Value EAN number: 7320760015919 Product number (SAP): 86009151 Ordering code ANSI: A1178.9 Gross weight – grams: 35.02 Cutting diameter – millimeter (DC): 8.9 mm Cutting diameter – inch (DC): 0.3504 inch Length chip flute – millimeter (LCF): 40 mm Overall length – millimeter (OAL): 84 mm Connection diameter – millimeter (DCON MS): 8.9 mm Length chip flute – inch (LCF): 1.5748 inch ISO: A1178.9

DORMER A1178.9 Stub drill with straight shank-bronze finish for 2.5xD
