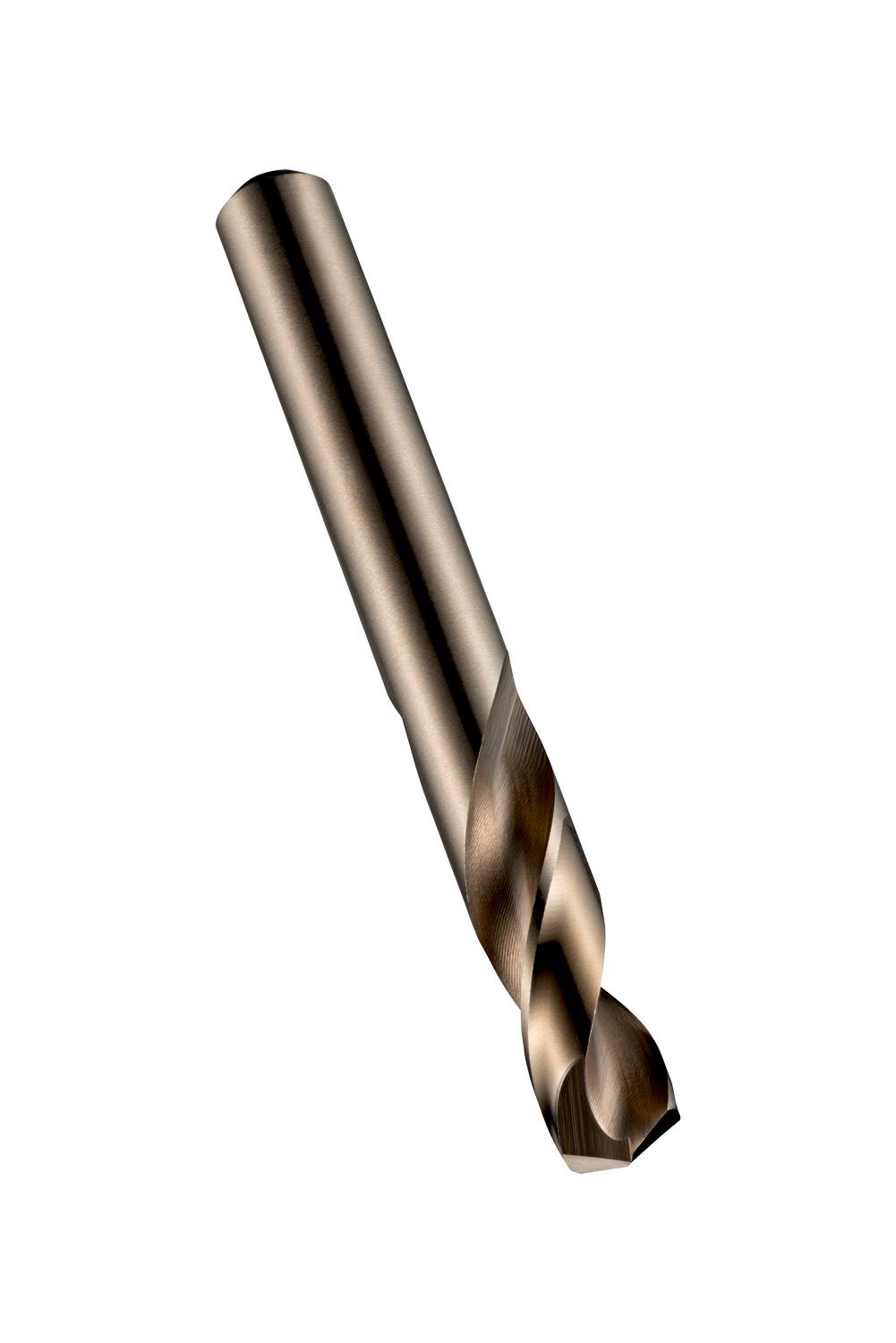

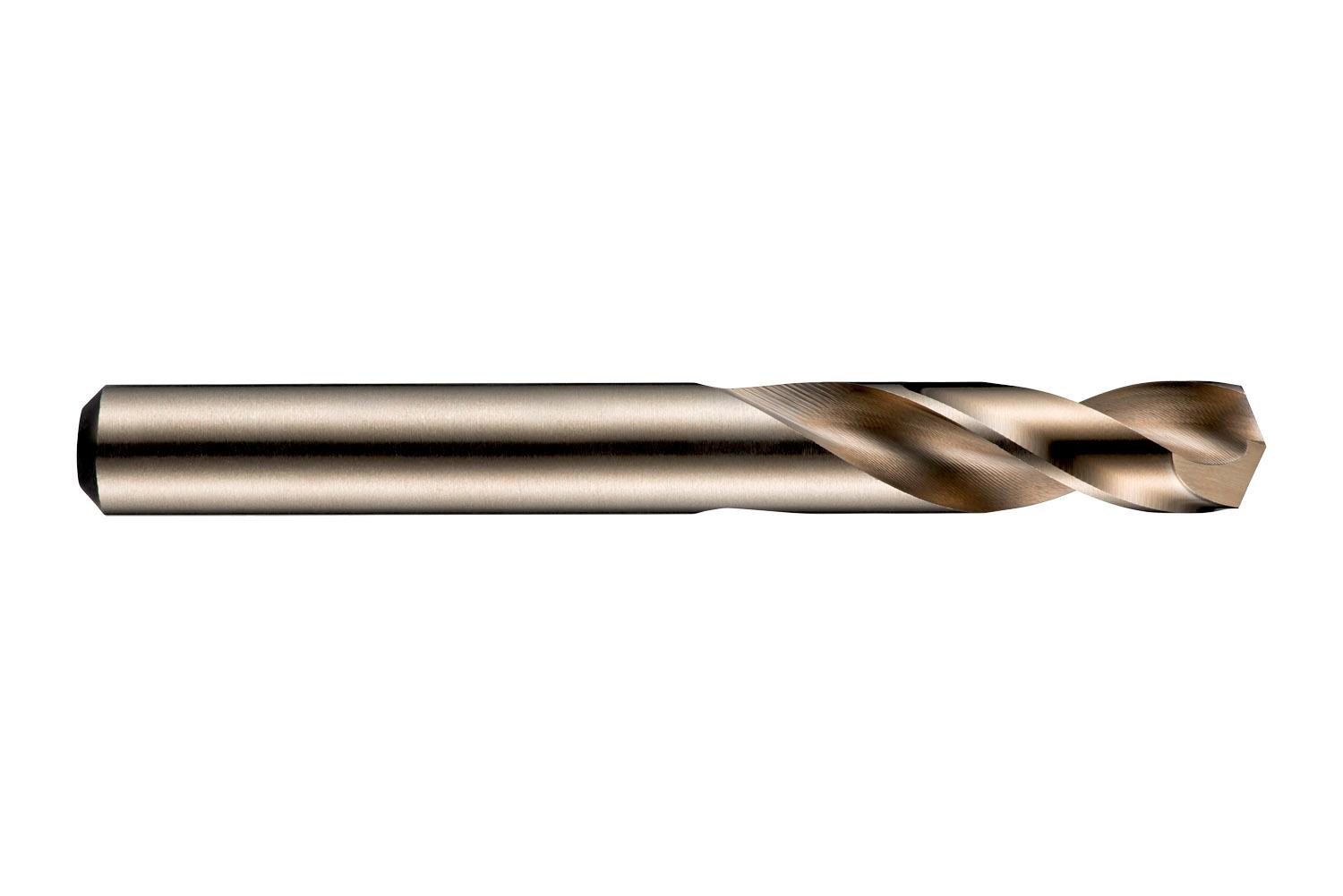

DORMER A1179.9 Stub drill with straight shank-bronze finish for 2.5xD

Description

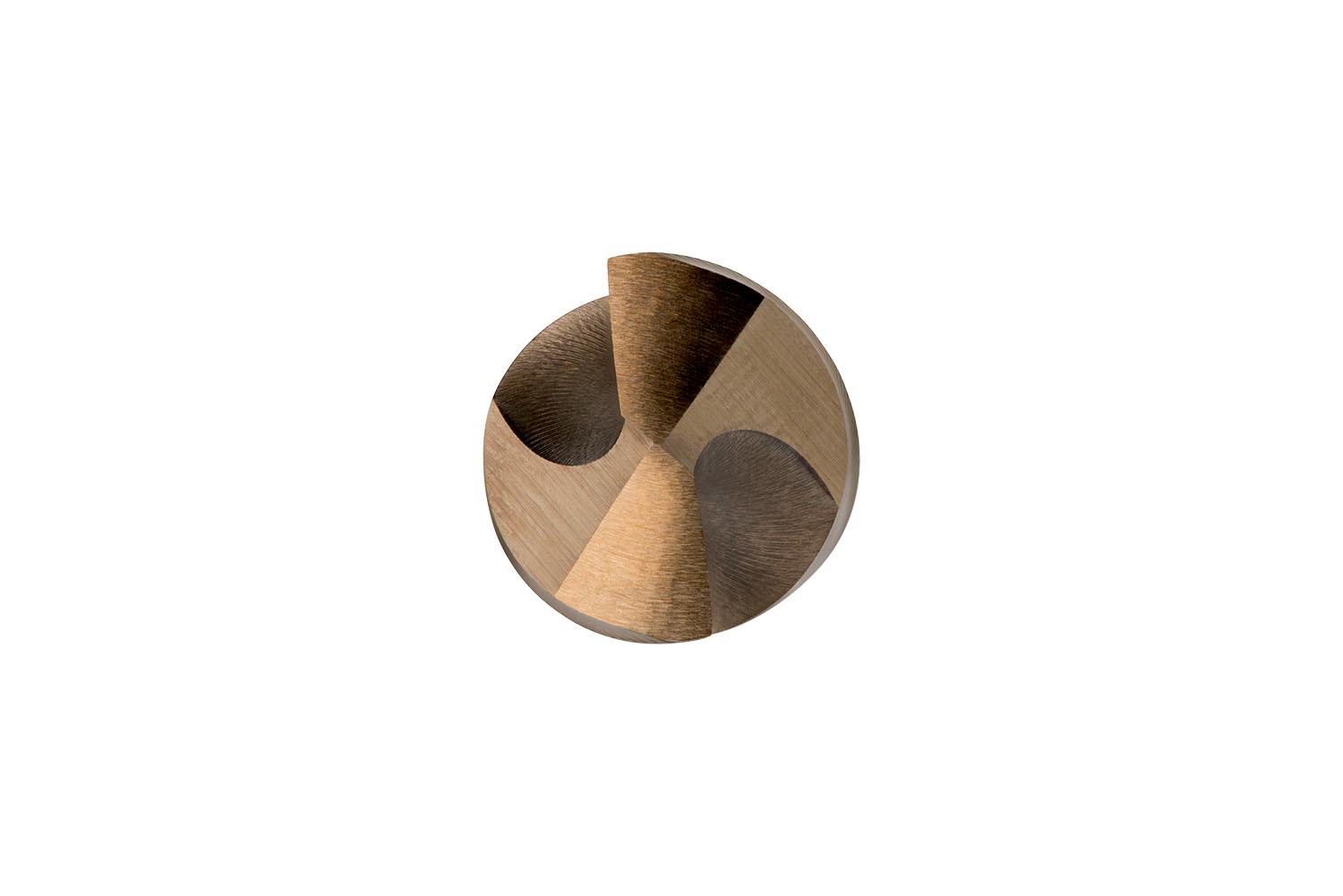

Stub length drill with straight shank, diameter 9.9mm with an overall length of 89mm and flute length of 43mm according to DIN 1897 standard with 135° split point, cobalt based HSS-E with bronze finish for 2.5xD drilling without pecking in stainless steel and super-alloy

Additional information

Weight	0.0787 kg
Dimensions
barcode
Additional Information	Description: Value EAN number: 7320760016015 Product number (SAP): 86009161 Ordering code ANSI: A1179.9 Gross weight – grams: 45.58 Cutting diameter – millimeter (DC): 9.9 mm Cutting diameter – inch (DC): 0.3898 inch Length chip flute – millimeter (LCF): 43 mm Overall length – millimeter (OAL): 89 mm Connection diameter – millimeter (DCON MS): 9.9 mm Length chip flute – inch (LCF): 1.6929 inch ISO: A1179.9

DORMER A1179.9 Stub drill with straight shank-bronze finish for 2.5xD

Need Technical Advice?

Description

Additional information

Brand

DORMER
