DORMER A1194.9 Stub drill DOUBLE ENDED

Product Code: A1194.9

$9.64$8.76 Ex. GST

Product Code: A1194.9 SKU A1194.9 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

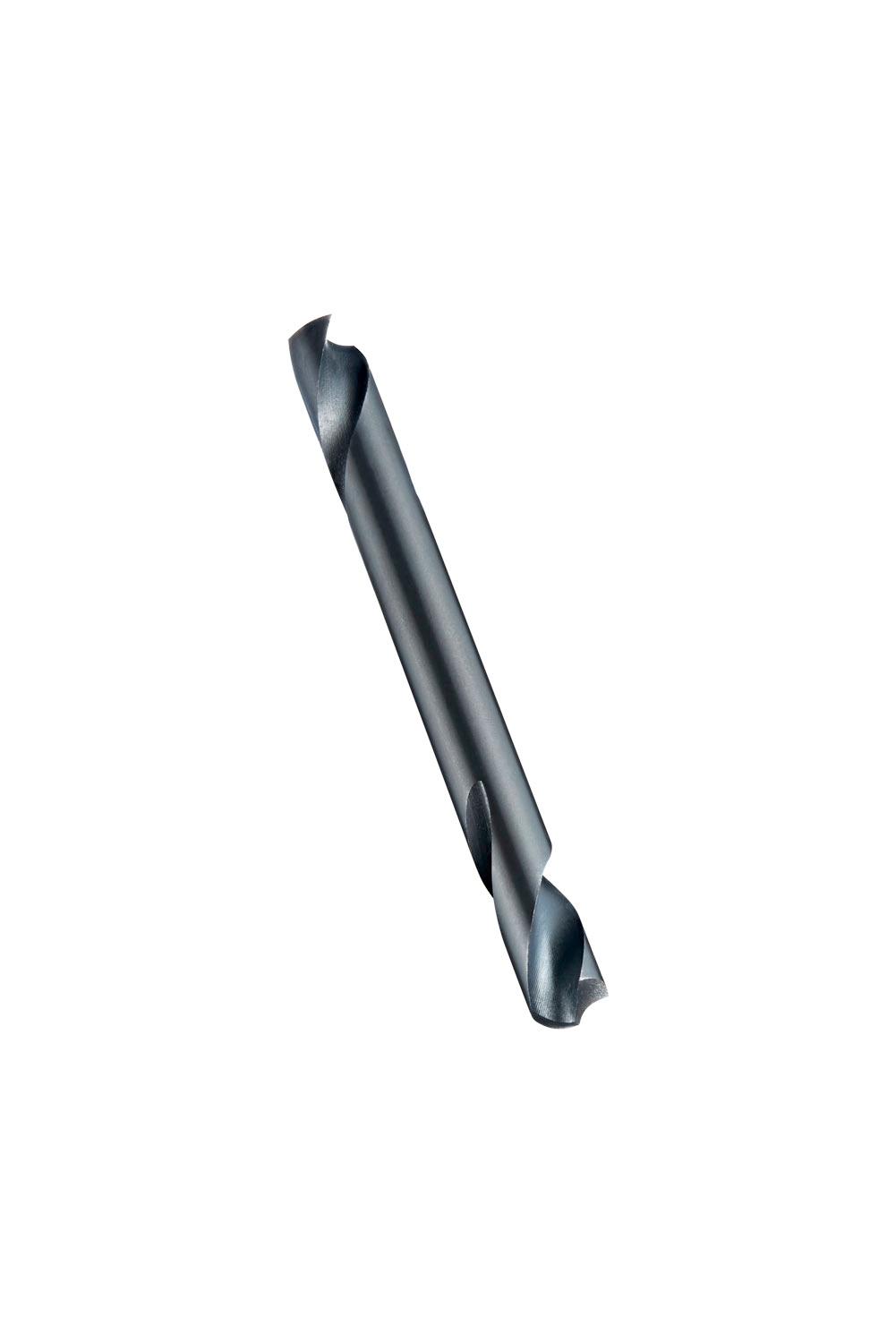

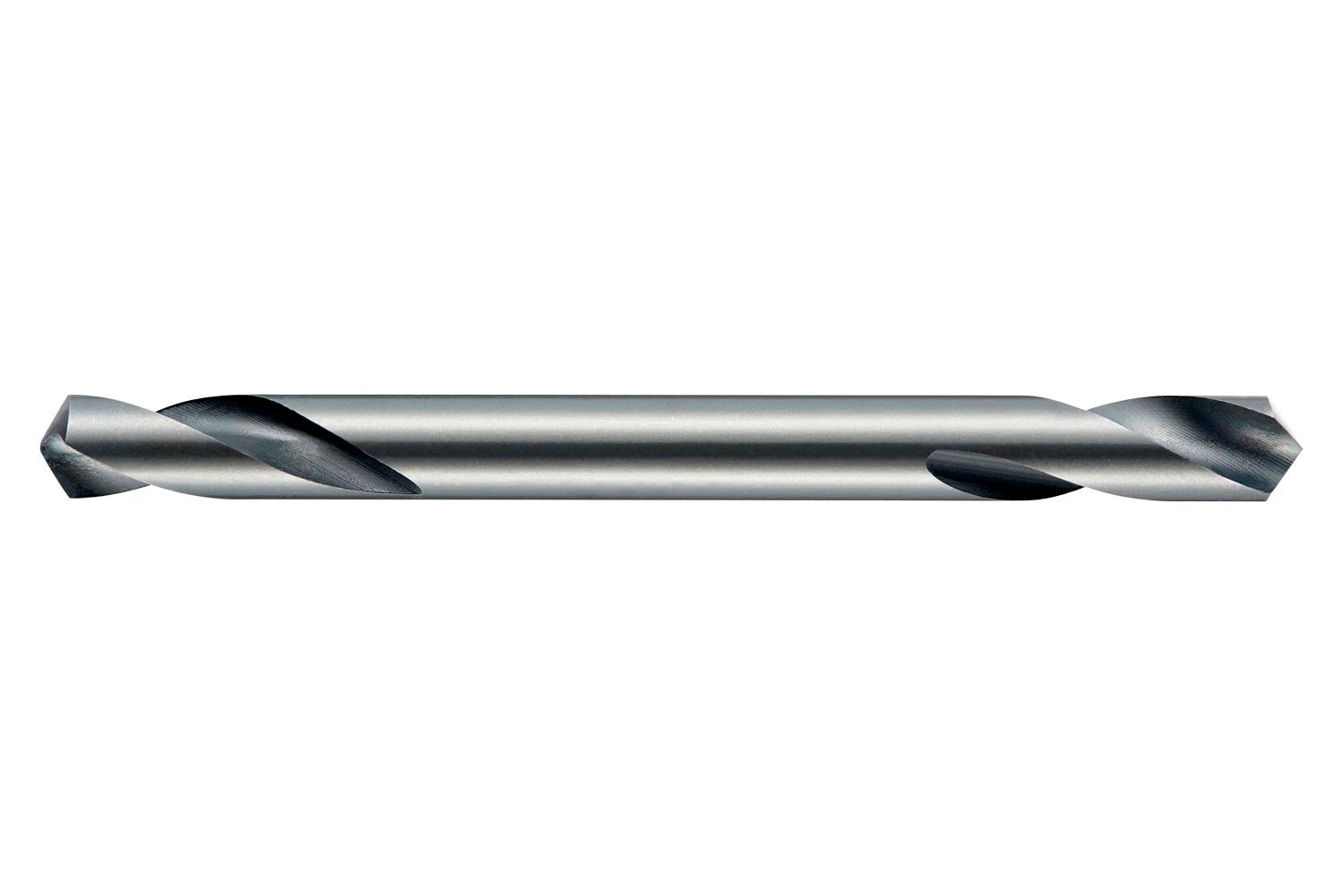

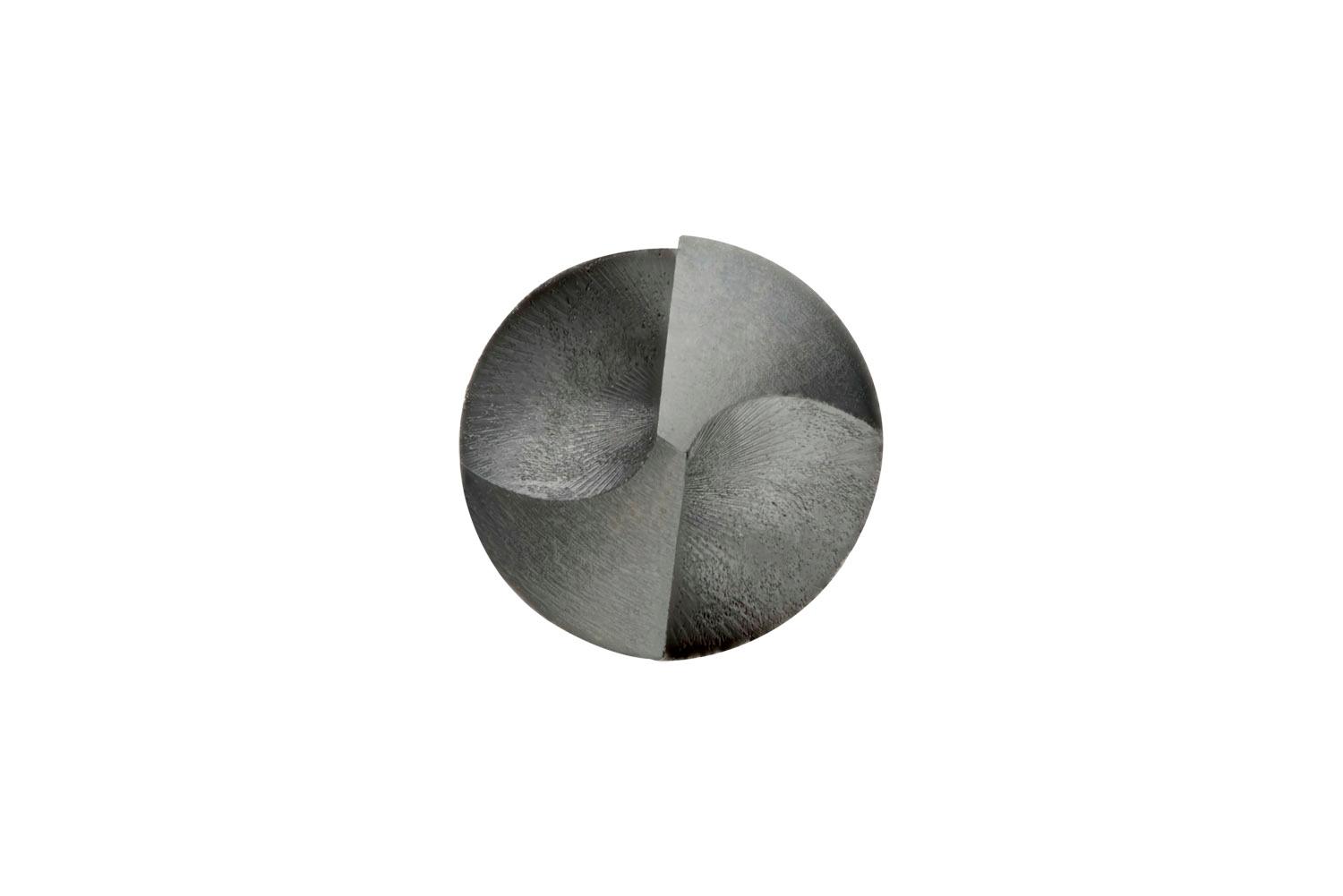

The A119 is a short drill designed primarily for drilling holes through sheet metal. It is manufactured from High Speed steel, making it suitable for drilling in many materials including steel, aluminium and stainless steel. The steam oxide finish helps stop workpiece material from sticking to the cutting edge of the drill. The A119 has a 120 degree conventional point to aid self-centering, and the core of the drill is thinner than normal which helps reduce the amount of force needed when drilling. The drill comes in a number of metric diameters and is designed without the normal body clearance to improve hole roundness when drilling sheet metal. Finally, the drill is actually double ended, so you can use either end to drill, giving you twice the tool life!

Additional information

Weight 0.0094 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760708118
Product number (SAP): 86030890
Ordering code ANSI: A1194.9
Gross weight – grams: 7.98

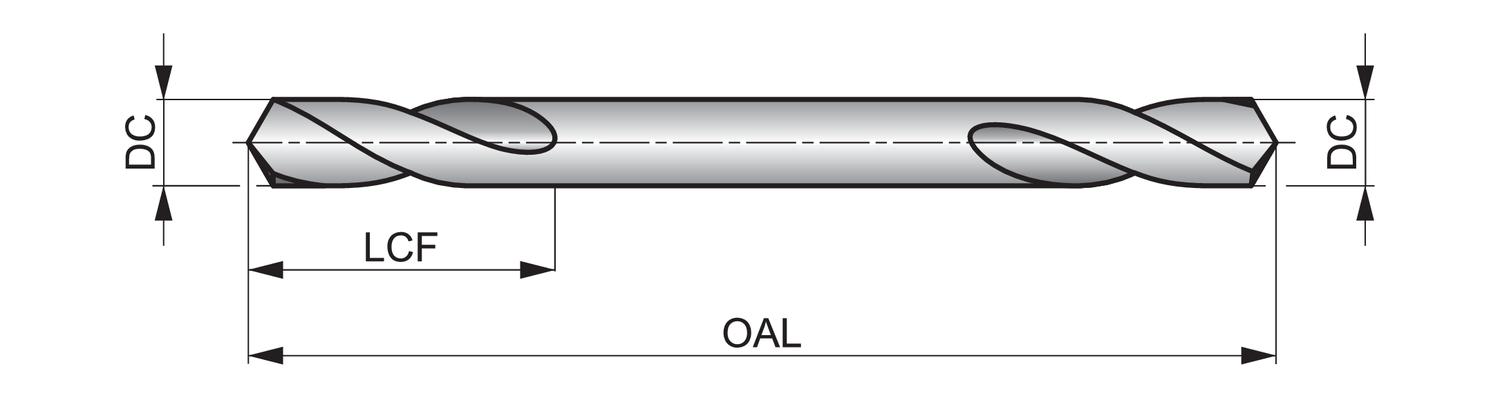

Cutting diameter – millimeter (DC): 4.9 mm
Cutting diameter – inch (DC): 0.1929 inch
Length chip flute – millimeter (LCF): 17 mm
Overall length – millimeter (OAL): 62 mm
Connection diameter – millimeter (DCON MS): 4.9 mm
ISO: A1194.9

Brand

DORMER
