DORMER A1203.9 Stub drill

Product Code: A1203.9

$8.56$7.78 Ex. GST

Product Code: A1203.9 SKU A1203.9 Categories , ,

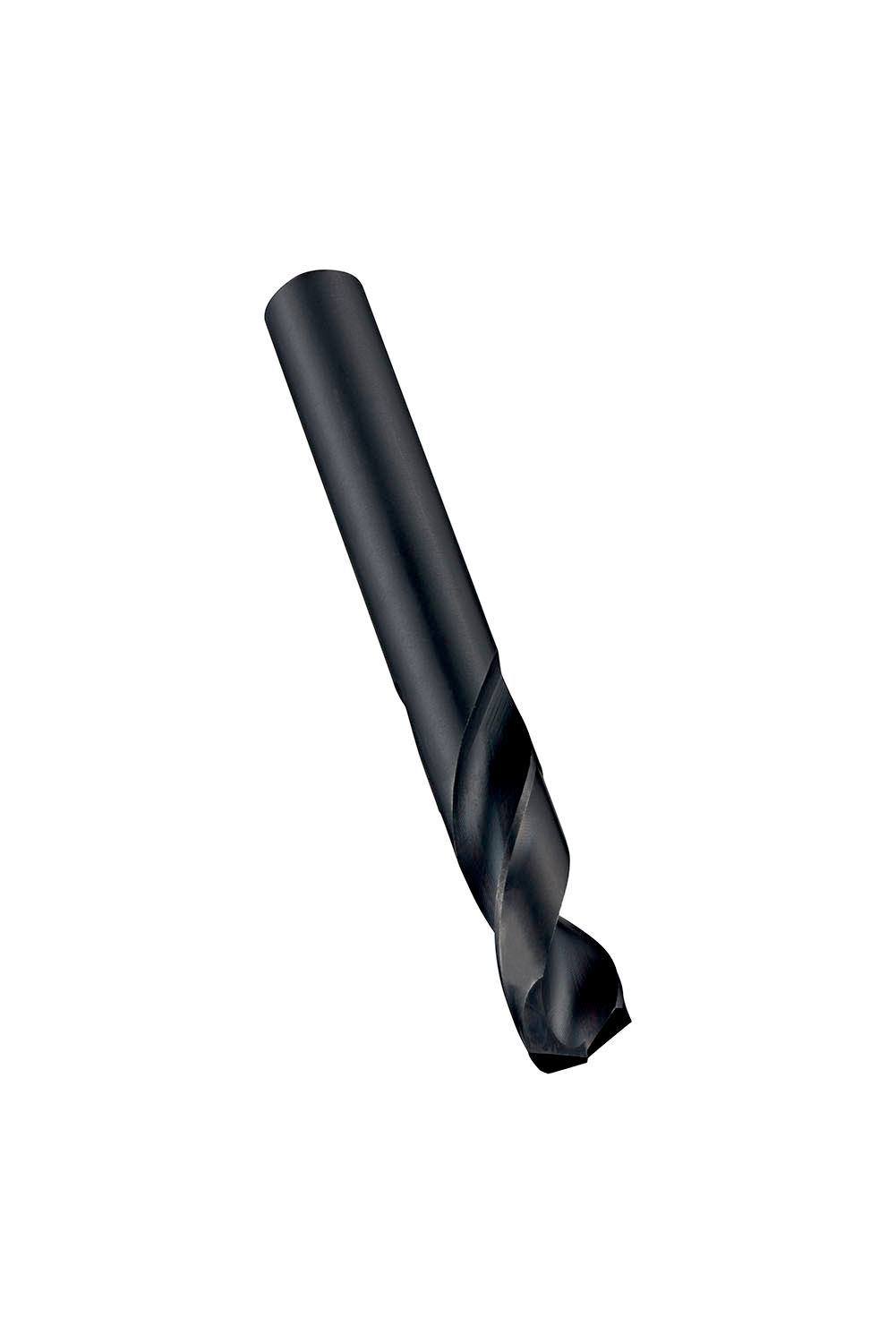

DORMER A1203.9 Stub drill

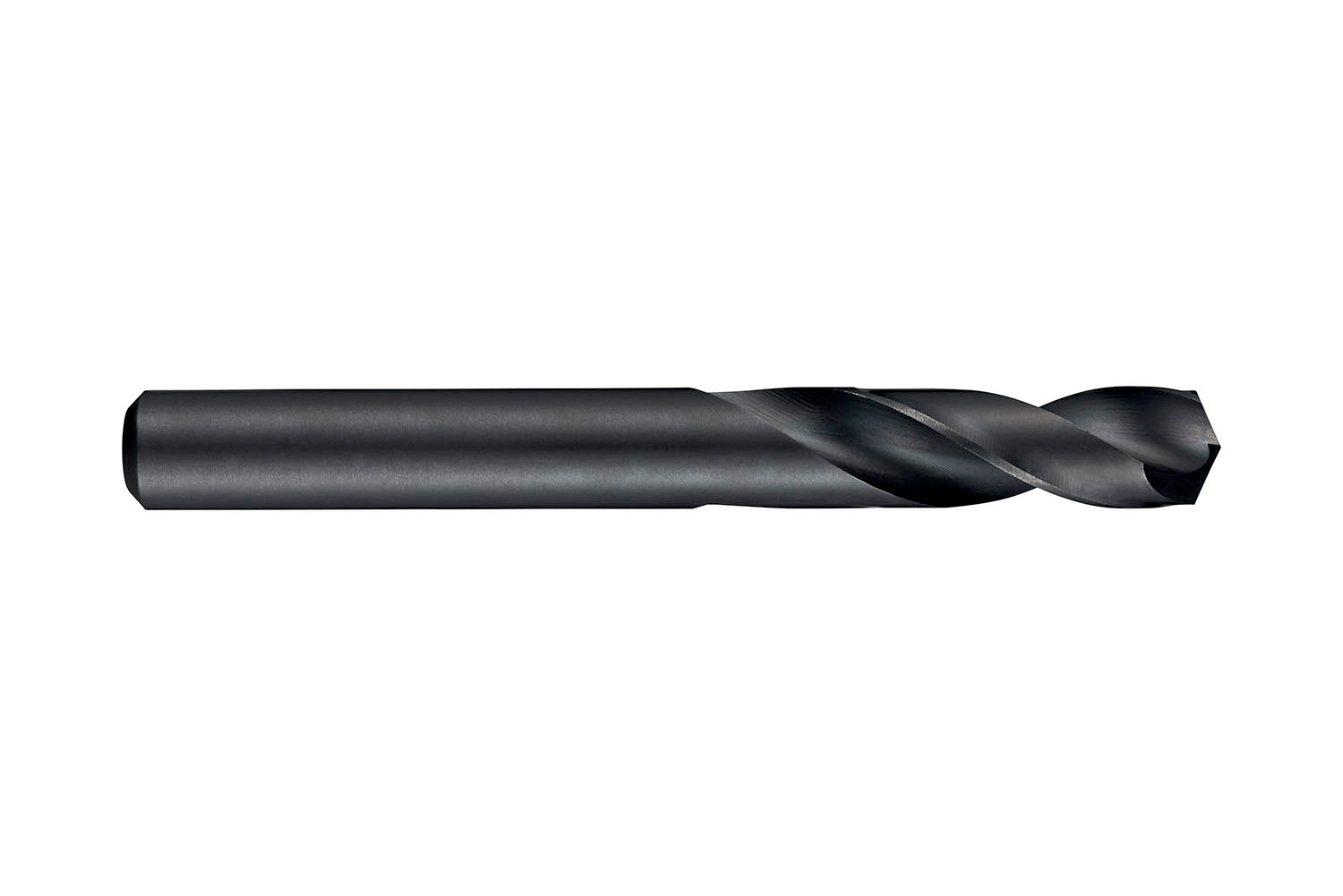

DORMER A1203.9 Stub drill - Image 2
DORMER A1203.9 Stub drill - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Stub length drill with straight shank, diameter 3.9mm with an overall length of 55mm and flute length of 22mm according to DIN 1897 standard with 135° split point, HSS with steam tempered finish for 2.5xD drilling without pecking in steel and cast iron

Additional information

Weight 0.0083 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760017364
Product number (SAP): 86009256
Ordering code ANSI: A1203.9
Gross weight – grams: 4.68
Cutting diameter – millimeter (DC): 3.9 mm
Cutting diameter – inch (DC): 0.1535 inch
Length chip flute – millimeter (LCF): 22 mm
Overall length – millimeter (OAL): 55 mm
Connection diameter – millimeter (DCON MS): 3.9 mm
Length chip flute – inch (LCF): 0.8661 inch
ISO: A1203.9

Brand

DORMER
