DORMER A1208.8 Stub drill

Product Code: A1208.8

$28.78$26.16 Ex. GST

Product Code: A1208.8 SKU A1208.8 Categories , ,

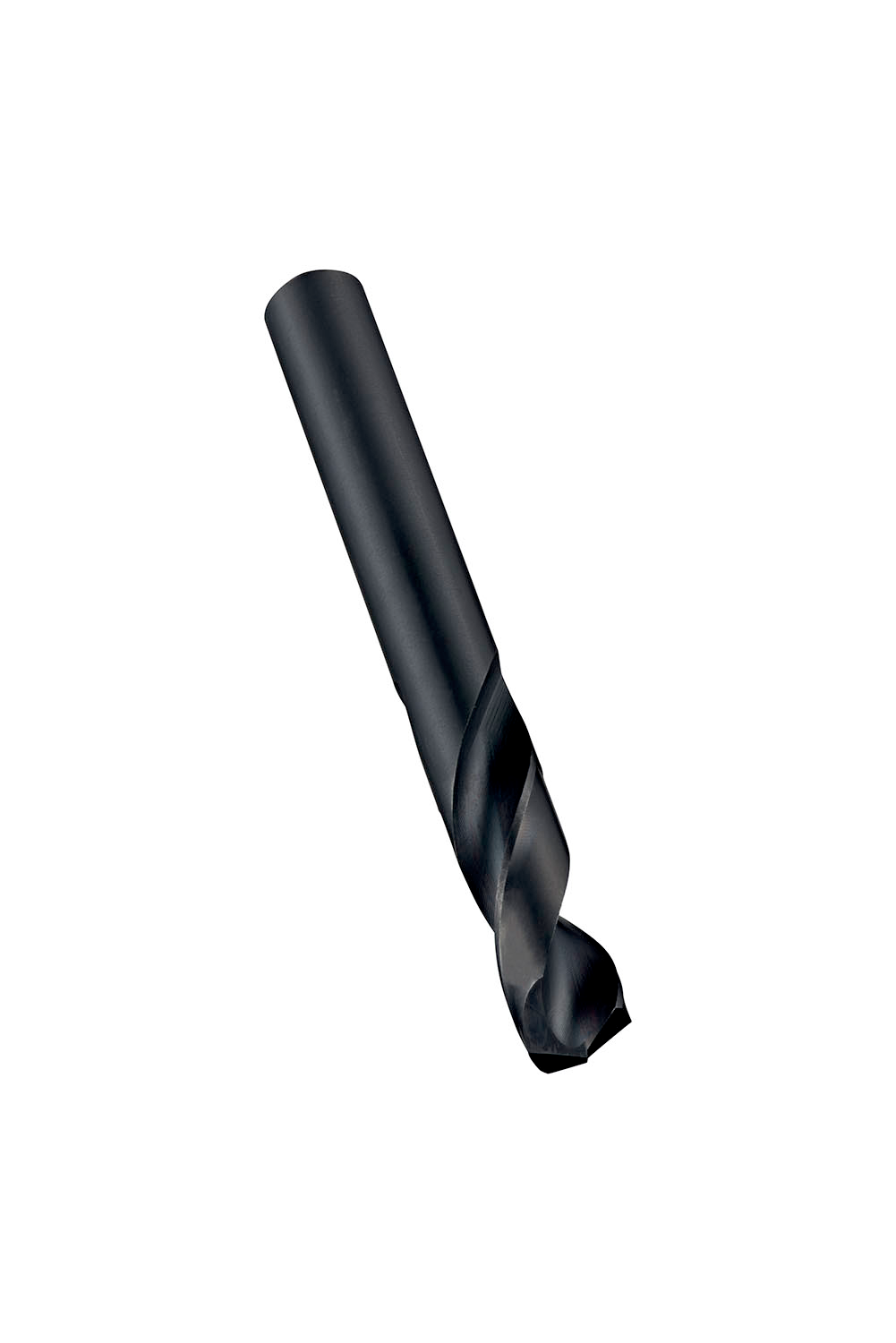

DORMER A1208.8 Stub drill
DORMER A1208.8 Stub drill - Image 2

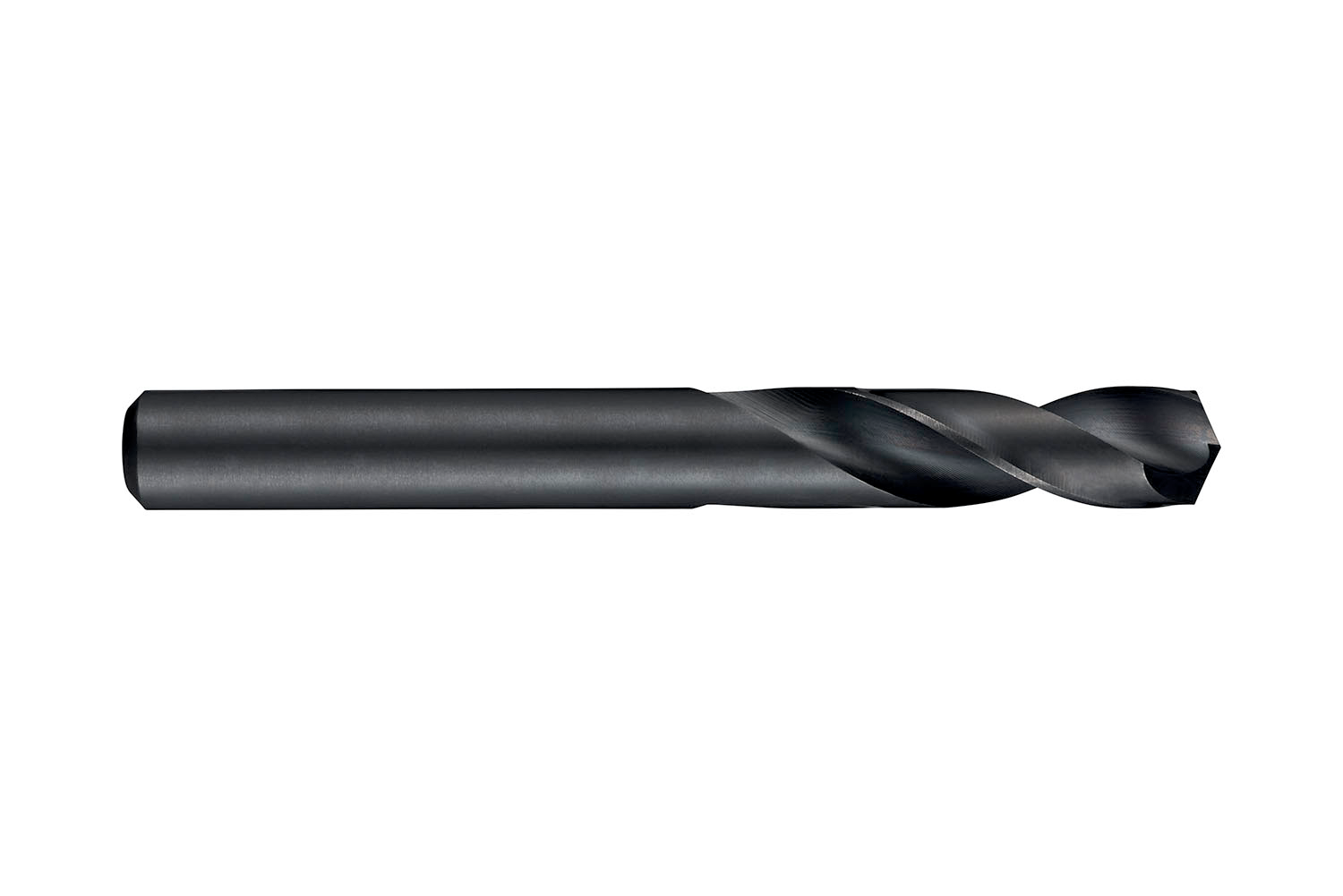

DORMER A1208.8 Stub drill - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Stub length drill with straight shank, diameter 8.8mm with an overall length of 84mm and flute length of 40mm according to DIN 1897 standard with 135° split point, HSS with steam tempered finish for 2.5xD drilling without pecking in steel and cast iron

Additional information

Weight 0.0279 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760018149
Product number (SAP): 86009318
Ordering code ANSI: A1208.8
Gross weight – grams: 34.57

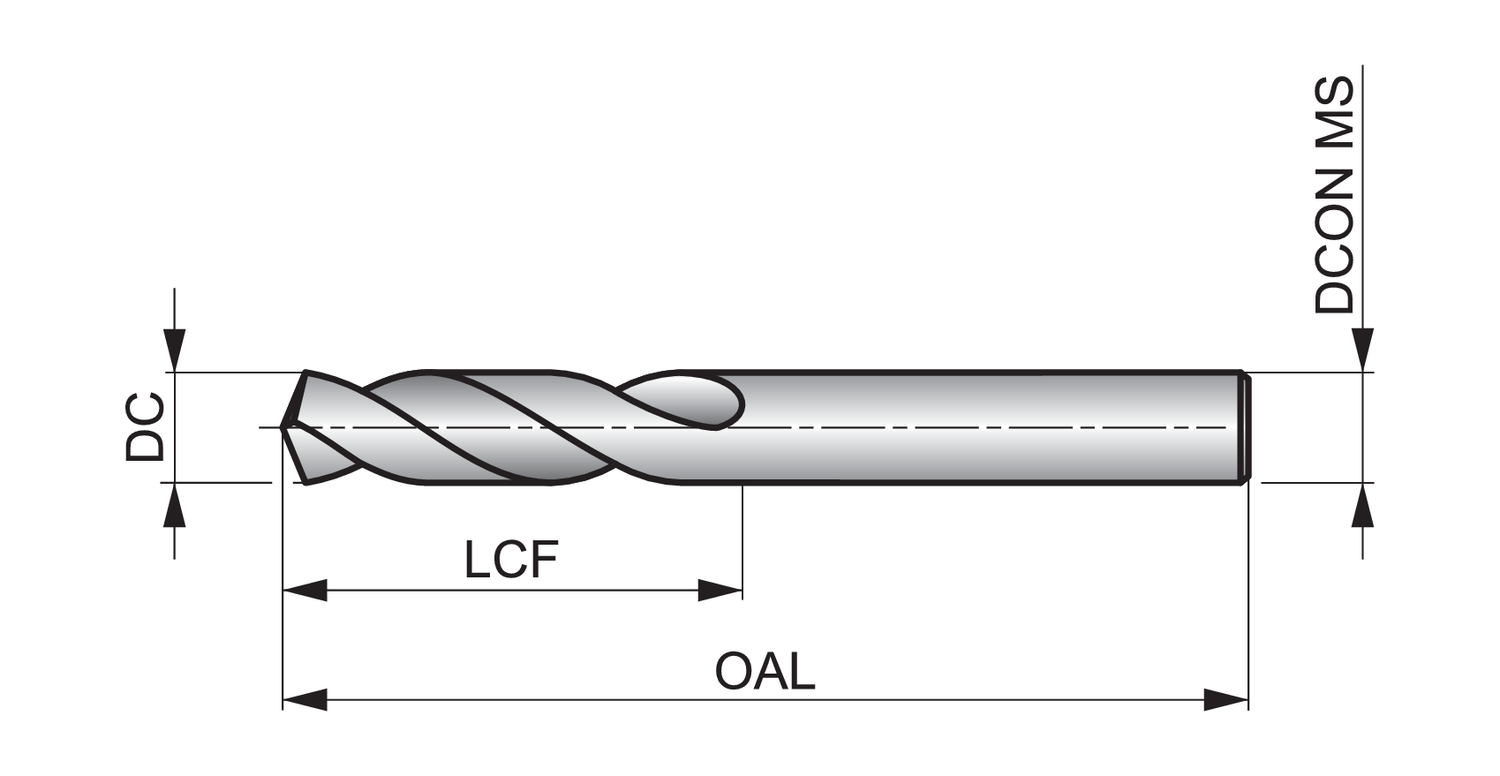

Cutting diameter – millimeter (DC): 8.8 mm
Cutting diameter – inch (DC): 0.3465 inch
Length chip flute – millimeter (LCF): 40 mm
Overall length – millimeter (OAL): 84 mm
Connection diameter – millimeter (DCON MS): 8.8 mm
Length chip flute – inch (LCF): 1.5748 inch
ISO: A1208.8

Brand

DORMER
