DORMER A1209.5 Stub drill

Product Code: A1209.5

$28.33$25.75 Ex. GST

Product Code: A1209.5 SKU A1209.5 Categories , ,

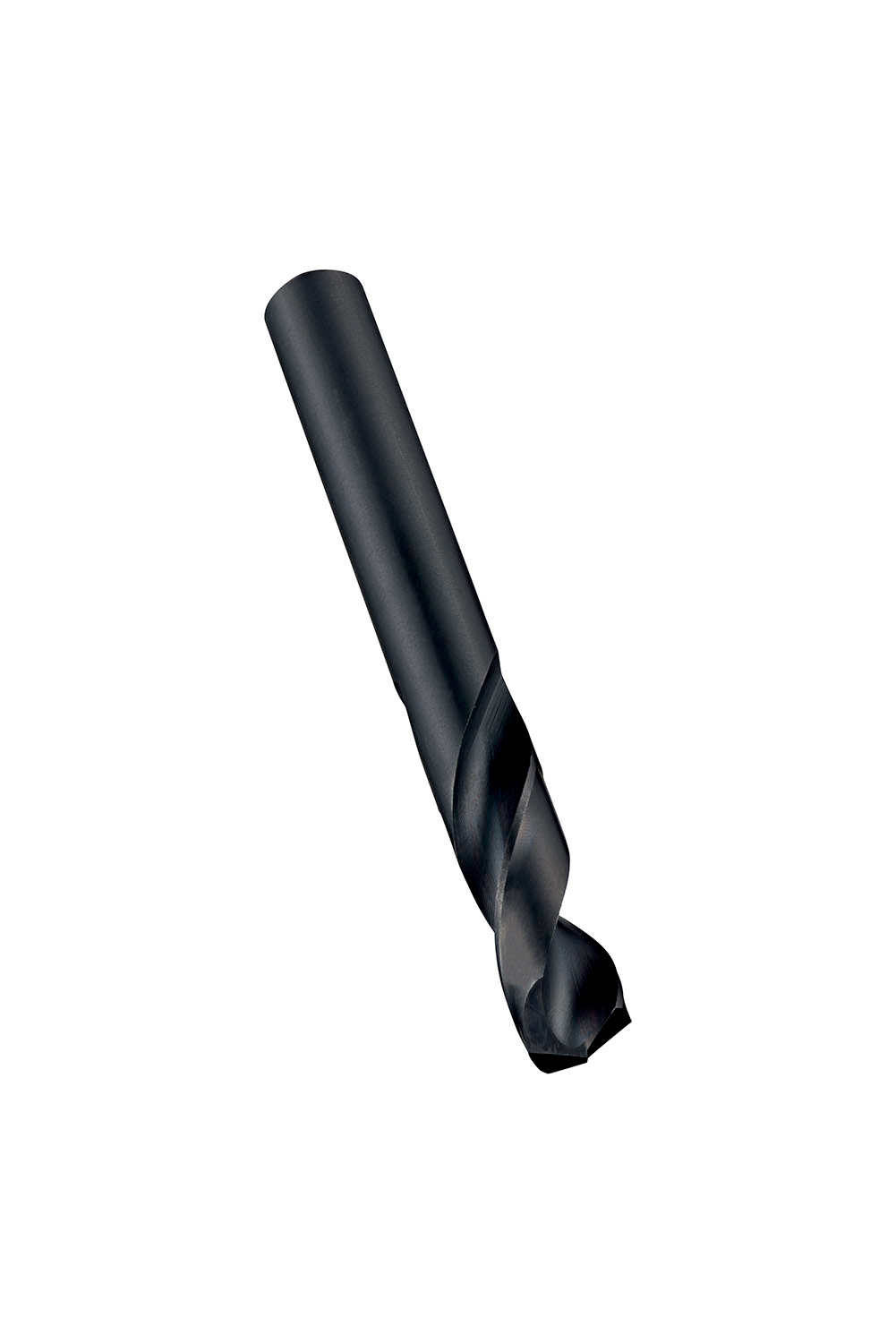

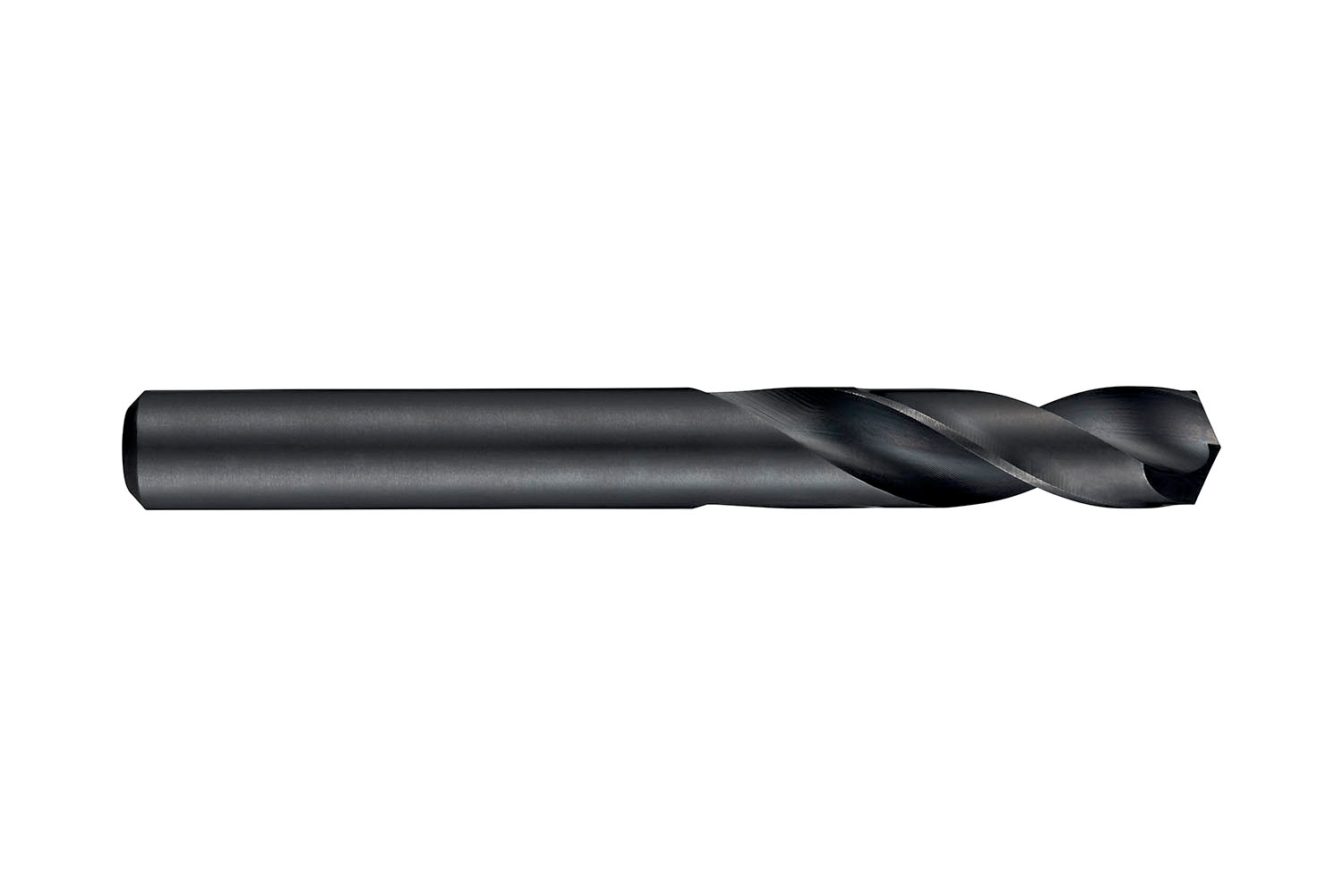

DORMER A1209.5 Stub drill
DORMER A1209.5 Stub drill - Image 2
DORMER A1209.5 Stub drill - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Stub length drill with straight shank, diameter 9.5mm with an overall length of 84mm and flute length of 40mm according to DIN 1897 standard with 135° split point, HSS with steam tempered finish for 2.5xD drilling without pecking in steel and cast iron

Additional information

Weight 0.0275 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760018217
Product number (SAP): 86009325
Ordering code ANSI: A1209.5
Gross weight – grams: 38.62
Cutting diameter – millimeter (DC): 9.5 mm
Cutting diameter – inch (DC): 0.374 inch
Length chip flute – millimeter (LCF): 40 mm
Overall length – millimeter (OAL): 84 mm
Connection diameter – millimeter (DCON MS): 9.5 mm
Length chip flute – inch (LCF): 1.5748 inch
ISO: A1209.5

Brand

DORMER
