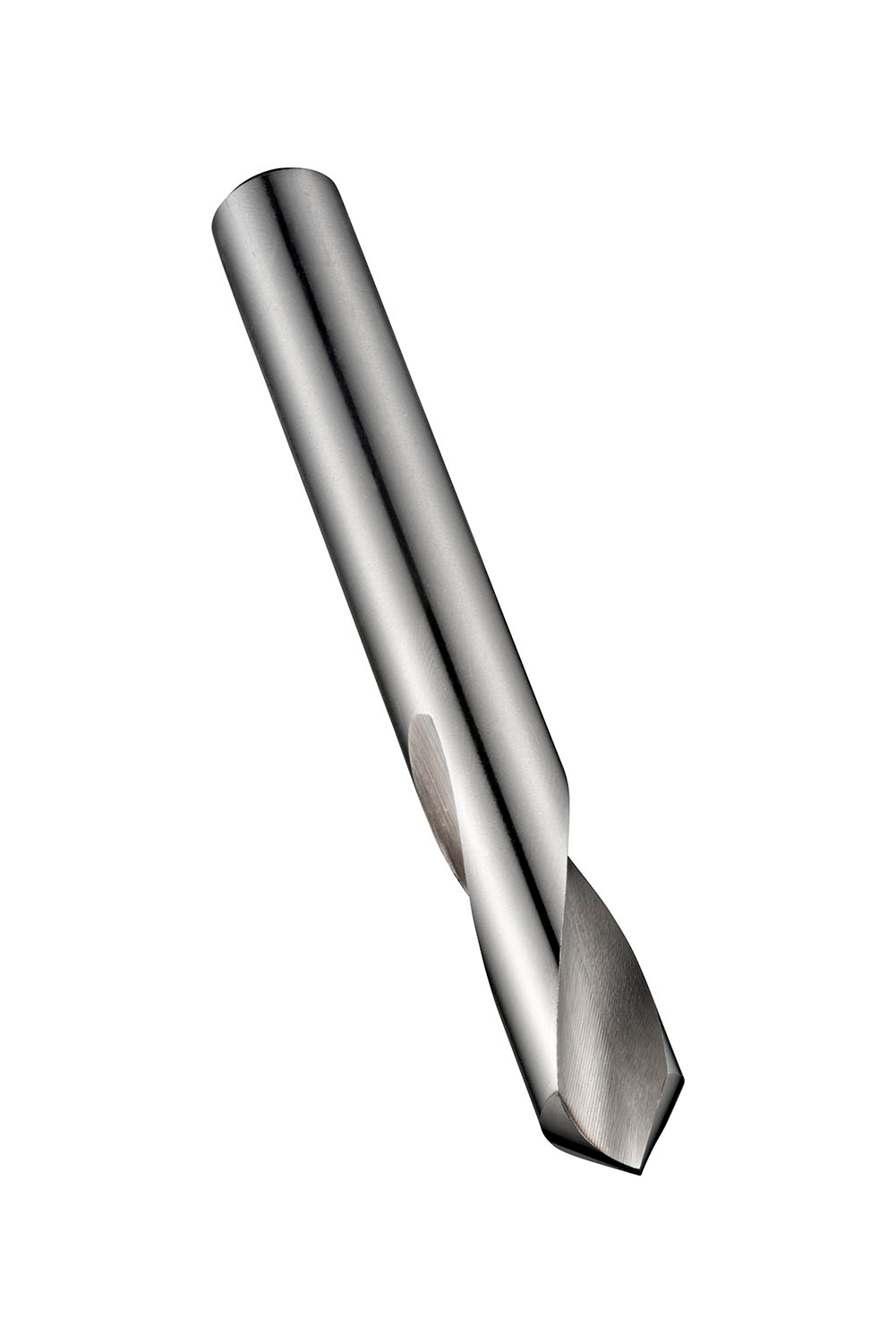

DORMER A12210.0X90 Spotting Drill

Product Code: A12210.0X90

$74.22$67.47 Ex. GST

Product Code: A12210.0X90 SKU A12210.0X90 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

The A122 is a metric spotting drill so you would use it to start a hole in the material to be drilled to ensure the start point is accurate. You may also use it to provide a countersink start to the hole by choosing a larger diameter than the hole you need and just drilling down to the countersink depth with this drill and completing the hole with a smaller diameter drill. The A122 drill comes with either a 90 degree or 120 degree point angle, giving you two options of countersink. Manufactured from High Speed steel, the A122 is suitable for drilling in many materials including steel, stainless steel and aluminium. The drill comes with a steam oxide finish to stop workpiece material from sticking to the cutting edge of the drill, giving you a better hole finish and more accurate diameter.

Additional information

Weight 0.0721 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760019160
Product number (SAP): 86009334
Ordering code ANSI: A12210.0X90
Gross weight – grams: 49.1

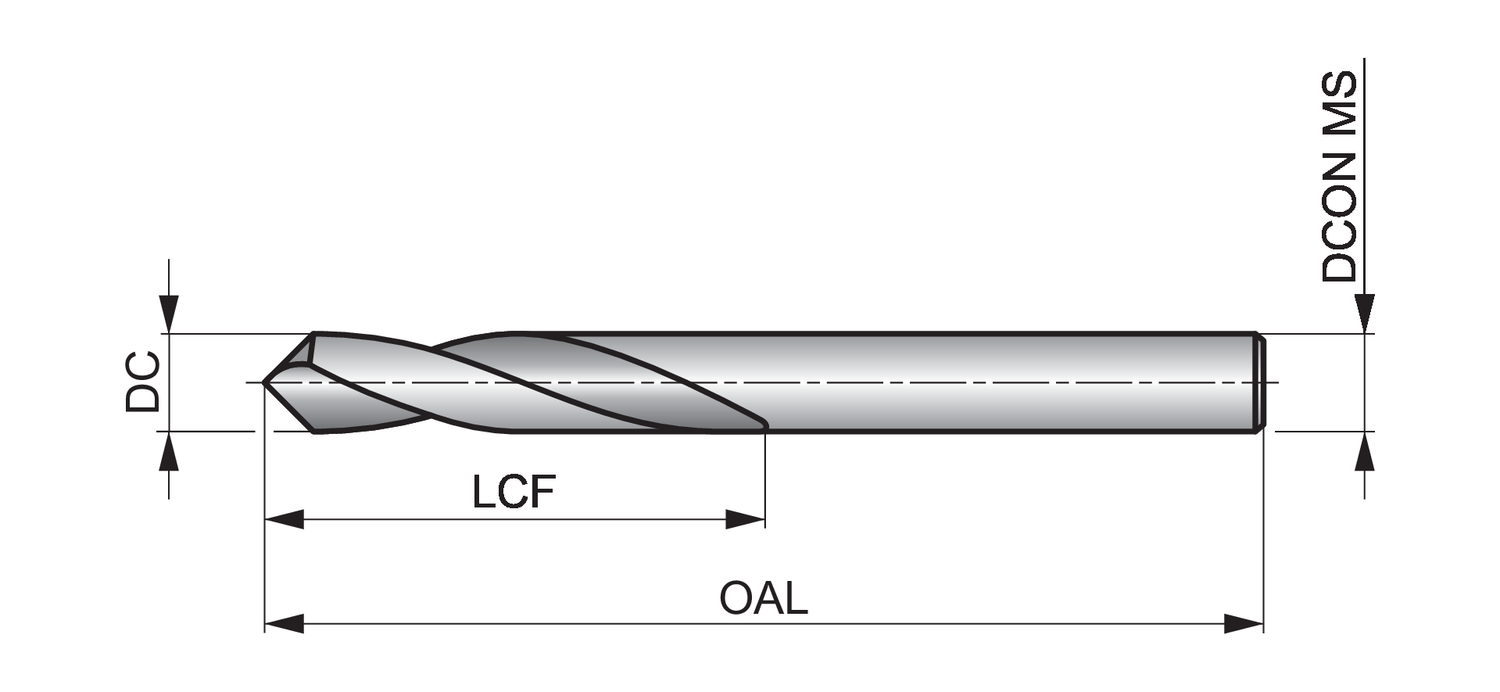

Cutting diameter – millimeter (DC): 10 mm
Cutting diameter – inch (DC): 0.3937 inch
Length chip flute – millimeter (LCF): 35 mm
Overall length – millimeter (OAL): 89 mm
Connection diameter – millimeter (DCON MS): 10 mm
ISO: A12210.0X90

Brand

DORMER
