DORMER A1231/4S Stub drill

Product Code: A1231/4S

$9.91$9.01 Ex. GST

Product Code: A1231/4S SKU A1231/4S Categories , ,
DORMER A1231/4S Stub drill

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

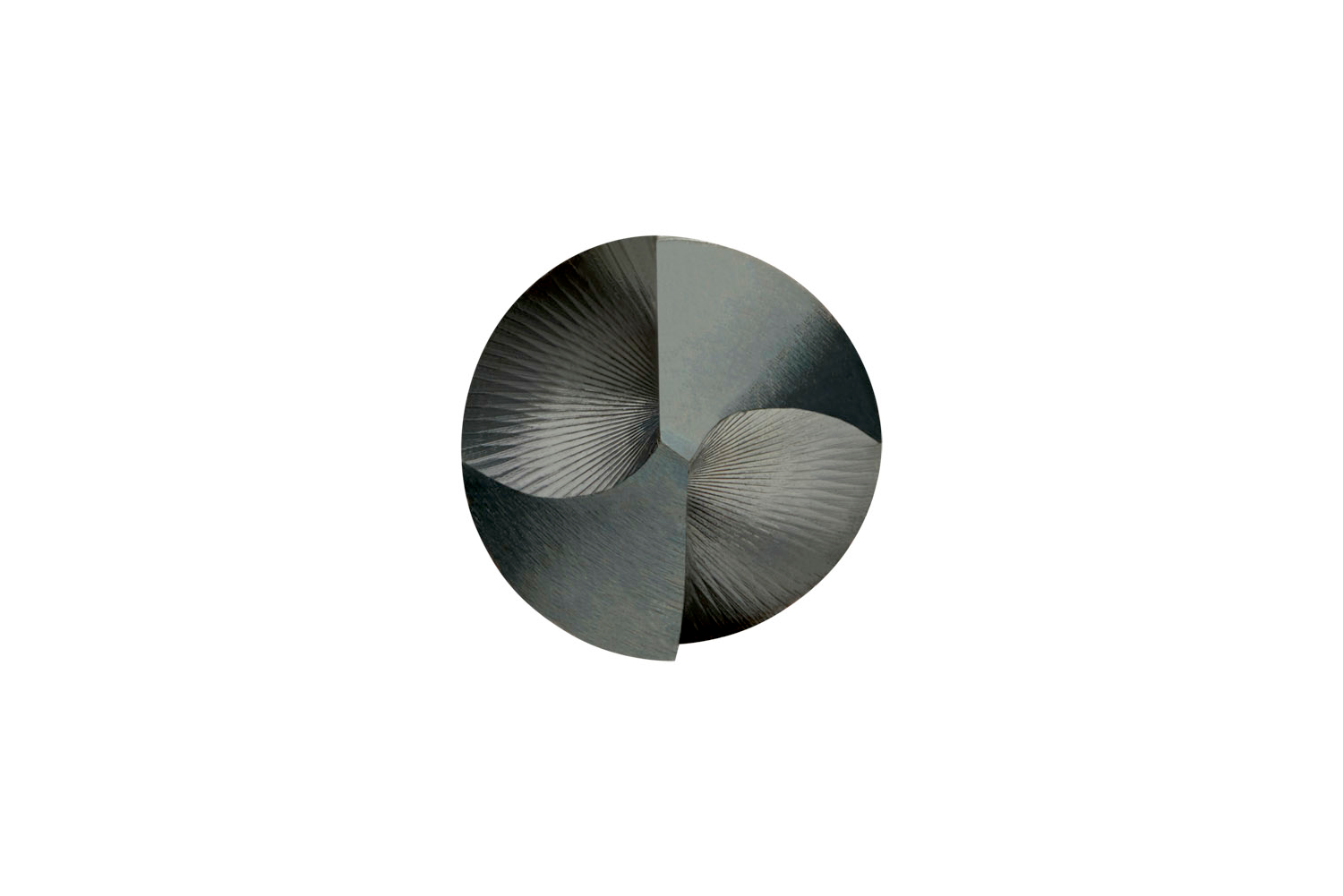

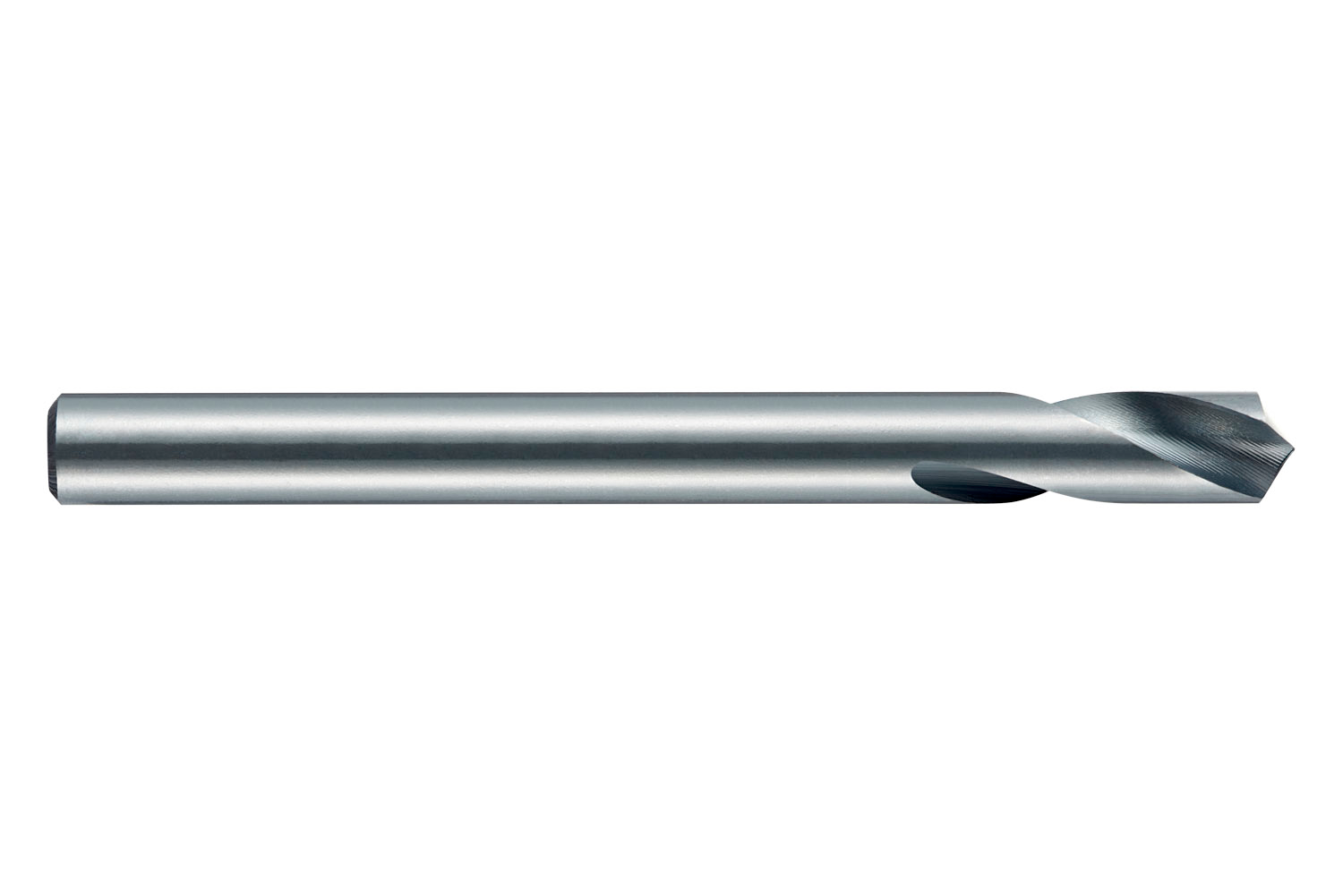

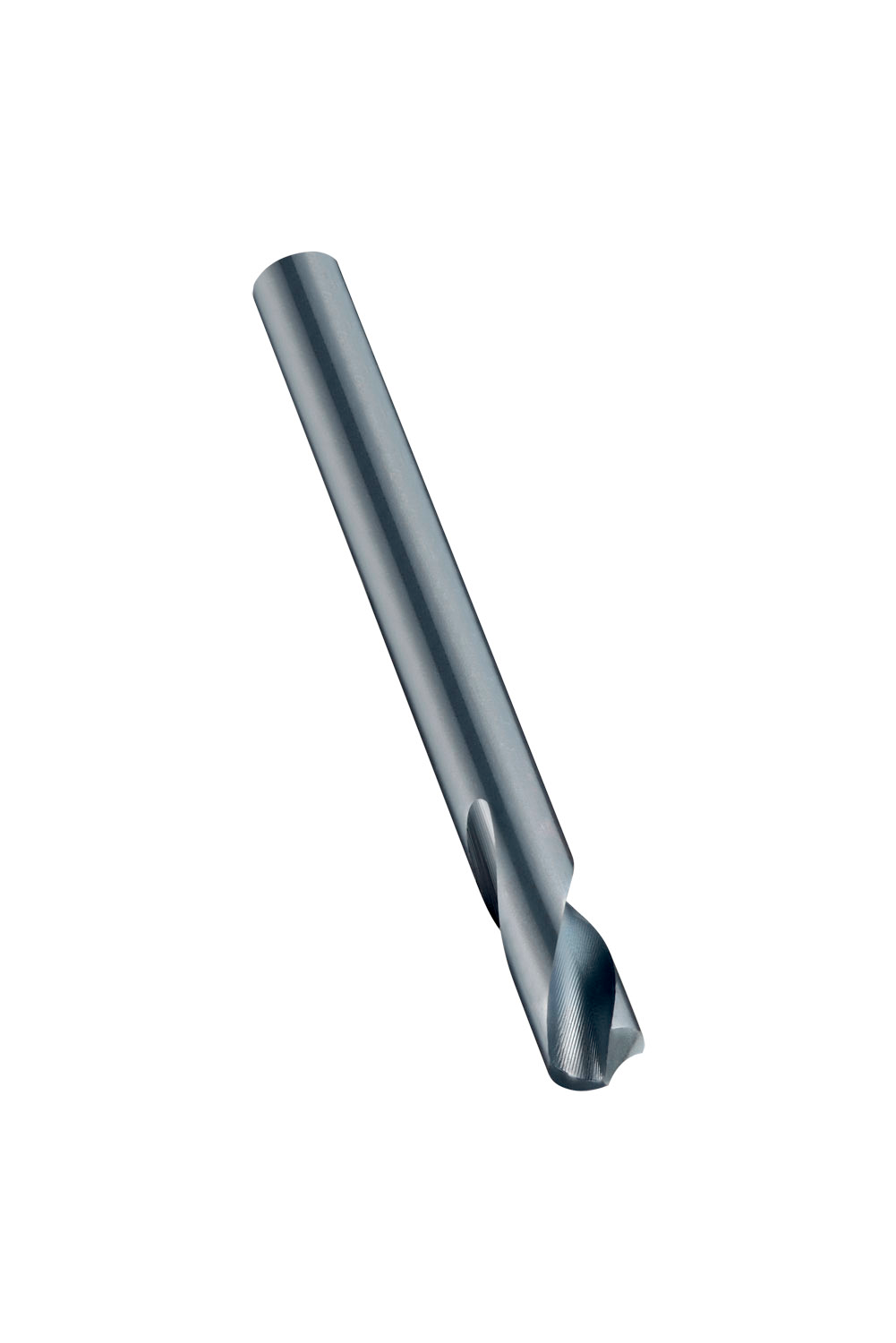

Sheet metal drill with straight shank, diameter 0.2500″ (1/4S) with an overall length of 70mm and flute length of 19mm according to DIN 1897 standard with 120° point angle, HSS with steam tempered finish for 1.5xD drilling without pecking in steel

Additional information

Weight 0.0096 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760707982
Product number (SAP): 86030912
Ordering code ANSI: A1231/4S
Gross weight – grams: 16.93

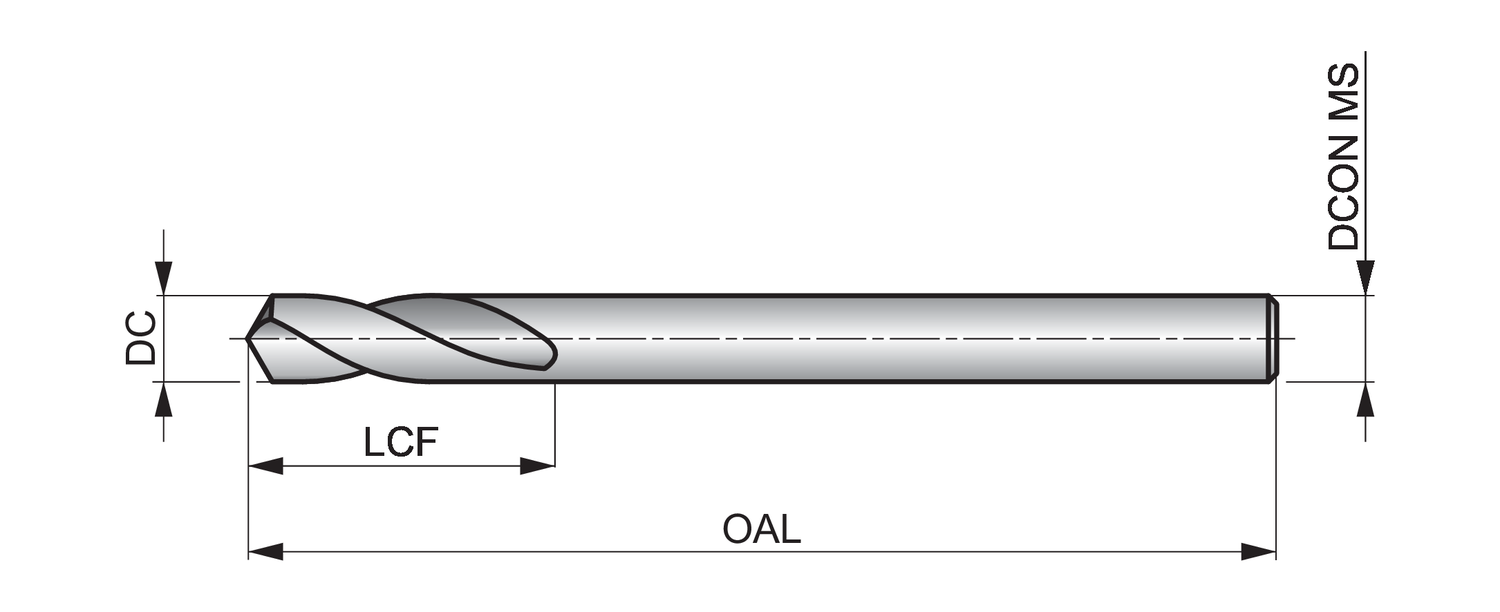

Cutting diameter – fractional inch (DC): 1/4
Cutting diameter – millimeter (DC): 6.35 mm
Cutting diameter – inch (DC): 0.25 inch
Length chip flute – millimeter (LCF): 19 mm
Overall length – millimeter (OAL): 70 mm
Connection diameter – millimeter (DCON MS): 6.35 mm
ISO: A1231/4S

Brand

DORMER
