DORMER A1233.0S Stub drill

Product Code: A1233.0S

$3.91$3.55 Ex. GST

Product Code: A1233.0S SKU A1233.0S Categories 02 - HSS Other Drills, CUTTING TOOLS (HSS & Carbide), Drilling

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

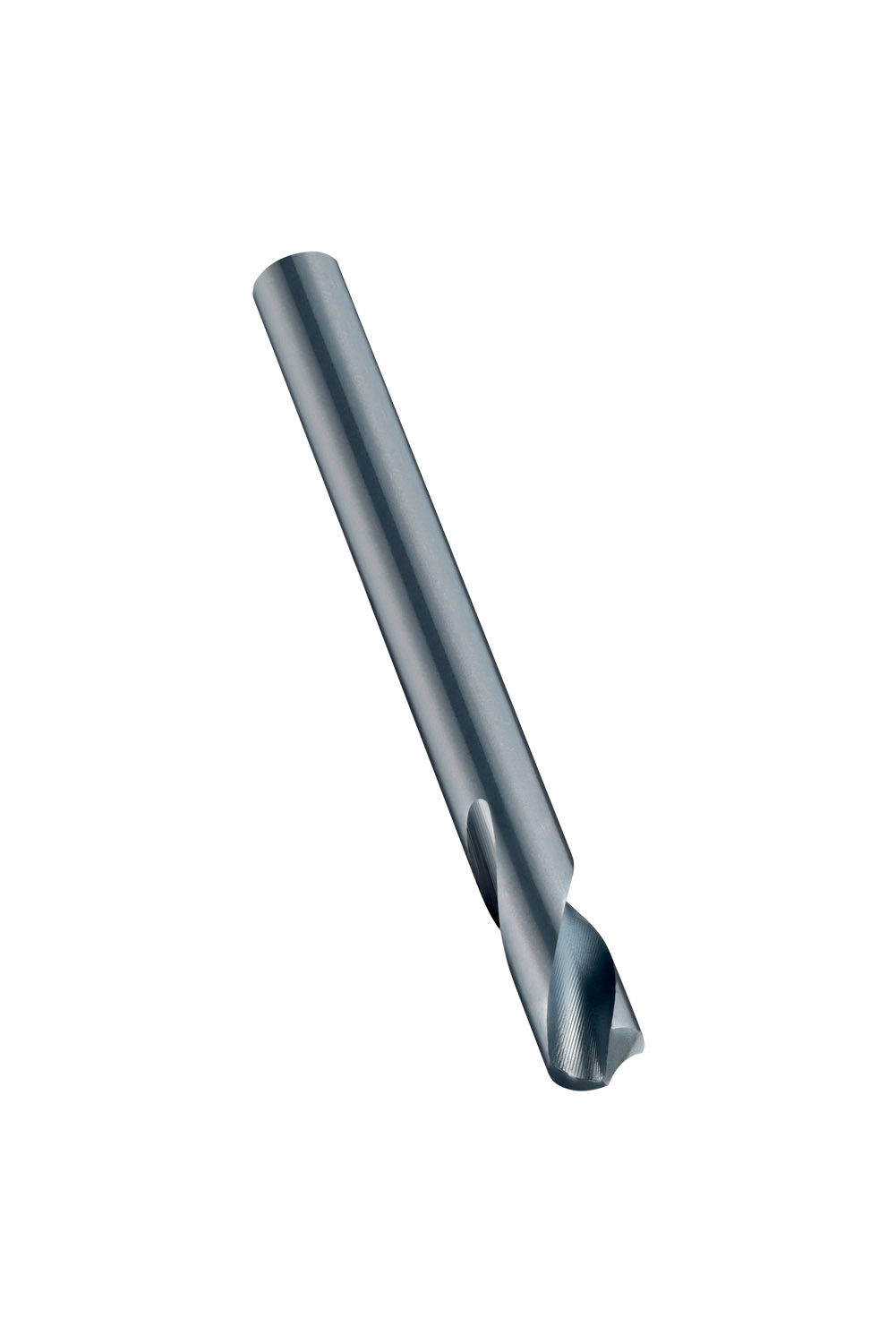

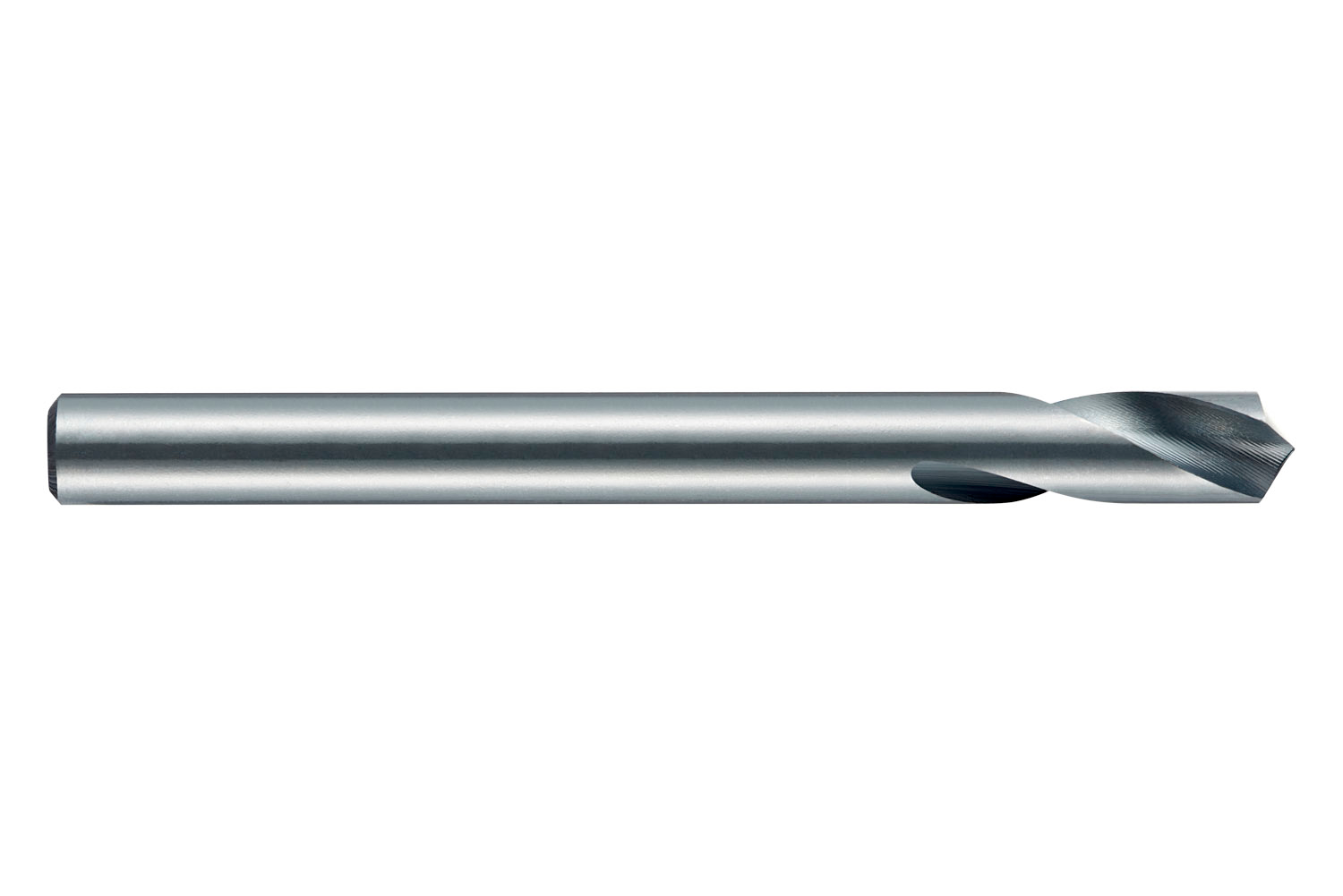

Sheet metal drill with straight shank, diameter 3mm with an overall length of 46mm and flute length of 16mm according to DIN 1897 standard with 120° point angle, HSS with steam tempered finish for 1.5xD drilling without pecking in steel

Additional information

Weight	0.0038 kg
Dimensions
barcode

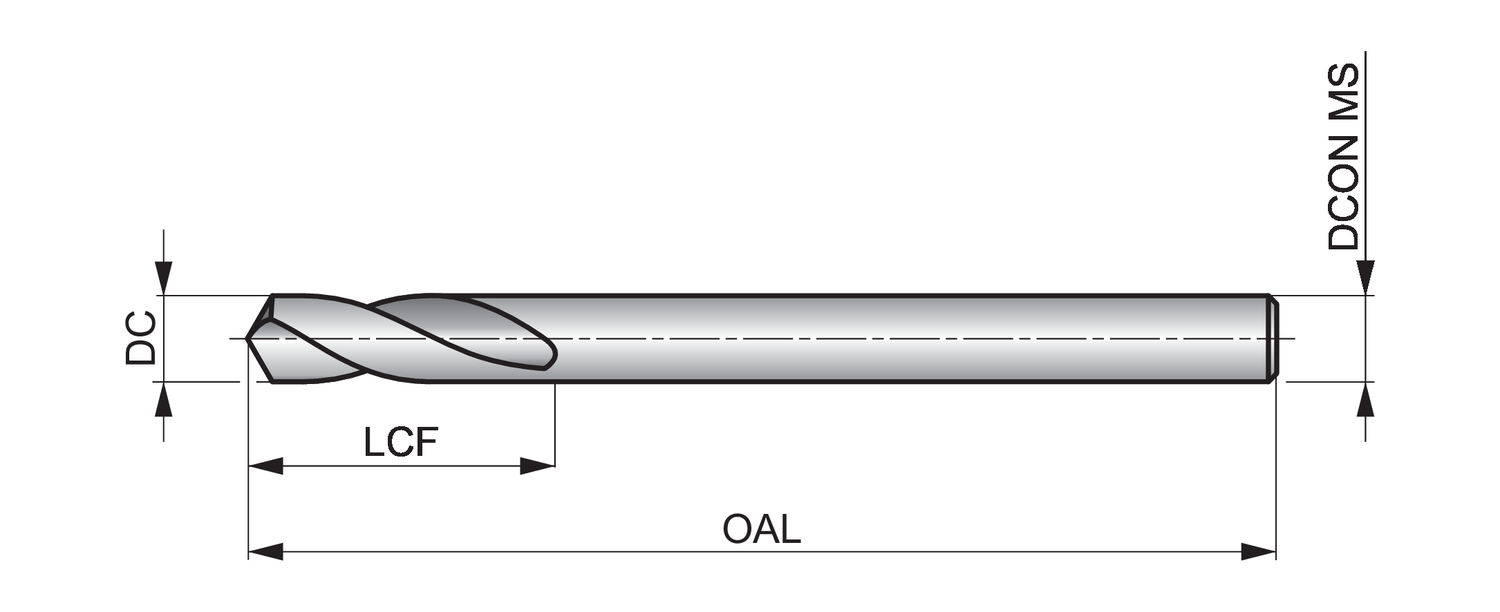

Additional Information	Description: Value EAN number: 7320760707807 Product number (SAP): 86030894 Ordering code ANSI: A1233.0S Gross weight – grams: 2.68 Cutting diameter – millimeter (DC): 3 mm Cutting diameter – inch (DC): 0.1181 inch Length chip flute – millimeter (LCF): 16 mm Overall length – millimeter (OAL): 46 mm Connection diameter – millimeter (DCON MS): 3 mm ISO: A1233.0S
