DORMER A1234.2S Stub drill

Product Code: A1234.2S

$5.95$5.41 Ex. GST

Product Code: A1234.2S SKU A1234.2S Categories 02 - HSS Other Drills, CUTTING TOOLS (HSS & Carbide), Drilling

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

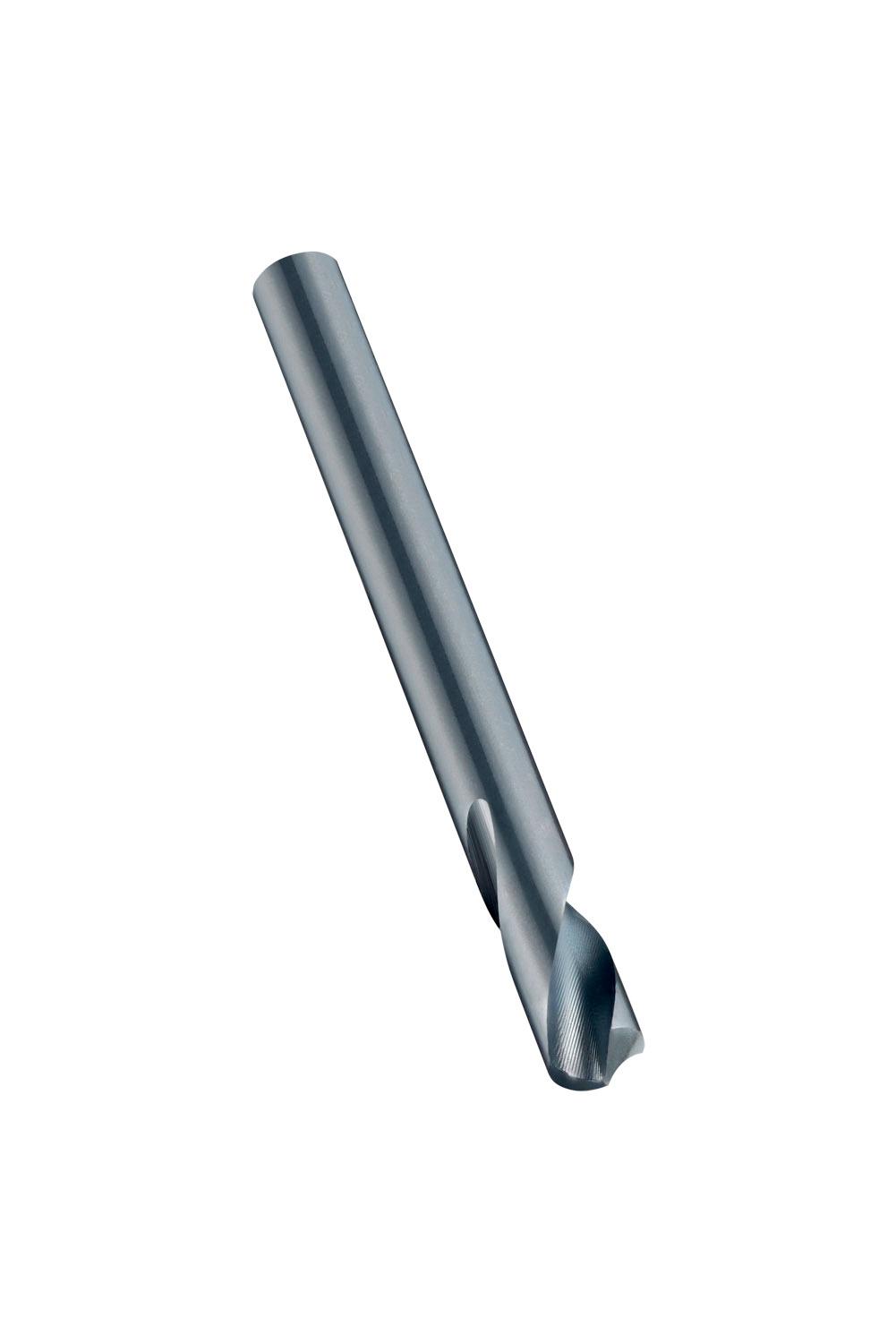

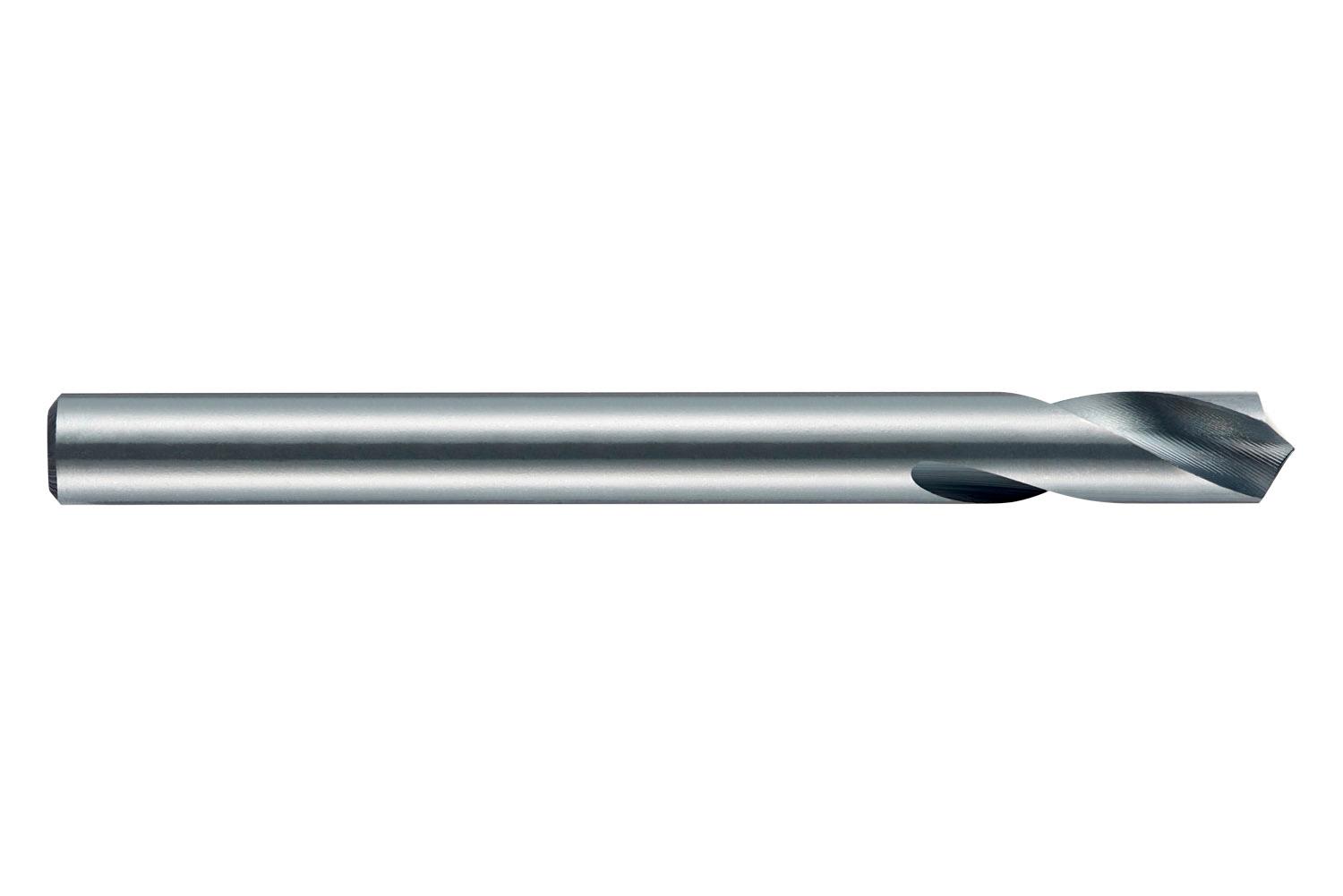

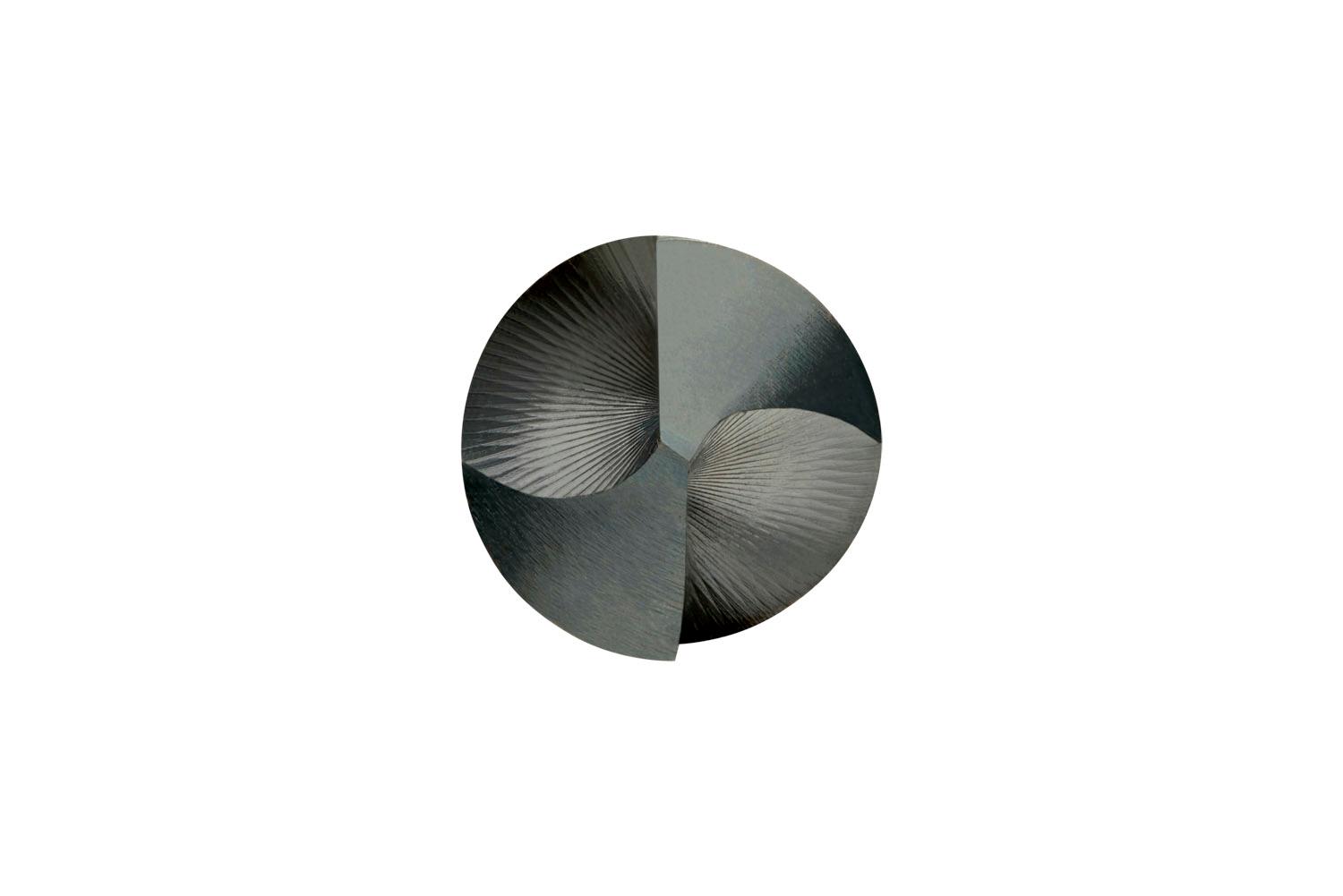

Sheet metal drill with straight shank, diameter 4.2mm with an overall length of 55mm and flute length of 18mm according to DIN 1897 standard with 120° point angle, HSS with steam tempered finish for 1.5xD drilling without pecking in steel

Additional information

Weight	0.0058 kg
Dimensions
barcode

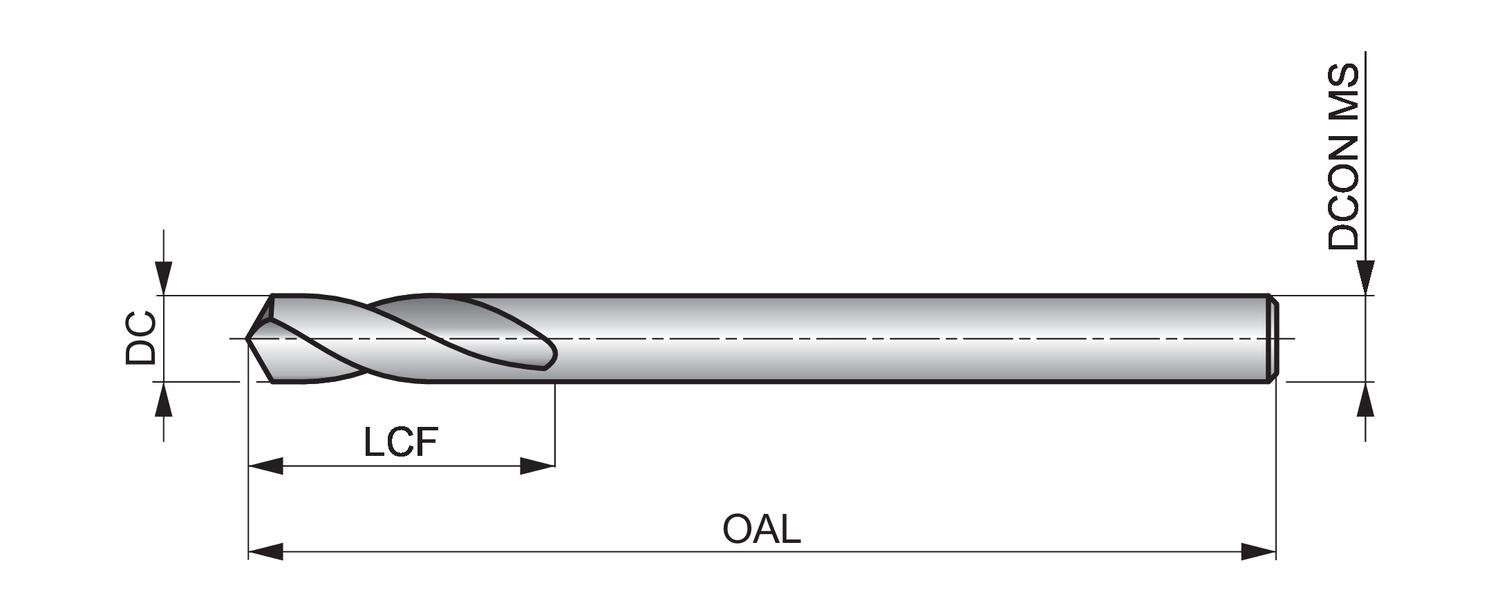

Additional Information	Description: Value EAN number: 7320760707890 Product number (SAP): 86030903 Ordering code ANSI: A1234.2S Gross weight – grams: 5 Cutting diameter – millimeter (DC): 4.2 mm Cutting diameter – inch (DC): 0.1654 inch Length chip flute – millimeter (LCF): 18 mm Overall length – millimeter (OAL): 55 mm Connection diameter – millimeter (DCON MS): 4.2 mm ISO: A1234.2S
