DORMER A1234.5S Stub drill

Product Code: A1234.5S

$6.01$5.46 Ex. GST

Product Code: A1234.5S SKU A1234.5S Categories 02 - HSS Other Drills, CUTTING TOOLS (HSS & Carbide), Drilling

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

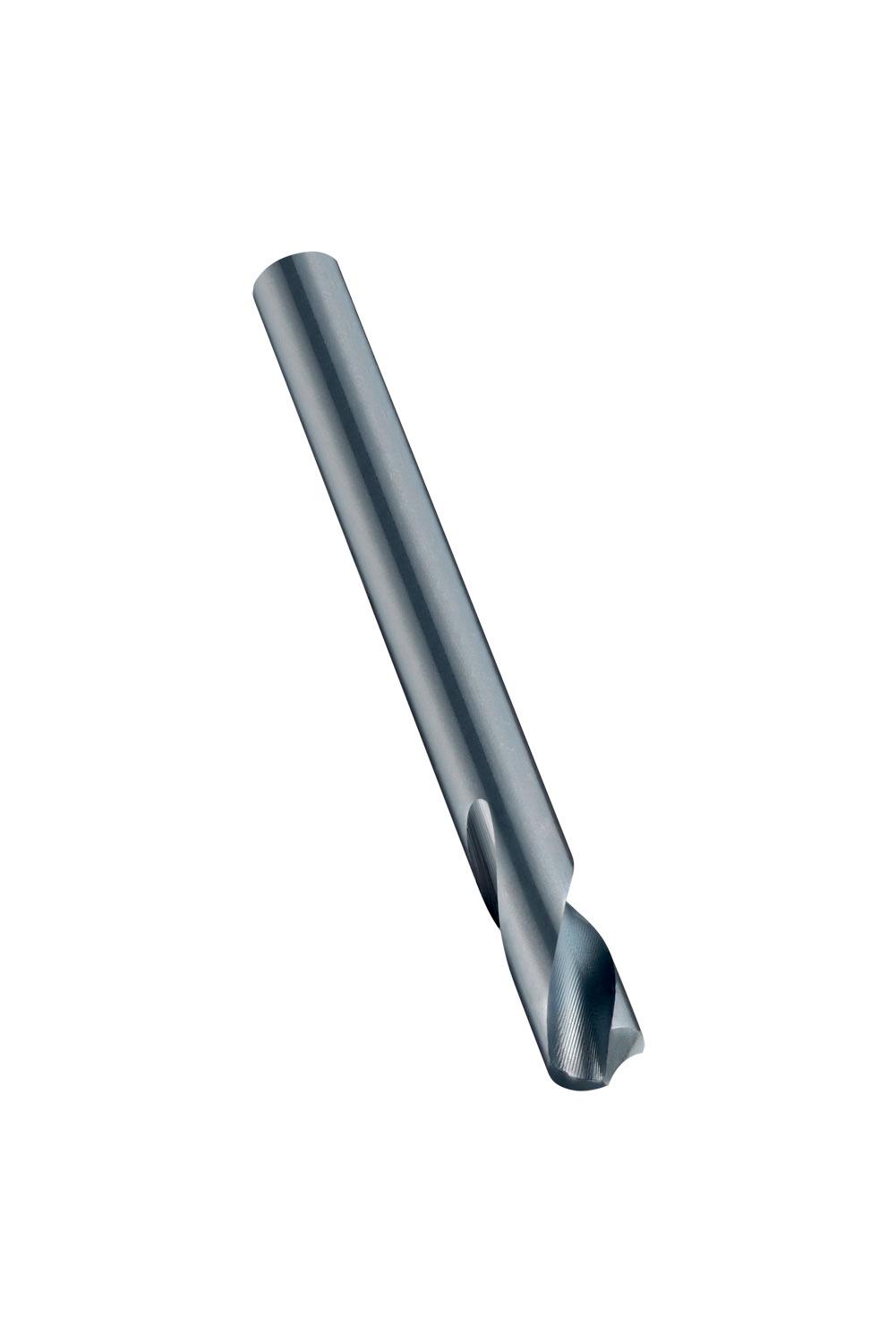

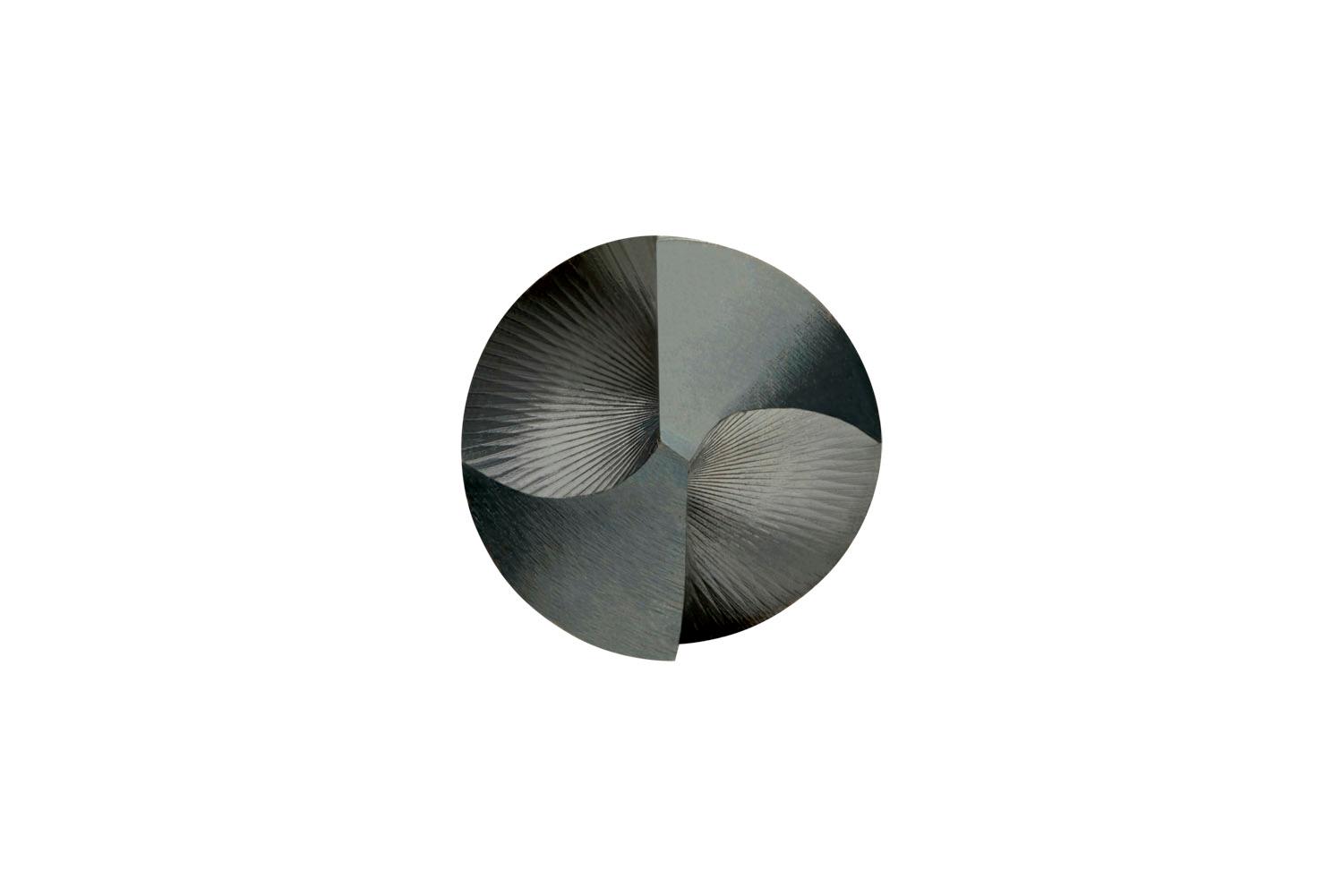

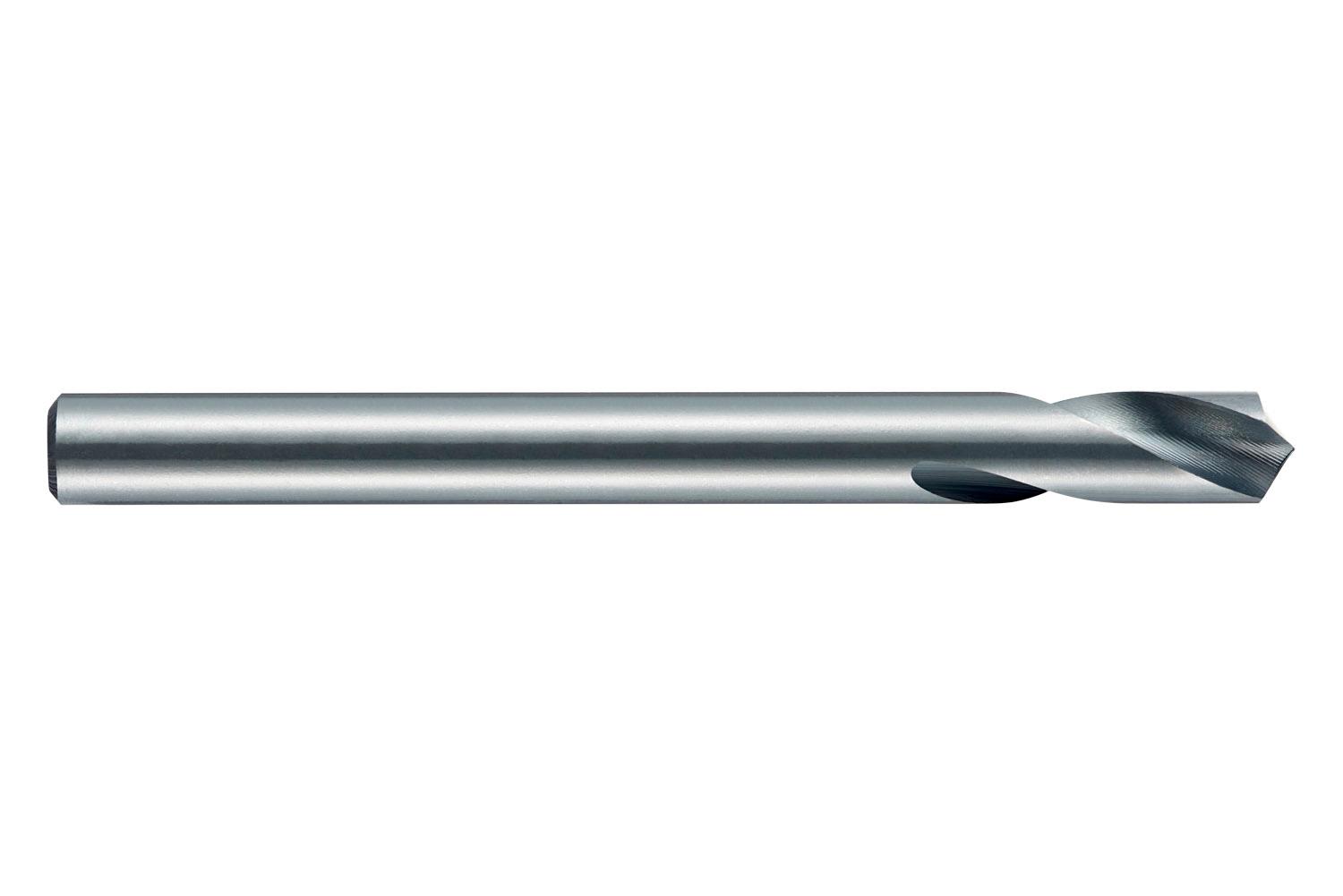

Sheet metal drill with straight shank, diameter 4.5mm with an overall length of 58mm and flute length of 18mm according to DIN 1897 standard with 120° point angle, HSS with steam tempered finish for 1.5xD drilling without pecking in steel

Additional information

Weight	0.0058 kg
Dimensions
barcode

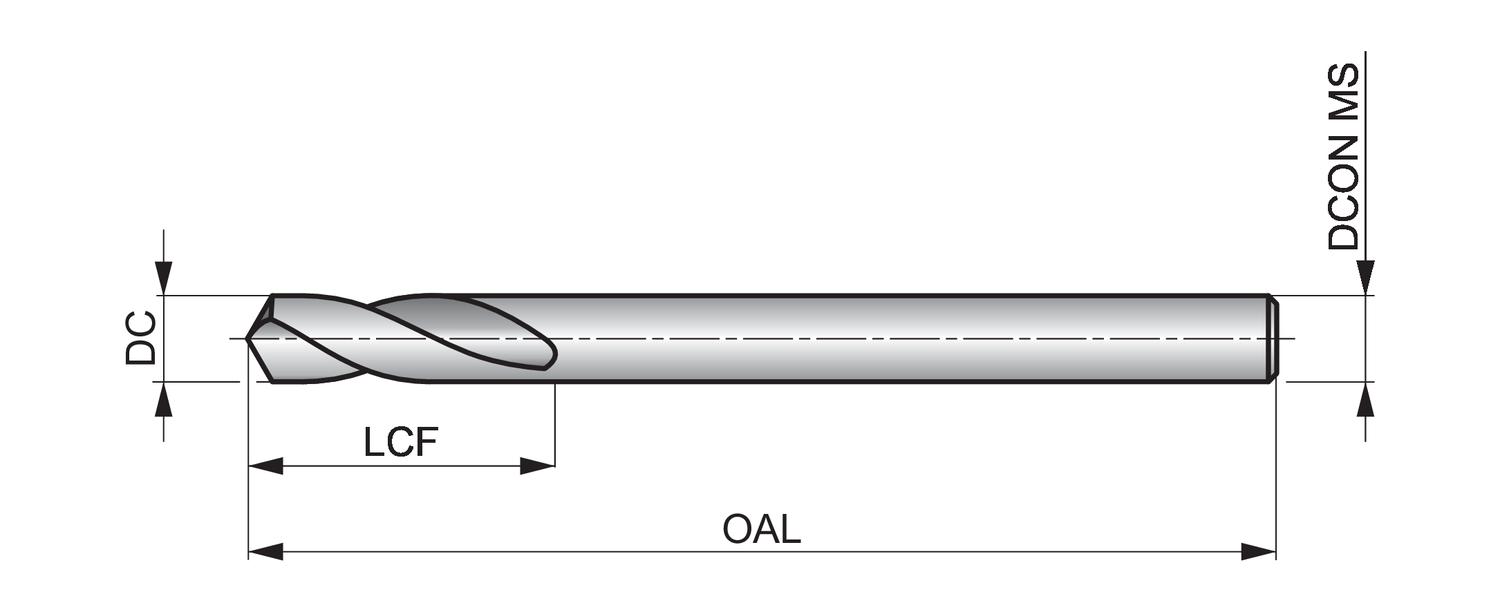

Additional Information	Description: Value EAN number: 7320760707906 Product number (SAP): 86030904 Ordering code ANSI: A1234.5S Gross weight – grams: 7.46 Cutting diameter – millimeter (DC): 4.5 mm Cutting diameter – inch (DC): 0.1772 inch Length chip flute – millimeter (LCF): 18 mm Overall length – millimeter (OAL): 58 mm Connection diameter – millimeter (DCON MS): 4.5 mm ISO: A1234.5S
