DORMER A1235/32S Stub drill

Product Code: A1235/32S

$5.16$4.69 Ex. GST

Product Code: A1235/32S SKU A1235/32S Categories , ,

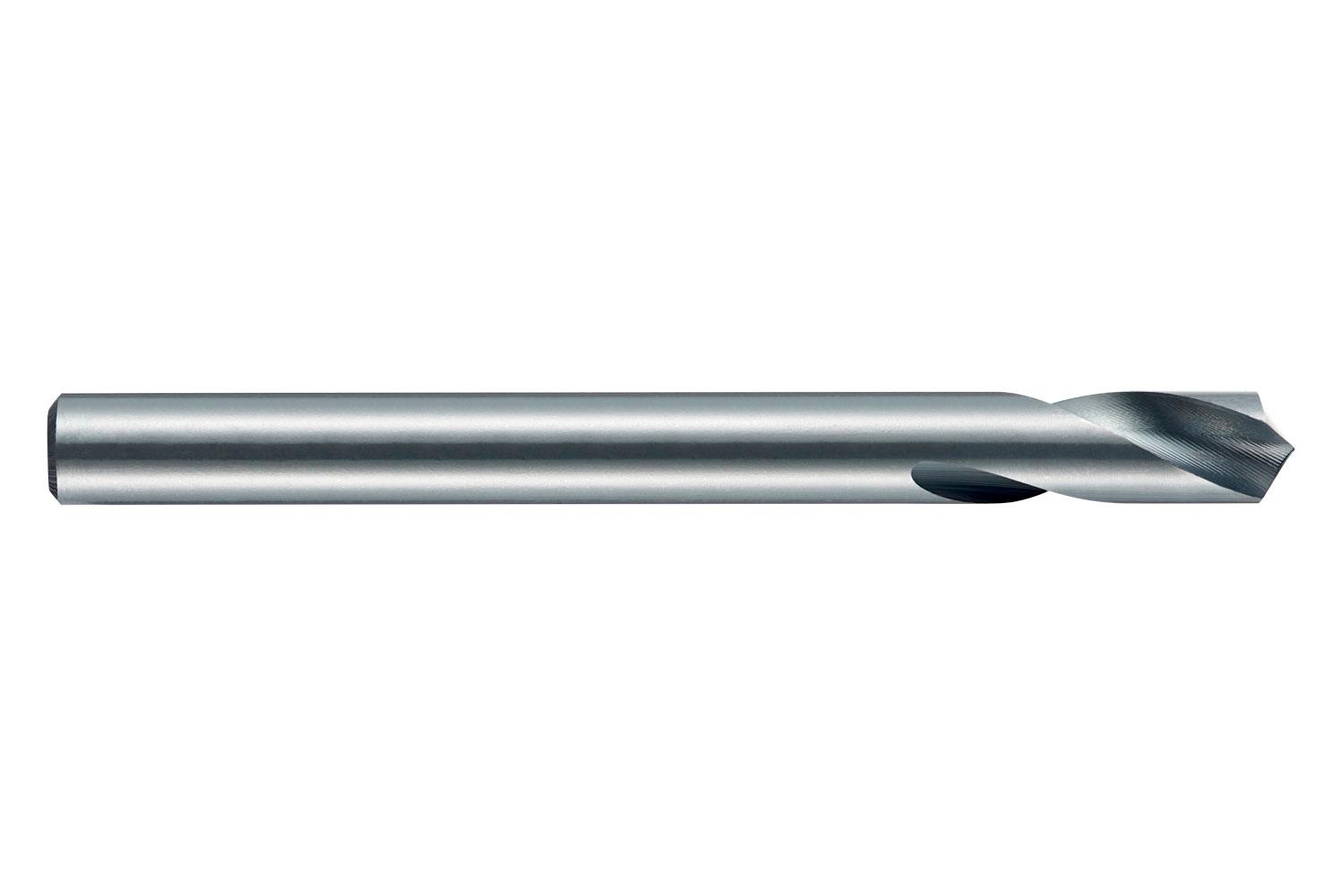

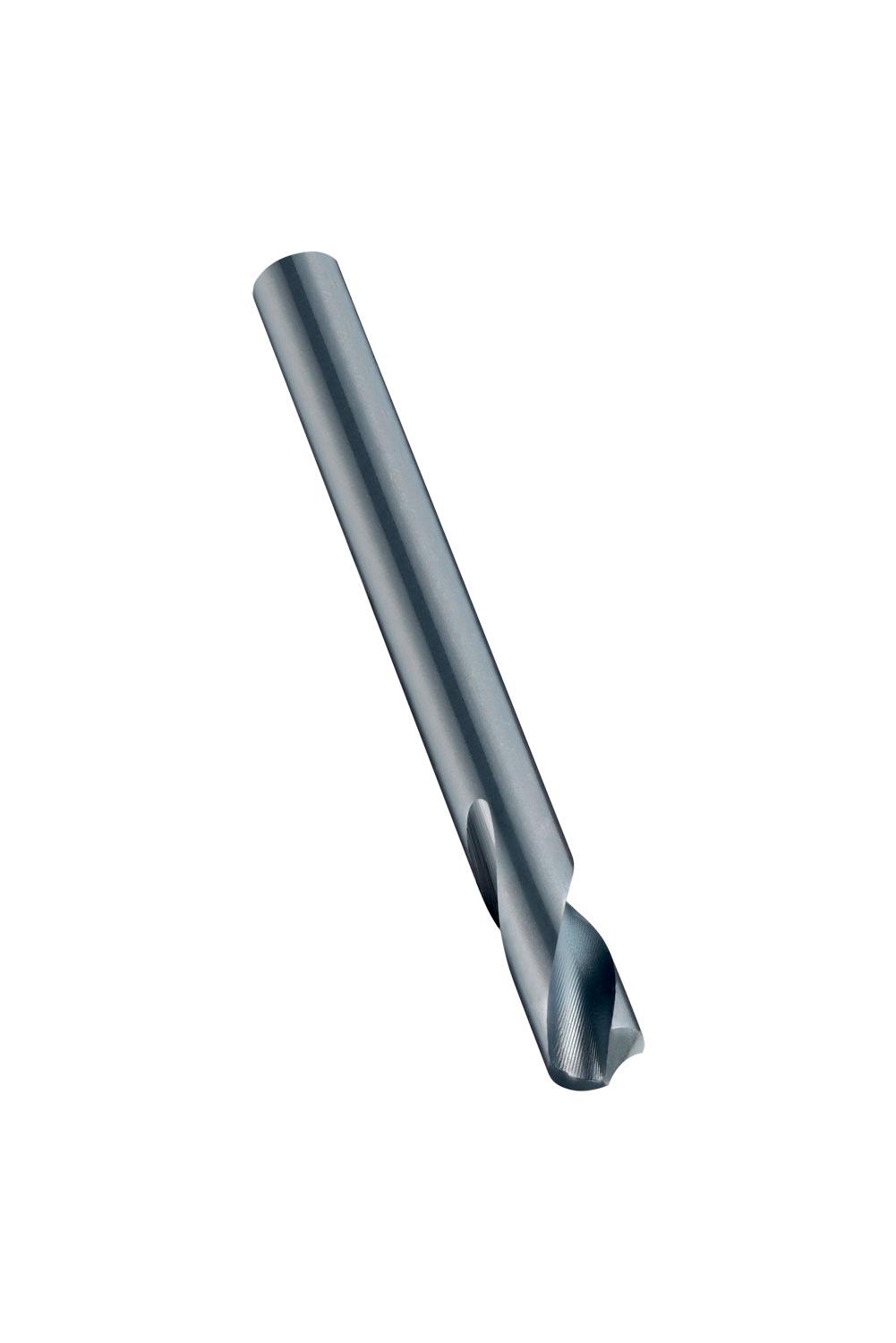

DORMER A1235/32S Stub drill

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Sheet metal drill with straight shank, diameter 0.1563″ (5/32S) with an overall length of 55mm and flute length of 18mm according to DIN 1897 standard with 120° point angle, HSS with steam tempered finish for 1.5xD drilling without pecking in steel

Additional information

Weight 0.0050 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760707869
Product number (SAP): 86030900
Ordering code ANSI: A1235/32S
Gross weight – grams: 5

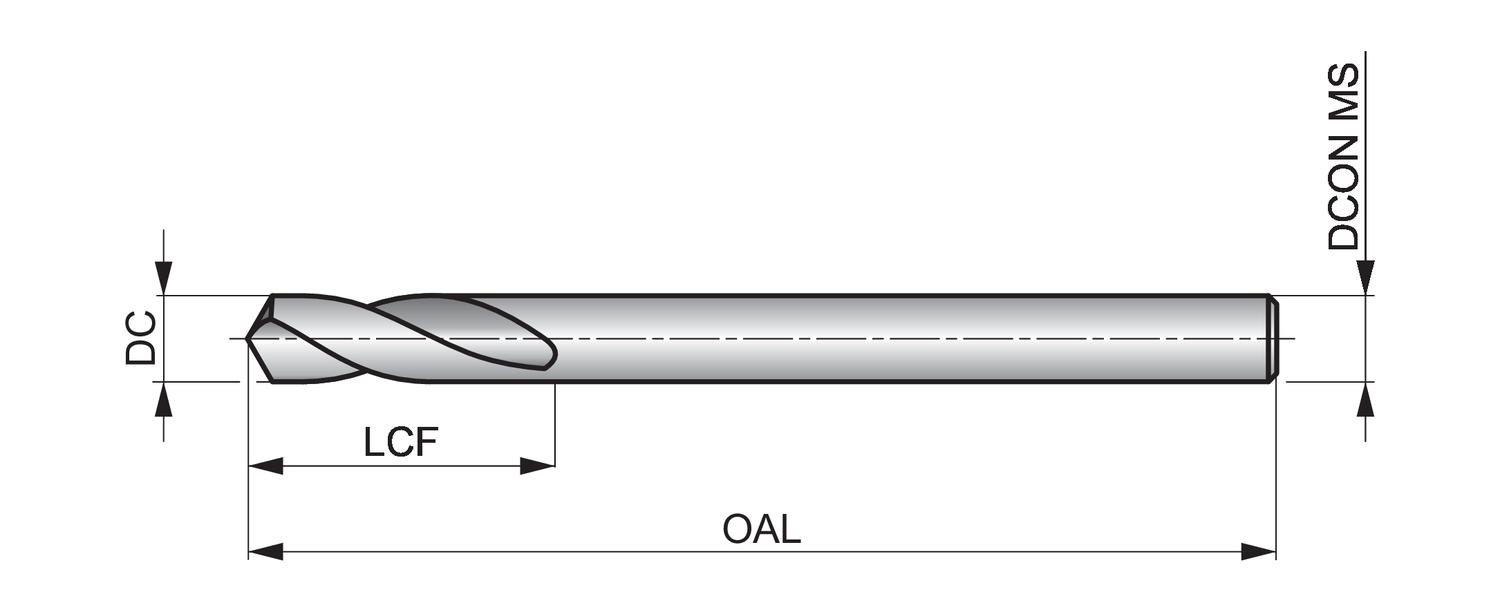

Cutting diameter – fractional inch (DC): 5/32
Cutting diameter – millimeter (DC): 3.97 mm
Cutting diameter – inch (DC): 0.1563 inch
Length chip flute – millimeter (LCF): 18 mm
Overall length – millimeter (OAL): 55 mm
Connection diameter – millimeter (DCON MS): 3.97 mm
ISO: A1235/32S

Brand

DORMER
