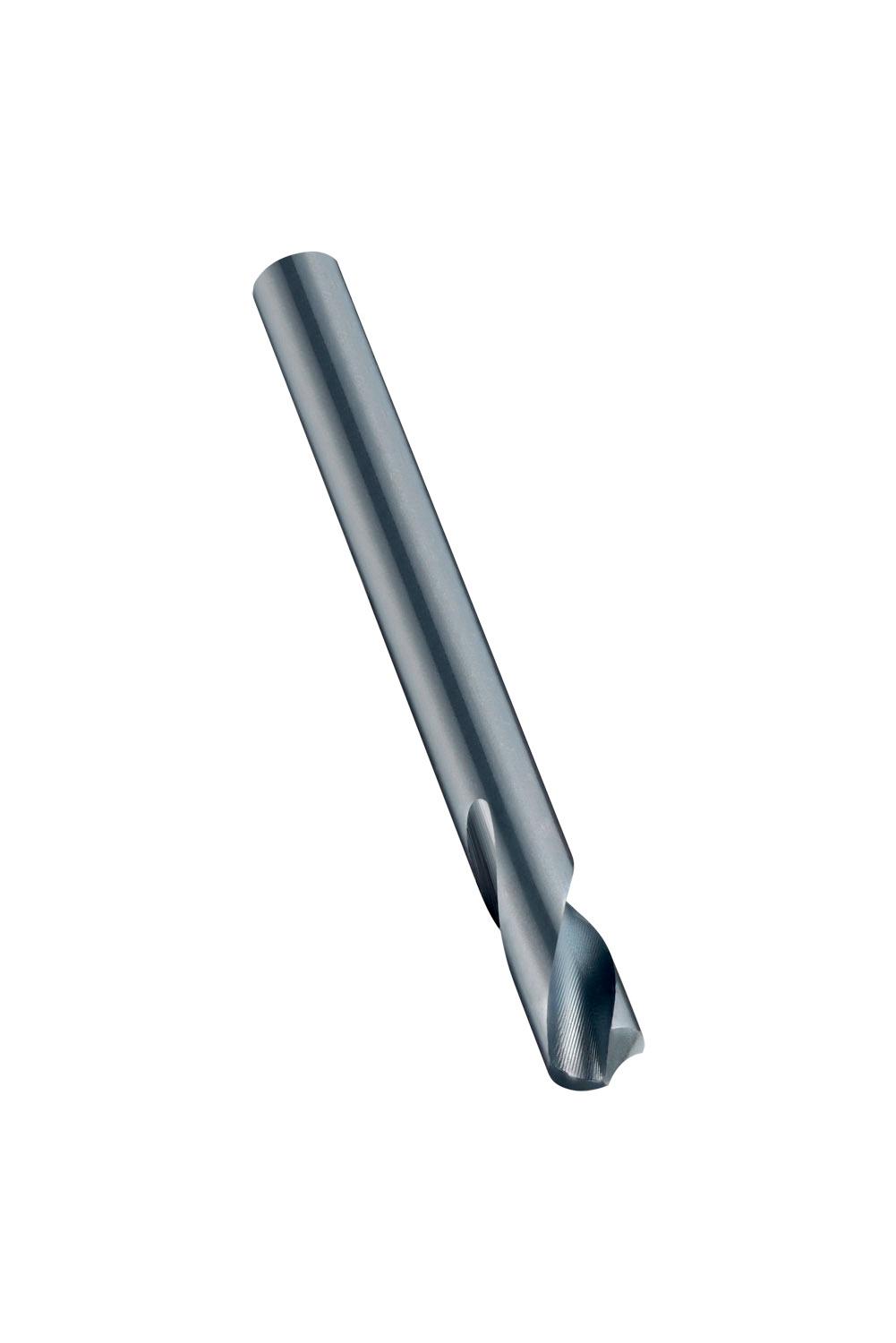

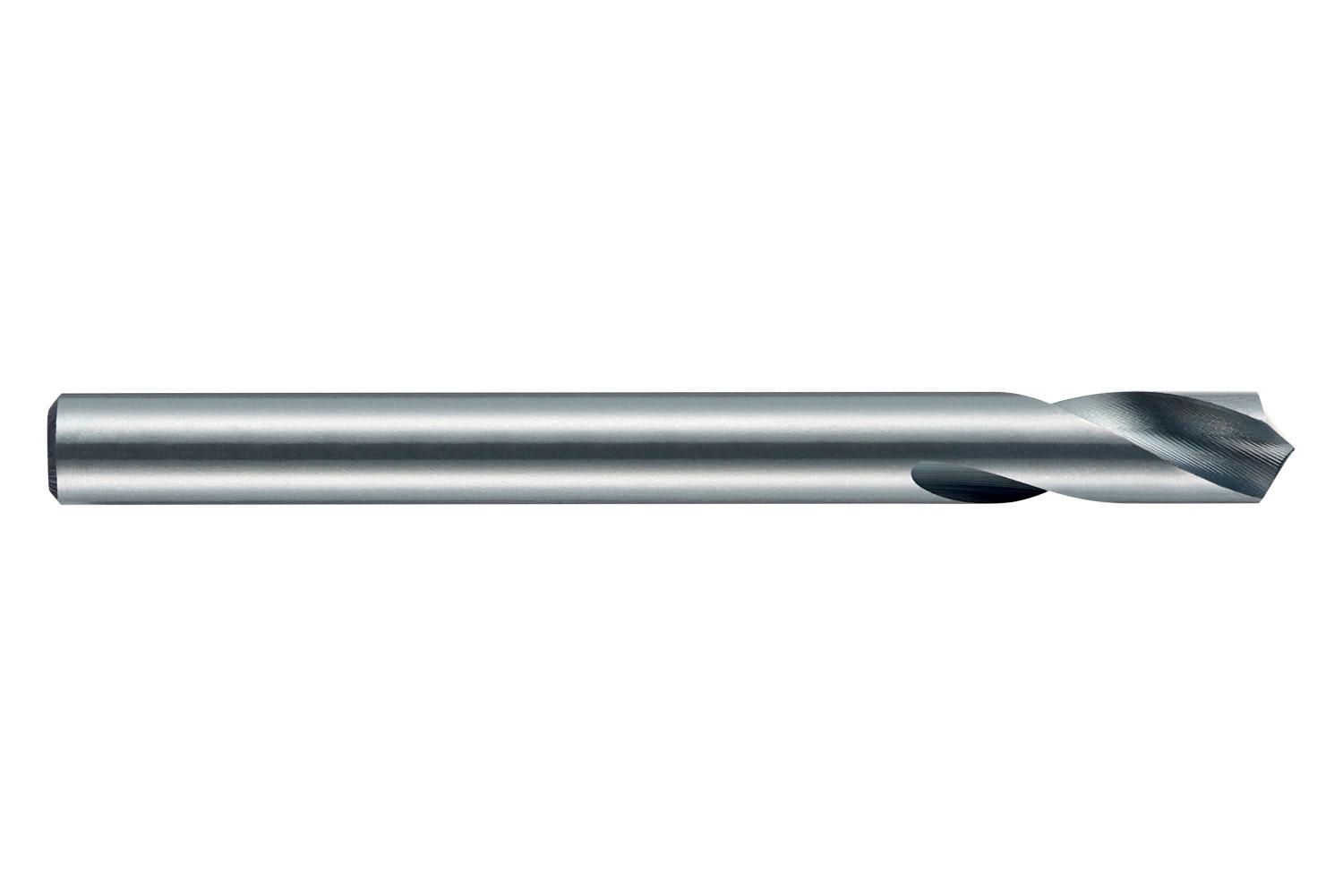

DORMER A1236.0S Stub drill

Product Code: A1236.0S

$7.65$6.95 Ex. GST

Product Code: A1236.0S SKU A1236.0S Categories 02 - HSS Other Drills, CUTTING TOOLS (HSS & Carbide), Drilling

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

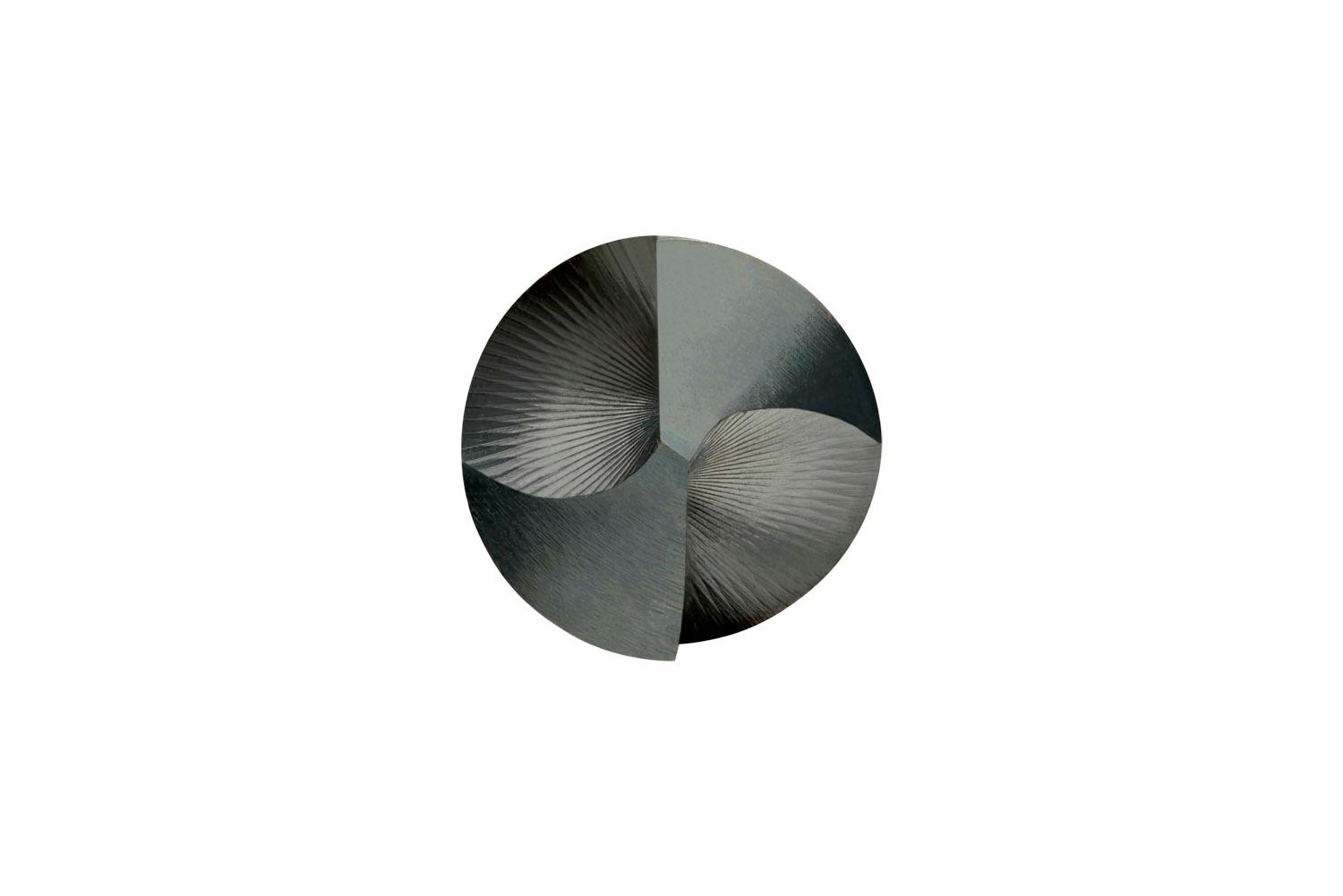

Sheet metal drill with straight shank, diameter 6mm with an overall length of 66mm and flute length of 18mm according to DIN 1897 standard with 120° point angle, HSS with steam tempered finish for 1.5xD drilling without pecking in steel

Additional information

Weight	0.0074 kg
Dimensions
barcode

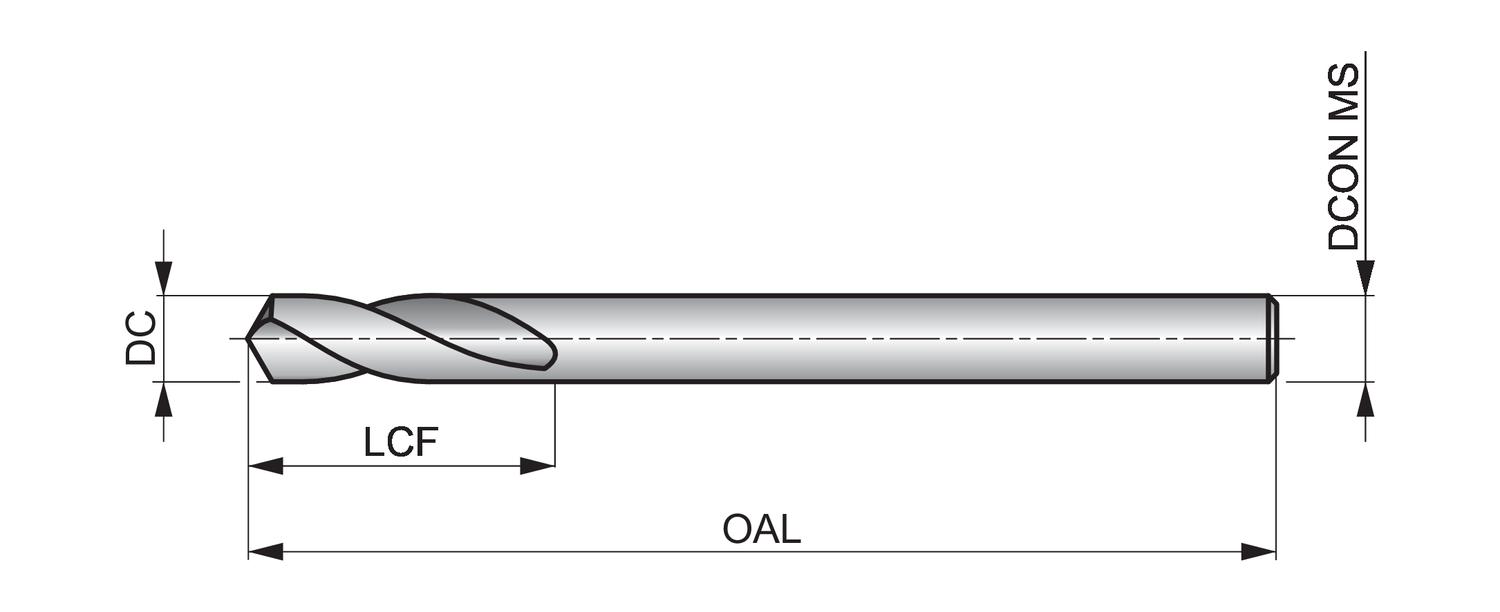

Additional Information	Description: Value EAN number: 7320760707975 Product number (SAP): 86030911 Ordering code ANSI: A1236.0S Gross weight – grams: 14.26 Cutting diameter – millimeter (DC): 6 mm Cutting diameter – inch (DC): 0.2362 inch Length chip flute – millimeter (LCF): 18 mm Overall length – millimeter (OAL): 66 mm Connection diameter – millimeter (DCON MS): 6 mm ISO: A1236.0S
