DORMER A12511/64X160 Extra length drill

Product Code: A12511/64X160

$52.91$48.10 Ex. GST

Product Code: A12511/64X160 SKU A12511/64X160 Categories , ,

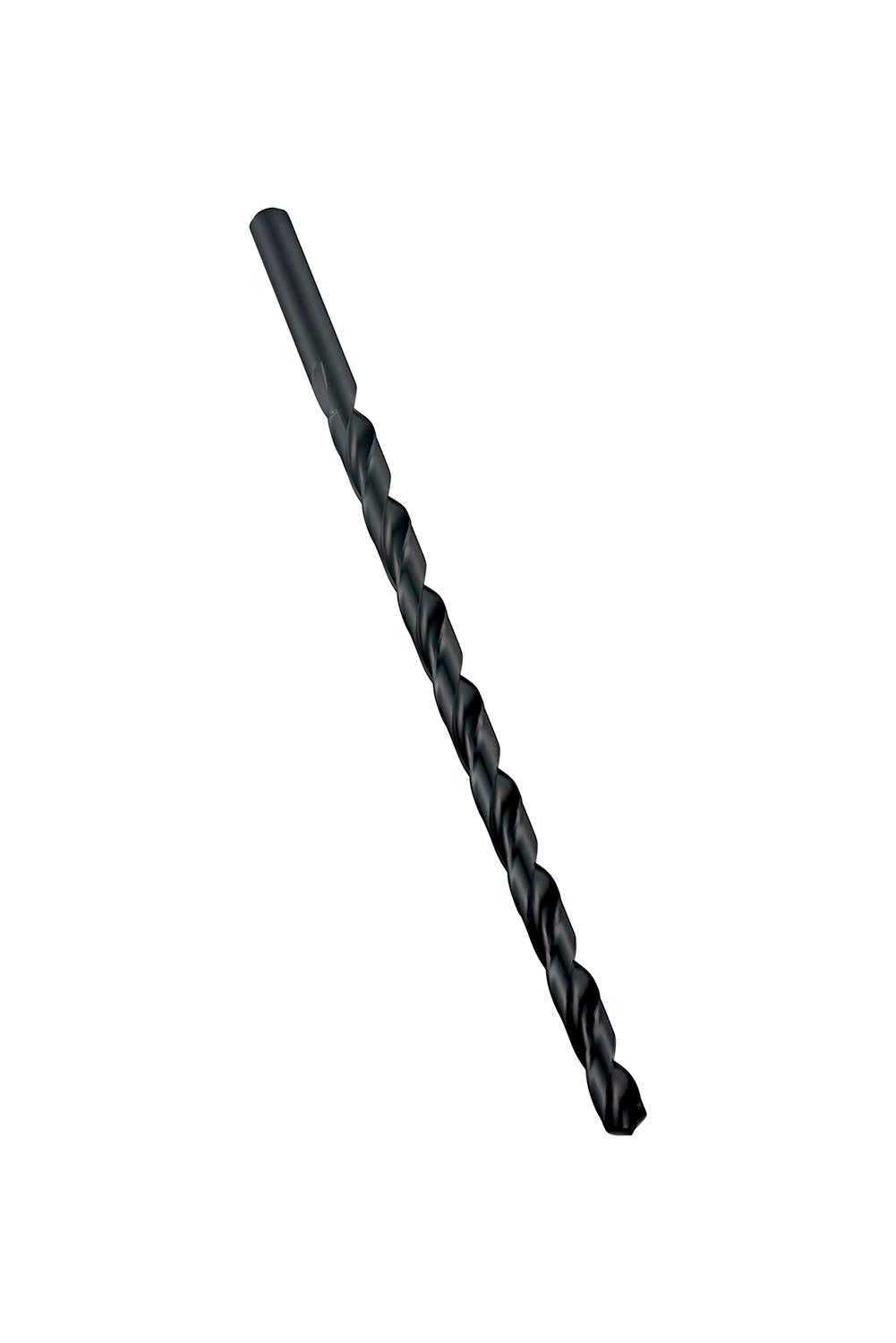

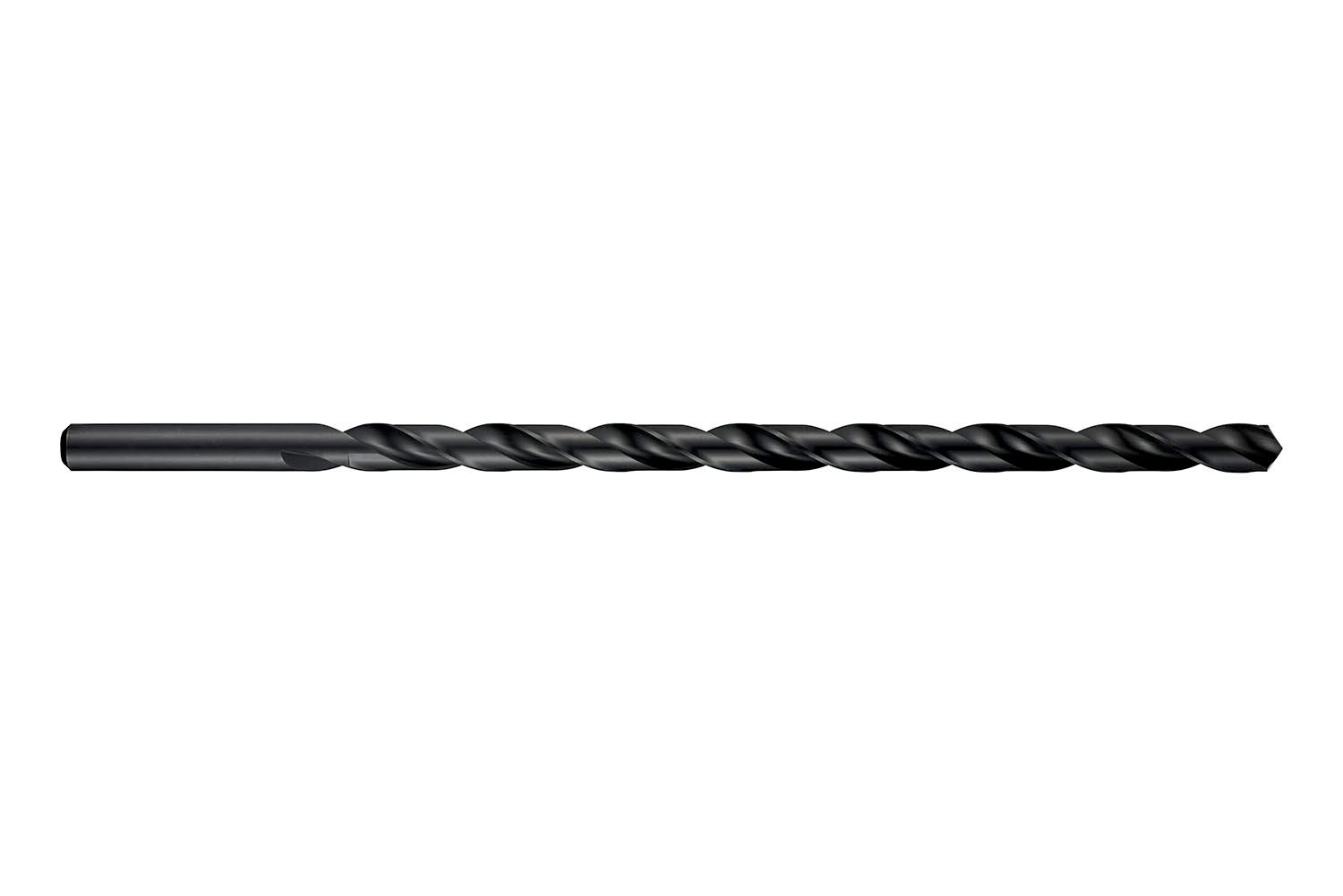

DORMER A12511/64X160 Extra length drill

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

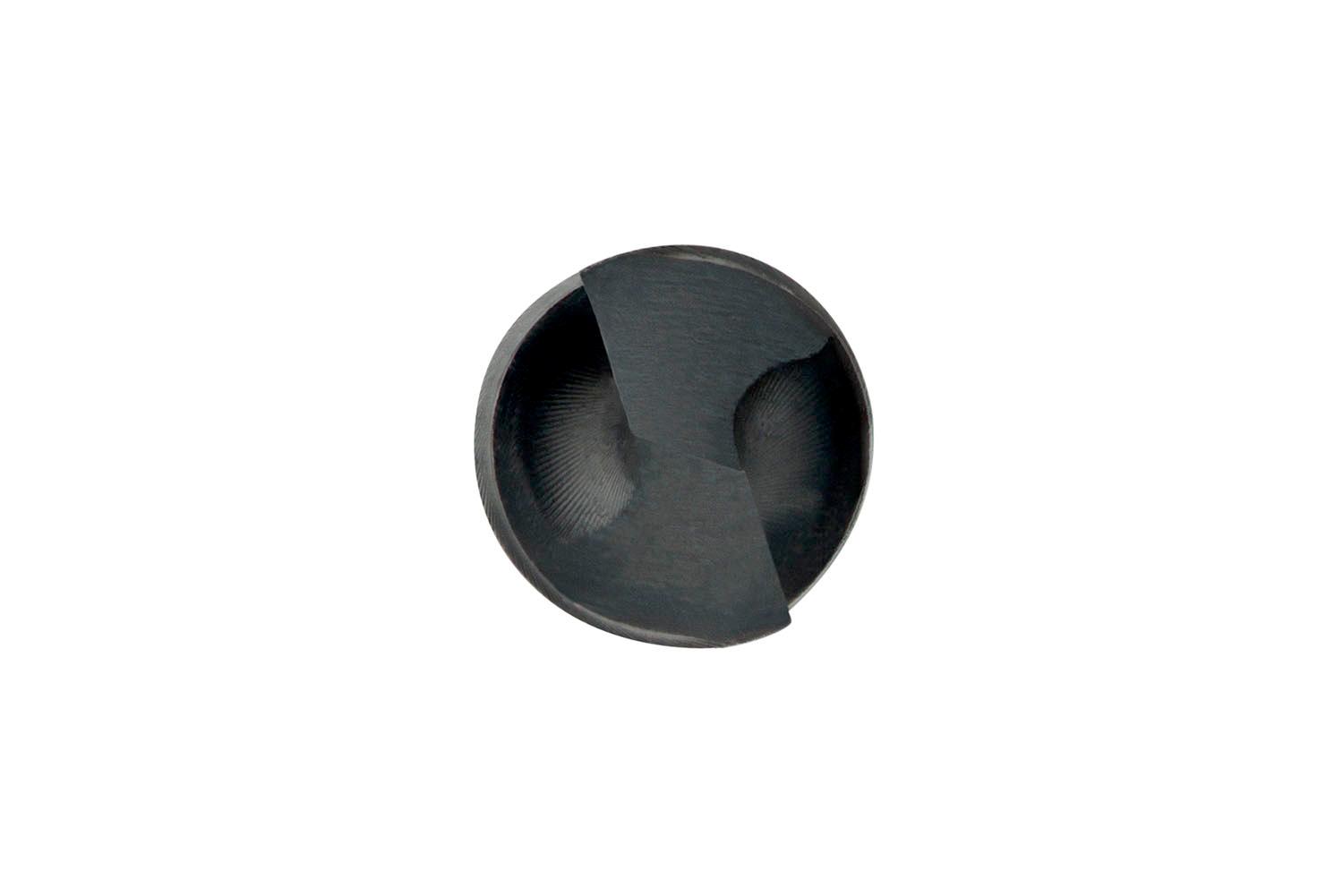

Extra long length drill with straight shank, diameter 0.1719″ (11/64) with an overall length of 160mm and flute length of 100mm according to BS 328 standard with 118° conical point, HSS with steam tempered finish for 10xD single pass drilling without peck

Additional information

Weight 0.0514 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760173831
Product number (SAP): 86009408
Ordering code ANSI: A12511/64X160
Gross weight – grams: 13.427

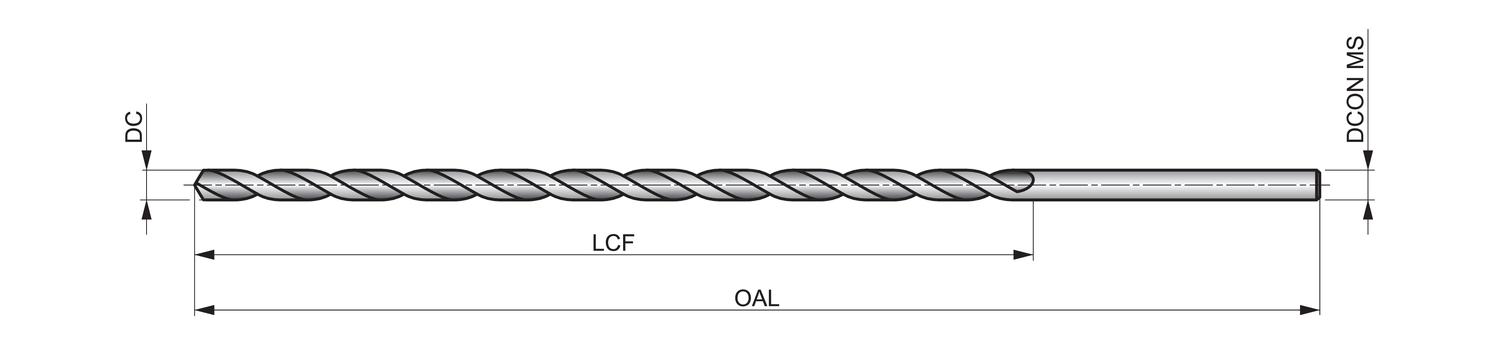

Cutting diameter – fractional inch (DC): 11/64
Cutting diameter – millimeter (DC): 4.37 mm
Cutting diameter – inch (DC): 0.1719 inch
Length chip flute – millimeter (LCF): 100 mm
Overall length – millimeter (OAL): 160 mm
Connection diameter – millimeter (DCON MS): 4.37 mm
Length chip flute – inch (LCF): 3.937 inch
ISO: A12511/64X160

Brand

DORMER
