DORMER A12517/64X200 Extra length drill

Product Code: A12517/64X200

$74.22$67.47 Ex. GST

Product Code: A12517/64X200 SKU A12517/64X200 Categories , ,

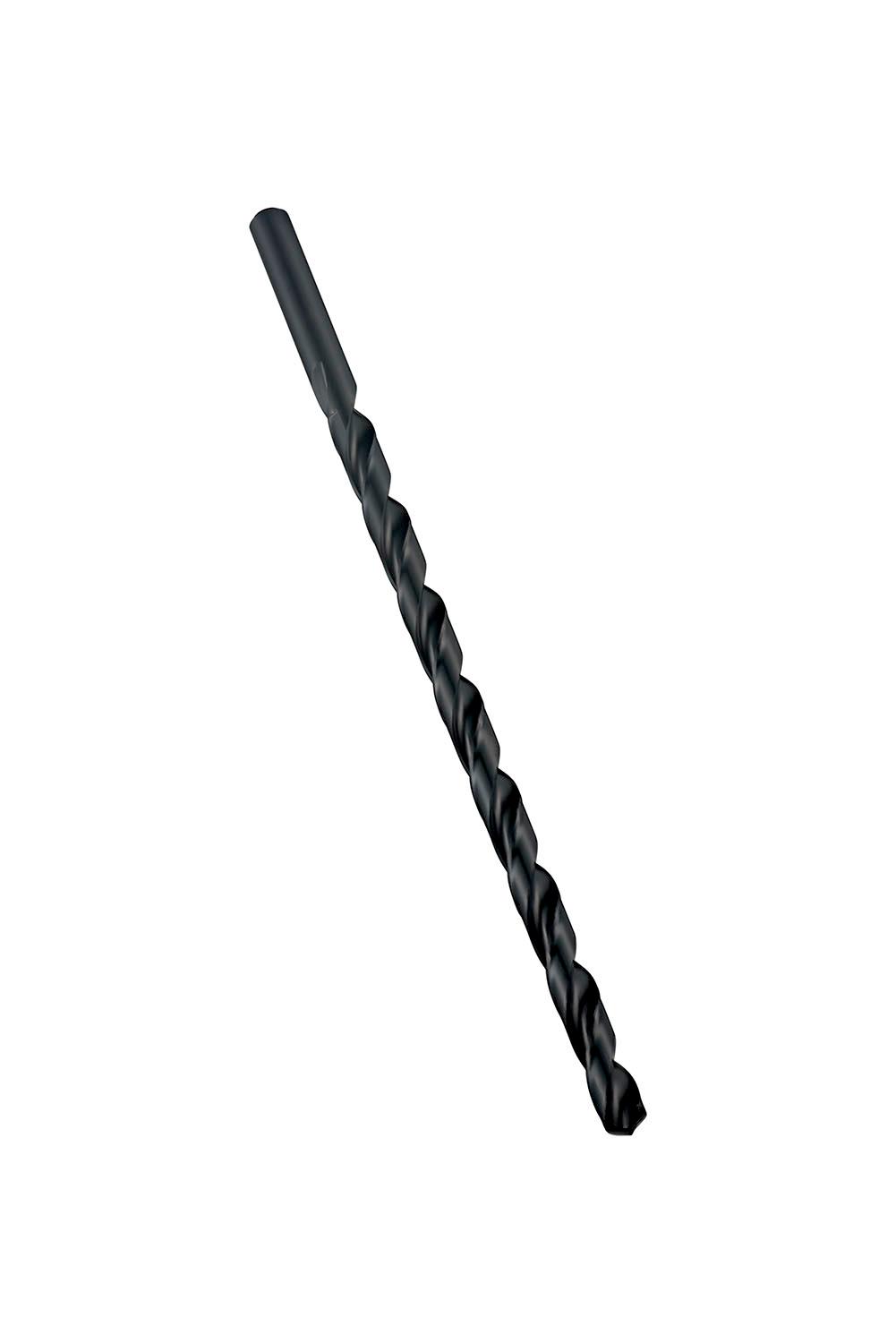

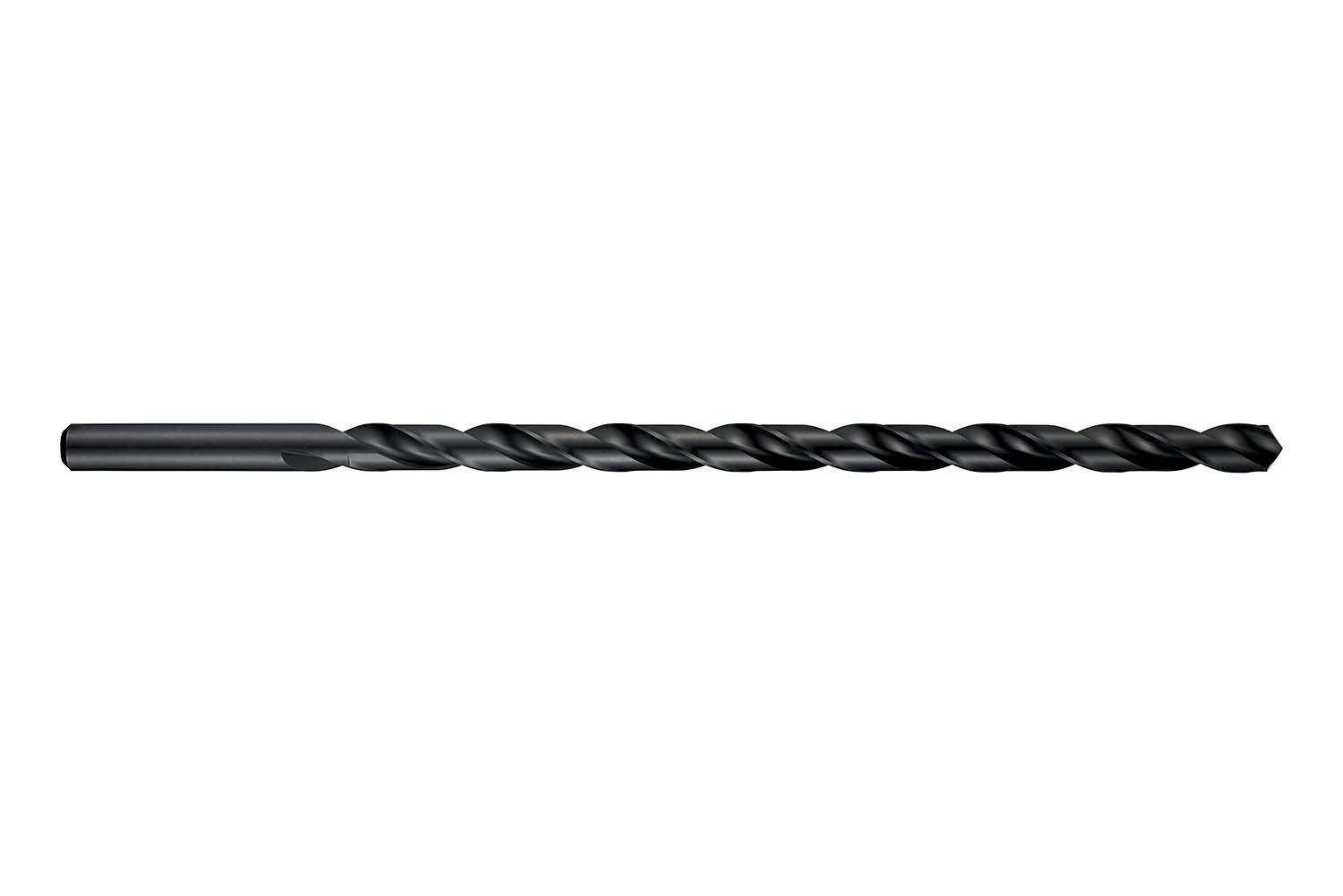

DORMER A12517/64X200 Extra length drill

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

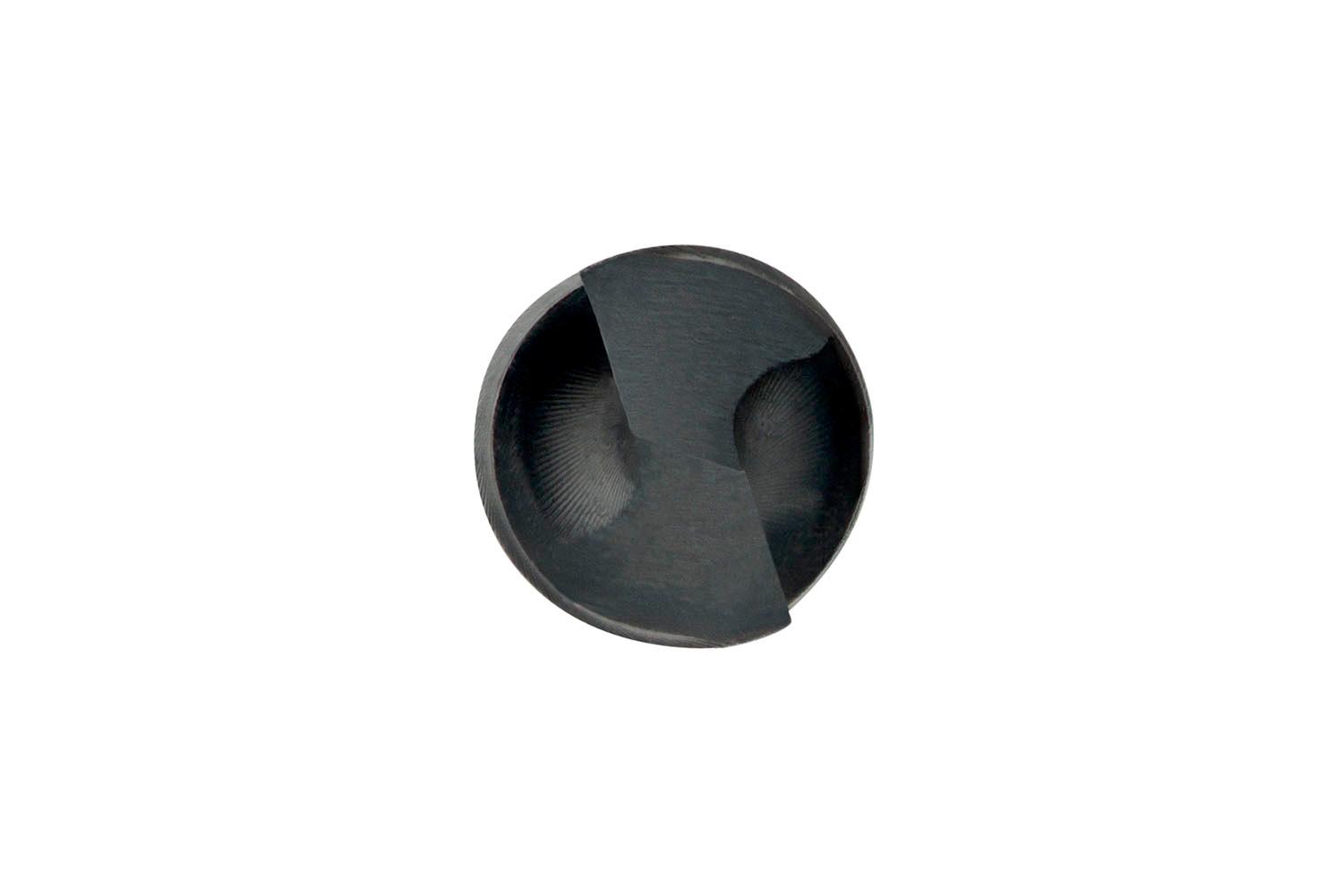

Extra long length drill with straight shank, diameter 0.2656″ (17/64) with an overall length of 200mm and flute length of 150mm according to BS 328 standard with 118° conical point, HSS with steam tempered finish for 10xD single pass drilling without peck

Additional information

Weight 0.0721 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760174036
Product number (SAP): 86009434
Ordering code ANSI: A12517/64X200
Gross weight – grams: 46.1

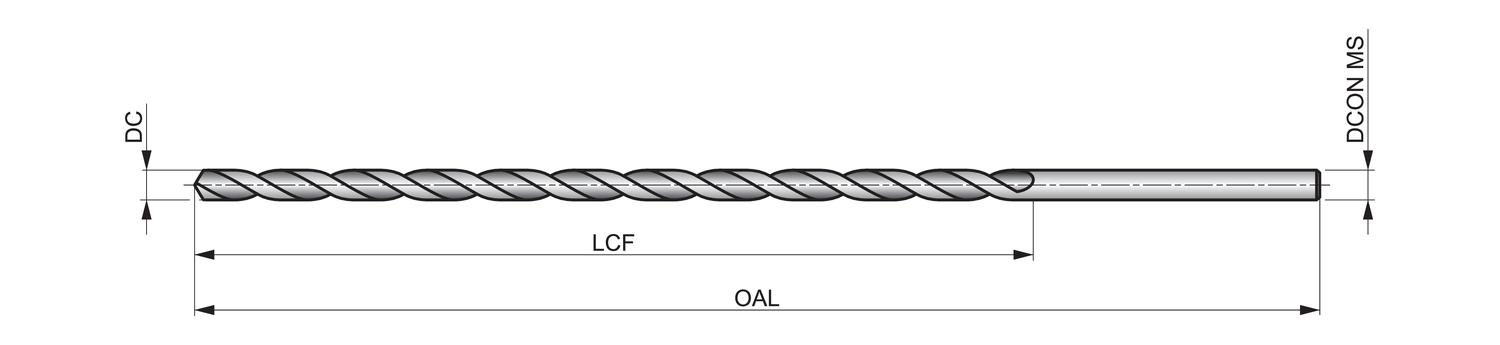

Cutting diameter – fractional inch (DC): 17/64
Cutting diameter – millimeter (DC): 6.75 mm
Cutting diameter – inch (DC): 0.2656 inch
Length chip flute – millimeter (LCF): 150 mm
Overall length – millimeter (OAL): 200 mm
Connection diameter – millimeter (DCON MS): 6.75 mm
Length chip flute – inch (LCF): 5.9055 inch
ISO: A12517/64X200

Brand

DORMER
