DORMER A1253/16X160 Extra length drill

Product Code: A1253/16X160

$38.75$35.23 Ex. GST

Product Code: A1253/16X160 SKU A1253/16X160 Categories , ,
DORMER A1253/16X160 Extra length drill

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

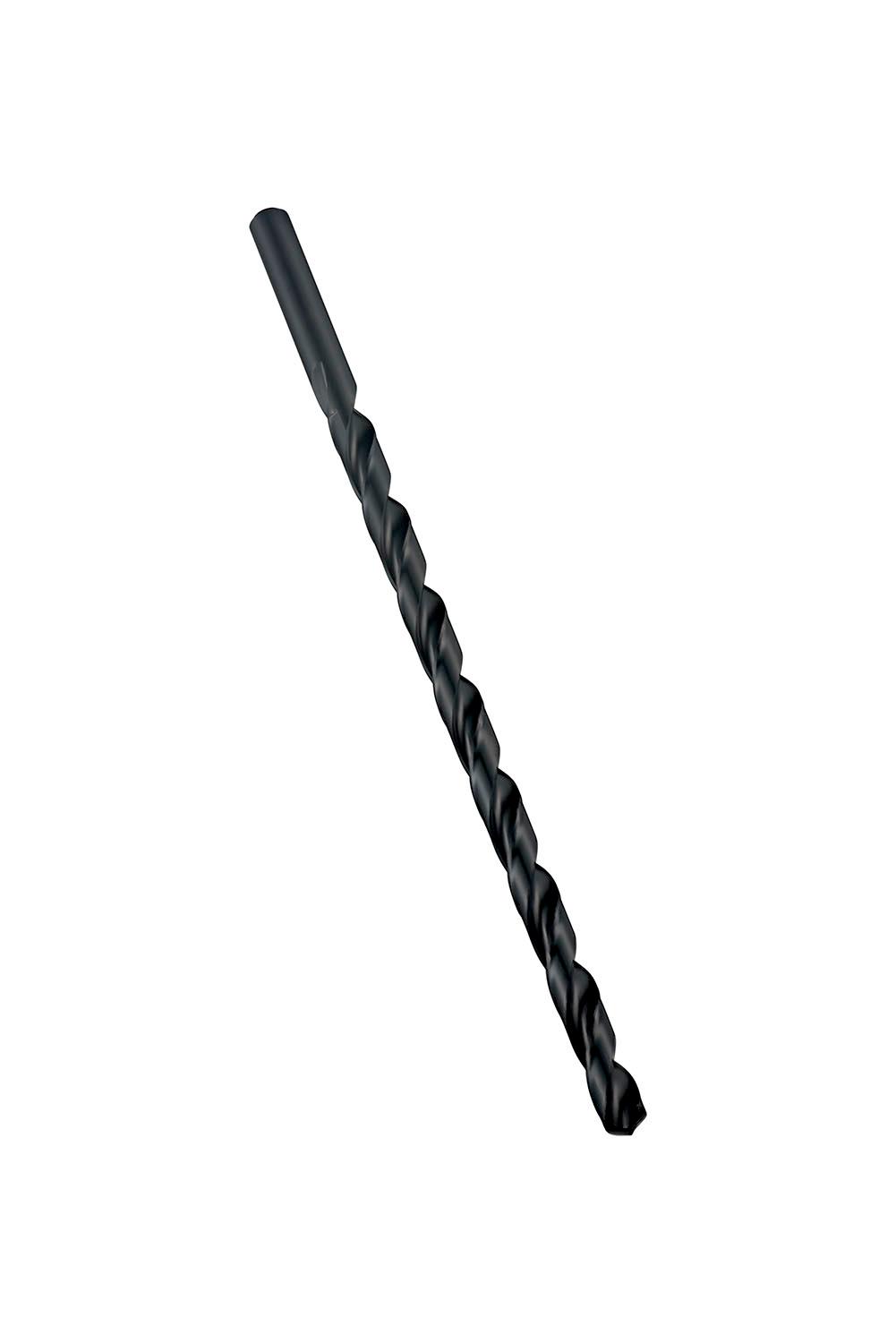

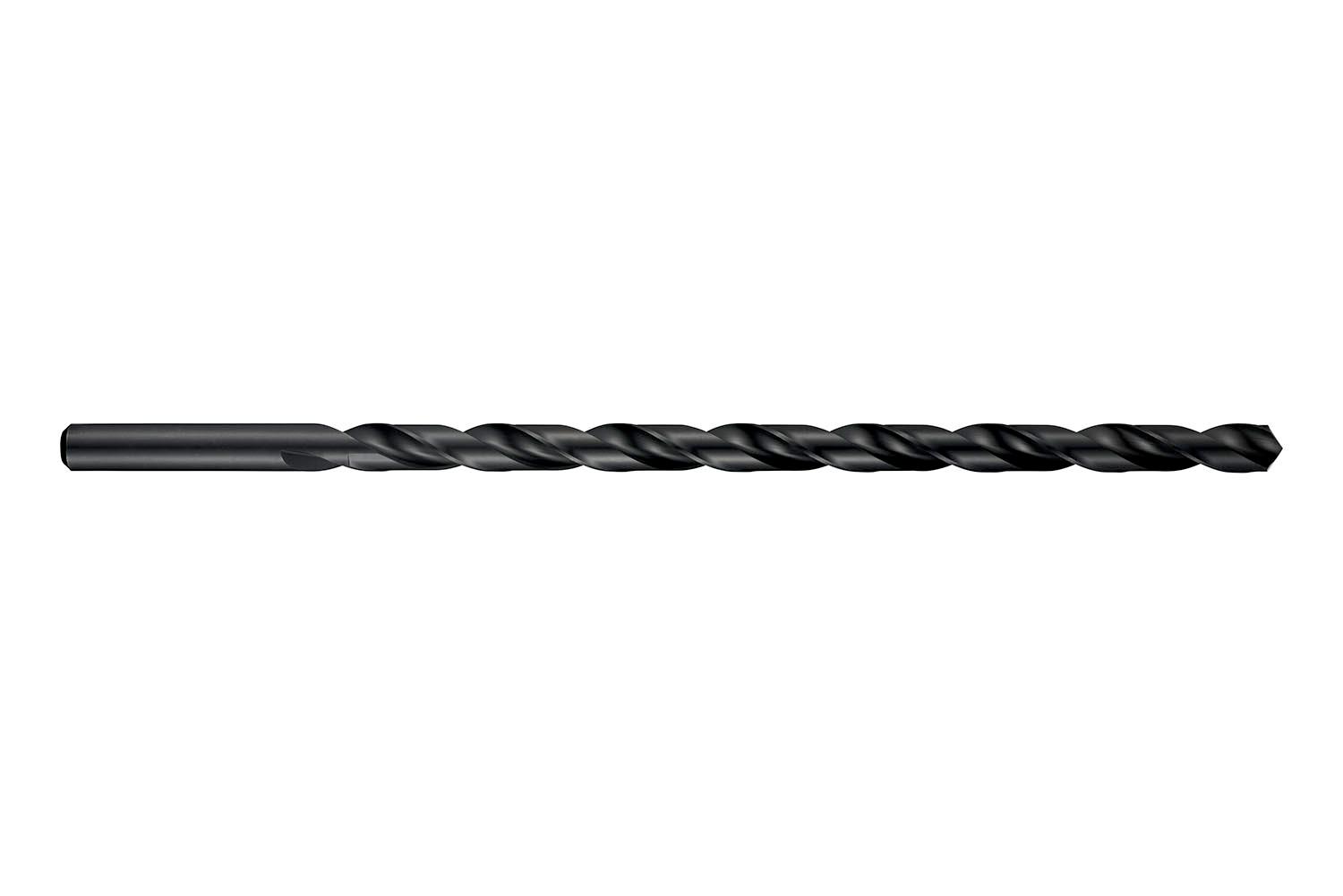

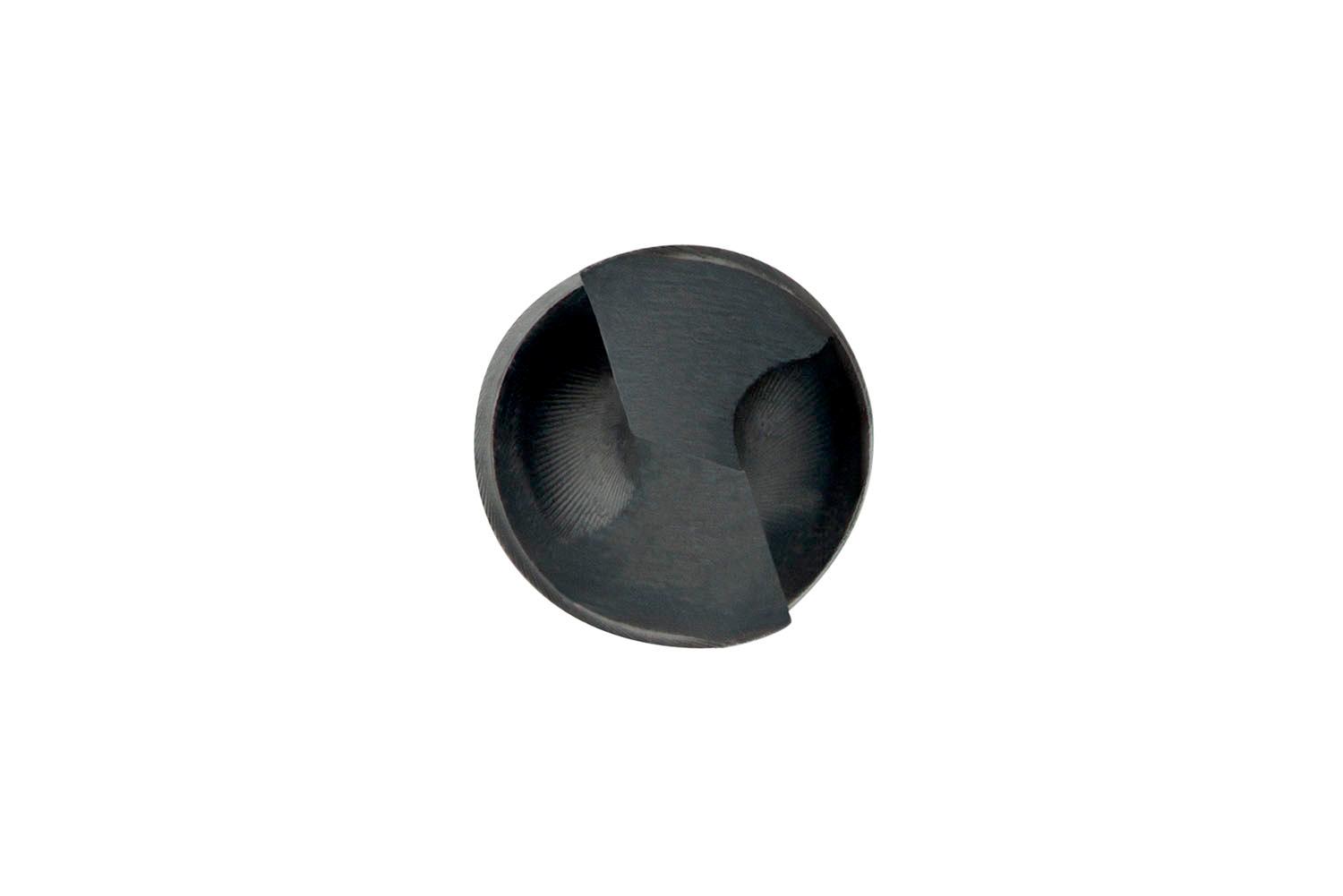

Extra long length drill with straight shank, diameter 0.1875″ (3/16) with an overall length of 160mm and flute length of 100mm according to BS 328 standard with 118° conical point, HSS with steam tempered finish for 10xD single pass drilling without pecki

Additional information

Weight 0.0376 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760173855
Product number (SAP): 86009468
Ordering code ANSI: A1253/16X160
Gross weight – grams: 27.7

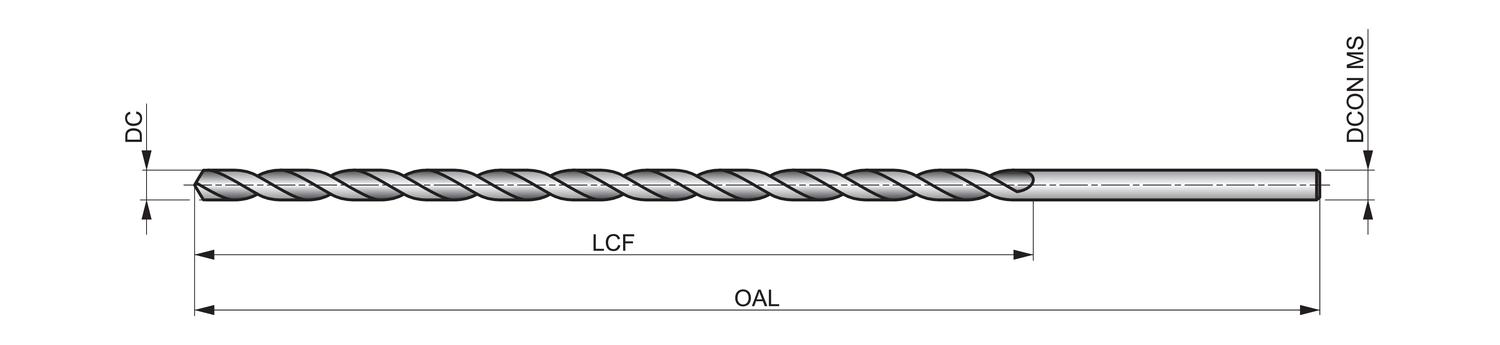

Cutting diameter – fractional inch (DC): 3/16
Cutting diameter – millimeter (DC): 4.76 mm
Cutting diameter – inch (DC): 0.1875 inch
Length chip flute – millimeter (LCF): 100 mm
Overall length – millimeter (OAL): 160 mm
Connection diameter – millimeter (DCON MS): 4.76 mm
Length chip flute – inch (LCF): 3.937 inch
ISO: A1253/16X160

Brand

DORMER
