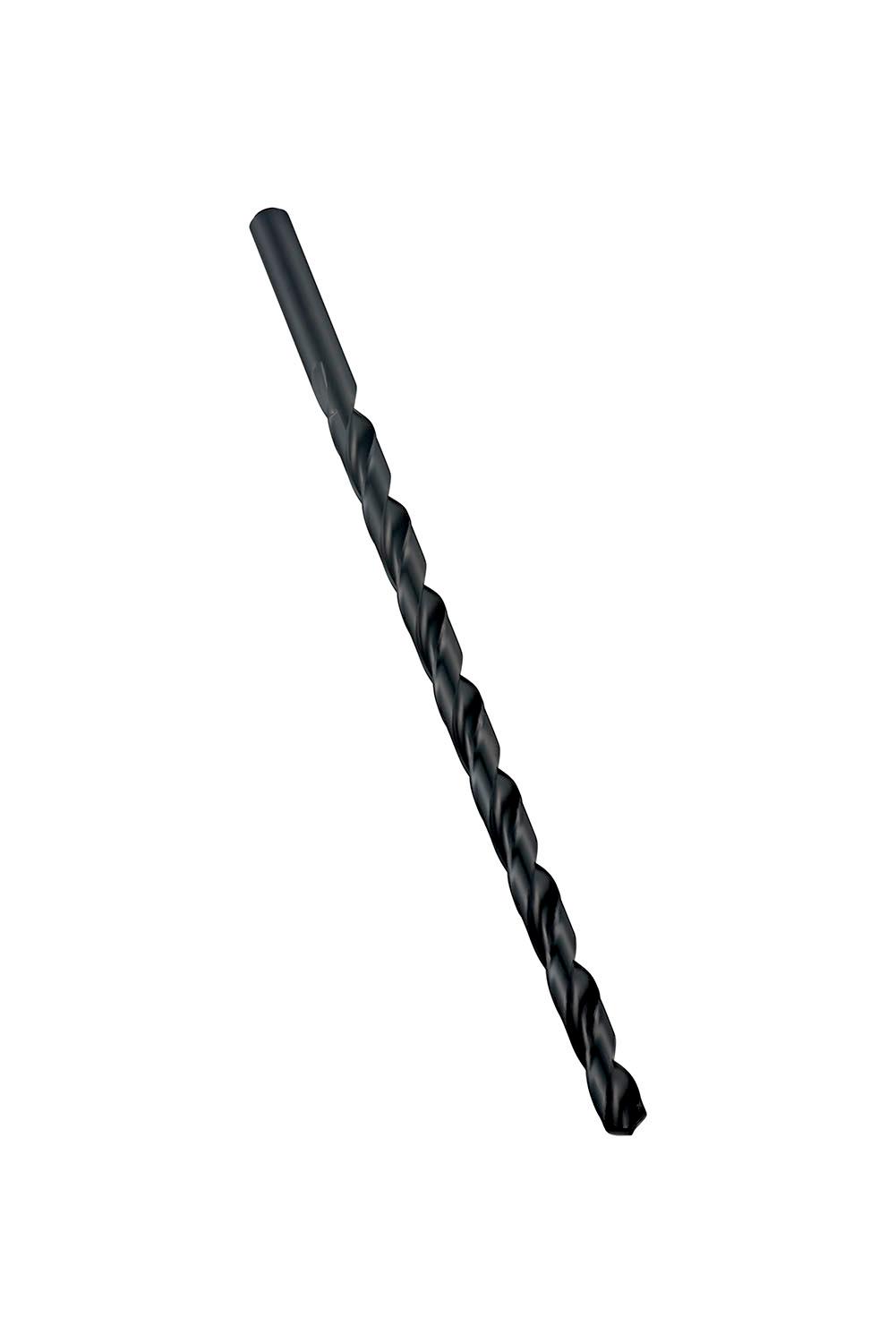

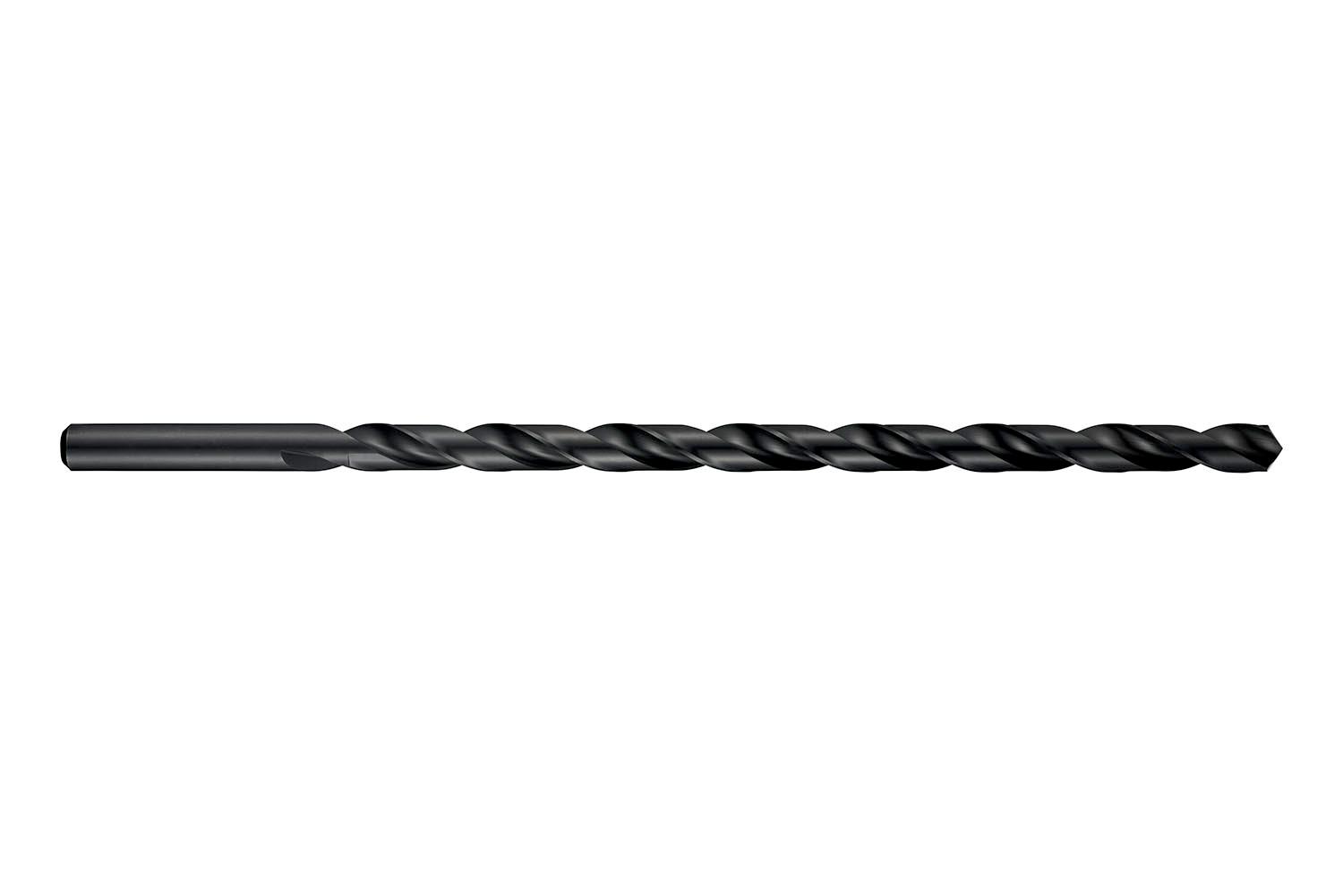

DORMER A1253/16X400 Extra length drill

Product Code: A1253/16X400

$155.22$141.11 Ex. GST

Product Code: A1253/16X400 SKU A1253/16X400 Categories , ,
DORMER A1253/16X400 Extra length drill

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

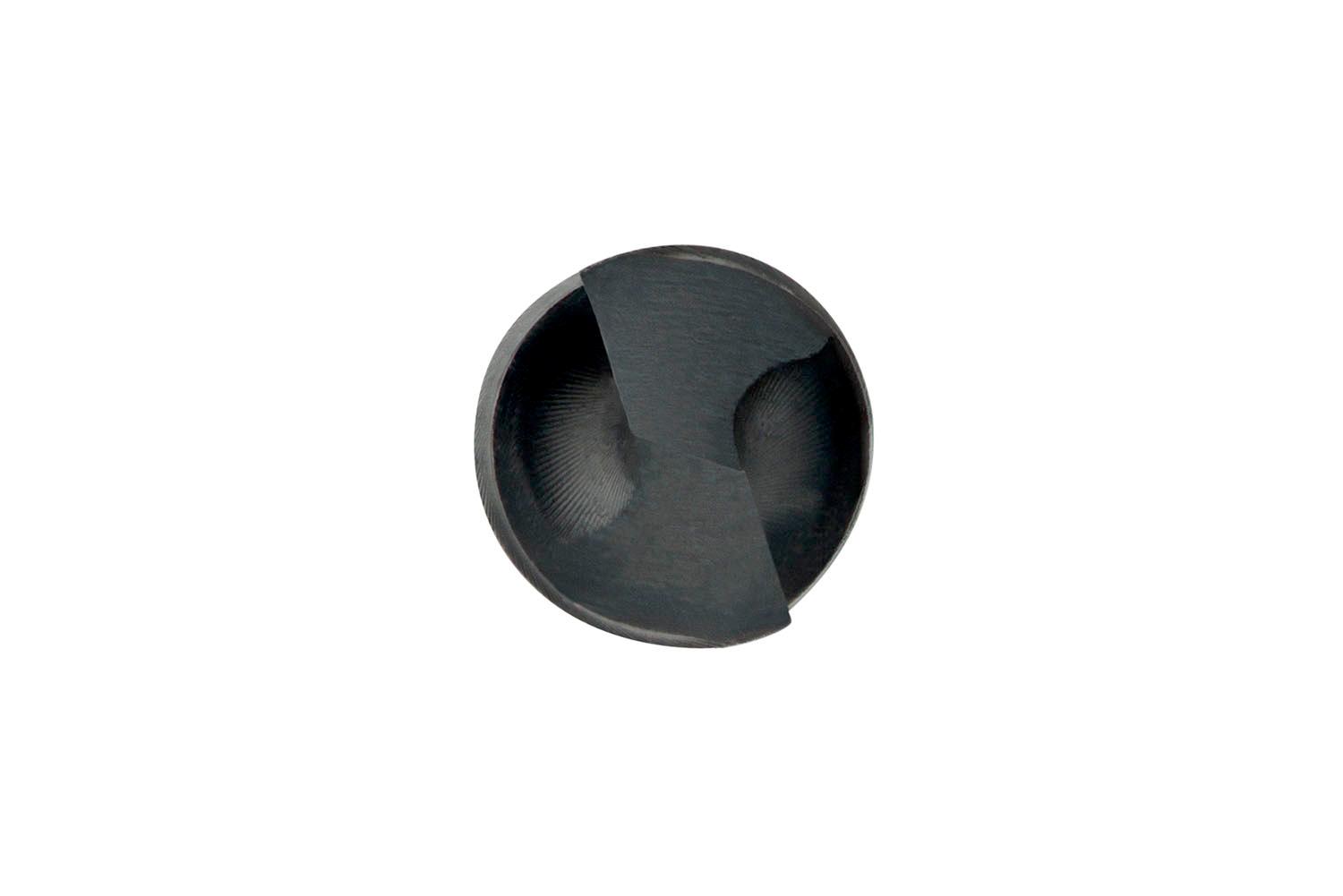

Extra long length drill with straight shank, diameter 0.1875″ (3/16) with an overall length of 400mm and flute length of 300mm according to BS 328 standard with 118° conical point, HSS with steam tempered finish for 10xD single pass drilling without pecki

Additional information

Weight 0.1507 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760173893
Product number (SAP): 86009472
Ordering code ANSI: A1253/16X400
Gross weight – grams: 36.204

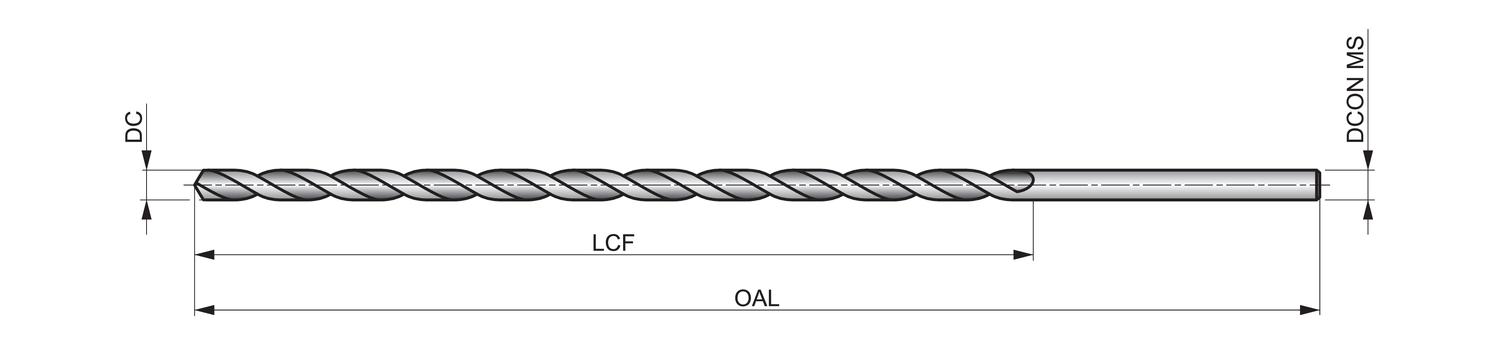

Cutting diameter – fractional inch (DC): 3/16
Cutting diameter – millimeter (DC): 4.76 mm
Cutting diameter – inch (DC): 0.1875 inch
Length chip flute – millimeter (LCF): 300 mm
Overall length – millimeter (OAL): 400 mm
Connection diameter – millimeter (DCON MS): 4.76 mm
Length chip flute – inch (LCF): 11.811 inch
ISO: A1253/16X400

Brand

DORMER
