DORMER A1253/32X125 Extra length drill

Product Code: A1253/32X125

$31.49$28.63 Ex. GST

Product Code: A1253/32X125 SKU A1253/32X125 Categories , ,

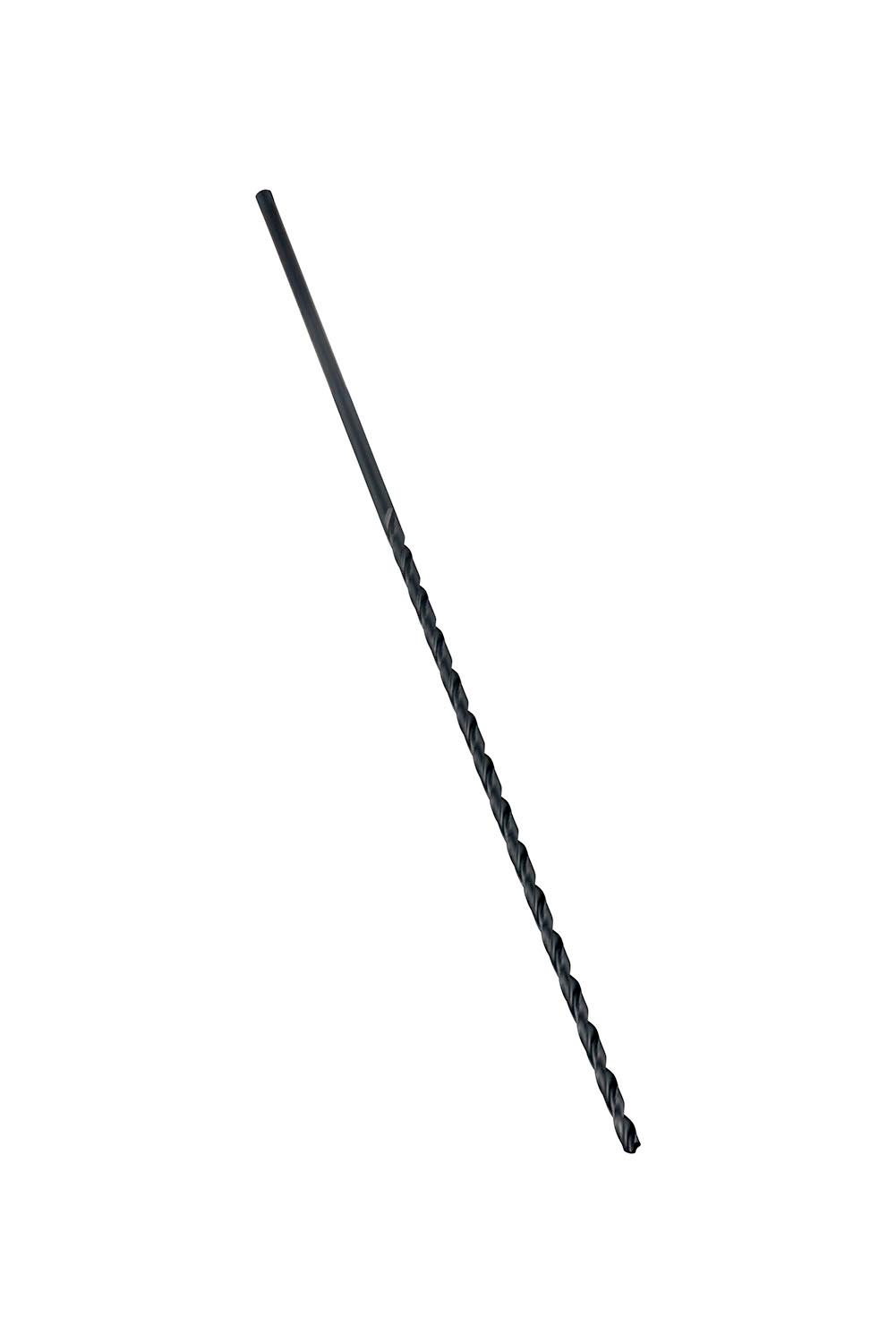

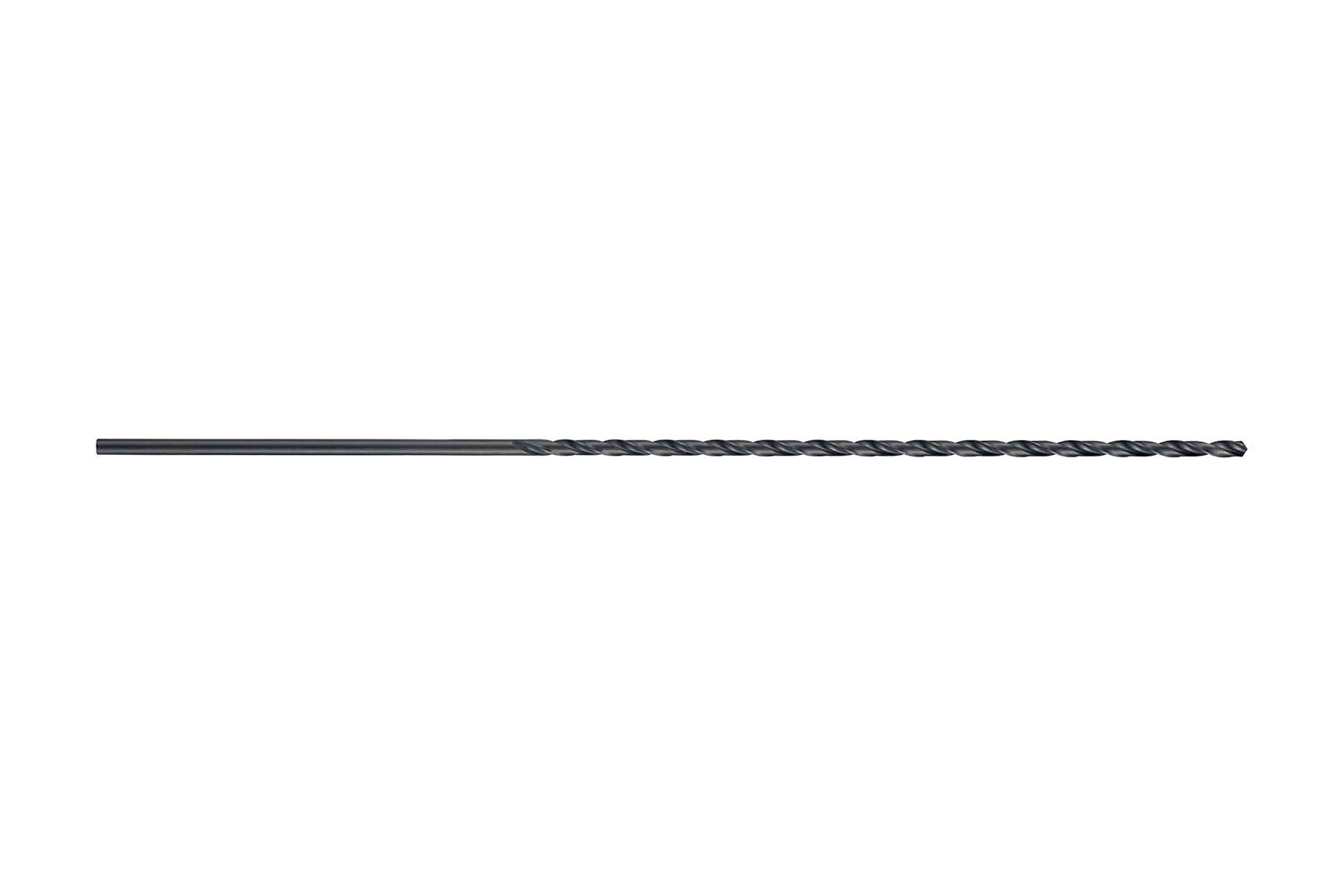

DORMER A1253/32X125 Extra length drill

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

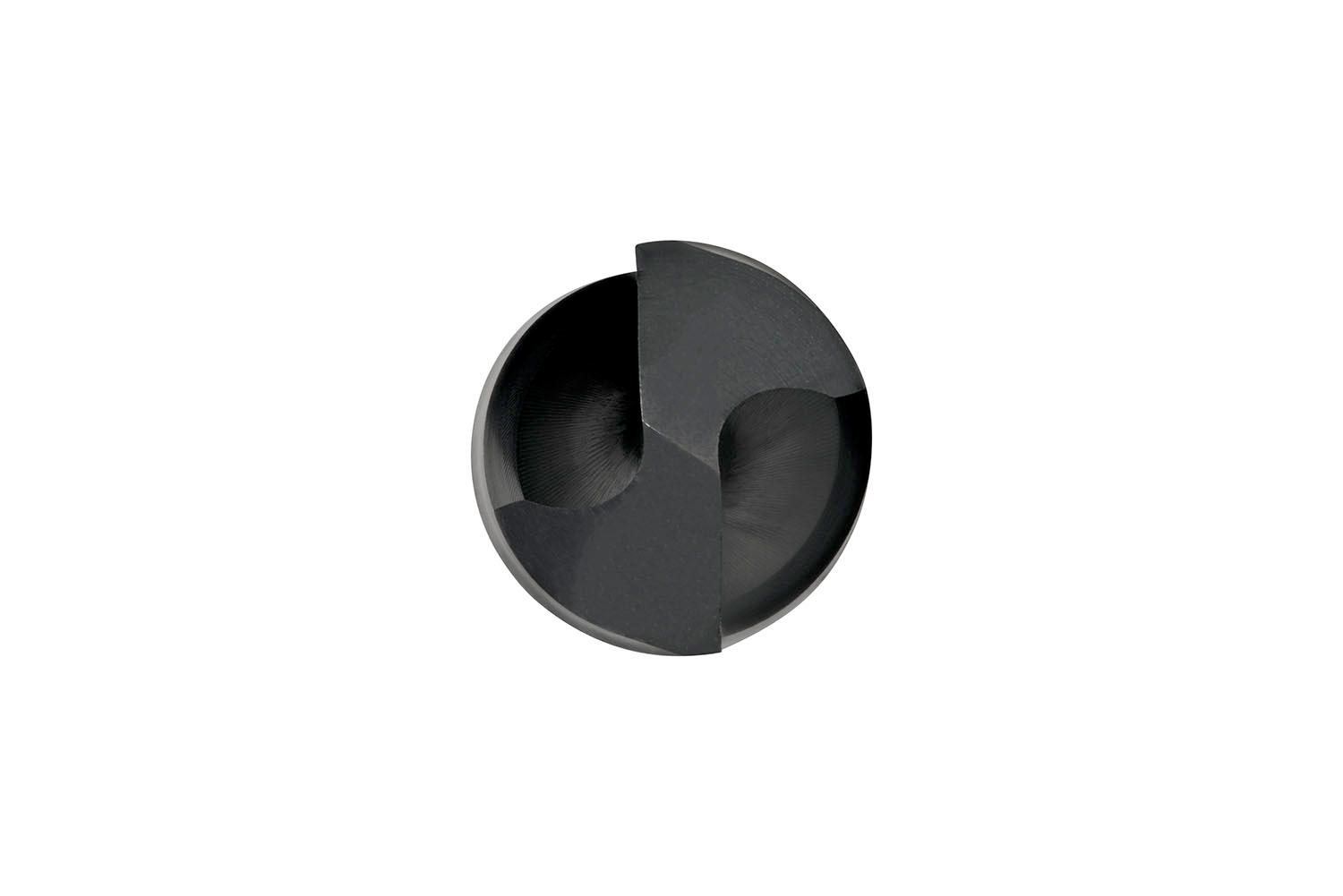

Extra long length drill with straight shank, diameter 0.0938″ (3/32) with an overall length of 125mm and flute length of 80mm according to BS 328 standard with 118° conical point, HSS with steam tempered finish for 10xD single pass drilling without peckin

Additional information

Weight 0.0306 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760173695
Product number (SAP): 86009473
Ordering code ANSI: A1253/32X125
Gross weight – grams: 11

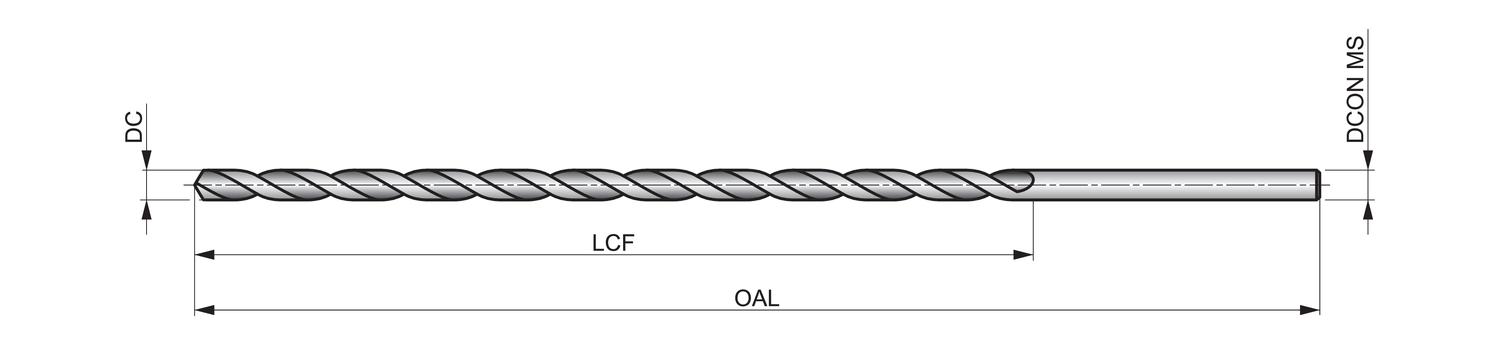

Cutting diameter – fractional inch (DC): 3/32
Cutting diameter – millimeter (DC): 2.38 mm
Cutting diameter – inch (DC): 0.0938 inch
Length chip flute – millimeter (LCF): 80 mm
Overall length – millimeter (OAL): 125 mm
Connection diameter – millimeter (DCON MS): 2.38 mm
Length chip flute – inch (LCF): 3.1496 inch
ISO: A1253/32X125

Brand

DORMER
