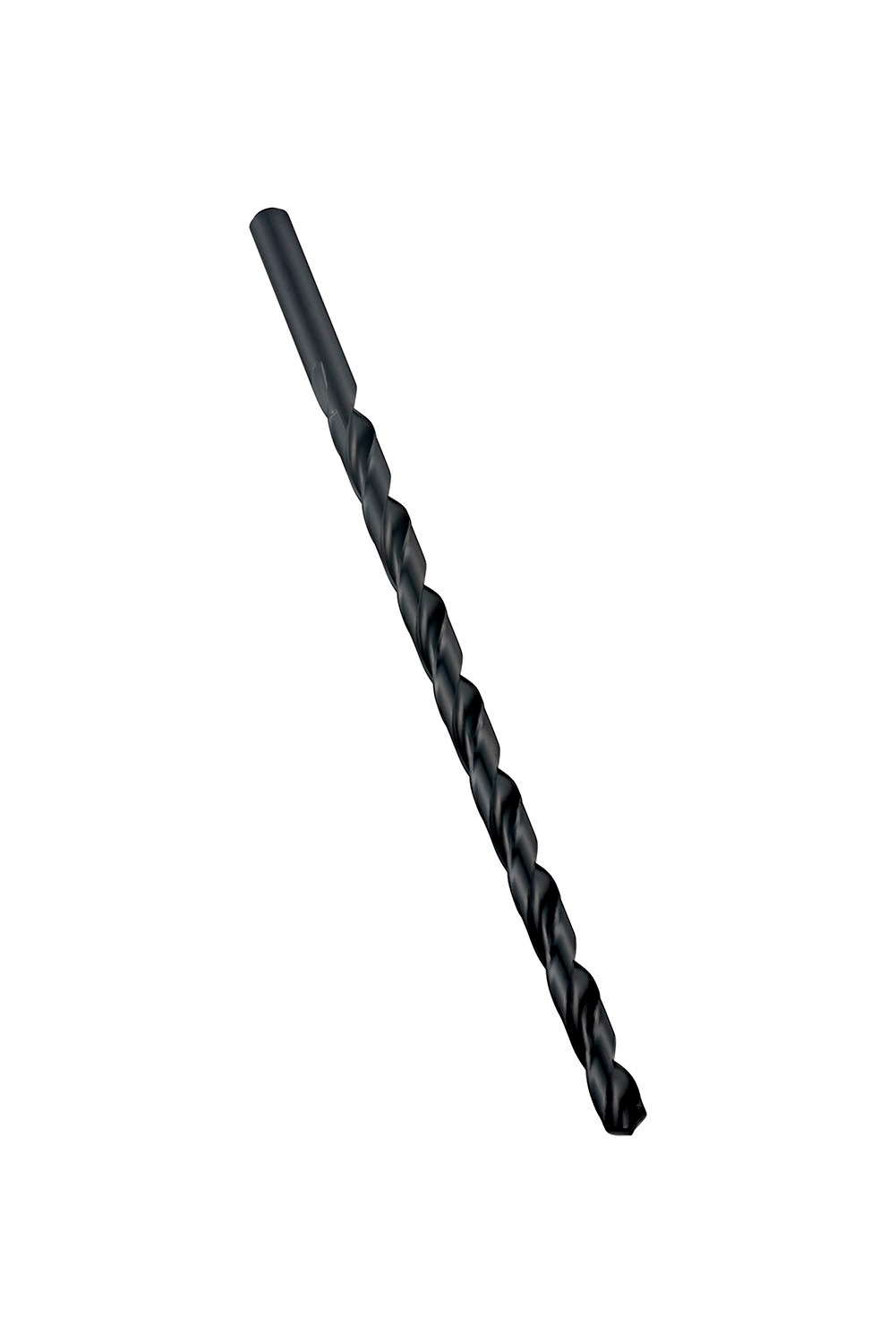

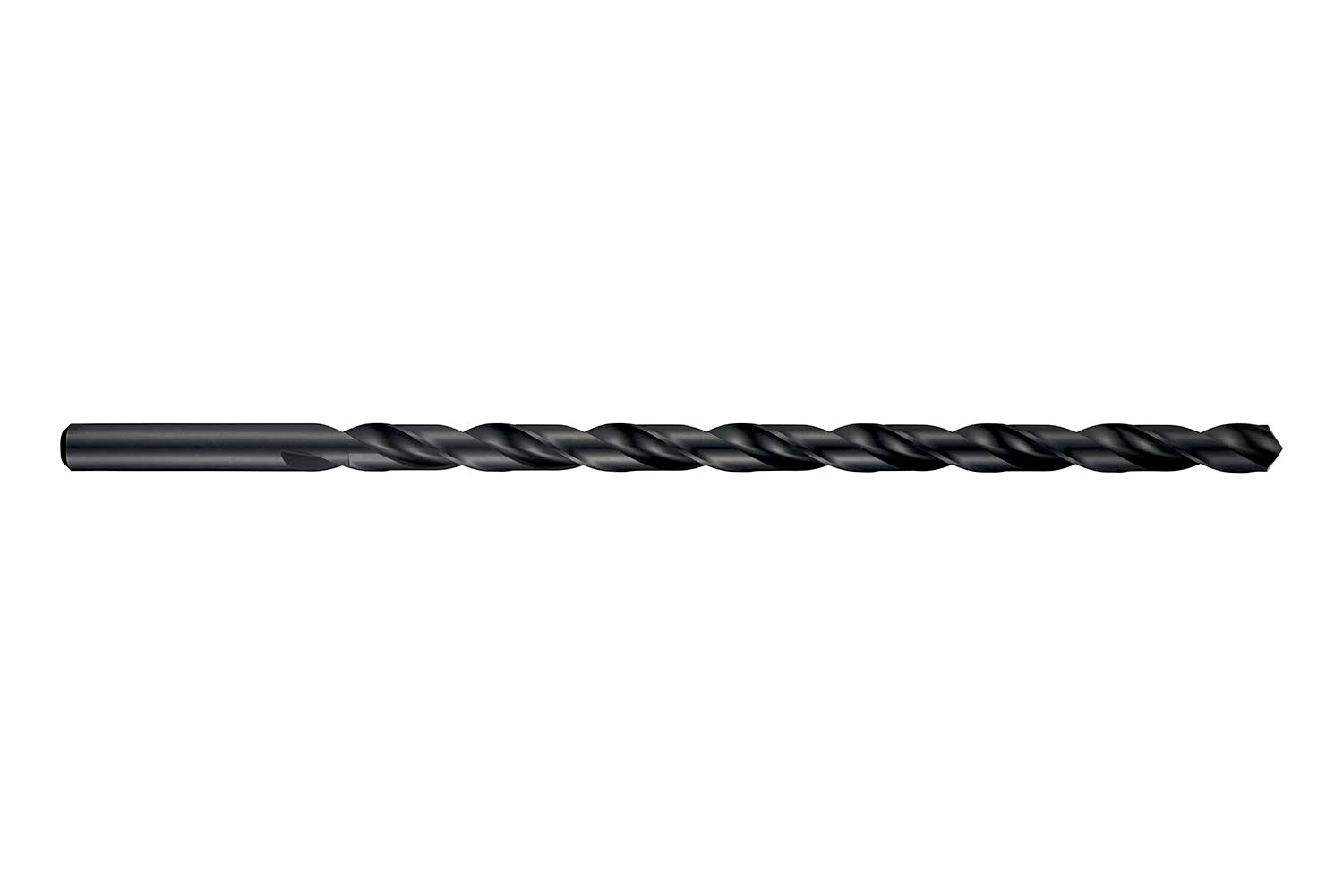

DORMER A1253/4X500 Extra length drill

Product Code: A1253/4X500

$336.50$305.91 Ex. GST

Product Code: A1253/4X500 SKU A1253/4X500 Categories , ,
DORMER A1253/4X500 Extra length drill

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

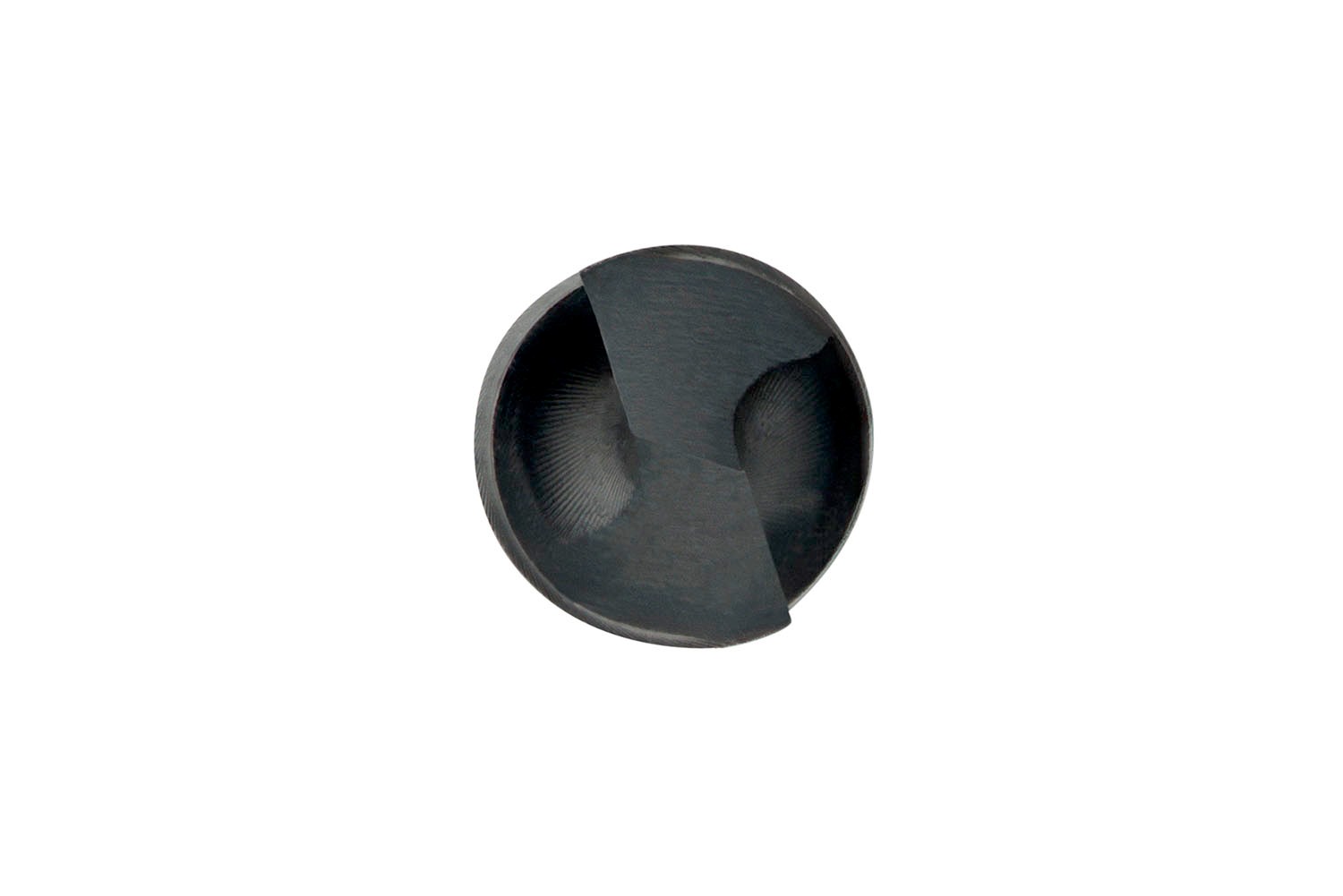

Extra long length drill with straight shank, diameter 0.7500″ (3/4) with an overall length of 460mm and flute length of 400mm according to BS 328 standard with 118° conical point, HSS with steam tempered finish for 10xD single pass drilling without peckin

Additional information

Weight 0.3267 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760214879
Product number (SAP): 86009476
Ordering code ANSI: A1253/4X500
Gross weight – grams: 650

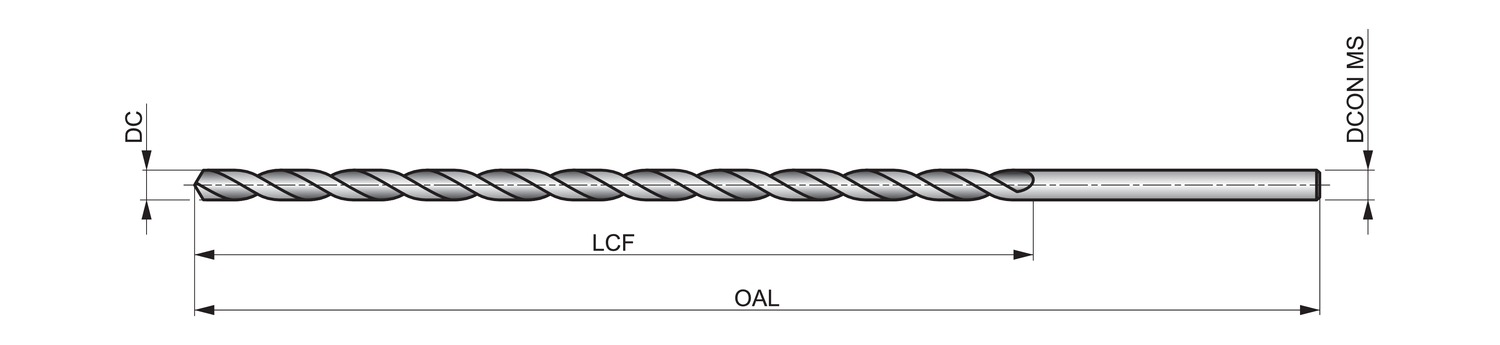

Cutting diameter – fractional inch (DC): 3/4
Cutting diameter – millimeter (DC): 19.05 mm
Cutting diameter – inch (DC): 0.75 inch
Length chip flute – millimeter (LCF): 400 mm
Overall length – millimeter (OAL): 460 mm
Connection diameter – millimeter (DCON MS): 19.05 mm
Length chip flute – inch (LCF): 15.748 inch
ISO: A1253/4X500

Brand

DORMER
