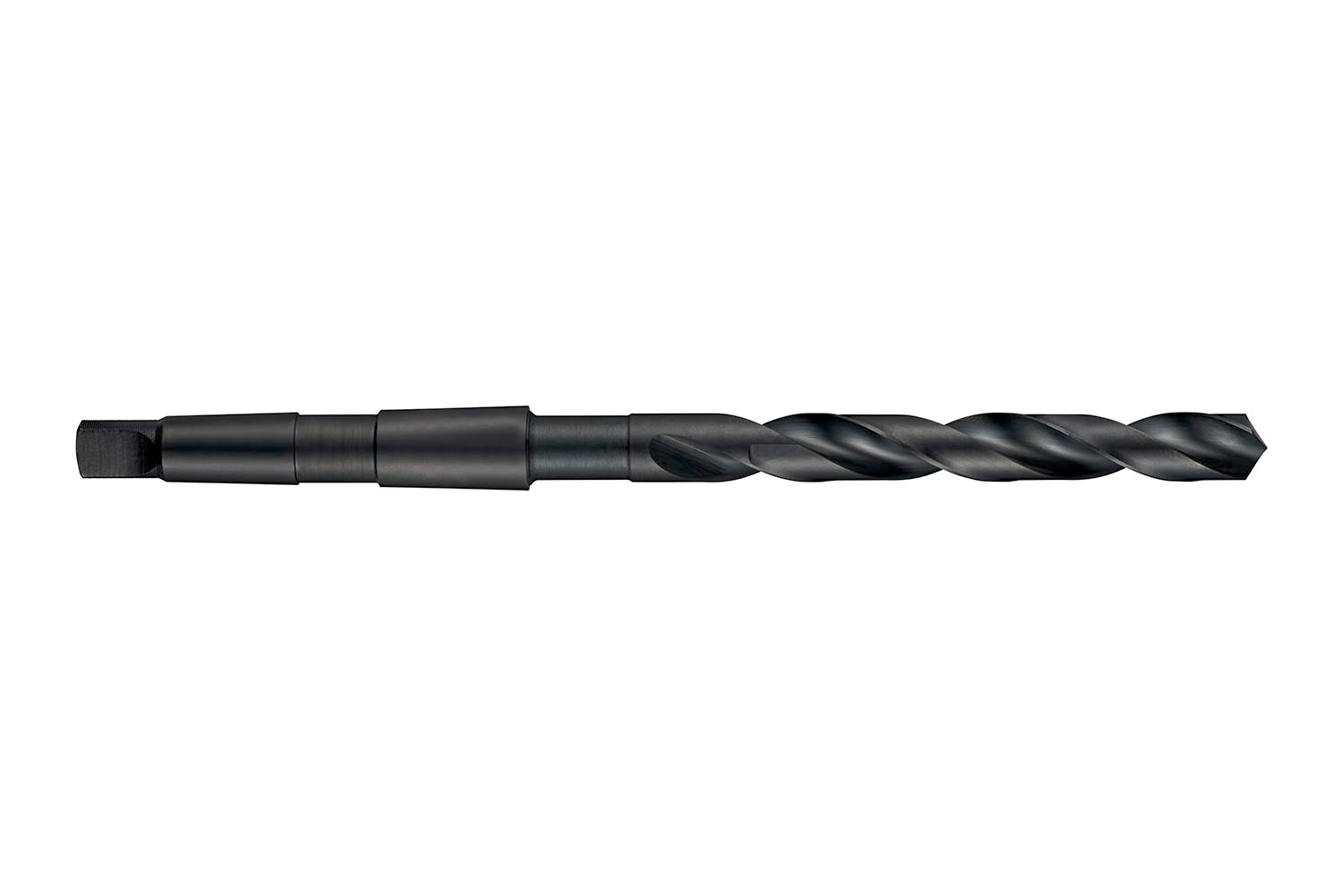

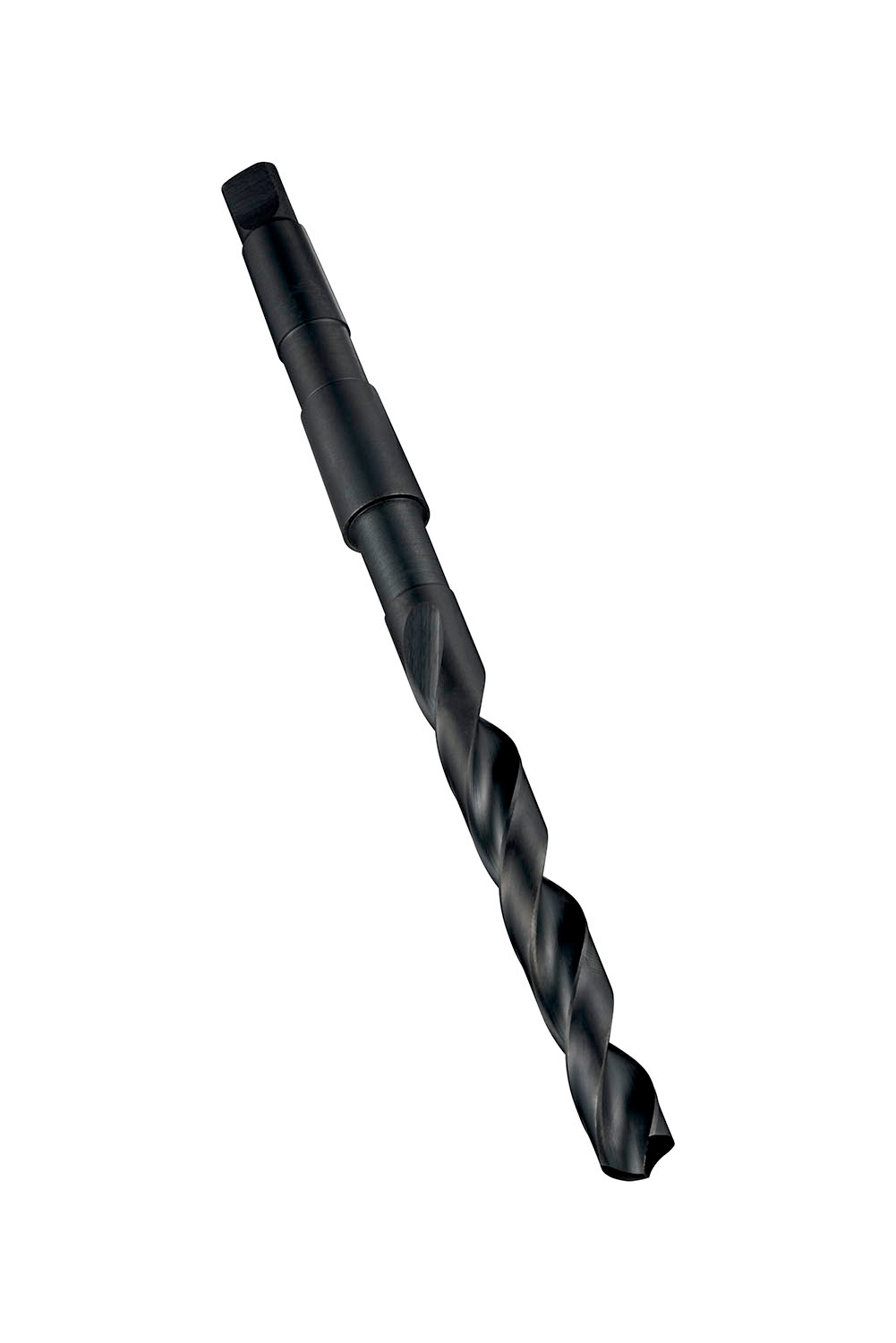

DORMER A1301/4 Taper Shank Drill

Product Code: A1301/4

$44.64$40.58 Ex. GST

Product Code: A1301/4 SKU A1301/4 Categories , ,
DORMER A1301/4 Taper Shank Drill

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Jobber length drill with taper shank, diameter 0.2500″ (1/4) with an overall length of 144mm and flute length of 63mm according to DIN 345 standard with 118° thinned conical point, HSS with steam tempered finish for 4xD drilling without pecking in steel

Additional information

Weight 0.0433 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760022610
Product number (SAP): 86009580
Ordering code ANSI: A1301/4
Gross weight – grams: 68.5

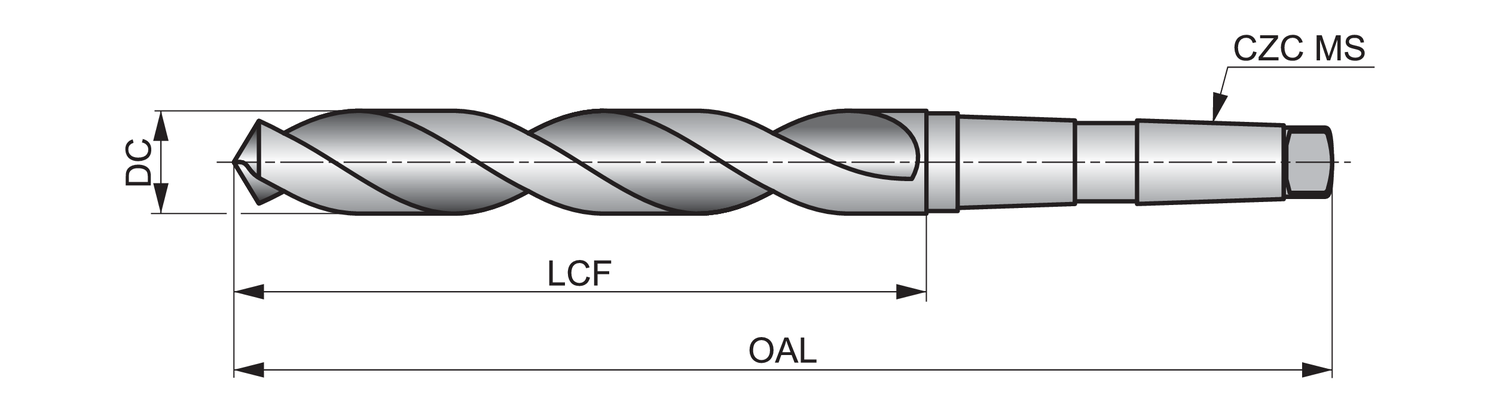

Cutting diameter – fractional inch (DC): 1/4
Cutting diameter – millimeter (DC): 6.35 mm
Cutting diameter – inch (DC): 0.25 inch
Length chip flute – millimeter (LCF): 63 mm
Overall length – millimeter (OAL): 144 mm
Connection size code machine side (CZC MS): MK 1
Length chip flute – inch (LCF): 2.4803 inch
ISO: A1301/4

Brand

DORMER
